HEADLIGHT

TSB Revision

CHASSIS ELECTRICAL

54-151

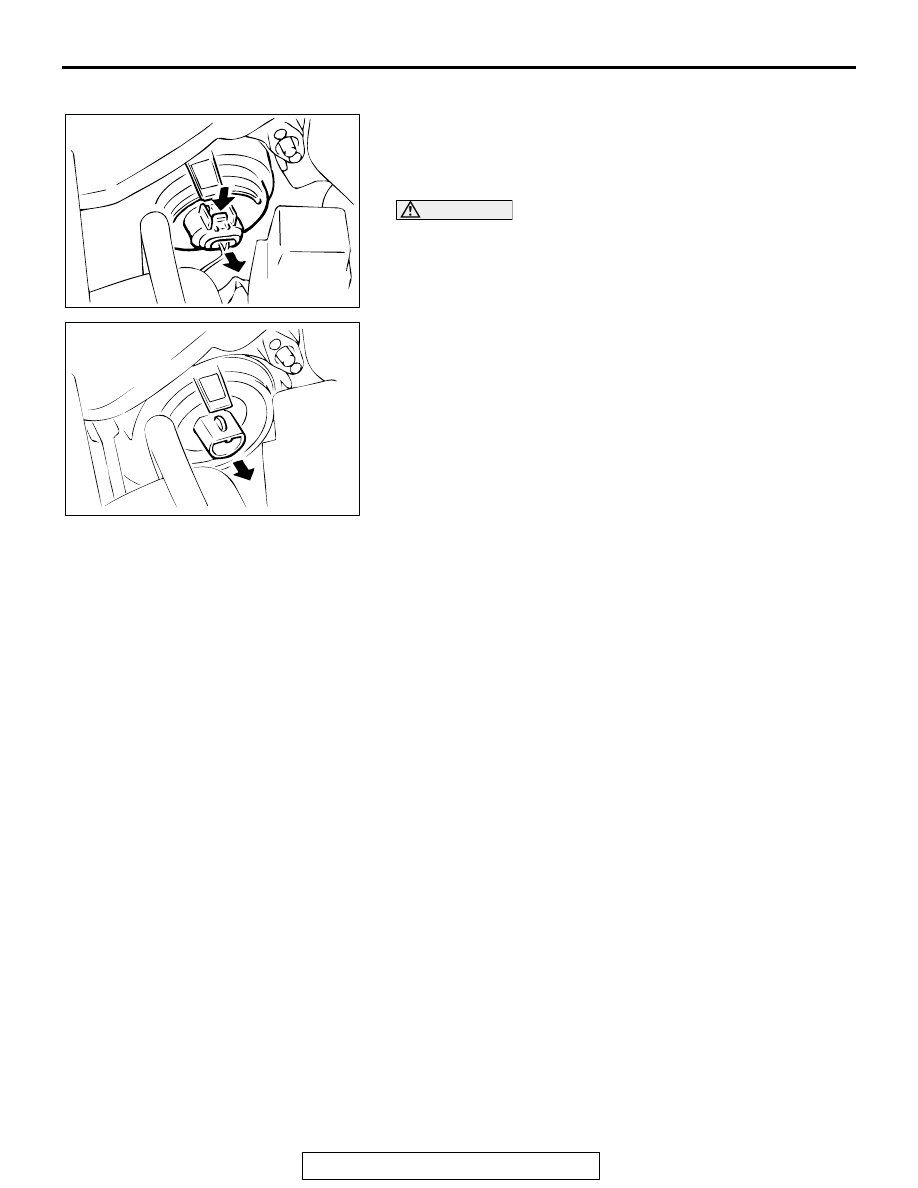

REPLACEMENT OF REPLACEABLE BULB

M1542001300335

1. When replacing the right side headlight bulb, remove the

resonator.

2. Disconnect the connector.
3. Remove the locking cap by turning it counterclockwise.

CAUTION

Do not touch the surface of the bulb with hands or dirty
gloves as the bulb may pop after a short time. If the sur-
face does become dirty, clean it with alcohol or thinner,
and let it dry thoroughly before installing.
4. Remove the light socket, and then remove the bulb.

AC002780AB

AC002781AB

HEADLIGHT

TSB Revision

CHASSIS ELECTRICAL

54-152

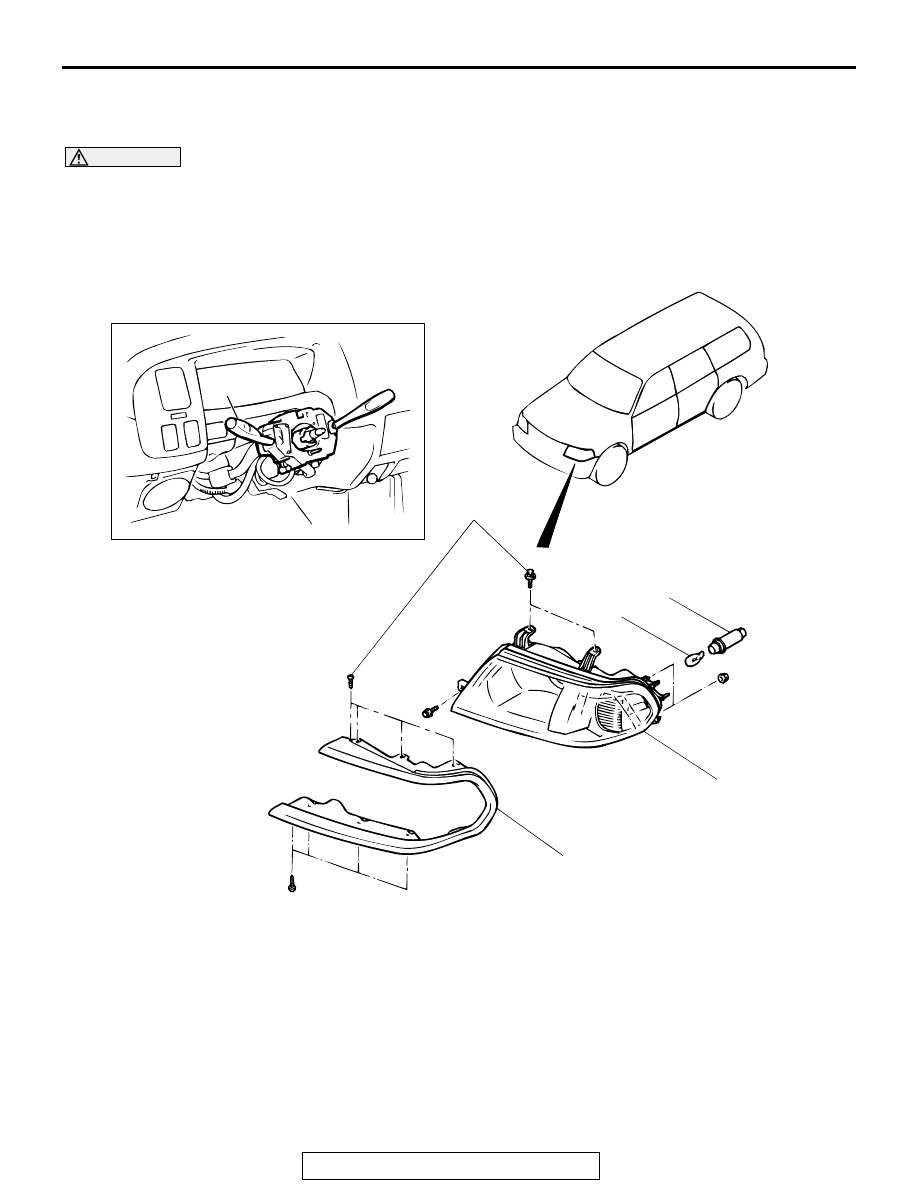

HEADLIGHT

 REMOVAL AND INSTALLATION

M1542001800277

WARNING

•

Before removal of the air bag module and clock spring, refer to GROUP 52B, SRS Service
Precautions (

P.52B-17

) and Air Bag Module and Clock Spring (

P.52B-84

).

•

When removing and installing the steering wheel, do not let it bump against the air bag
module.

AC309544AB

2

3

4

4.9 N·m
43 in-lb

1

5

1. LIGHTING SWITCH AND

DIMMER/PASSING SWITCH
HEADLIGHT REMOVAL STEPS

• RADIATOR GRILL (REFER TO

GROUP 51, GRILL, MOLDING AND
GARNISH

P.51-6

.)

• SPLASH SHIELD (REFER TO

GROUP 42, FENDER

P.42-9

.)

2. HEADLIGHT

<<A>>

3. HEADLIGHT BEZEL
4. BULB SOCKET
5. BULB

HEADLIGHT REMOVAL STEPS

HEADLIGHT

TSB Revision

CHASSIS ELECTRICAL

54-153

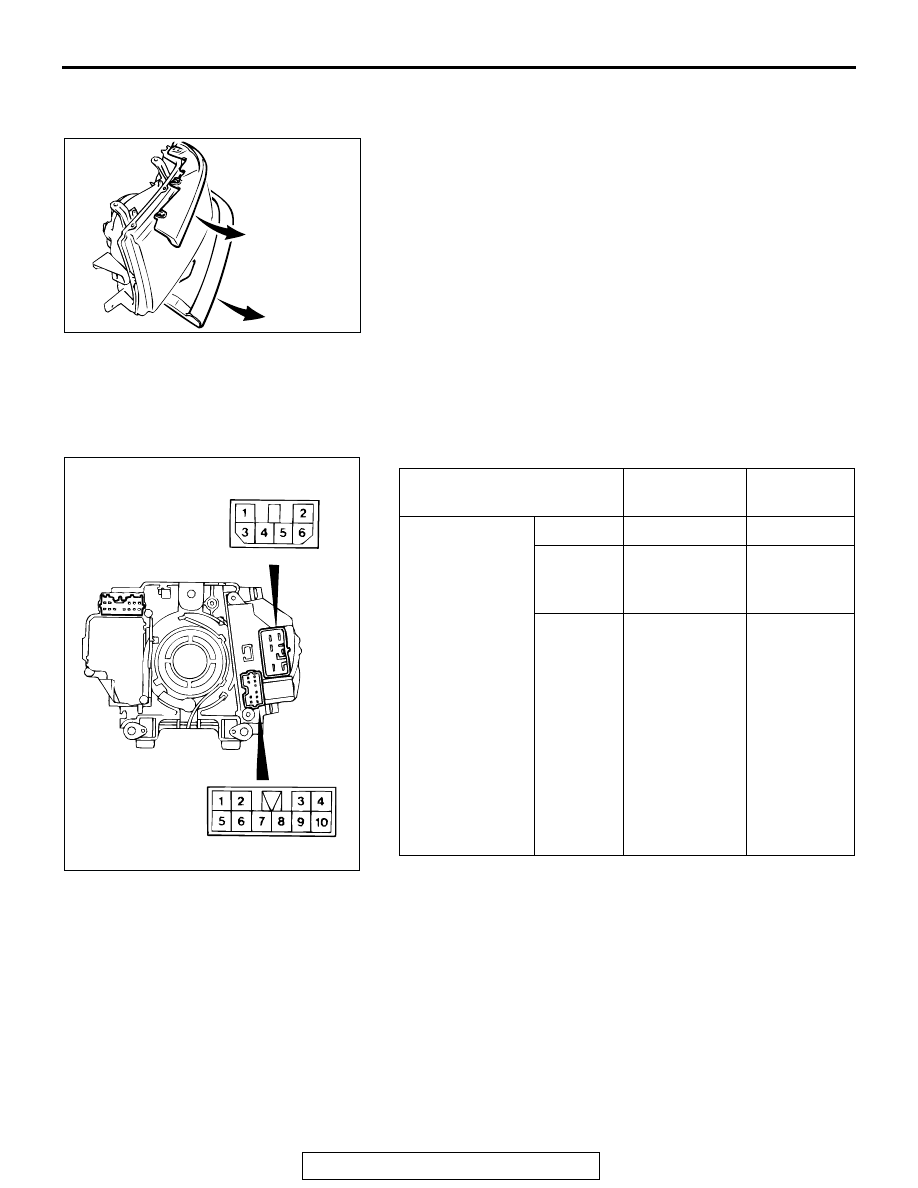

REMOVAL SERVICE POINT

.

<<A>> HEADLIGHT BEZEL REMOVAL
Using care not to damage the engagement with the headlight,
remove the headlight bezel little by little starting from the body
center.

INSPECTION

M1542011201064

LIGHTING SWITCH AND DIMMER/PASSING
SWITCH CONTINUITY CHECK

AC002783 AB

SWITCH POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

Lighting switch

OFF



−



−

TAIL

Connector
D-24 terminal
No.5 and 7

Less than 2
ohms

HEAD

• Connector

D-24
terminal
No.5 and 7

• Connector

D-22
terminal
No.1 and
connector
No. D-24
terminal
No.6

Less than 2
ohms

AC002784

CONNECTOR: D-24

CONNECTOR: D-22

AC

HEADLIGHT

TSB Revision

CHASSIS ELECTRICAL

54-154

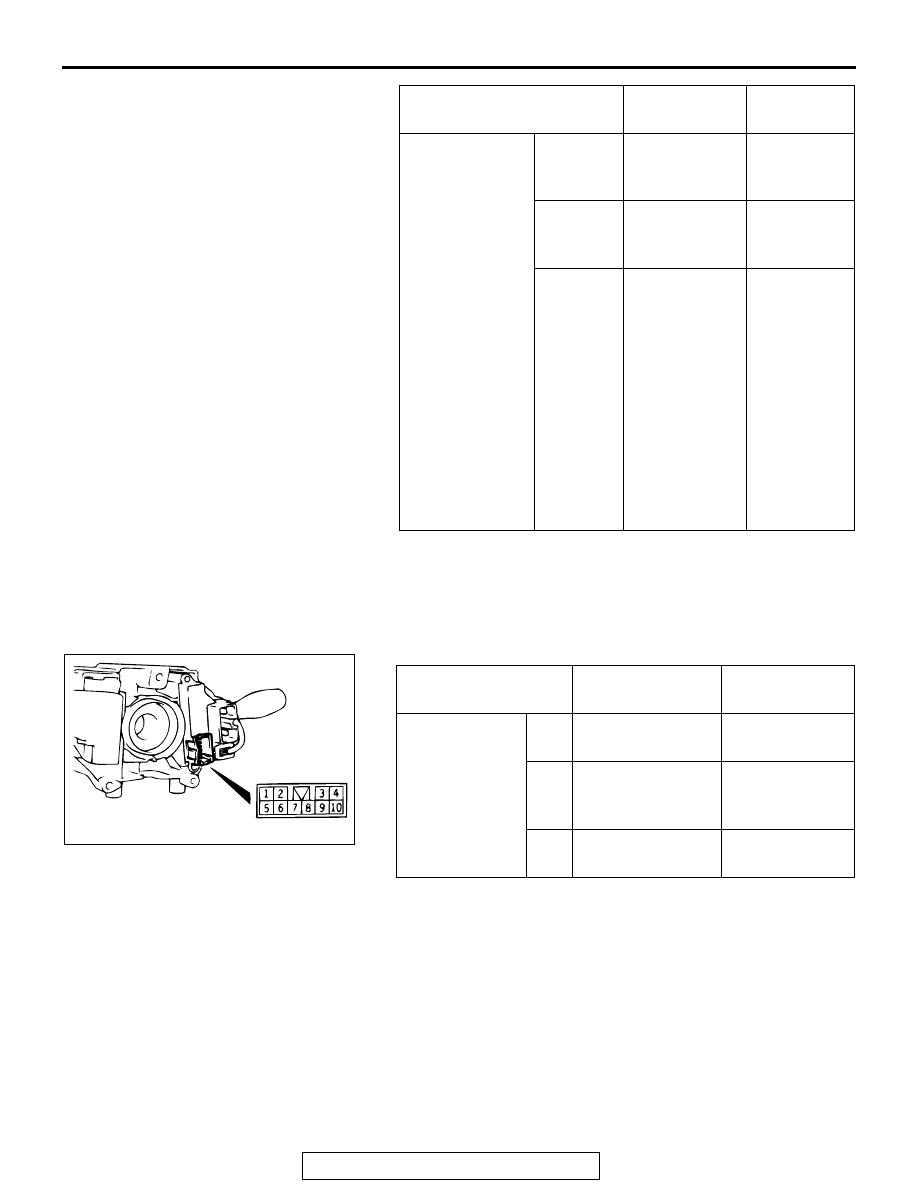

NOTE: * indicates continuity with the dimmer switch in the
lower beam position.

TURN-SIGNAL LIGHT SWITCH CONTINUITY
CHECK

Dimmer/Passing
switch

LOWER

Connector
D-22 terminal
No.3 and 4

Less than 2
ohms

UPPER

Connector
D-22 terminal
No.4 and 5

Less than 2
ohms

PASSING

• Connector

D-22
terminal
No.1 and 2

• Connector

D-22
terminal
No.3 and 4

• Connector

D-22
terminal
No.3 and 4
and 6*

Less than
2 ohms

SWITCH POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

SWITCH POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

Turn-signal light
switch

RH

8

− 9

Less than 2
ohms

OFF 8

− 9

3

− 8

3

− 9

Open circuit

LH

3

− 8

Less than 2
ohms

AC002785 AB
