HEADLIGHT

TSB Revision

CHASSIS ELECTRICAL

54-147

STEP 12. Check the connector between DRL relay (lower)
connector A-97, DRL relay (upper) connector A-98 and
column switch connector D-22 for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.

Q: Are connector between DRL relay (lower) connector

A-97, DRL relay (upper) connector A-98 and column
switch connector D-22 in good condition?
YES : Go to Step 13.
NO : Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

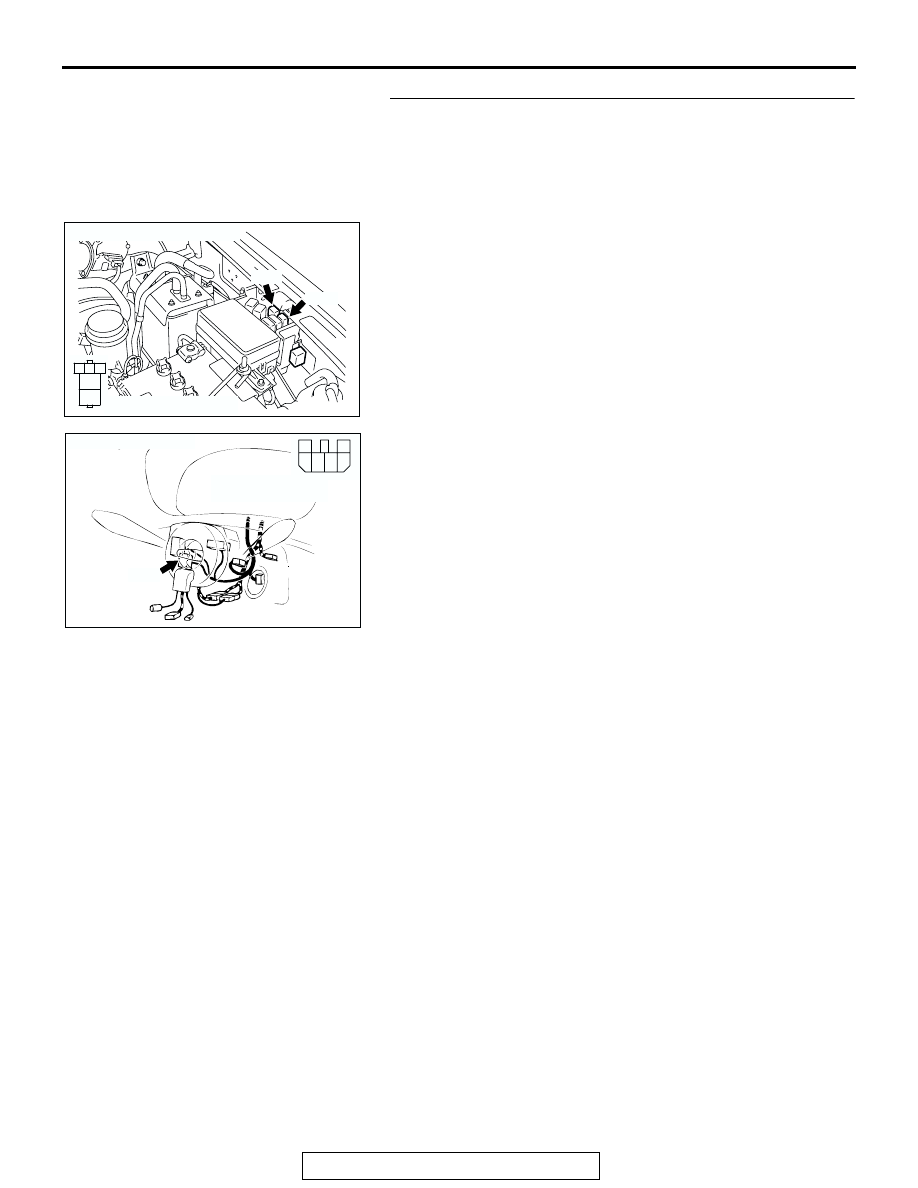

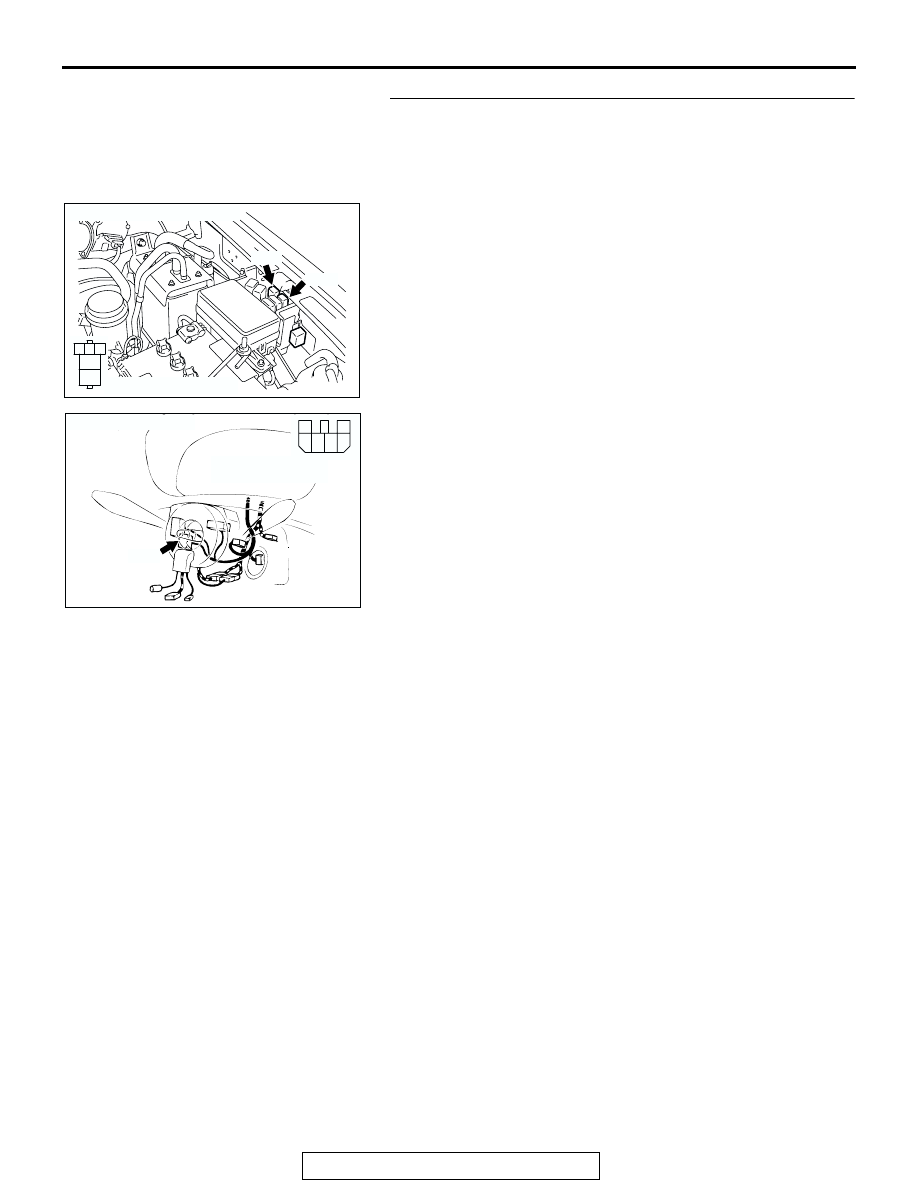

AC202575

A-97

A-98

2 1

CONNECTORS: A-97, A-98

COMPONENT SIDE

AC202576

D-22

CONNECTOR: D-22

COMPONENT SIDE

HEADLIGHT

TSB Revision

CHASSIS ELECTRICAL

54-148

STEP 13. Check the harness wires between DRL relay
(lower) connector A-97 (terminal No.1 and 2), DRL relay
(upper) connector A-98 (terminal No.2) and column switch
connector D-22 (terminal No.3 and 6)for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.

Q: Are harness wires between DRL relay (lower) connector

A-97, DRL relay (upper) connector A-98 and column
switch connector D-22 in good condition?
YES : Replace the daytime running light-ECU.
NO : Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

AC202575

A-97

A-98

2 1

CONNECTORS: A-97, A-98

COMPONENT SIDE

AC202576

D-22

CONNECTOR: D-22

COMPONENT SIDE

HEADLIGHT

TSB Revision

CHASSIS ELECTRICAL

54-149

ON-VEHICLE SERVICE

HEADLIGHT AIMING

M1542000900301

PRE-AIMING INSTRUCTIONS

1. Inspect for badly rusted or faulty headlight assemblies.
2. These conditions must be corrected before a satisfactory

adjustment can be made.

3. Inspect tire inflation, and adjust if necessary.
4. If the fuel tank is not full, place a weight in luggage room of

vehicle to simulate weight of a full tank [3 kg (6.5 pounds)
per gallon.]

5. There should be no other load in the vehicle other than

driver or substituted weight of approximately 70 kg (150
pounds) placed in driver's position.

6. Thoroughly clean headlight lenses.
7. Place the vehicle on a level floor, perpendicular to a flat

screen 7.62 m (25.0 feet) away from the bulb center-marks
on the headlight lens.

8. Rock vehicle sideways to allow vehicle to assume its normal

position.

9. Bounce the front suspension through three (3) oscillations

by applying the body weight to hood or bumper.

10.Four lines of adhesive tape (or equivalent markings) are

required on screen or wall:

(1) Position a vertical tape or mark so that it is aligned with

the vehicle center line.

(2) Measure the distance from the center-marks on the

headlight lens to the floor. Transfer the measurement to
the screen. Horizontal tape or mark on the screen is for
reference of vertical adjustment.

(3) Measure the distance from the center line of the vehicle

to the center of each headlight. Transfer the
measurement to the screen. Vertical tape or mark on the
screen with reference to the center line of each headlight
bulb.

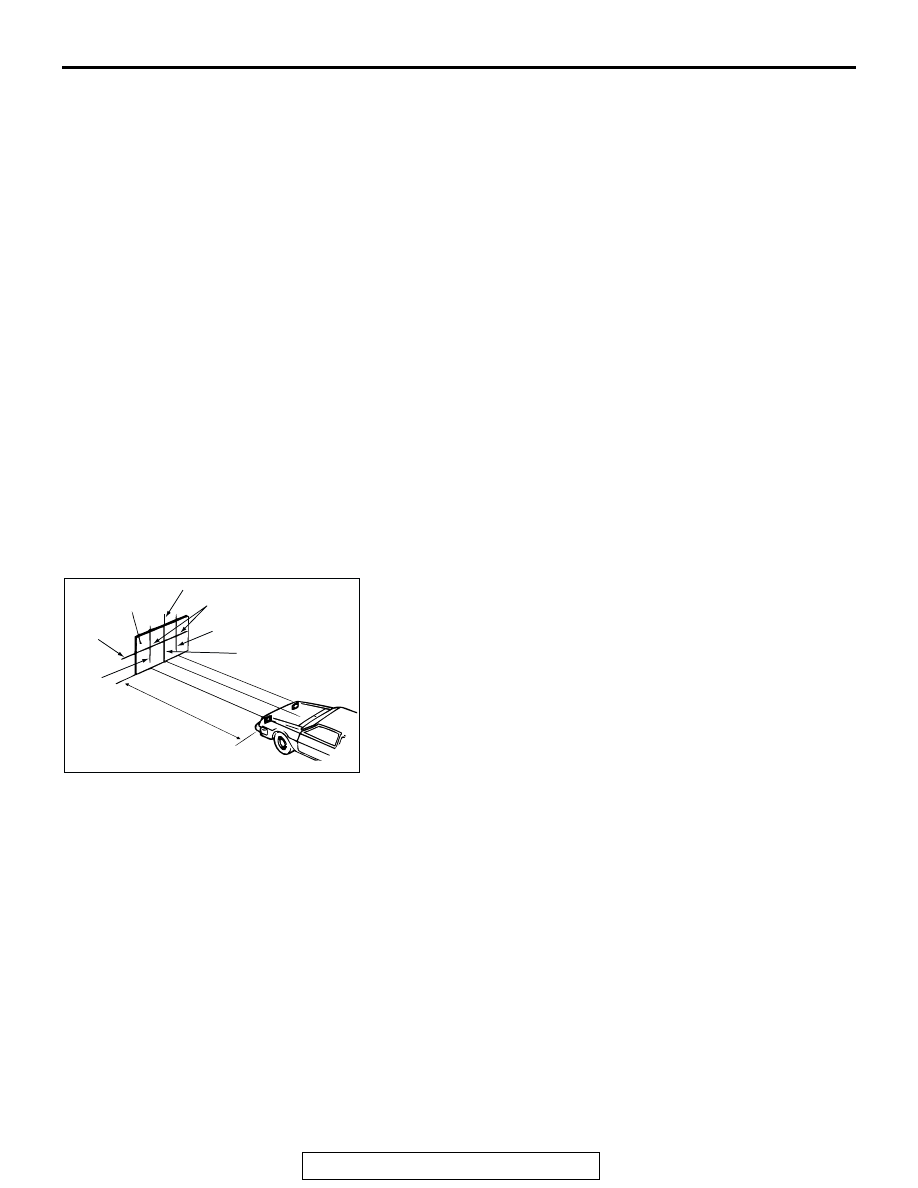

AC005167

(1)

(2)

(3)

HEADLIGHT CENTER

VEHICLE CENTER
LINE

SCREEN

(3)

7.62m (25.0 ft)

HEADLIGHT

TSB Revision

CHASSIS ELECTRICAL

54-150

HEADLIGHT ADJUSTMENT

1. The low beam headlight will project on the screen upper

edge of the beam (cut-off).

2. Turn the adjusting screws to achieve the specified low-beam

cut-off location on the aiming screen.

Standard value:
(Vertical direction) Horizontal center line

± 50mm

(

± 2.0 inches)

3. When adjusting headlight, disconnect the other headlight

harness.

CAUTION

Do not cover a headlight for more than three minutes or
the plastic headlight lens will be deformed.
4. There is no horizontal aim adjustment. Horizontal aim is

preset and does not require adjustment. High-beam pattern
should be correct when the low-beams are adjusted
properly.

LUMINOUS INTENSITY MEASUREMENT

M1542001000259

Using a photometer, and following its manufacturer's instruction
manual, measure the headlight intensity and check to be sure
that the limit value is satisfied.

Limit: 40,000 cd or more

NOTE: When measuring the intensity, maintain an engine
speed of 2,000 r/min, with the battery fully charged.
There may be special local regulations pertaining to headlight
intensity. Be sure to make any adjustments necessary to satisfy
such regulations.
If an illuminometer is used to make the measurements, convert
its values to photometer values by using the following formula.

I = Er2 Where:

• I = intensity (cd)

• E = illumination (lux)

• r = distance (m) from headlights to illuminometer

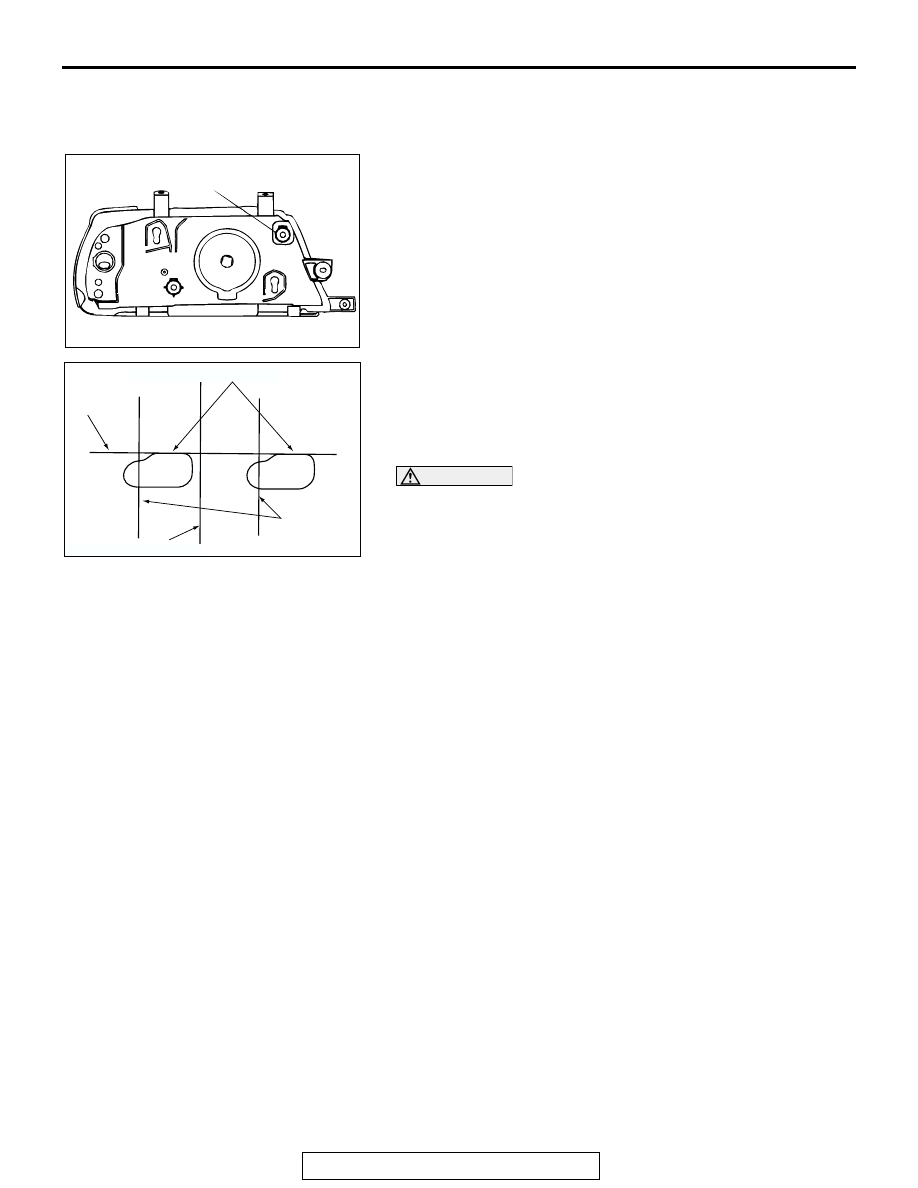

AC002778 AB

VERTICAL ADJUSTING
SCREW

AC005166

BEAM

HEADLIGHT
CENTER

LOW-BEAM CUT-OFF

VEHICLE CENTER LINE

HEADLIGHT
CENTER
