FOG LIGHT

TSB Revision

CHASSIS ELECTRICAL

54-159

INSPECTION

M1542011200328

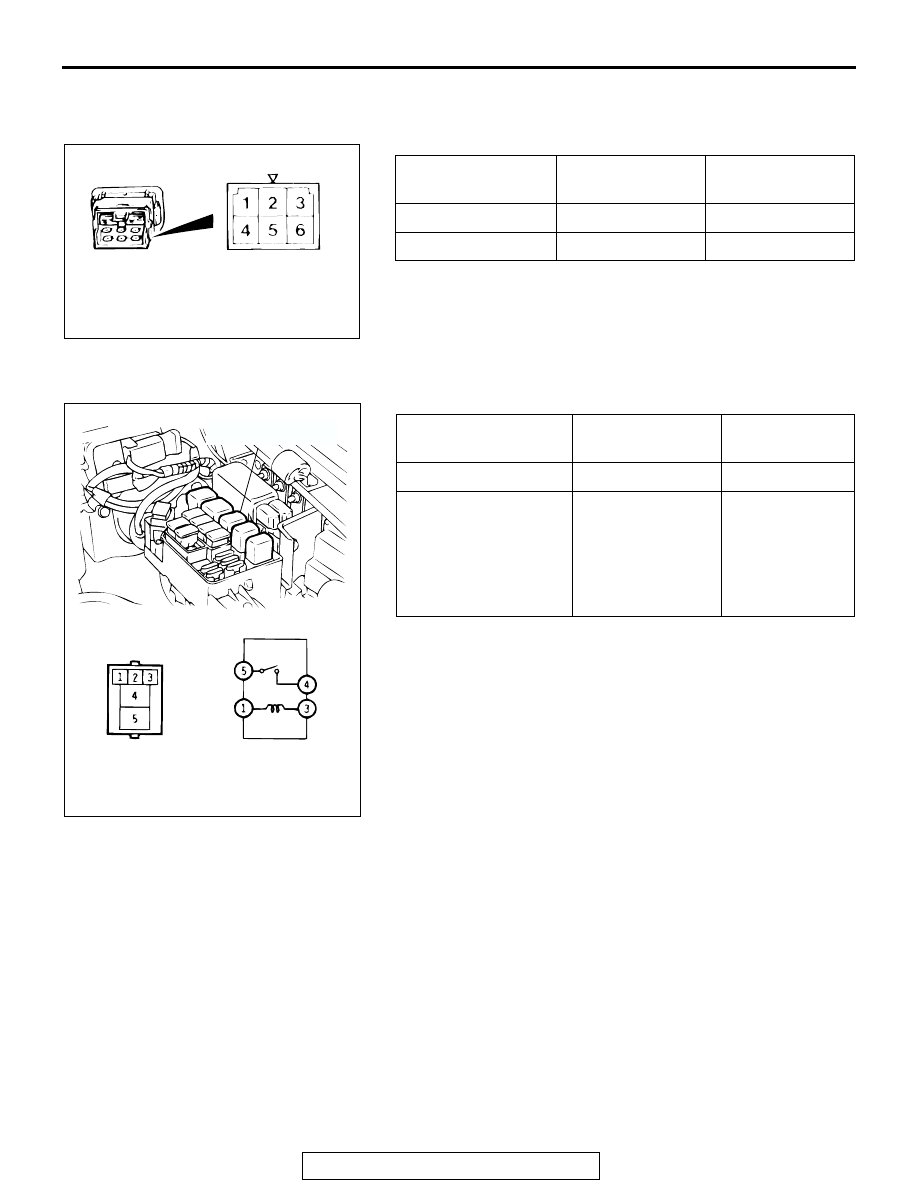

FOG LIGHT SWITCH CONTINUITY CHECK

FOG LIGHT RELAY CHECK

SWITCH POSITION TESTER

CONNECTION

SPECIFIED
CONDITION

Released

1

− 2

Open circuit

Pressed

1

− 2

Less than 2 ohms

AC002792 AB

BATTERY VOLTAGE TESTER

CONNECTION

SPECIFIED
CONDITION

Not applied

4

− 5

Open circuit

• Connect terminal 3

to the positive
battery terminal

• Connect terminal 1

to the negative
battery terminal

4

− 5

Less than 2
ohms

AC003679

FOG LIGHT RELAY

AB

REAR COMBINATION LIGHT

TSB Revision

CHASSIS ELECTRICAL

54-160

REAR COMBINATION LIGHT

REAR COMBINATION LIGHT DIAGNOSIS

M1542000700802

The taillights are controlled by the light reminder
alarm function of the ETACS-ECU. For troubleshoot-
ing, refer to Headlight, Light Reminder Alarm Diag-
nosis-symptom Chart

P.54-124

.

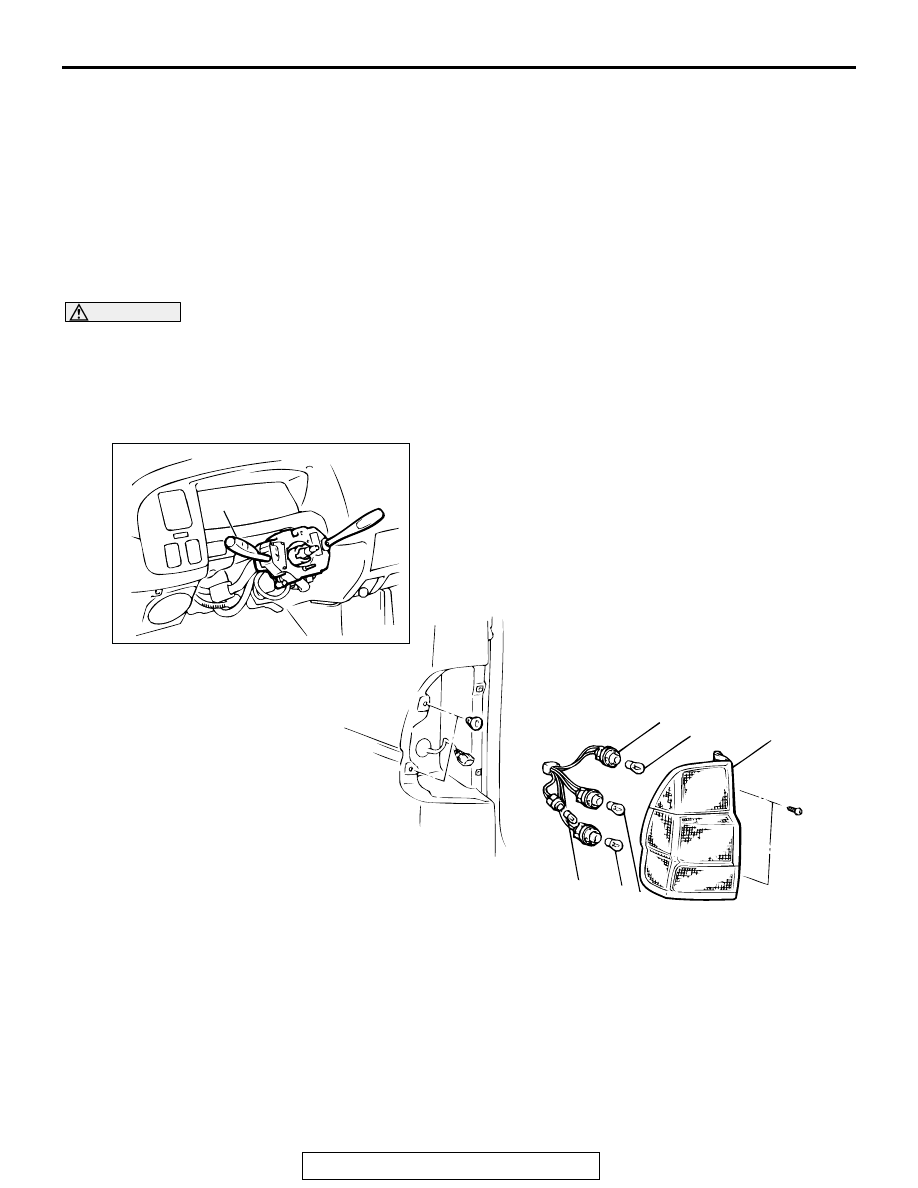

REAR COMBINATION LIGHT

REMOVAL AND INSTALLATION

M1542003900515

WARNING

•

Before removal of the air bag module, refer to GROUP 52B, SRS Service Precautions
(

P.52B-17

) and Air Bag Module and Clock Spring (

P.52B-84

).

•

When removing and installing the steering wheel, do not let it bump against the air bag
module.

AC309548AB

1

2

3

4

5

6

7

1. LIGHTING SWITCH

REAR COMBINATION LIGHT REMOVAL
STEPS

2. REAR COMBINATION LIGHT
3. BULB (FOR TAIL AND STOPLIGHT)
4. BULB (FOR SIDE MARKER LIGHT)

5. BULB (FOR BACKUP LIGHT)
6. BULB (FOR TURN-SIGNAL LIGHT)
7. BULB SOCKET ASSEMBLY

DOME LIGHT

TSB Revision

CHASSIS ELECTRICAL

54-161

DOME LIGHT

LIGHTING SYSTEM DIAGNOSIS

INTRODUCTION TO DOME LIGHT AND CARGO SPACE LIGHT DIAGNOSIS
<VEHICLES WITH KEYLESS ENTRY SYSTEM>

M1542010500519

With the dome light switch and cargo space light
switch in the "ROOM" position, the ETACS-ECU con-
trols the dome light and cargo space light operation
as follows:

• When a door is opened from outside or inside

[with the ignition switch turned to "LOCK" (OFF)]:
When a door is opened, the ETACS-ECU causes
the dome light and cargo space light to be illumi-
nated at the 100% intensity. When the door is
closed, it dims out the dome light to 65% intensity
and approximately 30 seconds later, turns out the
light completely. During this period (timer con-
trolled period), the dome light and cargo space
light goes out if the ignition switch is turned "ON"
or the doors are locked.

• When a door is opened or closed with the ignition

switch in the "ON" position: The dome light and
cargo space light illuminates at 100% intensity
when a door is opened and turned out when it is
closed.

• When no door is opened and the ignition key is

removed: When the ignition key is removed with
all the doors closed, the dome light and cargo
space light are illuminated at an intensity of 100%
and turned out approximately 30 seconds later.
During that time (time-controlled period), the
dome light and cargo space light goes out if the
ignition key inserted and turned to "ON" or the
door locking system is activated.

• Dome light's and cargo space light's answerback

operation in response to door lock control by key-
less entry system: To allow the driver to ascertain
the result of the door locking/unlocking control
action by the use of the keyless entry system, the
ETACS-ECU causes the dome light and cargo
space light to blink twice when the doors are
locked through the system and to illuminate for
approximately15 seconds when the doors are
locked. The dome light's and cargo space light's
answerback operation in response to a keyless
entry by operation of the hazard warning lights.

DOME LIGHT AND CARGO SPACE LIGHT DIAGNOSTIC TROUBLESHOOTING
STRATEGY <VEHICLES WITH KEYLESS ENTRY SYSTEM>

M1542010600130

Use these steps to plan your diagnostic strategy. If
you follow them carefully, you will be sure that you
have exhausted most of the possible ways to find a
dome light and cargo space light fault.
1. Gather information from the customer.

2. Verify that the condition described by the

customer exists.

3. Find the malfunction by following the Symptom

Chart.

4. Verify that the malfunction is eliminated.

SYMPTOM CHART

M1542009100205

SYMPTOM

INSPECTION
PROCEDURE

REFERENCE PAGE

The dome light and cargo space light does not
illuminate.

1



P.54-162

The dome light and cargo space light dimming
function does not work normally.

2



P.54-171

DOME LIGHT

TSB Revision

CHASSIS ELECTRICAL

54-162

SYMPTOM PROCEDURES

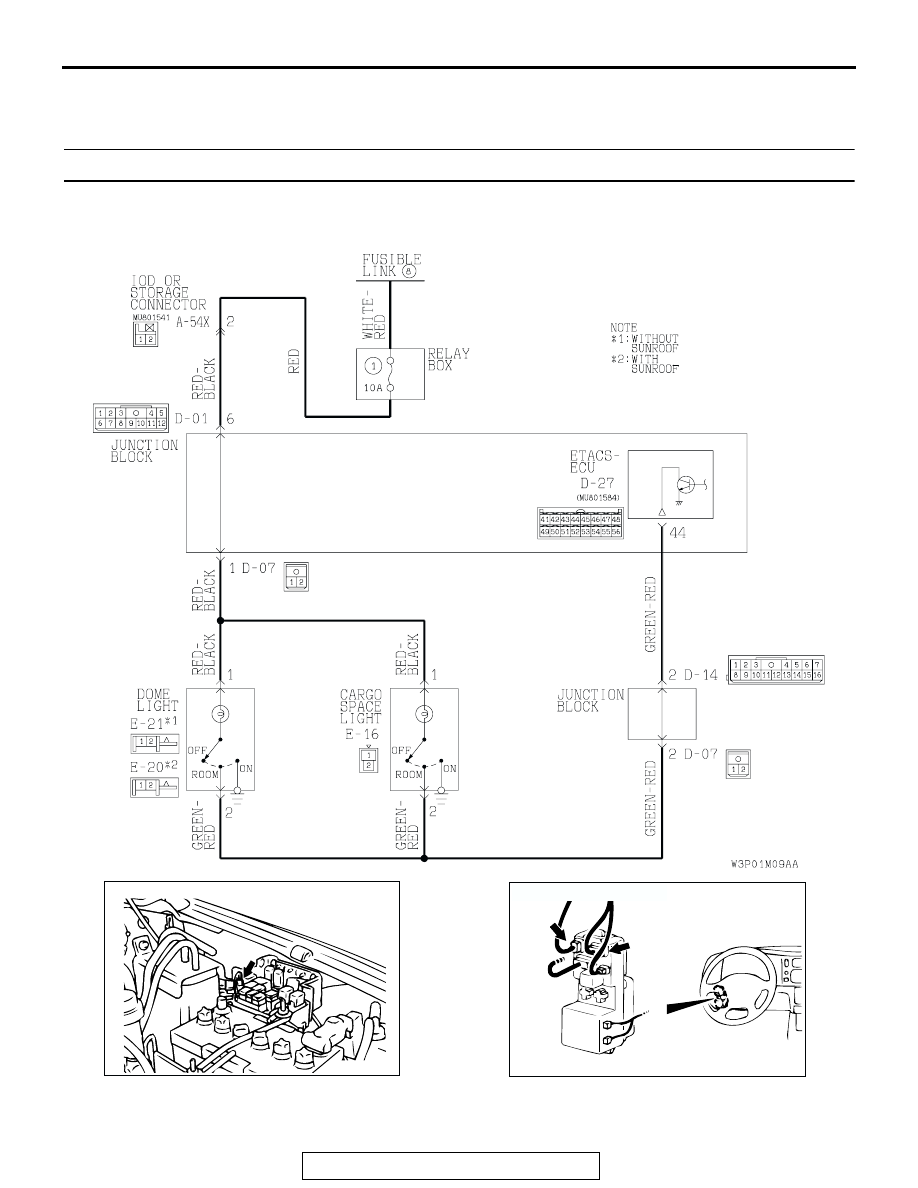

INSPECTION PROCEDURE 1: The Dome Light and Cargo Space Light does not Illuminate.

Dome Light and Cargo Space Light Drive Circuit

AC003431

CONNECTOR: A-54X

A-54X

AC

AC003534

AC

CONNCTORS: D-01, D-07

D-01

D-07

JUNCTION BLOCK (FRONT)
