DOOR

TSB Revision

BODY

42-123

SYMPTOM PROCEDURES

INSPECTION PROCEDURE 1: Water Leak Through Door Window Glass

DIAGNOSIS

STEP 1. Check the door window glass
installation.

Q: Is the door window glass installed correctly?

YES :

Go to Step 2.

NO :

Adjust the door window glass. (Refer to

P.42-129

.) Then go to Step 3.

STEP 2. Check the clearance at the top of the
window glass.

Q: Is the clearance at the top of the window glass

correct?
YES :

Go to Step 3.

NO :

Adjust the door window glass. (Refer to

P.42-129

.) Then go to Step 3.

STEP 3. Retest the system.

Q: Is any water leaking?

YES :

Return to Step 1.

NO :

This procedure is complete.

INSPECTION PROCEDURE 2: Door Window Malfunction

DIAGNOSIS

STEP 1. Check the door window installation
condition.

Q: Is the door window installation condition good?

YES :

Go to Step 2.

NO :

Adjust door window glass. (Refer to

P.42-129

.) Then go to Step 4.

STEP 2. Check the door sash.

Q: Is the door sash in good condition?

YES :

Go to Step 3.

NO :

Repair or replace door sash, then go to Step
4.

STEP 3. Inspect the window regulator assembly.

Q: Is the window regulator assembly in good

condition?
YES :

Go to Step 4.

NO :

Replace door window regulator assembly,
then go to Step 4.

STEP 4. Retest the system.

Q: Does the door window operate correctly?

YES :

This procedure is complete.

NO :

Return to Step 1.

DOOR

TSB Revision

BODY

42-124

INSPECTION PROCEDURE 3: Water Leak through Door Edge

DIAGNOSIS

STEP 1. Check the weatherstrip.

Q: Is the weatherstrip in good condition?

YES :

Go to Step 2.

NO :

Replace weatherstrip, then go to Step 3.

STEP 2. Check door fit (alignment).

Q: Is the door fit (alignment) correct?

YES :

Go to Step 3.

NO :

Adjust door fit. (Refer to

P.42-129

.) Then go

to Step 3.

STEP 3. Retest the system.

Q: Is any water leaking?

YES :

Return to Step 1.

NO :

This procedure is complete.

INSPECTION PROCEDURE 4: Water Leak From Door Center

DIAGNOSIS

STEP 1. Check the drain hole.

Q: Is the drain hole clogged?

YES :

Cleaning door hole, then go to Step 3.

NO :

Go to Step 2.

STEP 2. Check the waterproof film.

Q: Is the waterproof film in good condition?

YES :

Go to Step 3.

NO :

Repair or replace waterproof, then go to
Step 3.

STEP 3. Retest the system.

Q: Is any water leaking?

YES :

Return to Step 1.

NO :

This procedure is complete.

INSPECTION PROCEDURE 5: Door Hard to Open

DIAGNOSIS

STEP 1. Adjust the latch and striker engagement.
(Refer to

P.42-129

.)

Q: Is the latch and striker engagement adjusted?

YES :

Go to Step 2.

NO :

Adjust the door fit. (Refer to

P.42-129

.)

Then go to Step 4.

STEP 2. Check for possible lock rod damage.

Q: Is the possible lock rod damaged?

YES :

Repair or replace the possible lock rod, then

go to Step 4.

NO :

Go to Step 3.

STEP 3. Check door handle flexibility (amount of
movement of handle required to open door).

Q: Is the door handle flexibility good?

YES :

Go to Step 4.

NO :

Adjust inside handle play (Refer to

P.42-131

) and adjust outside handle play

P.42-131

). Then go to Step 4.

STEP 4. Retest the system.

Q: Does the door open easily?

YES :

This procedure is complete.

NO :

Return to Step 1.

DOOR

TSB Revision

BODY

42-125

INSPECTION PROCEDURE 6: Door does not Open or Close Completely.

DIAGNOSIS

STEP 1. Check the door hinge position.

Q: Is the door hinge position correct?

YES :

Go to Step 2.

NO :

Adjust door hinge position. (Refer to

P.42-129

.) Then go to Step 4.

STEP 2. Check the door.

Q: Is the door in good condition?

YES :

Go to Step 3.

NO :

Repair or replace door assembly, then go to
Step 4.

STEP 3. Check the grease.

Q: Is the door check or door hinge grease sufficient?

YES :

Go to Step 4.

NO :

Apply the grease, then go to Step 4.

STEP 4. Retest the system.

Q: Does the door open and close correctly?

YES :

This procedure is complete.

NO :

Return to Step 1.

INSPECTION PROCEDURE 7: Uneven Gap Between Body

.

DIAGNOSIS
Adjust the door fit. (Refer to

P.42-130

.) Then check

that the gap has been improved.

INSPECTION PROCEDURE 8: Wind Noise Around Door

DIAGNOSIS

STEP 1. Check the weatherstrip for holding
condition.

Q: Is the weatherstrip and molding installed properly?

YES :

Go to Step 2.

NO :

Replace the weatherstrip and molding.
Then go to Step 5.

STEP 2. Check the weatherstrip and molding for
installation condition.

Q: Is the weatherstrip installed properly?

YES :

Go to Step 3.

NO :

Replace the weatherstrip and molding.
Then go to Step 5.

STEP 3. Check the clearance.

Q: Is the clearance between the door glass and the

door weatherstrip holder proper?
YES :

Go to Step 4.

NO :

Go to Step 5.

STEP 4. Check the door.

Q: Is the door deformed?

YES :

Repair or replace door assembly. Then go

to Step 5.

NO :

Go to Step 5.

STEP 5. Retest the system.

Q: Has the wind noise been improved?

YES :

Return to Step 1.

NO :

This procedure is complete.

DOOR

TSB Revision

BODY

42-126

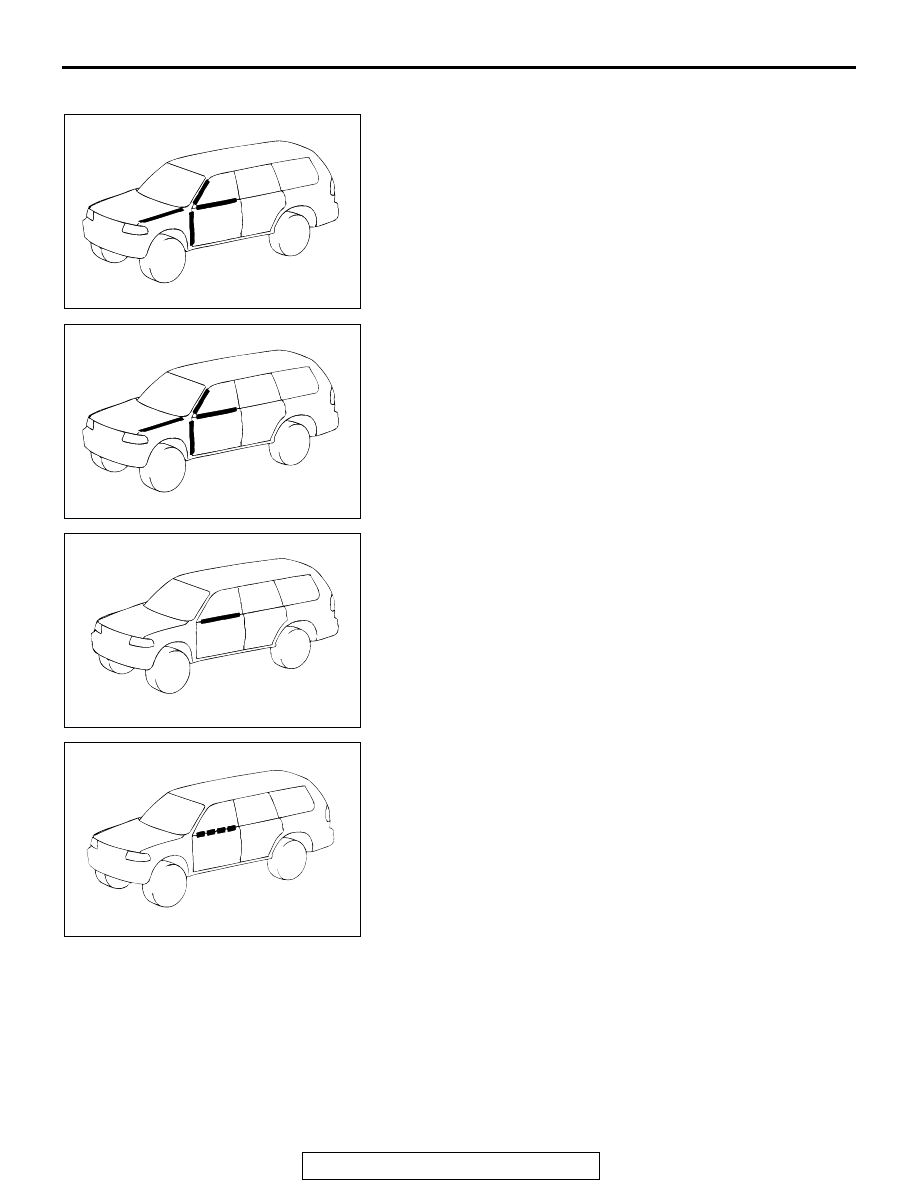

HOW TO LOCATE WIND NOISES

M1421004200164

1. Attach cloth tape to every place, such as panel seams,

projections, molding seams, glass and body seams, etc.
which might conceivably be the source of wind noise.

2. Then make a road test to check that the places not covered

by tape are not sources of wind noise.

3. Remove the strips of tape one by one, making a road test

after each is removed, until a wind noise source is
discovered.

4. When such a place is found, cover it again and repeat the

procedure to check if there are any other noise source.

5. If no others are found, the last remaining tape is the only

source.

6. Cut the remaining piece of tape into smaller pieces, attach it

again as it was before, and then remove the pieces one by
one to narrow down the source.

AC003770

AC003770

AC003771

AC003772
