SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-73

TONE ALARM

GENERAL DESCRIPTION CONCERNING TONE ALARM

M1549021000229

The ECU related to the alarm function types and var-
ious control functions are as follows.

Ignition key reminder tone alarm function
When the driver’s door is opened with the ignition key inserted
in the ignition key cylinder (ignition switch is in the OFF posi-
tion) the tone alarm sounds intermittently (horning sound) to
indicate that the ignition key has not been removed.

Light reminder tone alarm function
When the taillight or headlight is ON, if the ignition key is
removed and the driver's door is opened, a tone alarm will
sound continuously to warn that the light is illuminated. How-
ever, if the taillight or headlight has been turned off by the
headlight automatic-shutdown function, the tone alarm will not
sound.

FUNCTION

CONTROL ECU

Ignition key reminder tone alarm function

ETACS-ECU

Light reminder tone alarm function

ETACS-ECU, column switch

Seat belt tone alarm function

ETACS-ECU

RV meter operating sound function

ETACS-ECU, RV meter

AC005427AB

ON

OFF

ON

 (Key removed)

OFF

 (Key inserted)

ON (Open)

OFF (Closed)

ON (Tone alarm

sounds)

OFF (Tone alarm

does not sound)

Ignition switch
(IG1)

Key
reminder
switch

Driver's
door
switch

Ignition key
inserted
reminder
tone alarm
output

AC005428

AB

ON

OFF

ON

(Key removed)

OFF

(Key inserted)

ON (Open)

OFF (Closed)

ON (Tone alarn

sounds)

OFF (Tone alarm

does not sound)

Tail light or
headlight

Key
reminder
switch

Driver's
door
switch

Light
reminder
tone
alarm output

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-74

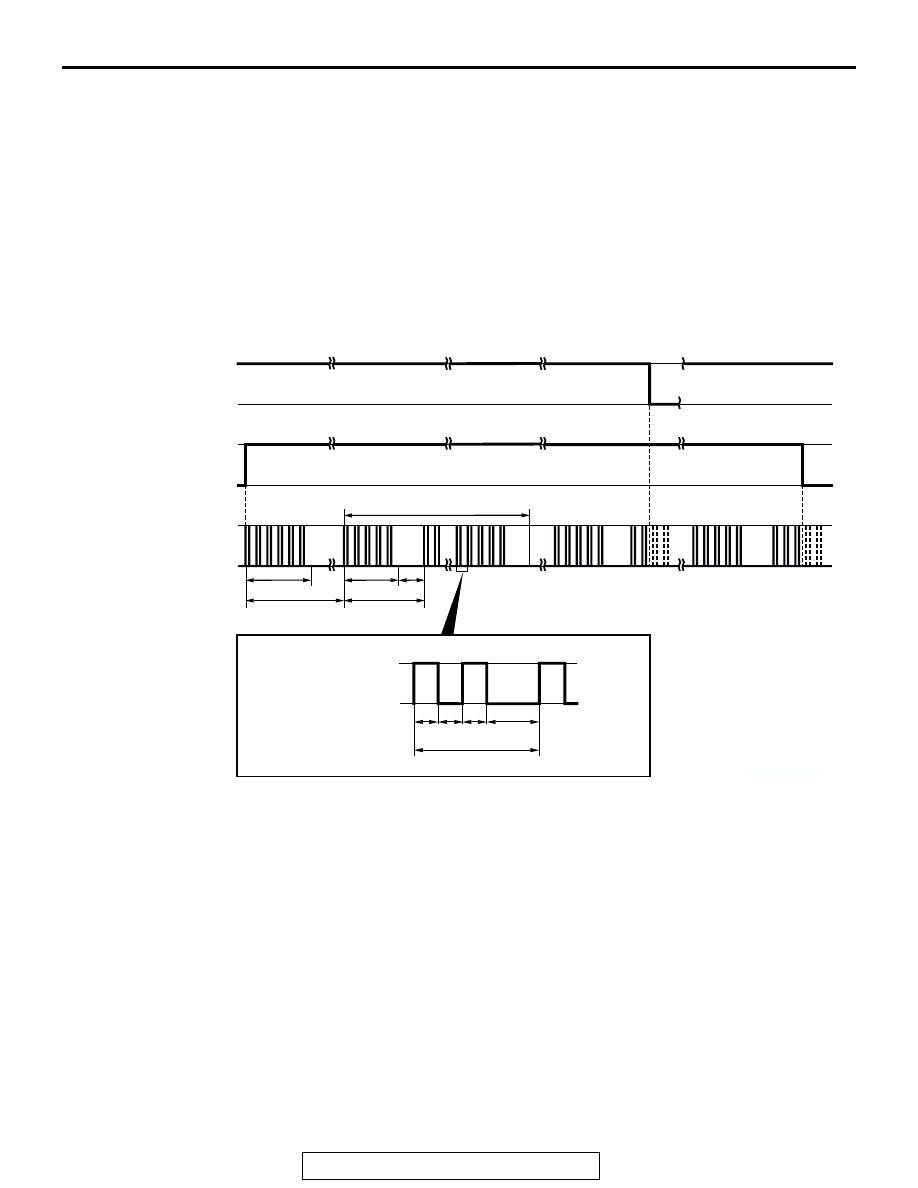

Seat belt tone alarm function
If any of the following conditions is met with the igni-
tion switch at "ON" or "ST", the ETACS-ECU sounds
the tone alarm by using the driver's seat belt switch
signal.

• The ETACS-ECU sounds the tone alarm for six

seconds if the ignition switch is turned "ON" while
the seat belt switch is on (the driver's seat belt is
not fastened).

• The ETACS-ECU sounds the tone alarm 12

cycles (after 0.5 seconds) if the seat belt switch is
on (driver's seat belt is not fastened) when sixty
seconds or more have elapsed since the ignition
switch is turned "ON". One cycle consists of
five-second "on" and then three-second "off".

NOTE: The ETACS-ECU stops sounding immedi-
ately when the seat belt witch is off (driver's seat belt
is fastened) or the ignition switch is turned to the
"OFF" or "ACC" position while the seat belt tone
alarm function is working.

RV meter operating sound function
When tone alarm sounding is requested from the RV
meter, the ETACS-ECU activates the built-in tone
alarm. The RV meter will "beep" when adjusting the
brightness level, only with the ignition key in the
"ACC" position.

AC308767

Seat belt

tone alarm

sounding

cycle

ON

(Tone alarm

sounds)

OFF

(Tone alarm

dose not

sound)

T

t1

T: 3 second

t2: 0.52 second

t1: 0.16 second

t1

t1

t2

6 second

60 second

1cycle

(approx.8 second)

12cycle (applox.90 second)

5 second

1 second

ON

OFF

ON

 (UNFASTENED)

OFF

 (FASTENED)

Ignition

switch (IG1)

Seat

belt

switch

Seat

belt

tone

alarm

output

ON

(Tone alarm

sounds)

OFF

(Tone alarm

dose not

sound)

AB

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-75

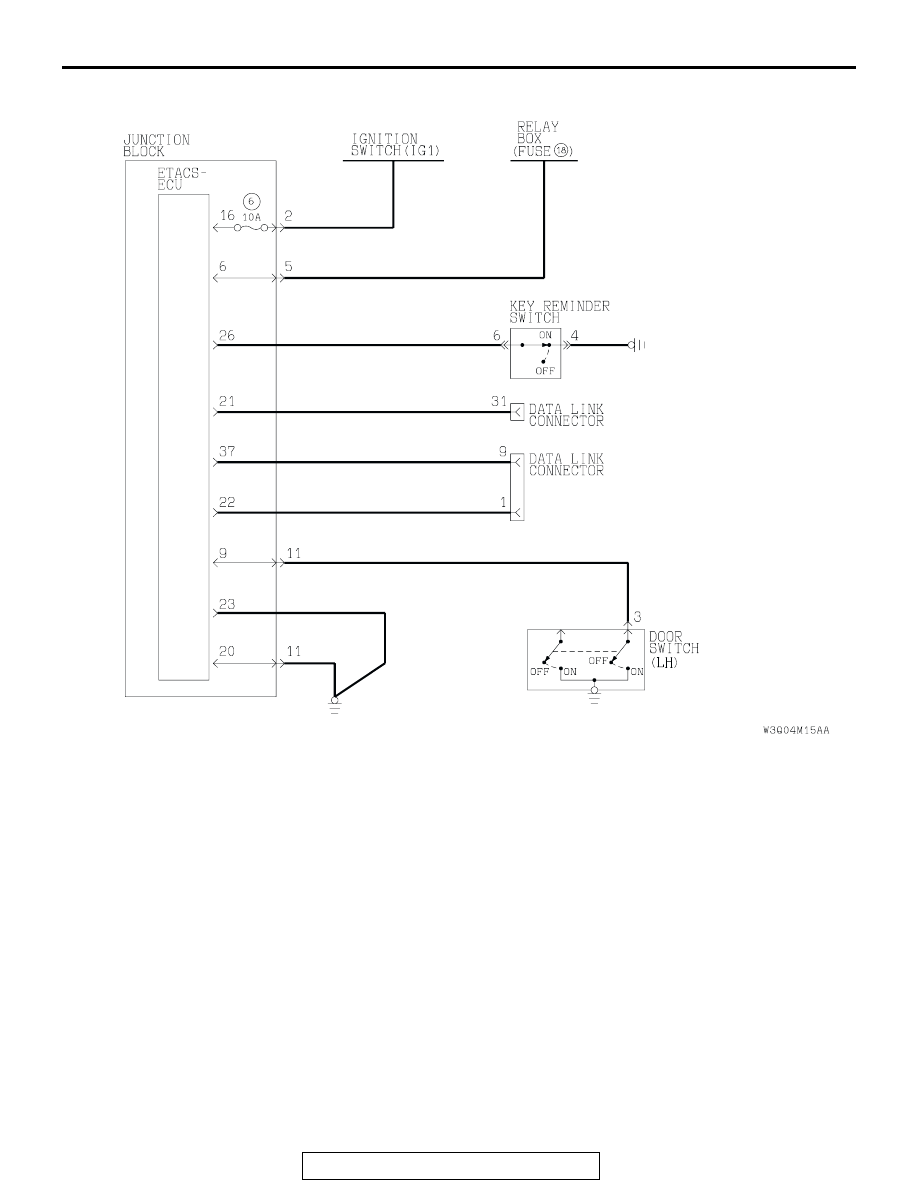

General circuit diagram for Ignition key reminder tone alarm function

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-76

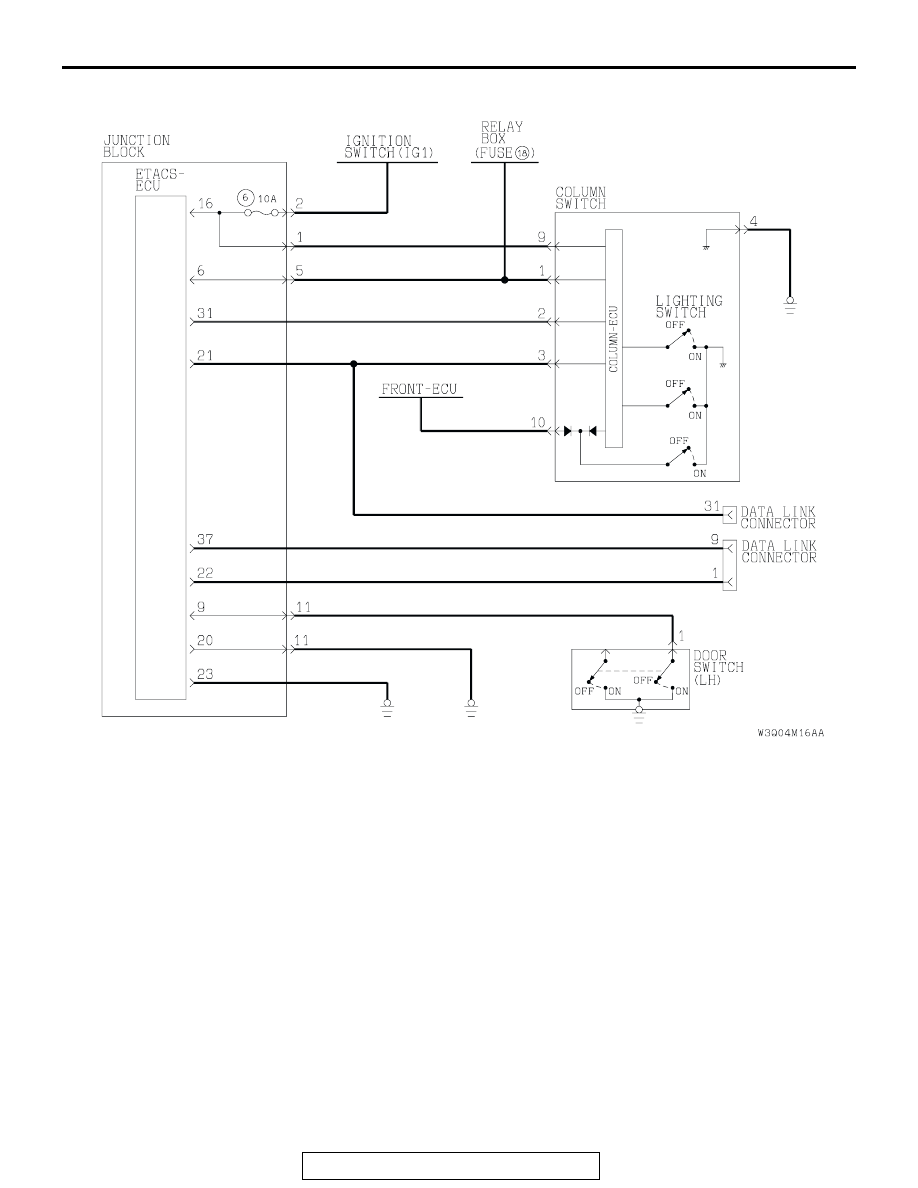

General circuit diagram for light reminder tone alarm function
