SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-65

NOTE: Also check junction block connectors D-208, D-210,
intermediate connectors D-01, D-26 and F-24 for loose, cor-
roded, or damaged terminals, or terminals pushed back in the
connector. If junction block connector D-208, D-210, intermedi-
ate connectors D-01, D-26 or F-24 is damaged, repair or
replace the damaged component(s) as described in GROUP
00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between sunroof motor assembly

connector F-02 (terminal 2) and the ignition switch (IG2)
in good condition?
YES :
No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. The system
should communicate with the sunroof motor assembly
(sunroof-ECU) normally.

AC204188

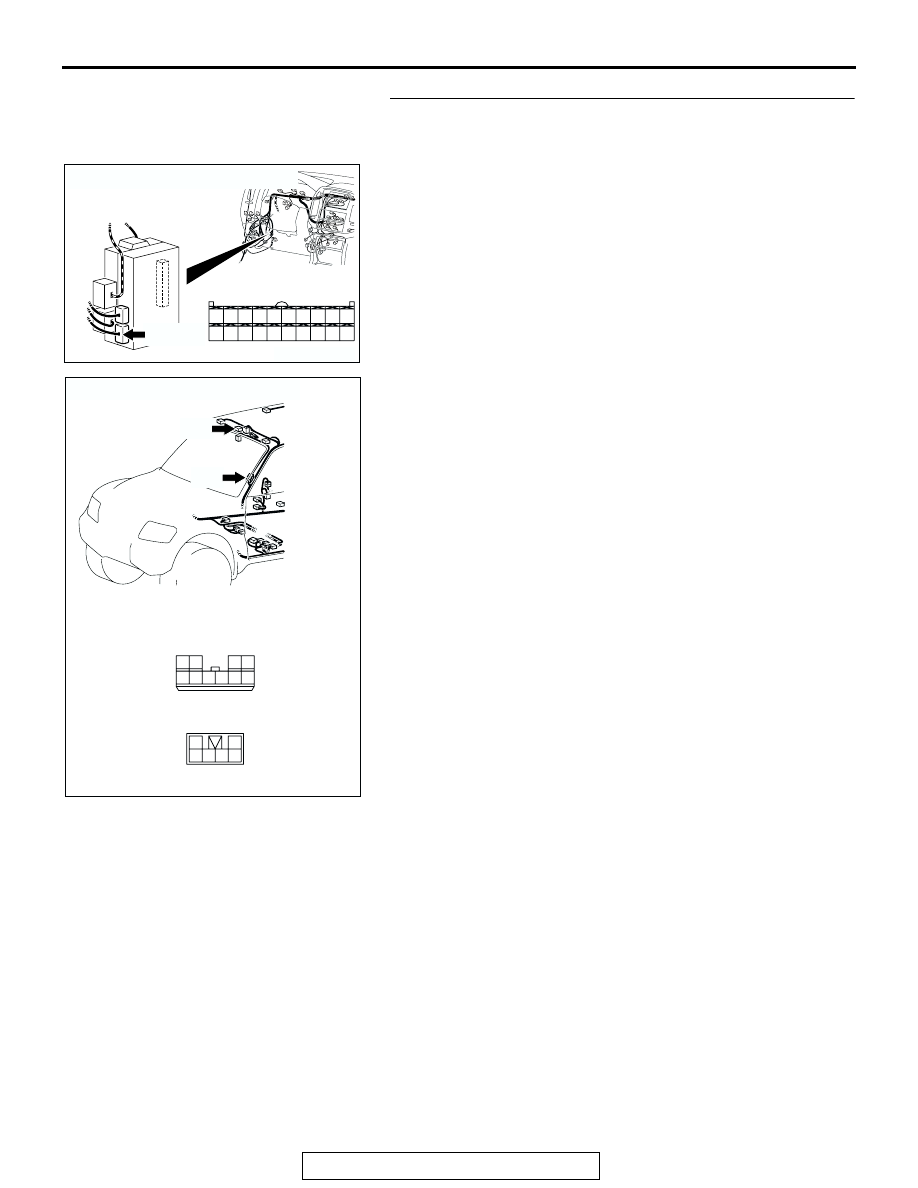

CONNECTORS : D-01, D-26

D-26

D-01

AB

D-01

D-26

9 10

8

6 7

31 32

30

29

18 19 20 21

5

4

2

1

3

27

26

24

23

25

12 13 14 15 16 17

28

11
22
33

2 3

1

7

6

12

11

8

13

5

4

9 10

AC204191

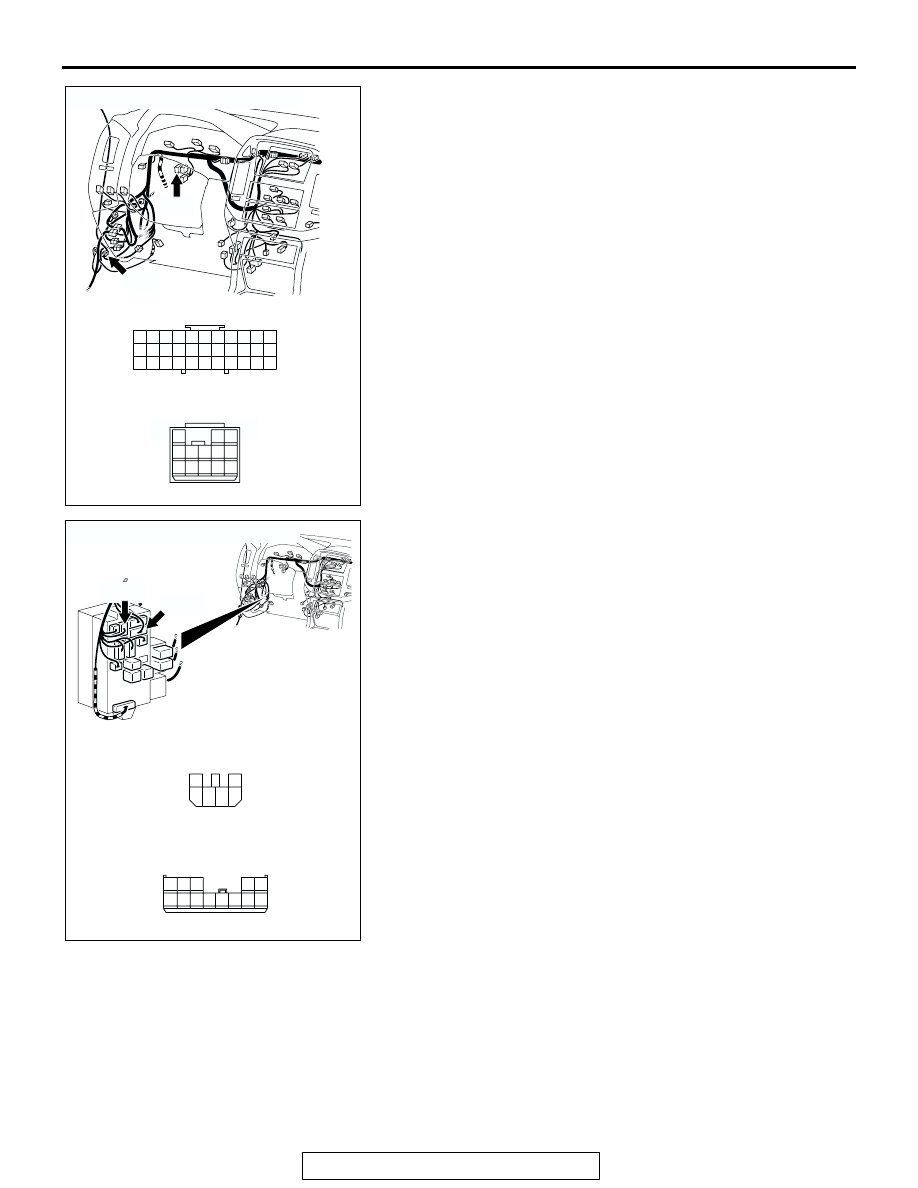

CONNECTORS: D-208, D-210

D-208

AC

HARNESS SIDE

HARNESS SIDE

D-210

D-208

D-210

1

2

3

5

6

4

1

2

7 6

3

9

4

11

12

10

13

5

8

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-66

STEP 8. Check the ground circuit to the sunroof motor
assembly. Test at sunroof motor assembly connector F-02.
(1) Disconnect sunroof motor assembly connector F-02 and

measure the resistance available at the wiring harness side
of the connector.

(2) Measure the resistance value between terminal 5 and

ground.

• The resistance should equal 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 10.
NO :  Go to Step 9.

STEP 9. Check the wiring harness between sunroof motor
assembly connector F-02 (terminal 5) and ground.

Q: Is the wiring harness between sunroof motor assembly

connector F-02 (terminal 5) and ground in good
condition?
YES :
No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. The system
should communicate with the sunroof motor assembly
(sunroof-ECU) normally.

STEP 10. Check ETACS-ECU connector D-224 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q: Is ETACS-ECU connector D-224 in good condition?

YES : Go to Step 11.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. The system should communicate with the

sunroof motor assembly (sunroof-ECU) normally.

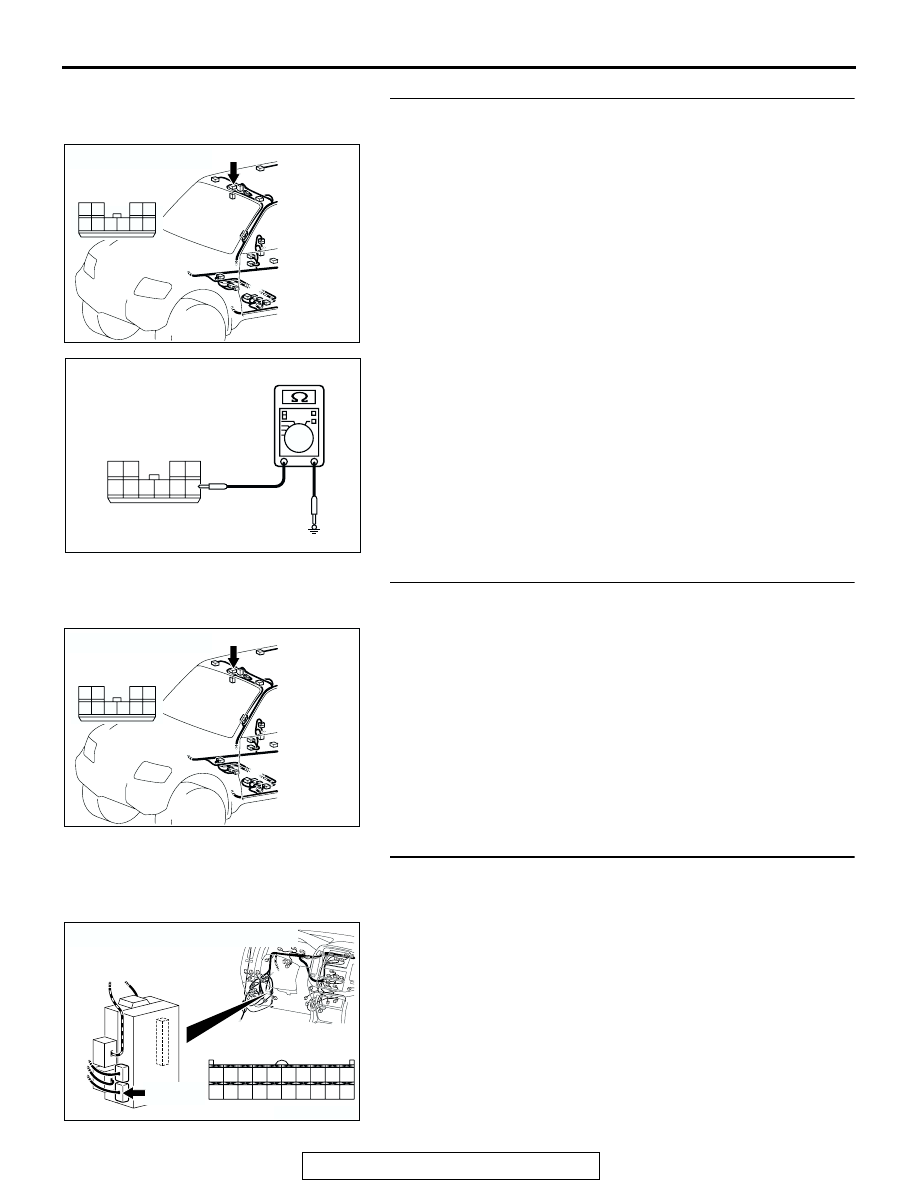

AC204177

CONNECTOR : F-02

AB

HARNESS SIDE

1

5

2

7

8

6

3

4

10 9

F-02

AC201746

5

1

7

8

6

2

9

10

4

3

AC

CONNECTOR: F-02
(HARNESS SIDE)

AC204177

CONNECTOR : F-02

AB

HARNESS SIDE

1

5

2

7

8

6

3

4

10 9

F-02

AC204174

CONNECTOR : D-224

AD

D-224(B)

D-224(B)

HARNESS SIDE

21

23

24

22

32

3433

31

26

27

28

3029

38

39

40

36

37

25

35

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-67

STEP 11. Check the wiring harness between sunroof motor
assembly connector F-02 (terminal 10) and ETACS-ECU
connector D-224 (terminal 21).

AC204174

CONNECTOR : D-224

AD

D-224(B)

D-224(B)

HARNESS SIDE

21

23

24

22

32

3433

31

26

27

28

3029

38

39

40

36

37

25

35

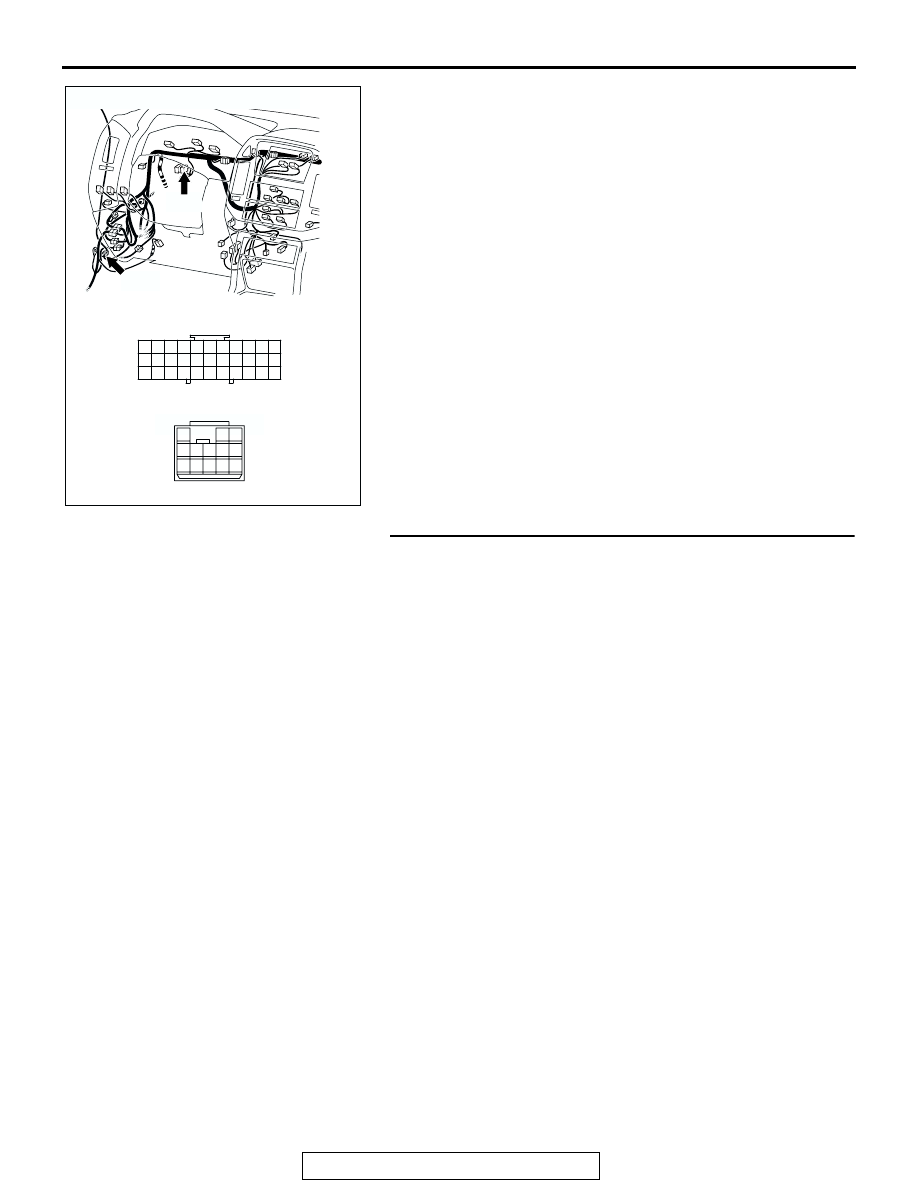

AC204195

CONNECTORS : F-02, F-24

F-02

AB

HARNESS SIDE

F-24

F-02

F-24

1

5

2

7

8

6

3

4

10 9

6

2

5

4

3

1

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-68

NOTE: Also check intermediate connectors D-26, F-24 and
joint connector D-02 for loose, corroded, or damaged terminals,
or terminals pushed back in the connector. If intermediate con-
nector D-26, F-24 or joint connector D-02 is damaged, repair or
replace the damaged component(s) as described in GROUP
00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between sunroof motor assembly

connector F-02 (terminal 10) and ETACS-ECU connector
D-224 (terminal 21) in good condition?
YES :
Go to Step 12.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. The system
should communicate with the sunroof motor assembly
(sunroof-ECU) normally.

STEP 12. Replace the ECU.
(1) Replace the sunroof motor assembly.
(2) The system should communicate with the sunroof motor

assembly normally.

Q: Can the system communicate with the sunroof motor

assembly?
YES :
No action is necessary and testing is complete.
NO :  Replace the ETACS-ECU. The system should

communicate with the sunroof motor assembly
(sunroof-ECU) normally.

AC204188

CONNECTORS : D-02, D-26

D-26

D-02

AE

D-02

D-26

9 10

8

6 7

31 32

30

29

18 19 20 21

5

4

2

1

3

27

26

24

23

25

12 13 14 15 16 17

28

11
22
33

2 3

1

7

6

12

11

8

13

5

4

9 10
