Mitsubishi Montero (2004+). Manual - part 703





SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-69

INSPECTION PROCEDURE A-6: Communication with the RV meter is not possible.

NOTE: This troubleshooting procedure requires the
use of scan tool MB991958 and SWS monitor kit
MB991862. For details of how to use the SWS moni-
tor, refer to "How to use SWS monito

P.54B-10

."

.

TECHNICAL DESCRIPTION (COMMENT)
The RV meter or its power supply circuit or communi-
cation circuit may be defective.

.

TROUBLESHOOTING HINTS

• The RV meter may be defective

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991911: MUT-III Main Harness B

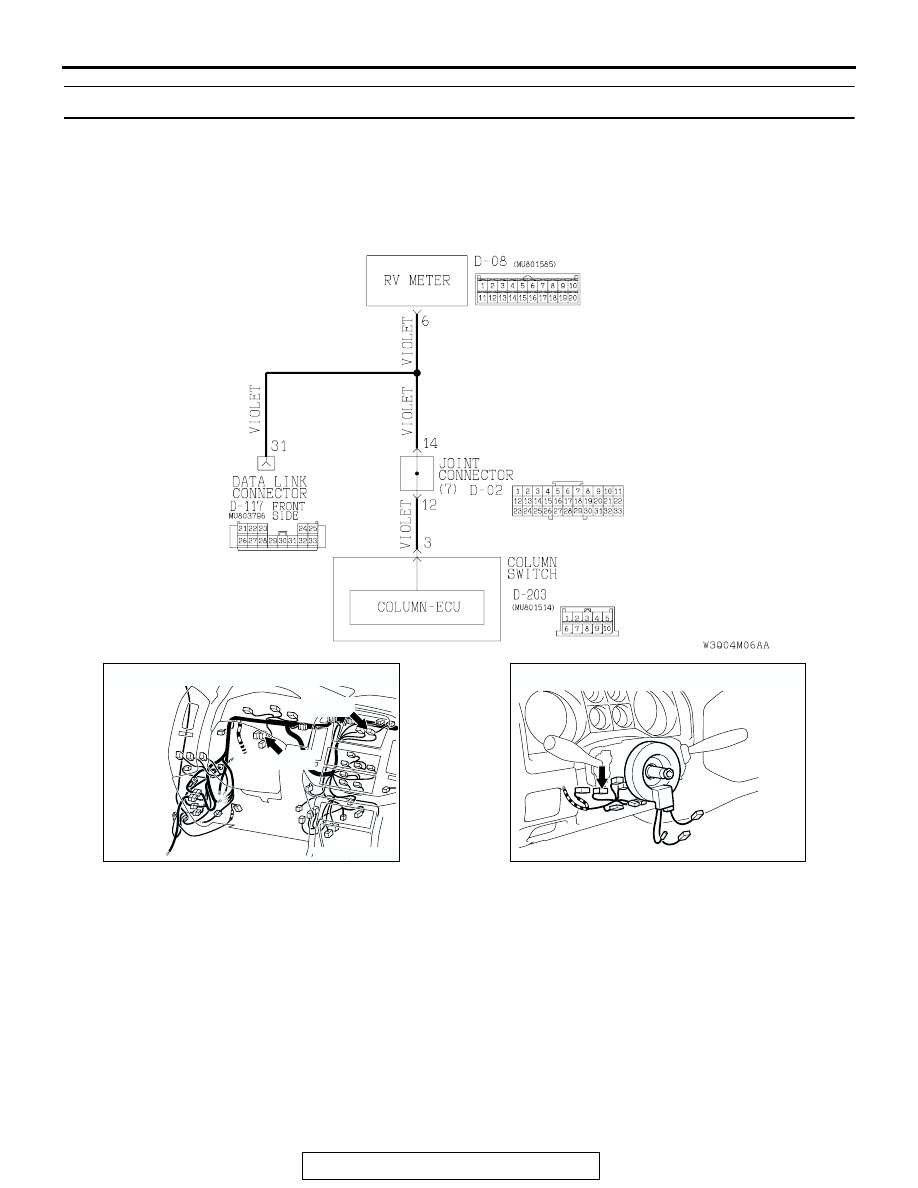

RV Meter and SWS Communication Circuit

AC204170

CONNECTORS : D-02, D-08

BG

D-08(B)

D-02

AC204172

CONNECTOR : D-203

AG

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-70

• MB991813: SWS Monitor Kit

• MB991806: SWS Monitor Cartridge

• MB991812: SWS Monitor Harness (For Column-ECU)

• MB991822: Probe Harness

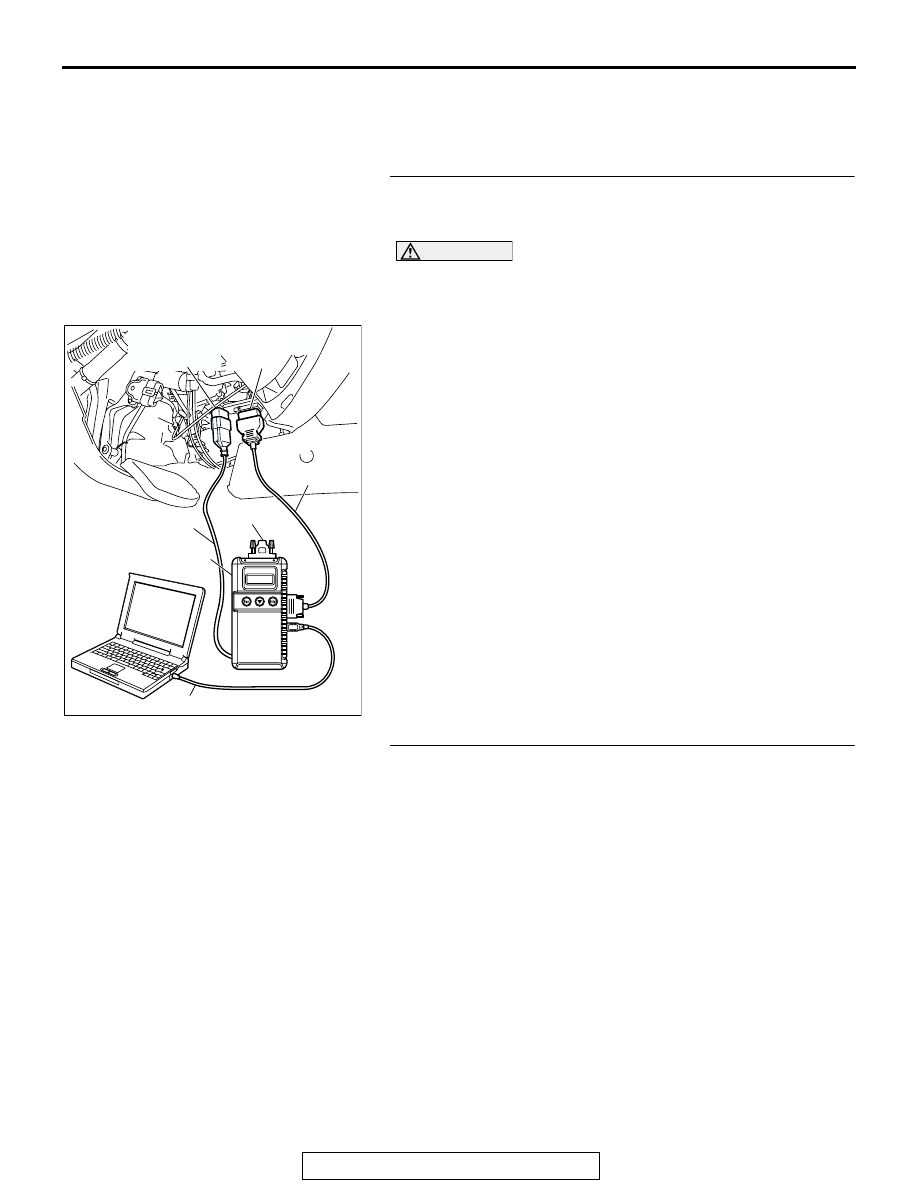

STEP 1. Use scan tool MB991958 to select "ECU COMM
CHK" on the SWS monitor display.
Check the column-ECU.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect the special tool. Refer to "How to connect SWS

monito

P.54B-7

.

(2) Turn the ignition switch to the "LOCK" (OFF) position.
(3) Operate scan tool MB991958 according to the procedure

below to display "ECU COMM CHK."

1. Select "SYSTEM SELECT."
2. Select "SWS."
3. Select "SWS MONITOR."
4. Select "ECU COMM CHK."

(4) Scan tool MB991958 should show "OK" on the "ECU

COMM CHK" menu for the "COLUMN ECU" menu.

Q: Is "OK" displayed on the "COLUMN ECU" menu?

YES : Go to Step 2.
NO :  Refer to Inspection Procedure A-2 "Communication

with column switch (column-ECU) is impossible

P.54B-35

."

STEP 2. Check the RV meter.
Q: Does the RV meter work normally?

YES : Go to Step 3.
NO :  Carry out troubleshooting for the RV meter first. Refer

to GROUP 54A, RV mete

P.54A-238

.

AC309091

MB991911

MB991827

MB991824

AB

MB991806

MB991862

DATA LINK
CONNECTOR
(16-PIN)

DATA LINK
CONNECTOR
(13-PIN)

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-71

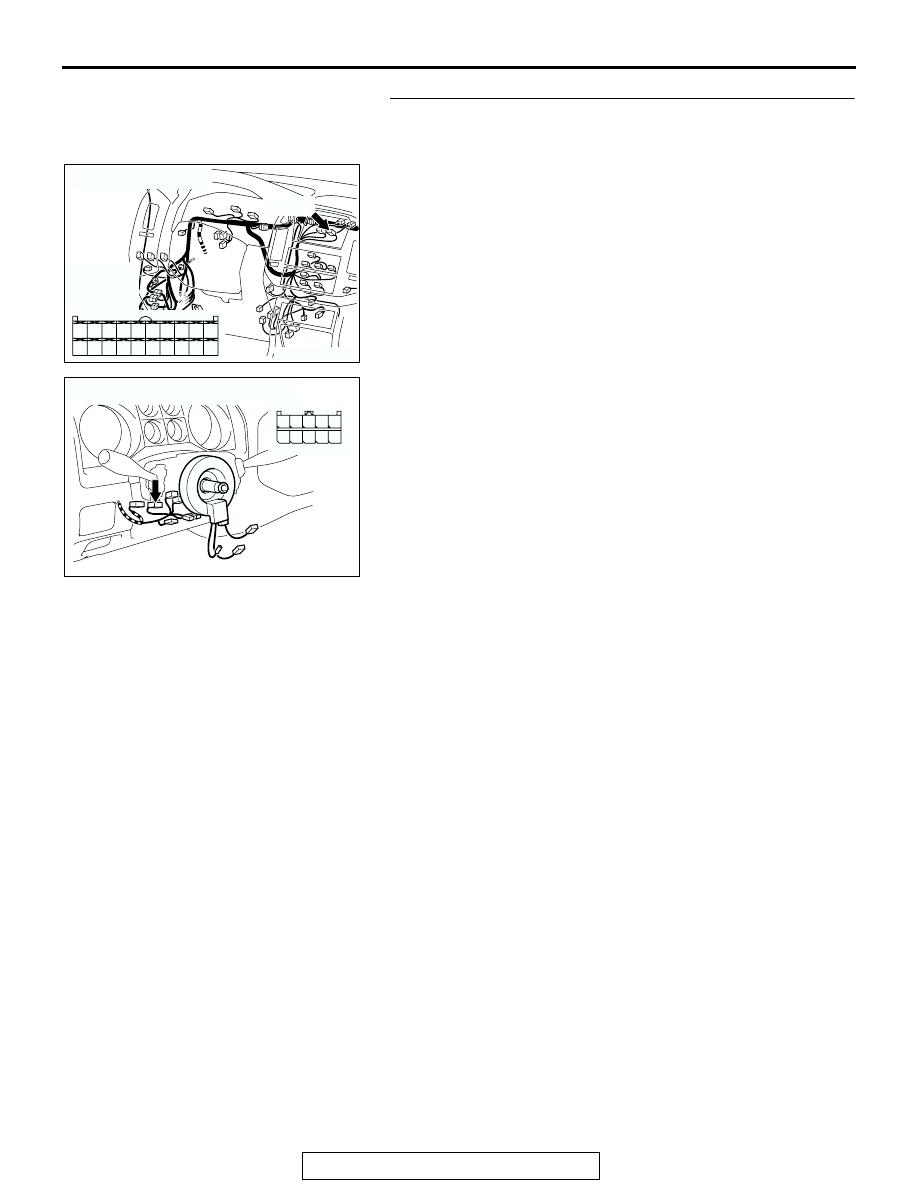

STEP 3. Check RV meter connector D-08 and column
switch connector D-203 for loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Q: Are RV meter connector D-08 and column switch

connector D-203 in good condition?
YES :
Go to Step 4.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. The system should communicate with the

RV meter normally.

AC204170

CONNECTOR : D-08

AE

D-08(B)

HARNESS
SIDE

D-08(B)

1

3

4

2

12

1413

11

6

7

8

10 9

18

19

20

16

17

5

15

AC204172

CONNECTOR : D-203

AC

HARNESS SIDE

1

2

3

7

8

6

5

10

4

9

D-203

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-72

STEP 4. Check the wiring harness between RV meter
connector D-08 (terminal 6) and column switch connector
D-203 (terminal 3).

NOTE:  Also check joint connector D-02 for loose, corroded, or
damaged terminals, or terminals pushed back in the connector.
If joint connector D-02 is damaged, repair or replace the dam-
aged component(s) as described in GROUP 00E, Harness
Connector Inspection

P.00E-2

.

Q: Is the wiring harness between RV meter connector D-08

(terminal 6) and column switch connector D-203
(terminal 3) in good condition?
YES :
Replace the RV meter. The system should

communicate with the RV meter normally.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. The system
should communicate with the RV meter normally.

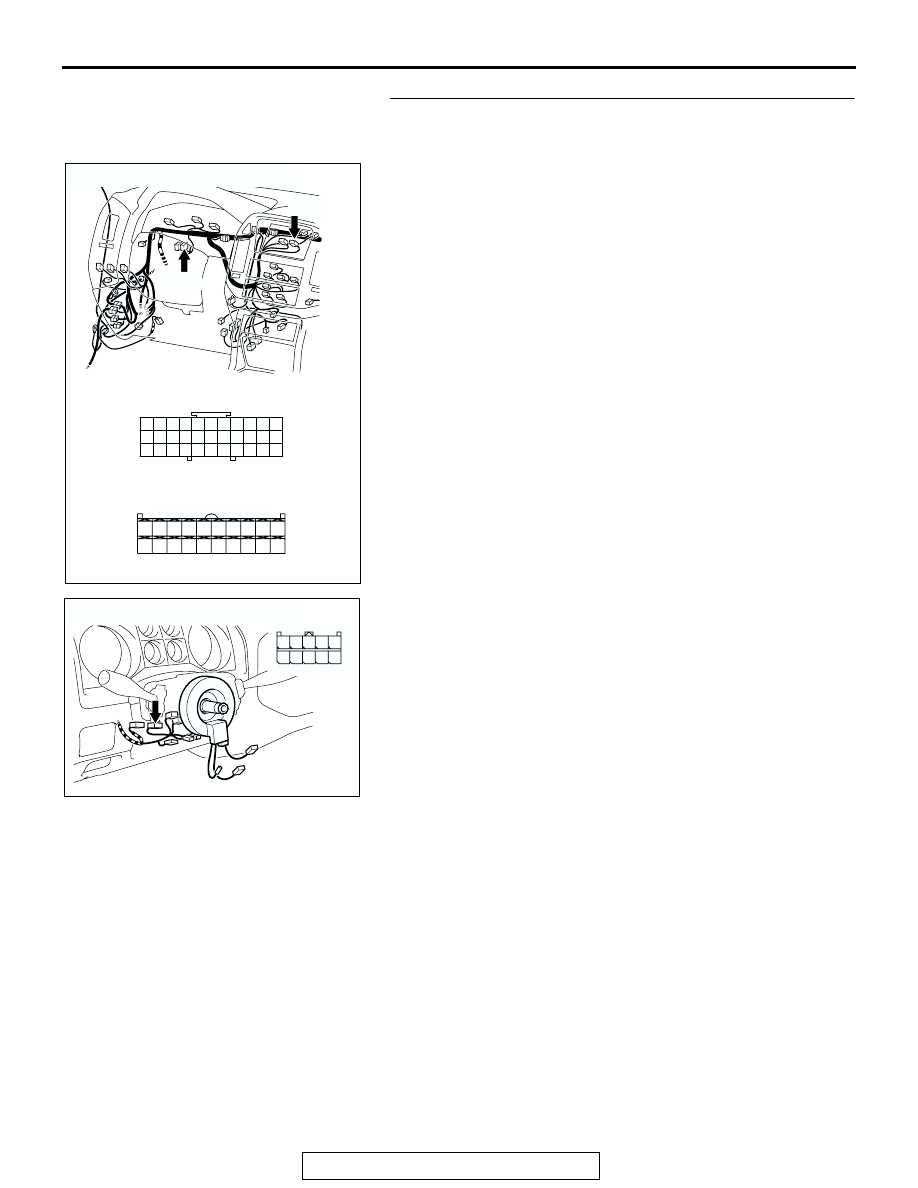

AC204188

CONNECTORS : D-02, D-08

D-08(B)

D-02

AC

D-02

D-08(B)

HARNESS SIDE

9 10

8

6 7

31 32

30

29

18 19 20 21

5

4

2

1

3

27

26

24

23

25

12 13 14 15 16 17

28

11
22
33

1

3

4

2

12

1413

11

6

7

8

10 9

18

19

20

16

17

5

15

AC204172

CONNECTOR : D-203

AC

HARNESS SIDE

1

2

3

7

8

6

5

10

4

9

D-203
