REAR SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-21

CLAW POSITIONS

DISASSEMBLY STEPS

1.

LOWER RECLINING ADJUSTER
COVER

2.

CENTER RECLINING ADJUSTER
COVER

3.

FREE HINGE COVER

4.

GAS SPRING CONNECTION

5.

SECOND SEAT CUSHION UNDER
COVER

6.

RECLINING CABLE
CONNECTION

7.

CATCH CABLE A AND B
CONNECTION

8.

CATCH CABLE A

9.

HINGE BRACKET

10. CATCH CABLE B
11. SECOND SEATBACK ASSEMBLY
12. FOLDING LEVER KNOB
13. FOLDING KNOB GARNISH
14. SECOND SEAT SIDE BACK

ASSEMBLY

<<A>>

15. HEAD RESTRAINT GUIDE
16. SECOND SEATBACK BOARD
17. HOG RING
18. SECOND SEATBACK FRAME

19. SECOND SEATBACK PAD
20. SECOND SEATBACK COVER
21. SHAFT
22. RECLINING ADJUSTER BACK

COVER

23. ROD
24. SPRING
25. RECLINING ADJUSTER
26. GAS SPRING
27. RECLINING CABLE
28. SECOND SEAT CATCH

ASSEMBLY

29. UPPER FOOT COVER
30. LOWER FOOT COVER
31. RECLINING KNOB
32. INNER SEAT BELT
33. HOG RING
34. SECOND SEAT CUSHION FRAME
35. SECOND SEAT CUSHION PAD
36. SUPPORT PAD
37. SECOND SEAT CUSHION COVER
38. STRIKER COVER
39. STRIKER
40. PLUG

DISASSEMBLY STEPS

ACX00631

A

A

<LOWER RECLINING
ADJUSTER COVER>

<FOLDING KNOB GARNISH>

SECTION A - A

SECTION B - B

LOWER RECLINING
ADJUSTER COVER

CLAW

CLAW

CLAW

RECLINING
ADJUSTER

B

B

FOLDING KNOB
GARNISH

SECOND SEAT
BACK ASSEMBLY

AB

NOTE

: Claw position

REAR SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-22

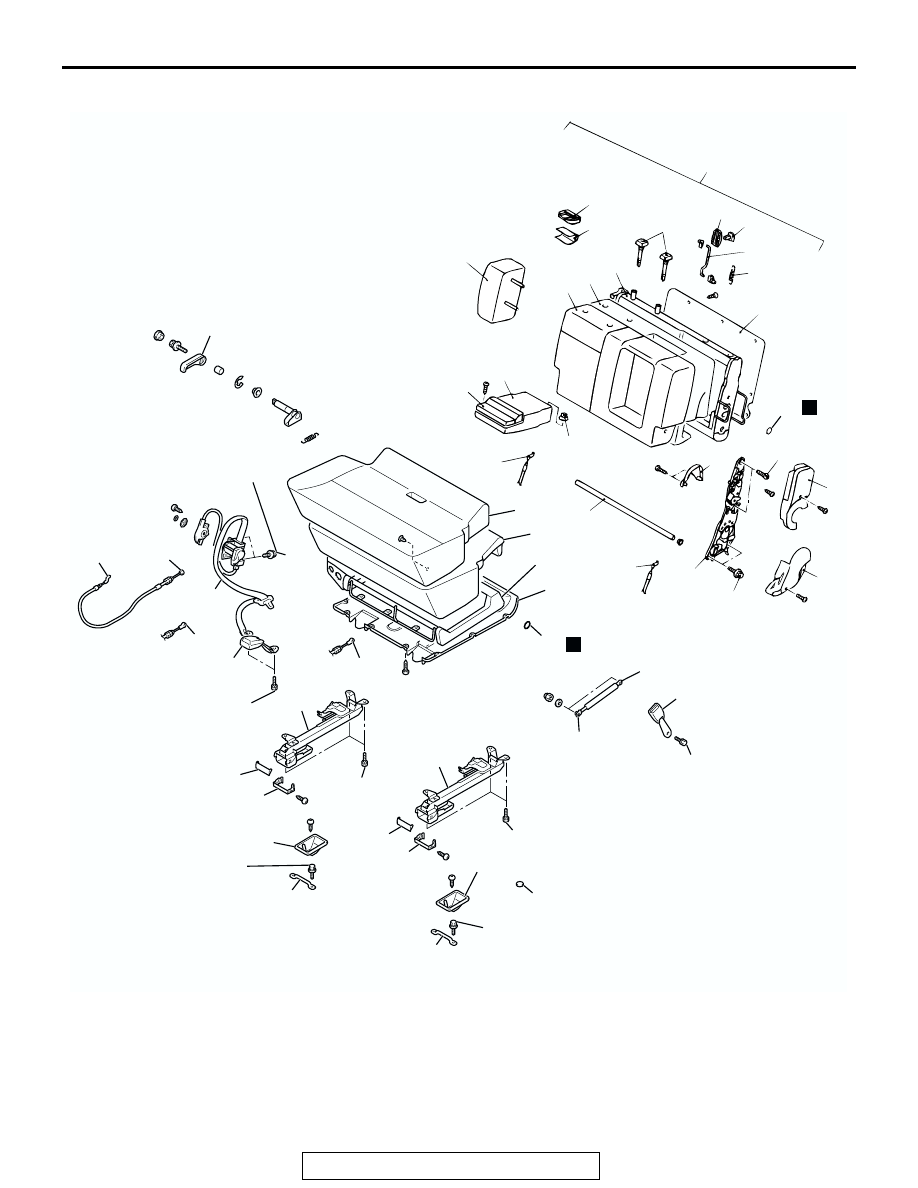

<RH SIDE>

AC006067

9

17

22

16

11

10

26

27

13

12

21 20

19

15

14

7

24

25

28

7

3

1

34

8

30

6

36

35

23

6

31

32

33

31

32

33

29

4

2

40

39

38

5

41

42

41

43

42

N

N

52 ± 7 N·m
39 ± 5 ft-lb

44 ± 10 N·m
33 ± 7 ft-lb

44 ± 10 N·m
33 ± 7 ft-lb

44 ± 10 N·m
33 ± 7 ft-lb

44 ± 10 N·m
33 ± 7 ft-lb

44 ± 10 N·m
33 ± 7 ft-lb

44 ± 10 N·m
33 ± 7 ft-lb

44 ± 10 N·m
33 ± 7 ft-lb

44 ± 10 N·m
33 ± 7 ft-lb

22  ± 4 N·m
16 ± 3 ft-lb

AC

18

37

REAR SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-23

DISASSEMBLY STEPS

1.

LOWER RECLINING ADJUSTER
COVER

2.

INNER SEAT BELT

3.

CENTER RECLINING ADJUSTER
COVER

4.

GAS SPRING CONNECTION

5.

SECOND SEAT CUSHION UNDER
COVER

6.

CATCH CABLE A CONNECTION

7.

CATCH CABLE A

8.

RECLINING CABLE
CONNECTION

9.

SECOND SEAT BACK ASSEMBLY

10. FOLDING LEVER KNOB
11. FOLDING KNOB GARNISH
12. SECOND SEAT SIDE BACK

ASSEMBLY

13. SECOND SEAT BACK BOARD
14. ARMREST
15. CUP HOLDER

<<A>>

16. HEAD RESTRAINT GUIDE
17. SASH ANCHOR GARNISH
18. HOG RING
19. SECOND SEATBACK FRAME
20. SECOND SEATBACK PAD
21. SECOND SEATBACK COVER

22. SEAT BELT PROTECTOR
23. CENTER SEAT BELT

CONNECTION

24. SHAFT
25. RECLINING ADJUSTER BACK

COVER

26. ROD
27. SPRING
28. RECLINING ADJUSTER
29. GAS SPRING
30. RECLINING CABLE
31. SECOND SEAT CATCH

ASSEMBLY

32. UPPER FOOT COVER
33. LOWER FOOT COVER
34. RECLINING KNOB
35. INNER SEAT BELT
36. CENTER SEAT BELT
37. HOG RING
38. SECOND SEAT CUSHION FRAME
39. SECOND SEAT CUSHION PAD
40. SECOND SEAT CUSHION COVER
41. STRIKER COVER
42. STRIKER
43. PLUG

DISASSEMBLY STEPS

REAR SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-24

CLAW POSITIONS

REMOVAL SERVICE POINTS

.

<<A>>HEAD RESTRAINT GUIDE REMOVAL

ACX00631

A

A

<LOWER RECLINING
ADJUSTER COVER>

<FOLDING KNOB GARNISH>

SECTION A - A

SECTION B - B

LOWER RECLINING
ADJUSTER COVER

CLAW

CLAW

CLAW

RECLINING
ADJUSTER

B

B

FOLDING KNOB
GARNISH

SECOND SEAT
BACK ASSEMBLY

AB

NOTE

: Claw position

ACX01300AB
