FRONT SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-13

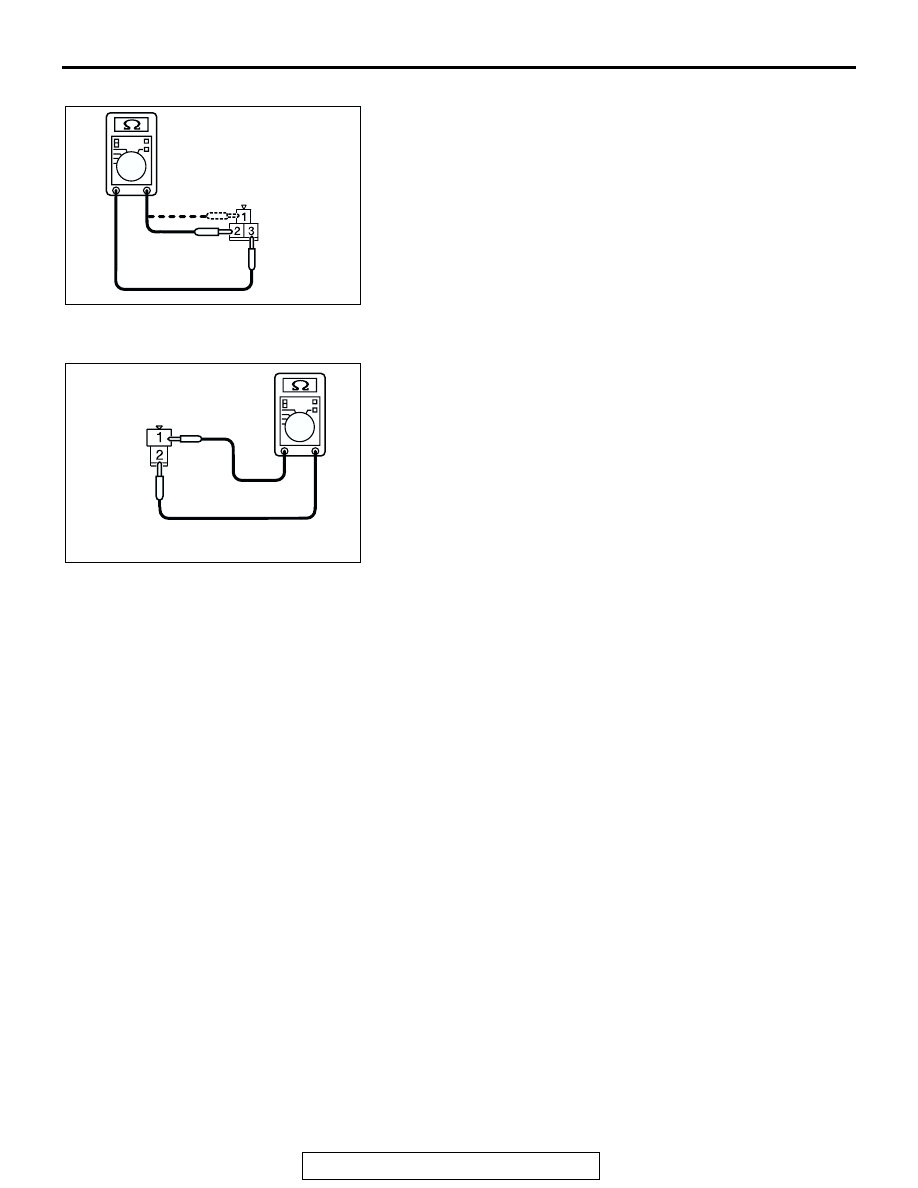

SEAT CUSHION HEATER CHECK
Measure the resistance between terminals.

Standard value: At room temperature 20

°C (68 °F)

Between terminals 2 and 3: Approximately 4.2

Ω ± 10%

Between terminals 1 and 3: 4.0

Ω ± 10%

.

SEATBACK HEATER CHECK
Measure the resistance between terminals.

Standard value: At room temperature 20

°C (68 °F)

Approximately 4.6

Ω ± 10%

AC308661

AC308662

FRONT SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-14

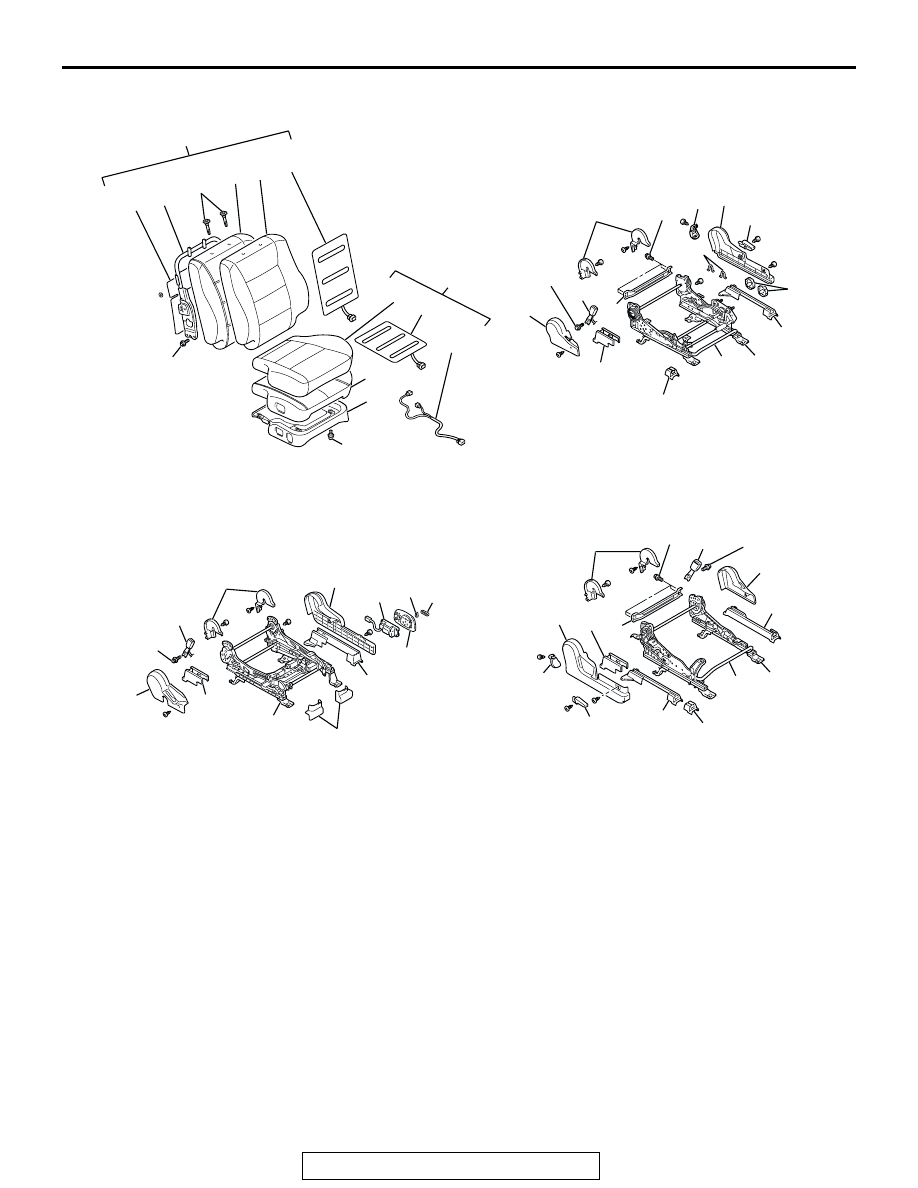

DISASSEMBLY AND ASSEMBLY

M1522001500489

AC309202 AB

9

10

11

8

12

13

21

27 26

22

25 23

24

16

28

20

17 14

7

5

6

18

29

19

15

31

30

17

14 19

29

28

18

15

31

30

18

16

20

16

20

19

28

31

15

14

18

4

3

1

2

44 ± 10 N·m
33 ± 7 ft-lb

44 ± 10 N·m
33 ± 7 ft-lb

21 ± 4 N·m
16 ± 2 ft-lb

44 ± 10 N·m
33 ± 7 ft-lb

5 ± 1 N·m
44 ± 9 in-lb

44 ± 10 N·m
33 ± 7 ft-lb

5 ± 1 N·m
44 ± 9 in-lb

7

<DUAL HEIGHT ADJUSTER SEAT
(DRIVER'S SEAT SIDE)>

<POWER SEAT>

<NORMAL SEAT (PASSENGER'S SEAT SIDE)>

DISASSEMBLY STEPS

1. RECLINING ADJUSTER KNOB

<VEHICLES WITH POWER SEATS>

2. SLIDE ADJUSTER KNOB

<VEHICLES WITH POWER SEATS>

3. POWER SEAT SWITCH GARNISH

<VEHICLES WITH POWER SEATS>

4. POWER SEAT SWITCH <VEHICLES

WITH POWER SEATS>

5. CLIP <VEHICLES WITH DUAL

HEIGHT ADJUSTER SEATS>

6. HEIGHT ADJUSTER KNOB

<VEHICLES WITH DUAL HIGH
ADJUSTER SEATS>

7. RECLINING ADJUSTER LEVER

<VEHICLES WITHOUT POWER
SEAT>

8. HARNESS CLAMP
9. FRONT SEAT CUSHION ASSEMBLY
10. FRONT SEAT CUSHION COVER

11. SEAT CUSHION HEATER

<VEHICLES WITH HEATED SEATS>

12. FRONT SEAT CUSHION PAD
13. FRONT SEAT CUSHION FRAME
14. SIDE SHIELD COVER
15. FRONT RAIL COVER
16. HINGE COVER
17. REAR RAIL COVER <VEHICLES

WITHOUT POWER SEAT>

18. SEAT SLIDE ADJUSTER SIDE

COVER

19. SEAT SLIDE ADJUSTER INNER

SIDE COVER

20. INNER SEAT BELT
21. FRONT SEATBACK ASSEMBLY

<<A>>

22. HEAD RESTRAINT GUIDE
23. FRONT SEATBACK COVER
24. FRONT SEATBACK HEATER

<VEHICLES WITH HEATED SEATS>

25. FRONT SEATBACK PAD

DISASSEMBLY STEPS (Continued)

FRONT SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-15

26 FRONT SEATBACK FRAME

<VEHICLES WITHOUT SIDE AIR
BAG>

27. FRONT SEATBACK BOARD
28. RECLINING ADJUSTER LOWER

COVER

29. FRONT SEAT FRAME <VEHICLES

WITHOUT POWER SEAT>

30. SEAT SLIDE ADJUSTER
31. SEAT SLIDE ADJUSTER LEVER

<VEHICLES WITHOUT POWER
SEAT>

DISASSEMBLY STEPS (Continued)

FRONT SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-16

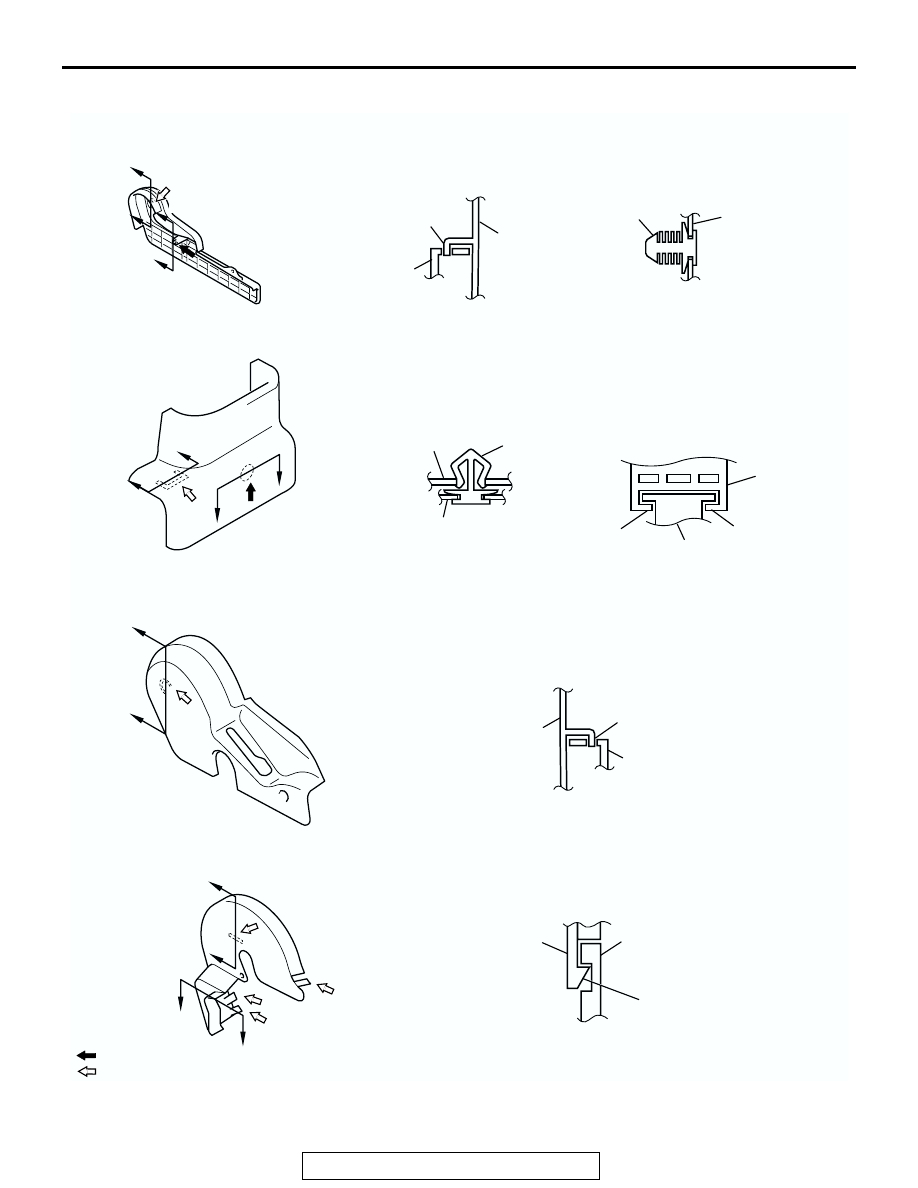

CLIP AND CLAW POSITIONS

ACX01417

A

A

B

B

D

D

C

C

E

E

G

G

F

F

<SIDE SHIELD COVER>

SECTION A - A

SIDE SHIELD
COVER

CLAW

SEAT SLIDE
ADJUSTER

SECTION B - B

CLIP

SIDE SHIELD
COVER

SECTION D - D

FRONT RAIL
COVER

CLAW

CLAW

SEAT SLIDE
ADJUSTER

SEAT SLIDE
ADJUSTER

CLIP

FRONT RAIL
COVER

<FRONT RAIL COVER>

SECTION C - C

<HINGE COVER>

SECTION E - E, G - G

HINGE COVER OR
RECLINING ADJUSTER
LOWER COVER

CLAW

SEAT SLIDE
ADJUSTER

RECLINING ADJUSTER
LOWER COVER

SIDE SHIELD COVER OR
HINGE COVER

CLAW

SECTION F - F

<RECLINING ADJUSTER LOWER COVER>

AD

NOTE

Clip position
Claw position
