SHOCK ABSORBER, COIL SPRING AND LOWER ARM ASSEMBLY

TSB Revision

REAR SUSPENSION

34-15

UPPER ARM BALL JOINT DUST COVER CHECK

1. Press the dust cover with your finger to check that there are

no cracks or damage in the dust cover.

2. If the dust cover is cracked or damaged, replace the upper

arm ball joint assembly.
NOTE: If the dust cover is cracked or damaged, it is possible
that there may also be damage to the ball joint.

SHOCK ABSORBER, COIL SPRING AND LOWER ARM

ASSEMBLY

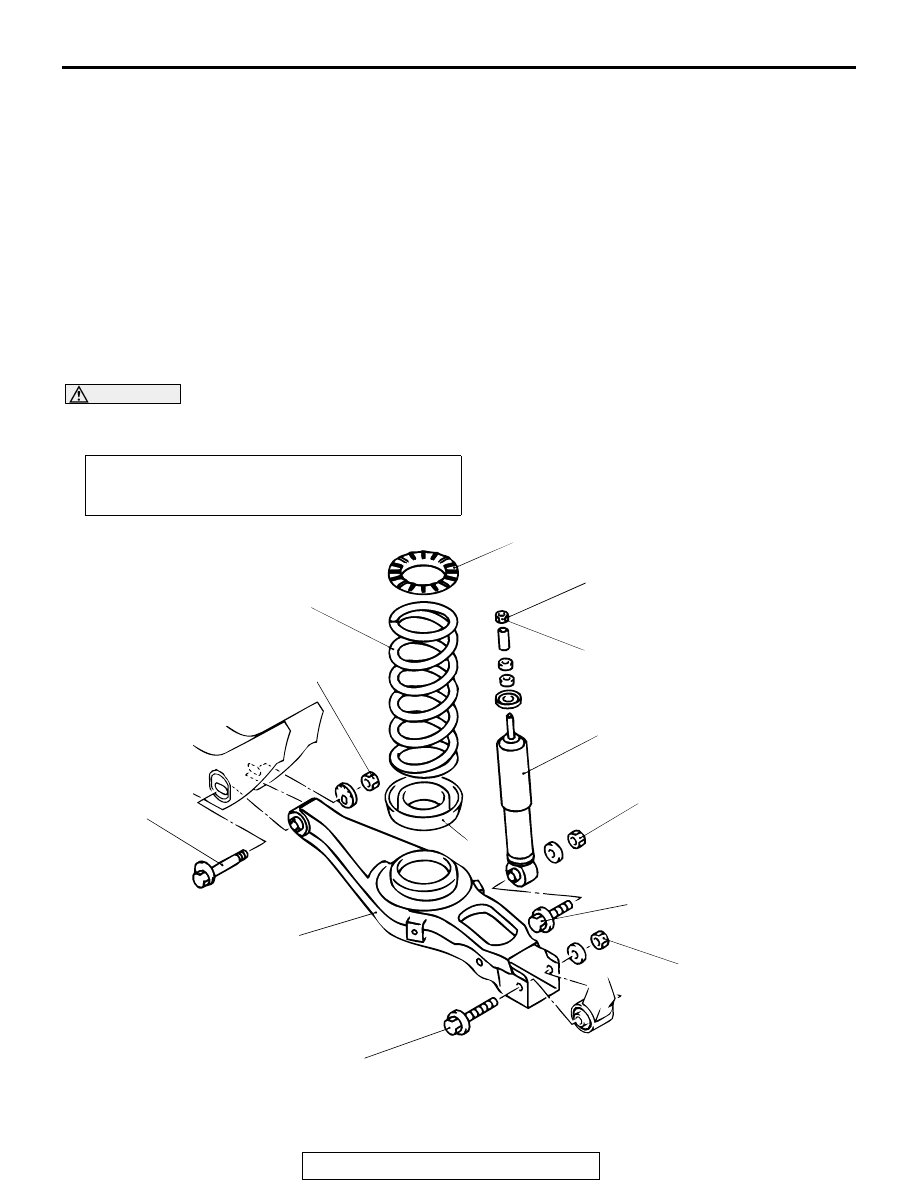

REMOVAL AND INSTALLATION

M1341014200063

CAUTION

*: indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on
the ground in the unladen condition.

Post-removal Operation
• Wheel Alignment Check and Adjustment (Refer to

P.34-6

.)

ACX00739

123

± 15 N

·

m *

91

± 11 ft-lb *

44

± 10 N

·

m *

33

± 7 ft-lb *

152

± 25 N

·

m *

113

± 18 ft-lb *

5

8

9

4

2

3

1

6

7

AB

152

± 25 N

·

m *

113

± 18 ft-lb *

SHOCK ABSORBER, COIL SPRING AND LOWER ARM ASSEMBLY

TSB Revision

REAR SUSPENSION

34-16

REMOVAL SERVICE POINTS

.

<<A>> LOWER ARM MOUNTING BOLT REMOVAL

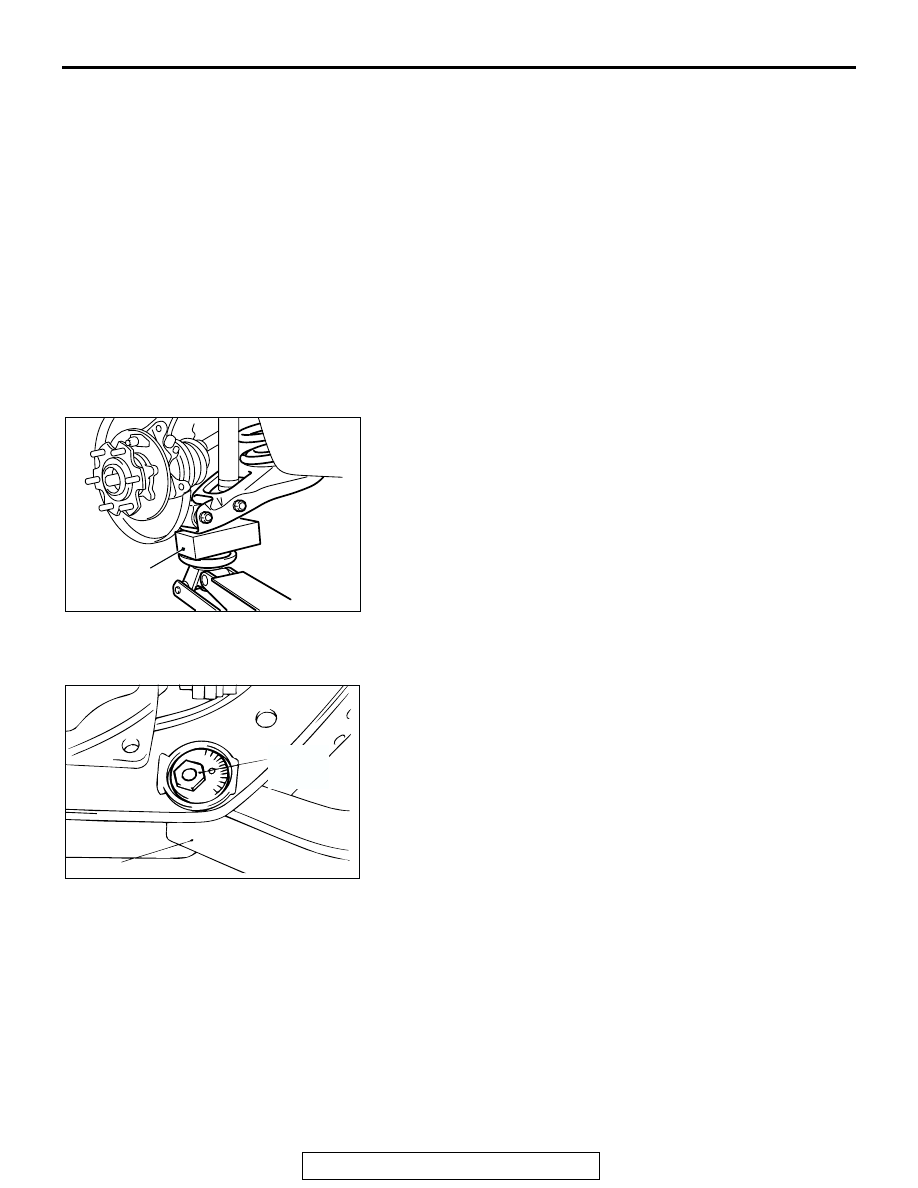

1. Place a piece of wood at the lower arm as shown in the

illustration. Using the floor jack, compress the coil spring to
remove the lower arm mounting bolt.

2. Lower the floor jack slowly, and then remove the coil spring.

.

<<B>> BOLT ASSEMBLY (CAMBER ADJUSTING BOLT)
REMOVAL
Make the mating marks to the bracket and the camber adjust-
ing bolt, and then remove the camber adjusting bolt.

INSTALLATION SERVICE POINT

.

>>A<< COIL SPRING/LOWER ARM MOUNTING BOLT
INSTALLATION
1. The identification color of the coil spring should be located at

the lower side.

2. Align the coil spring end with the spring lower pad cavity.

SHOCK ABSORBER REMOVAL
STEPS

1. SHOCK ABSORBER MOUNTING

NUT

2. SHOCK ABSORBER MOUNTING

BOLT

3. SHOCK ABSORBER

COIL SPRING REMOVAL STEPS

2. SHOCK ABSORBER MOUNTING

BOLT

<<A>> >>A<<

4. LOWER ARM MOUNTING BOLT

>>A<<

5. COIL SPRING

6. SPRING UPPER PAD
7. SPRING LOWER PAD

LOWER ARM REMOVAL STEPS

2. SHOCK ABSORBER MOUNTING

BOLT

<<A>> >>A<<

4. LOWER ARM MOUNTING BOLT

>>A<<

5. COIL SPRING
6. SPRING UPPER PAD
7. SPRING LOWER PAD

<<B>>

8. BOLT ASSEMBLY (CAMBER

ADJUSTING BOLT)

9. LOWER ARM ASSEMBLY

COIL SPRING REMOVAL STEPS

AC204512 AB

PIECE OF
WOOD

ACX00734AB

LOWER ARM

CAMBER
ADJUSTMENT
BOLT

SHOCK ABSORBER, COIL SPRING AND LOWER ARM ASSEMBLY

TSB Revision

REAR SUSPENSION

34-17

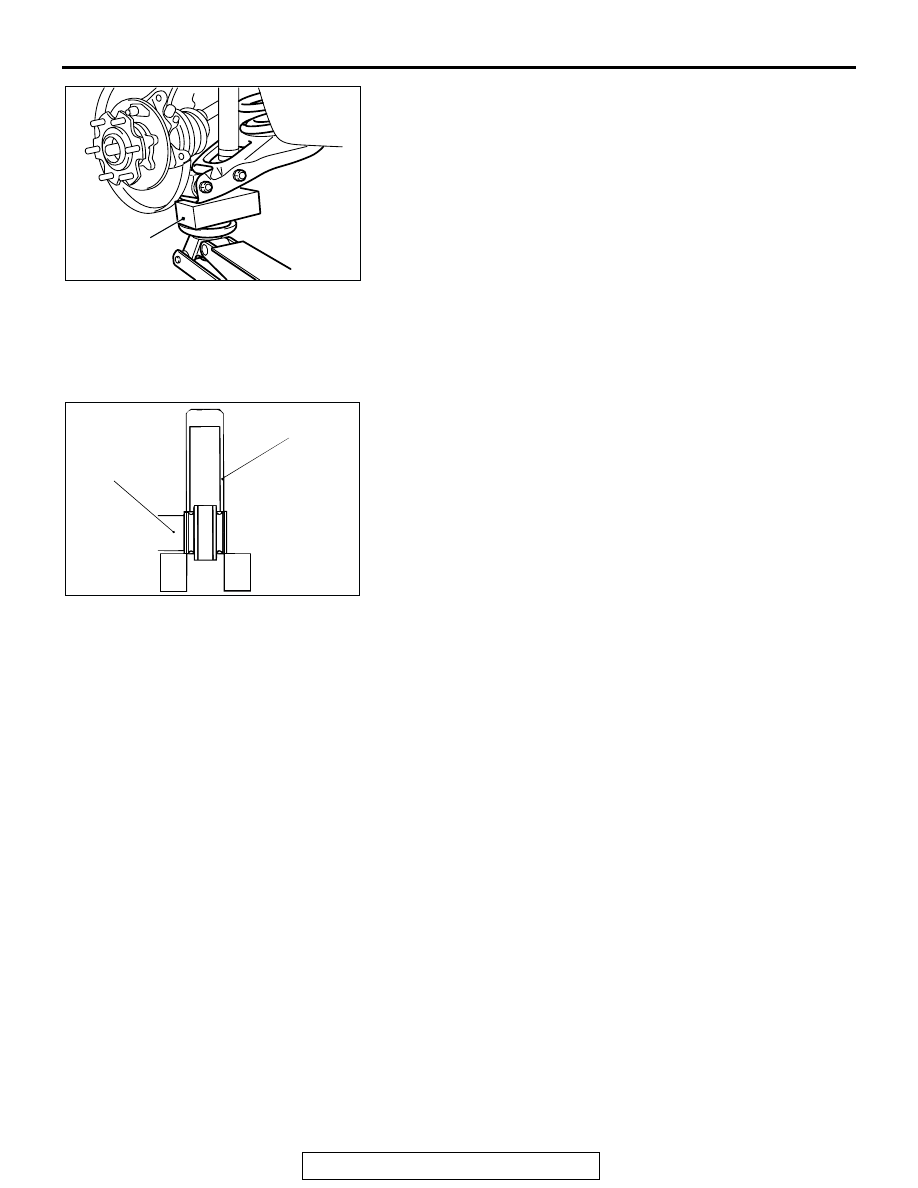

3. Place a piece of wood at the lower arm as shown in the

illustration. Using the floor jack, compress the coil spring to
remove the lower arm mounting bolt.

LOWER ARM BUSHING REPLACEMENT

M1341011800118

Required Special Tool:

• MB990881: Rear Suspension Bushing Arbor

Use special tool MB990881 to drive out and press-fit the lower
arm bushing.

AC204512 AB

PIECE OF
WOOD

ACX00742AB

LOWER ARM
ASSEMBLY

MB990881

STABILIZER BAR

TSB Revision

REAR SUSPENSION

34-18

STABILIZER BAR

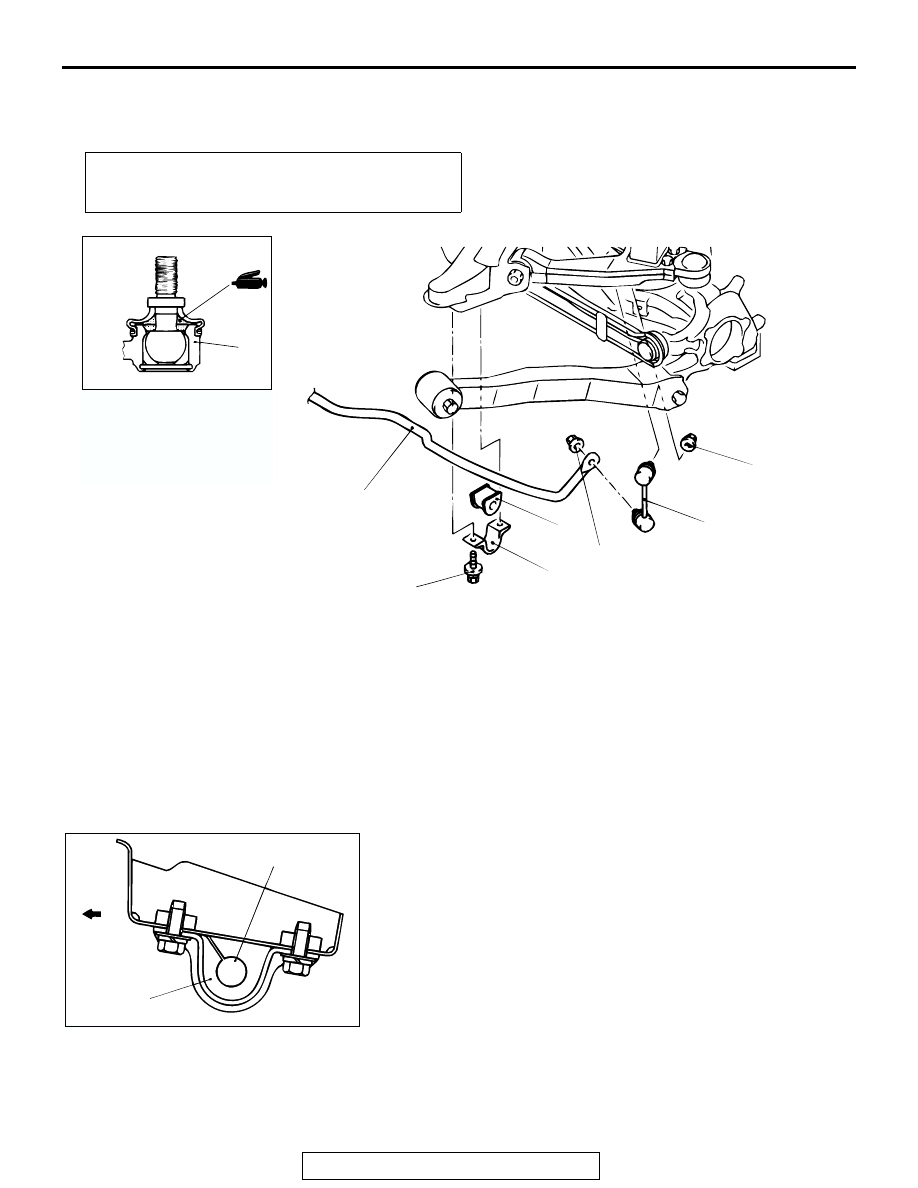

 REMOVAL AND INSTALLATION

M1341001300093

INSTALLATION SERVICE POINT

.

>>A<< BUSHING INSTALLATION
1. Install the stabilizer bar so that its identification mark faces

the left side of the vehicle.

2. Install the bushing so that its slit faces the direction shown in

the illustration.

Post-installation Operations
• Press the dust cover with your finger to check that there

are no cracks or damage in the dust cover.

ACX00743

44

± 10 N

·

m

33

± 7 ft-lb

104

± 14 N

·

m

77

± 10 ft-lb

1

4

2

3

1

AC

104

± 14 N

·

m

77

± 10 ft-lb

REMOVAL STEPS

1. STABILIZER LINK ASSEMBLY
2. STABILIZER CLAMP

>>A<<

3. BUSHING
4. STABILIZER BAR

REMOVAL STEPS (Continued)

ACX0744 AB

FRONT

BUSHING

STABILIZER BAR
