UPPER ARM BALL JOINT END PLAY CHECK

M1341015900021

1. Raise the vehicle.
2. Move the upper arm up and down with your hands to check

for an excessive play in the axial direction of the ball joint. If
there is an excessive play, replace the upper arm ball joint.

TOE CONTROL ARM BALL JOINT END PLAY
CHECK

M1341015800046

1. Raise the vehicle.
2. Move the toe control arm front and rear with your hands. If

there is an excessive play, replace the toe control arm
assembly.

BALL JOINT DUST COVER CHECK

M1341012800199

1. Inspect the dust cover for cracks or damage by pushing it

with your finger.

2. If the dust cover is cracked or damaged, replace the upper

arm ball joint assembly, toe control arm ball joint assembly
or the stabilizer link.

NOTE: If the dust cover is cracked or damaged, it is possible
that there may also be damage to the ball joint.

REAR SUSPENSION ASSEMBLY

TSB Revision

REAR SUSPENSION

34-8

REAR SUSPENSION ASSEMBLY

REMOVAL AND INSTALLATION

M1341001000122

CAUTION



*

: Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on

the ground in the unladen condition.

Post-installation Operation
• Parking Brake Lever Stroke Check (Refer to GROUP 36,

On-vehicle Service

− Parking Brake Lever Stroke Check

and Adjustment

P.36-4

.)

• Brake fluid refilling and air bleeding (Refer to GROUP

35A, On-vehicle Service

P.35A-125

.)

• Wheel Alignment Check and Adjustment (Refer to

P.34-6

.)

AC102408

1

152 ± 25 N·m *
113 ± 18 ft-lb *

167 ± 19 N·m
123 ± 14 ft-lb

213 ± 34 N·m *
157 ± 25 ft-lb *

2

3

4

AB

5

6

7

8

9

10

11

11

12

13

14

15

16

17

18

19

20

21

22

23

24

24

25

123 ± 15 N·m *
91 ± 11 ft-lb *

167 ± 19 N·m
123 ± 14 ft-lb

4.9 ± 1.0 N·m
44 ± 8 in-lb

15 ± 2 N·m
11 ± 2 ft-lb

88 ± 10 N

•

m

65 ± 7 ft-lb

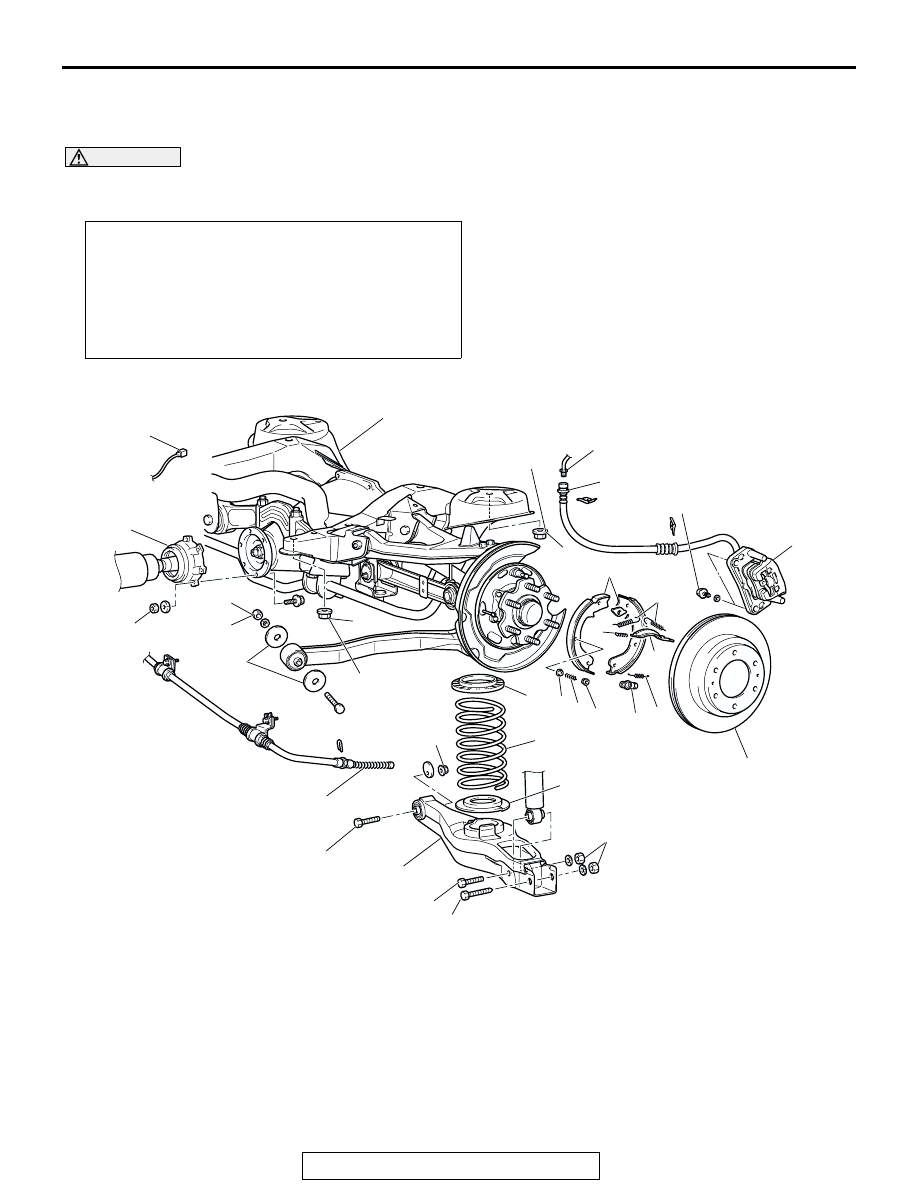

REMOVAL STEPS

1.

PROPELLER SHAFT
CONNECTION (REFER TO
GROUP 25, PROPELLER SHAFT

P.25-5

.)

•

BRAKE FLUID DRAINING

2.

BRAKE LINE CONNECTION

<<A>>

3.

BRAKE CALIPER ASSEMBLY

4.

REAR WHEEL SPEED SENSOR
CONNECTOR

5.

BRAKE DISC

6.

SHOE-TO-ANCHOR SPRING
(REFER TO GROUP 36, PARKING
BRAKE LINING AND DRUM

P.36-7

.)

7.

ADJUSTING WHEEL SPRING
(REFER TO GROUP 36, PARKING
BRAKE LINING AND DRUM

P.36-7

.)

REMOVAL STEPS (Continued)

REAR SUSPENSION ASSEMBLY

TSB Revision

REAR SUSPENSION

34-9

REMOVAL SERVICE POINTS

.

<<A>> BRAKE CALIPER ASSEMBLY REMOVAL
Secure the removed caliper assembly with a wire, so that it
does not fall.

.

<<B>> LOWER ARM MOUNTING BOLT REMOVAL
1. Place a piece of wood at the lower arm as shown in the

illustration. Using the floor jack, compress the coil spring to
remove the lower arm mounting bolt.

2. Lower the floor jack slowly, and then remove the coil spring.

.

<<C>> BOLT ASSEMBLY (CAMBER ADJUSTING BOLT)
REMOVAL
Make the mating marks to the bracket and the camber adjust-
ing bolt, and then remove the camber adjusting bolt.

8.

ADJUSTER ASSEMBLY (REFER
TO GROUP 36, PARKING BRAKE
LINING AND DRUM

P.36-7

.)

9.

STRUT (REFER TO GROUP 36,
PARKING BRAKE LINING AND
DRUM

P.36-7

.)

10. SHOE-TO-SHOE SPRING

(REFER TO GROUP 36, PARKING
BRAKE LINING AND DRUM

P.36-7

.)

11. SHOE HOLD-DOWN CUP (REFER

TO GROUP 36, PARKING BRAKE
LINING AND DRUM

P.36-7

.)

12. SHOE HOLD-DOWN PIN (REFER

TO GROUP 36, PARKING BRAKE
LINING AND DRUM

P.36-7

.)

13. SHOE AND LINING ASSEMBLY

(REFER TO GROUP 36, PARKING
BRAKE LINING AND DRUM

P.36-7

.)

REMOVAL STEPS (Continued)

14. PARKING BRAKE CABLE

CONNECTION

15. SHOCK ABSORBER MOUNTING

BOLT

<<B>>

>>A<<

16. LOWER ARM MOUNTING BOLT
17. SPRING UPPER PAD

>>A<<

18. COIL SPRING
19. SPRING LOWER PAD

<<C>>

20. BOLT ASSEMBLY (CAMBER

ADJUSTING BOLT)

21. LOWER ARM ASSEMBLY
22. TRAILING ARM MOUNTING NUT
23. STOPPER

<<D>>

24. CROSSMENBER MOUNTING

NUT

25. REAR SUSPENSION ASSEMBLY

REMOVAL STEPS (Continued)

AC204512 AB

PIECE OF
WOOD

ACX00734AB

LOWER ARM

CAMBER
ADJUSTMENT
BOLT

REAR SUSPENSION ASSEMBLY

TSB Revision

REAR SUSPENSION

34-10

.

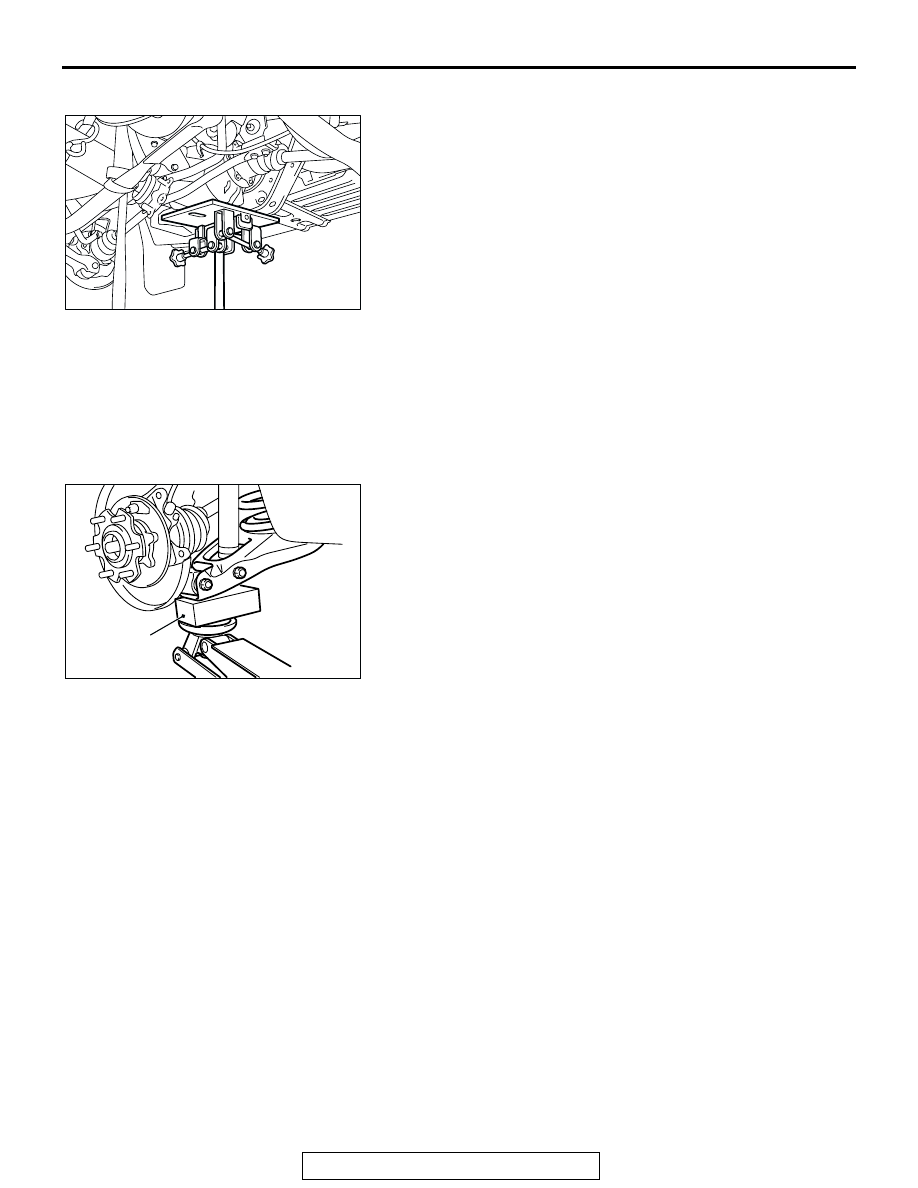

<<D>> CROSSMEMBER MOUNTING NUT REMOVAL
Support the crossmember with a garage jack or transmission
jack to remove the crossmember mounting nut.

INSTALLATION SERVICE POINT

.

>>A<< COIL SPRING/LOWER ARM MOUNTING BOLT
INSTALLATION
1. The identification color of the coil spring should be located at

the lower side.

2. Align the coil spring end with the spring lower pad cavity.

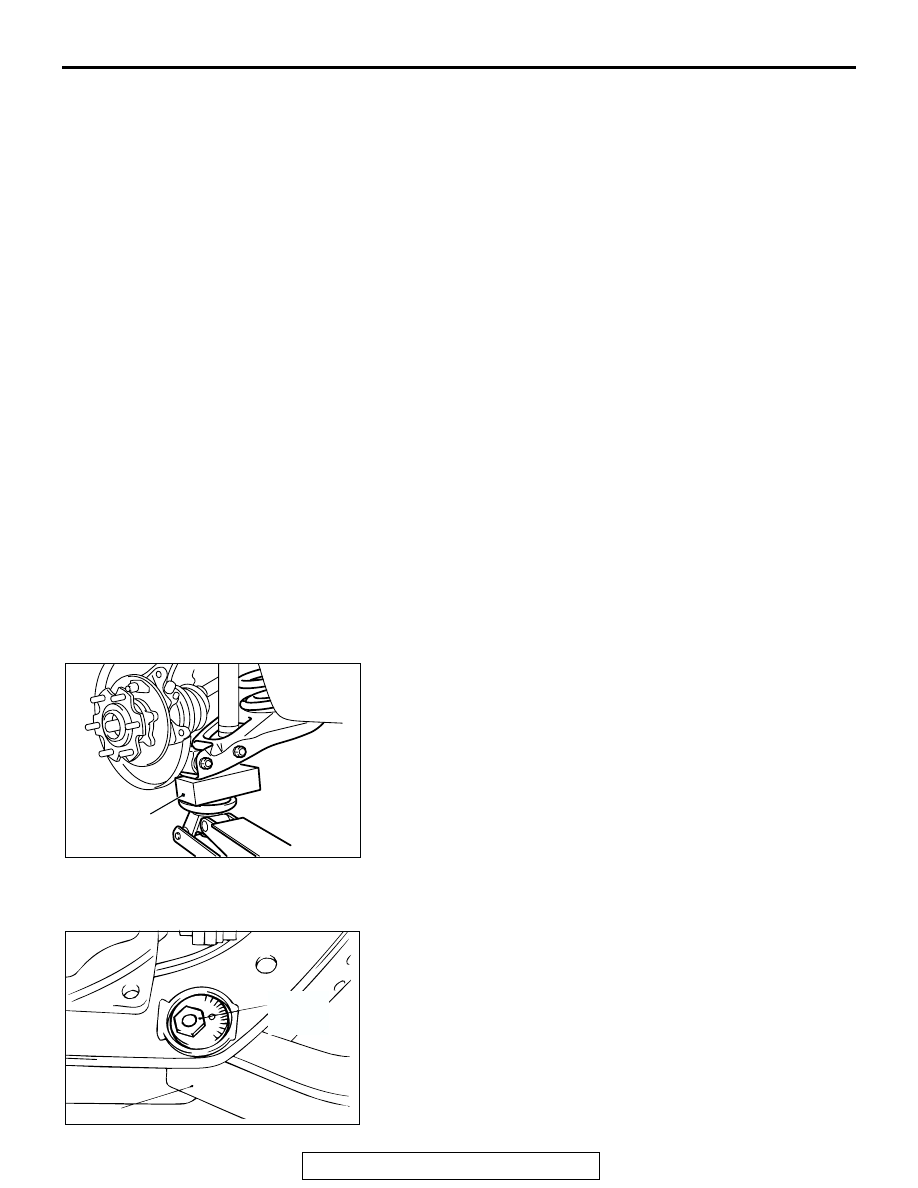

3. Place a piece of wood at the lower arm as shown in the

illustration. Using the floor jack, compress the coil spring to
remove the lower arm mounting bolt.

INSPECTION

M1341015500067

Check crossmember for cracks or other damage.

AC102289

AC204512 AB

PIECE OF
WOOD
