UPPER ARM ASSEMBLY

TSB Revision

REAR SUSPENSION

34-11

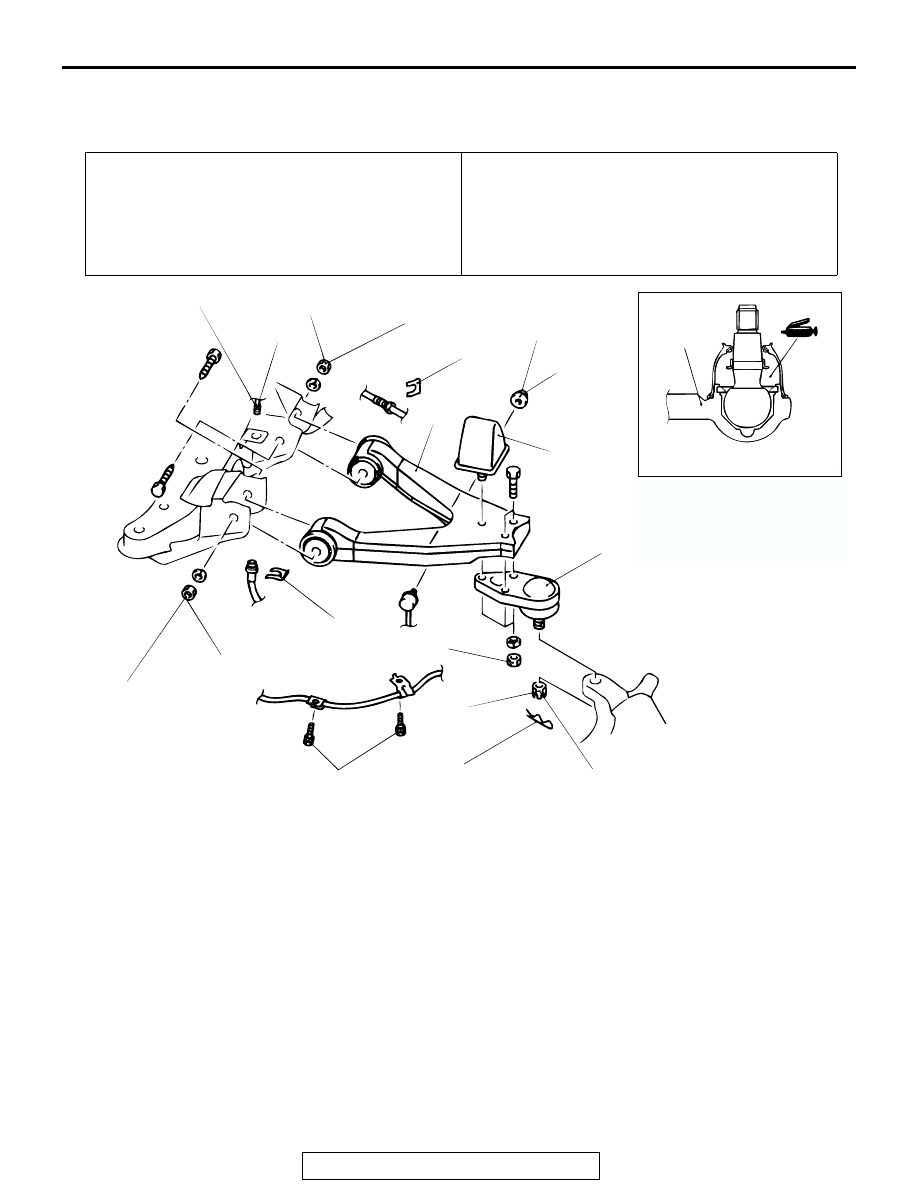

UPPER ARM ASSEMBLY

 REMOVAL AND INSTALLATION

M1341003600227

Required Special Tool:

• MB991897: Ball Joint Remover

• MB990799: Ball Joint Dust Cover Installer

Pre-removal Operations
• Brake Fluid Draining

Post-installation Operations
• Press the dust cover with your finger to check that there

are no cracks or damage in the dust cover.

• Brake fluid refilling and air bleeding (Refer to GROUP

35A, On-vehicle Service

P.35A-125

).

• Wheel Alignment Check and Adjustment (Refer to

P.34-6

).

ACX00735

15

± 2 N

·

m

11

± 2 ft-lb

167

± 10 N

·

m

124

± 7 ft-lb

104

± 14 N

·

m

77

± 10 ft-lb

98

± 12 N

·

m

72

± 9 ft-lb

1

8

2

9

4

10

7

6

3

8

2

5

10

AB

167

± 10 N

·

m

124

± 7 ft-lb

150

± 30 N

·

m

111

± 22 ft-lb

REMOVAL STEPS

1. BRAKE PIPE CONNECTION
2. CLIP
3. REAR WHEEL SPEED SENSOR

AND UPPER ARM ASSEMBLY
CONNECTION.

4. BUMP STOPPER
5. STABILIZER LINK AND UPPER ARM

ASSEMBLY CONNECTION.

6. COTTER PIN

<<A>> >>B<<

7. UPPER ARM BALL JOINT AND

KNUCKLE CONNECTION

<<B>> >>A<<

8. UPPER ARM ASSEMBLY AND

REAR FRAME CONNECTION

9. UPPER ARM
10. UPPER ARM BALL JOINT

REMOVAL STEPS (Continued)

UPPER ARM ASSEMBLY

TSB Revision

REAR SUSPENSION

34-12

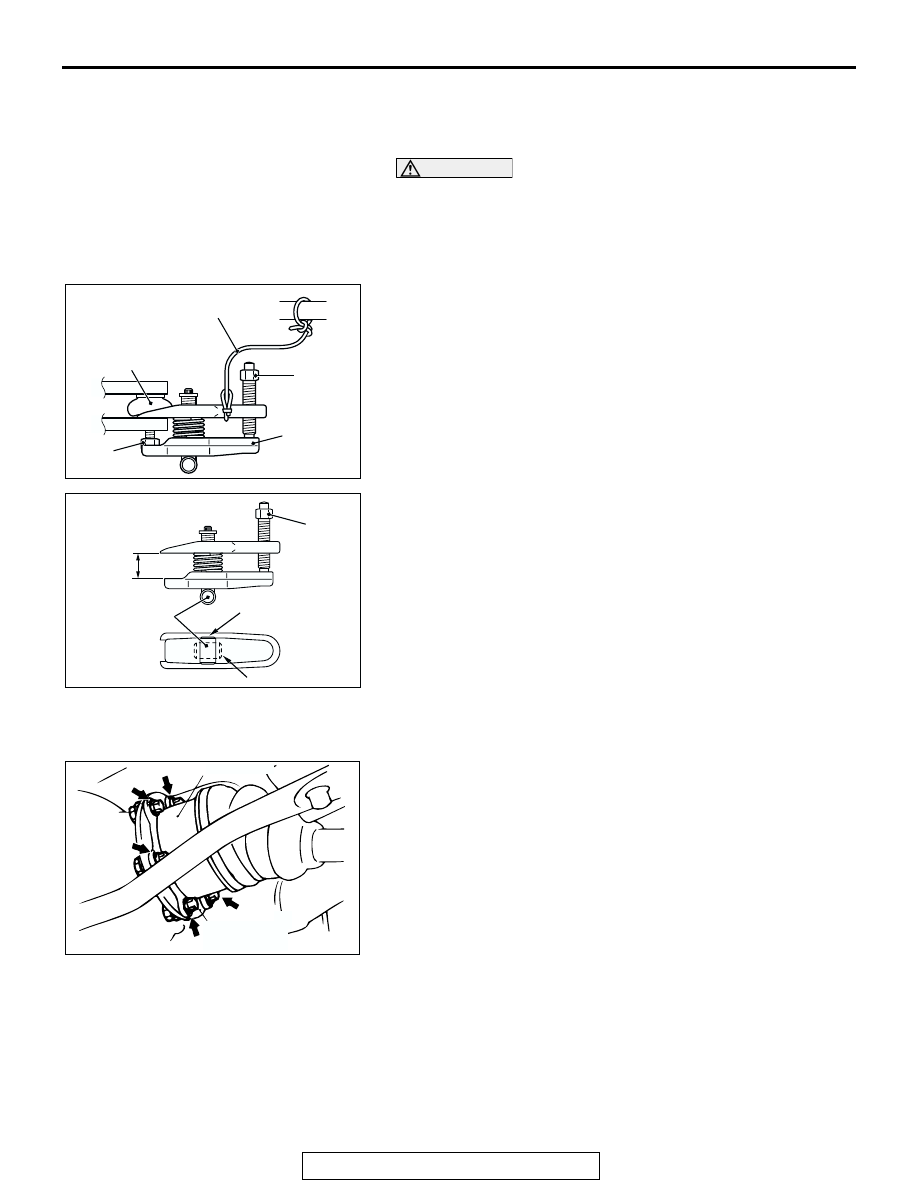

REMOVAL SERVICE POINTS

.

<<A>> UPPER ARM BALL JOINT AND KNUCKLE DISCON-
NECTION

CAUTION

• Do not remove the nut from ball joint. Loosen it and use

special tool MB991897 to avoid possible damage to ball
joint threads.

• Hang special tool MB991897 with a cord to prevent it

from falling.

1. Install special tool MB991897 as shown in the figure.

2. Turn the bolt and knob as necessary to make the jaws of

special tool MB991897 parallel, tighten the bolt by hand and
confirm that the jaws are still parallel.
NOTE: When adjusting the jaws in parallel, make sure the
knob is in the position shown in the figure.

3. Tighten the bolt with a wrench to disconnect the ball joint.

.

<<B>> UPPER ARM ASSEMBLY AND REAR FRAME
DISCONNECTION
Disconnect the connection of the DOJ assembly and the com-
panion shaft assembly.

AC106820 AB

CORD

BOLT

MB991897

NUT

BALL JOINT

AC106821

KNOB

PARALLEL

BOLT

GOOD

BAD

AB

ACX00736AB

COMPANION
SHAFT
ASSEMBLY

DOJ ASSEMBLY

UPPER ARM ASSEMBLY

TSB Revision

REAR SUSPENSION

34-13

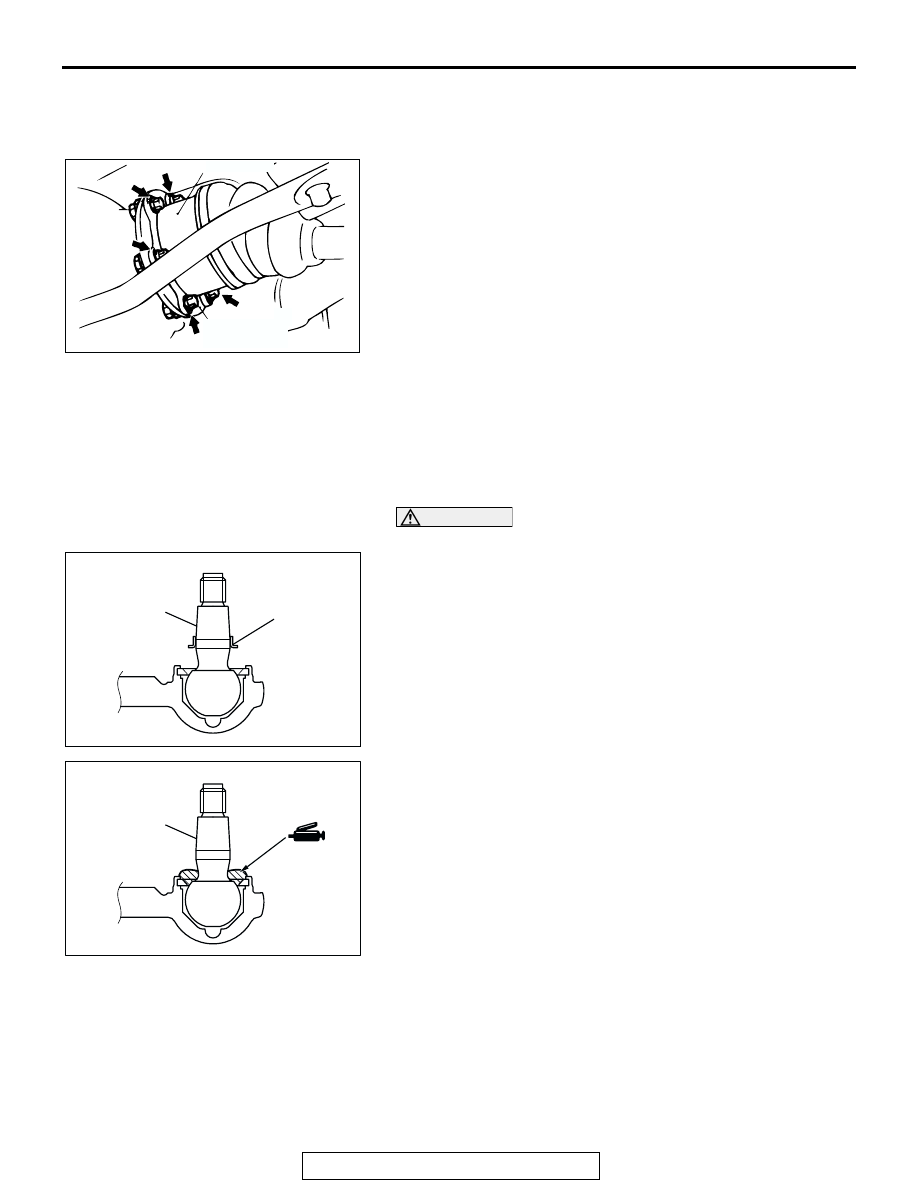

INSTALLATION SERVICE POINT

.

>>A<< UPPER ARM ASSEMBLY FROM REAR FRAME
CONNECTION
After installing the upper arm mounting bolt, tighten the con-
necting bolt of the DOJ assembly and the companion shaft
assembly to the specified torque 113

± 14 N⋅m (84 ± 10 ft-lb).

.

>>B<< UPPER ARM BALL JOINT AND KNUCKLE
CONNECTION
If the upper arm ball joint is disengaged from the knuckle,
always renew the upper arm ball joint dust cover and retainer
by following the procedure below.
1. Remove the dust cover.

CAUTION

Be careful not to damage the ball joint stud.
2. Use a flat-tipped screwdriver to remove the retainer.

3. Apply multi-purpose grease evenly around the ball joint stud.

Standard value: 8 g (0.3 oz)

ACX00736AB

COMPANION
SHAFT
ASSEMBLY

DOJ ASSEMBLY

AC306269AC

RETAINER

STUD

AC306273AC

STUD

UPPER ARM ASSEMBLY

TSB Revision

REAR SUSPENSION

34-14

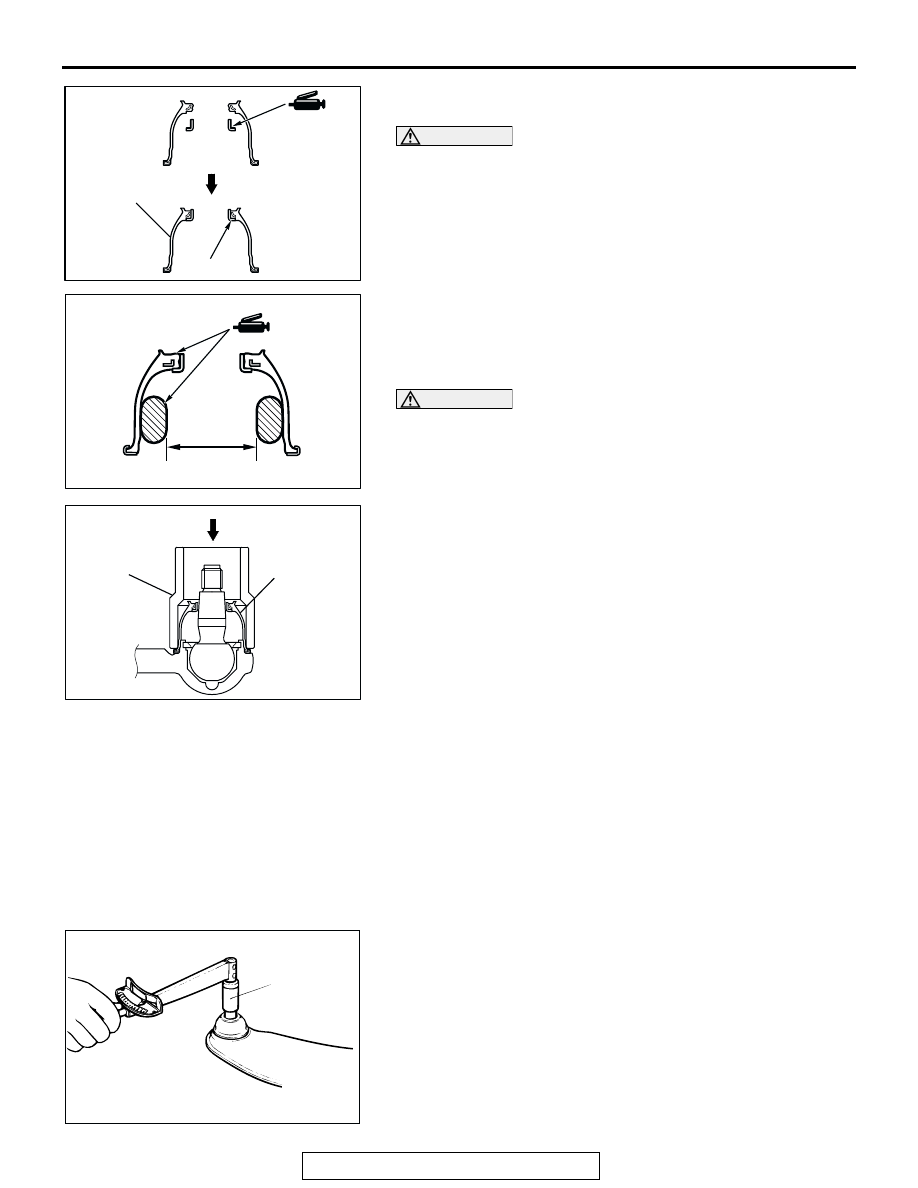

4. Apply multi-purpose grease to the new retainer, and

assemble it to the new dust cover.

CAUTION

Total grease amount (grease amount used in step 3 and
this step) should be 22

± 1 g (0.8 ± 0.04 oz).

5. Fill multi-purpose grease inside the dust cover as shown.

Standard value: 14

± 1 g (0.5 ± 0.04 oz)

6. Apply multi-purpose grease to the dust cover lip.
7. Tape the stud threads to avoid damage.

CAUTION

Ensure grease does not come into contact with the ball
joint threads and tapers. Wipe off the grease if contami-
nated.

8. Use special tool MB990799 to drive the dust cover into the

position shown.

9. Secure the dust cover with the clip ring.
10.Engage the upper arm ball joint with the knuckle.

NOTE: The retainer is secured in a predetermined position
by tightening the ball joint nut to the specified torque.

 INSPECTION

M1341015500119

• Check the bushing for wear and deterioration.

• Check the upper arm for bending or damage.

• Check all bolts for condition and straightness.

UPPER ARM BALL JOINT TURNING TORQUE
CHECK

Required Special Tool:

• MB990326: Preload Socket

1. After shaking the ball joint stud several times, install the nut

to the stud and use special tool MB990326 to measure the
turning torque of the ball joint.

Standard value: 1.5

− 7.9 N⋅m (13 − 70 in-lb)

2. If the measured value exceeds the standard value, replace

the upper arm ball joint assembly.

3. If the measured value is lower than the standard value,

check that the upper arm ball joint turns smoothly without
excessive play. If so, it is possible to use that ball joint.

AC306270

RETAINER

DUST COVER

AC

AC306271

33 mm
(1.3 in)
OR MORE

AC

AC306272

DUST COVER

AC

MB990799

ACX00716

MB990326

AB
