Mitsubishi Montero (2002-2004). Manual - part 516

RV METER

TSB Revision

CHASSIS ELECTRICAL

54A-235

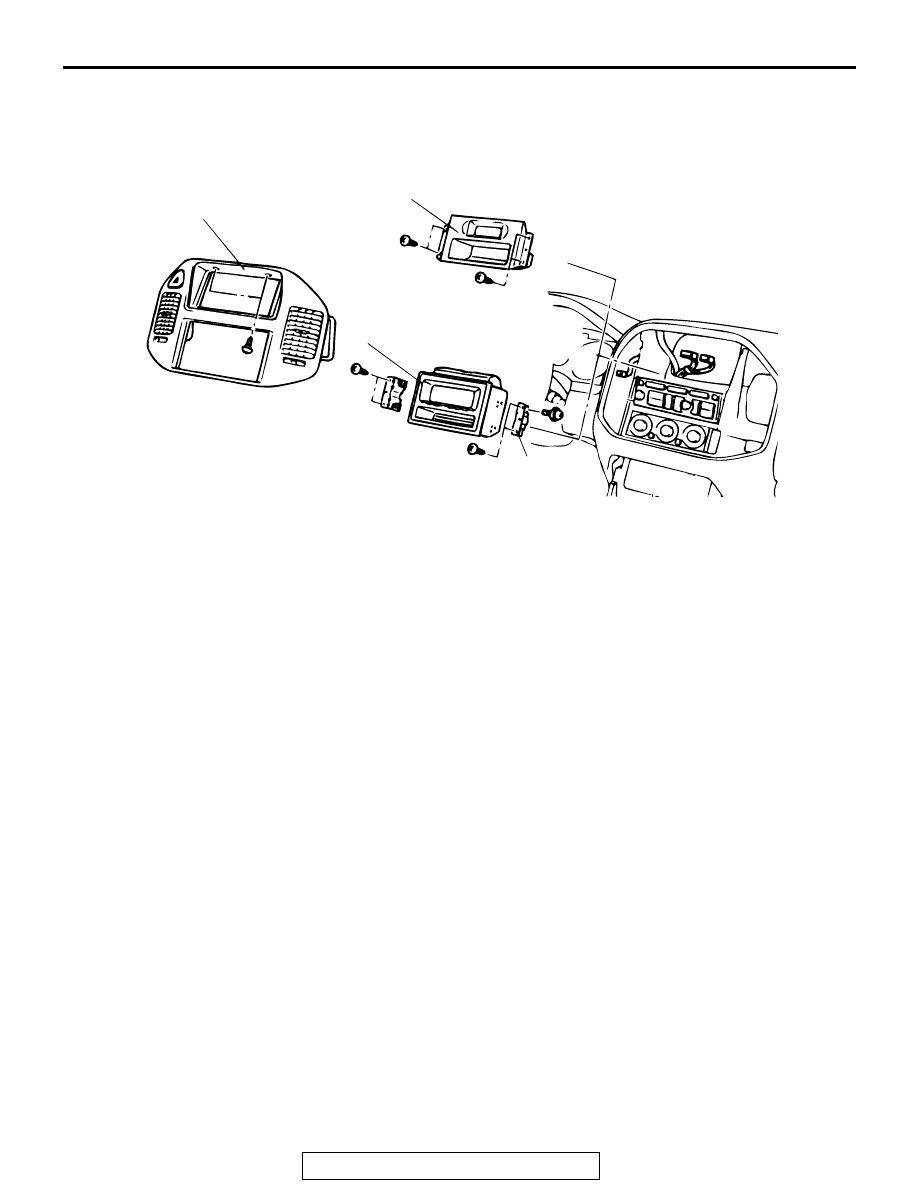

MULTI METER ASSEMBLY

REMOVAL AND INSTALLATION

M1543003900068

ACX01973

1

2

3

4

AB

REMOVAL STEPS

1.

CENTER PANEL (REFER TO GROUP
52A, INSTRUMENT PANEL-TRIM

P.52A-8

.)

2.

CLOCK

3.

RV METER

4.

BRACKET

THEFT ALARM

TSB Revision

CHASSIS ELECTRICAL

54A-236

THEFT ALARM

THEFT-ALARM SYSTEM DIAGNOSIS

M1547000900146

The theft-alarm system is controlled by the Simplified
Wiring System (SWS). For troubleshooting, refer to
GROUP 54B, SWS Diagnosis

− Symptom Chart

P.54Bb-2

.

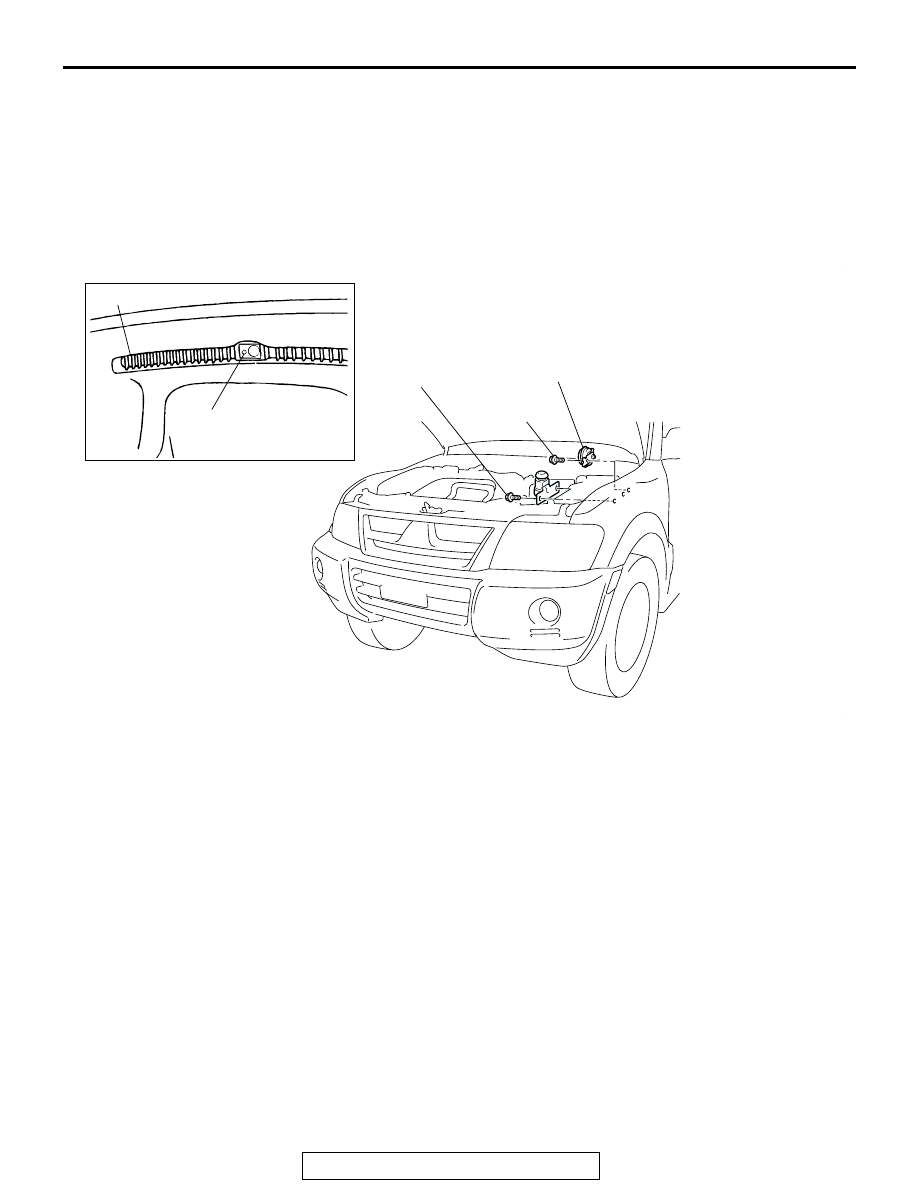

REMOVAL AND INSTALLATION

M1547001000191

AC204114

1

2

12 ± 1 N·m

104 ± 7 in-lb

DEFROSTER NOZLE



3

AB

REMOVAL STEPS

1. HORN (FOR KEYLESS ENTRY ANSWERBACK

AND THEFT ALARM SYSTEM)

2. HOOD SWITCH
3. SECURITY INDICATOR

THEFT ALARM

TSB Revision

CHASSIS ELECTRICAL

54A-237

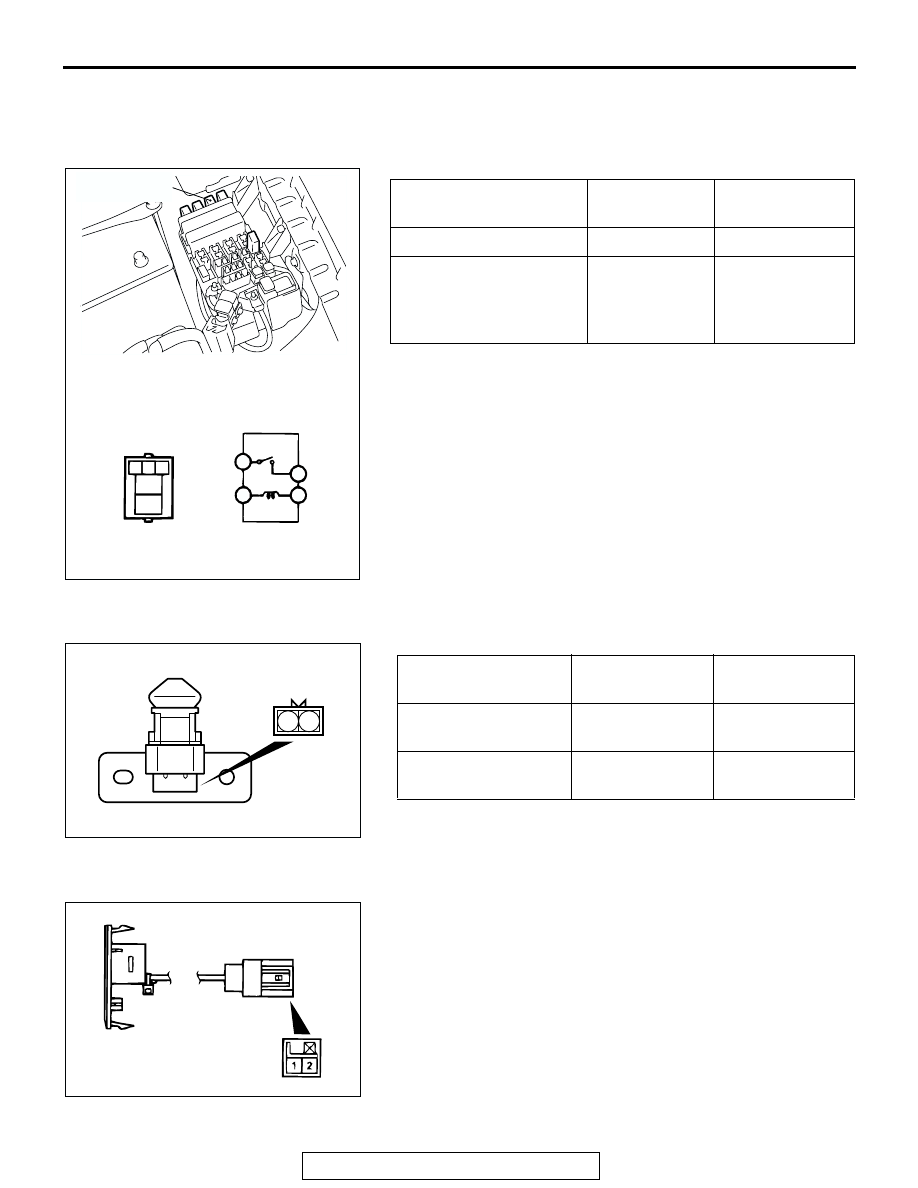

INSPECTION

M1547001100110

THEFT-ALARM HORN RELAY CONTINUITY
CHECK

HOOD SWITCH CONTINUITY CHECK

SECURITY INDICATOR LIGHT CHECK

Connect the positive battery terminal to security indicator light
terminal No. 2, and connect the negative battery terminal to
security indicator light No.1. Then, confirm that the security
indicator light illuminates.

BATTERY VOLTAGE

TESTER
CONNECTION

SPECIFIED
CONDITION

Not applied

4

− 5

Open circuit

1

− Negative battery

terminals

3

− Positive battery

terminals

4

− 5

Less than 2 ohms

ACX01471

1 2 3

4

5

1

3

4

5

ACX01819

1

4

5

3

THEFT-ALARM
HORN RELAY

AD

BATTERY VOLTAGE TESTER

CONNECTION

SPECIFIED
CONDITION

Hood switch not
depressed

1

− 2

Less than 2 ohms

Hood switch
depressed

1

− 2

Open circuit

1

2

AC000839AB

AC000840 AB

SPECIFICATIONS

TSB Revision

CHASSIS ELECTRICAL

54A-238

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

M1544004600212

SERVICE SPECIFICATIONS

M1543000300090

<IMMOBILIZER SYSTEM>

<COMBINATION METER>

ITEM

SPECIFICATION

Amplifier mounting nut

4.9

± 0.7 N⋅m (43 ± 6 in-lb)

Amplifier bracket mounting bolt

12

± 2 N⋅m (100 ± 22 in-lb)

Engine coolant temperature gauge unit

16

± 2 N⋅m (11 ± 2 ft-lb)

Fog light assembly mounting bolt

4.9

± 0.7 N⋅m (43 ± 6 in-lb)

Headlight mounting bolt

4.9

± 0.7 N⋅m (43 ± 6 in-lb)

Horn mounting bolt

12

± 1 N⋅m (104 ± 7 in-lb)

Radio mounting screw

1.4

± 0.1 N⋅m (12 ± 1 in-lb)

Radio bracket mounting bolt

1.4

± 0.1 N⋅m (12 ± 1 in-lb)

ITEM

STANDARD VALUE

Ignition key ring antenna resistance

2 or less

ITEM

STANDARD VALUE

Speedometer indication error km/h
(mph)

32 (20)

31

− 35 (19 − 22)

64 (40)

61

− 71 (38 − 44)

97 (60)

92

− 106 (57 − 66)

129 (80)

122

− 142 (76 − 88)

161 (100)

151

− 177 (94 − 110)

Tachometer indication error r/min

700

+100

3,000

+150

5,000

+250

6,000

+300

Fuel level sensor resistance

Float point "F"

3

− 5

Float point "E"

110

− 112

Fuel level sensor float height mm
(in)

A (Float point "F")

11.9 (0.47)

B (Float point "E")

195.2 (7.69)

Engine coolant temperature gauge unit resistance

104 + 13.5
