THIRD SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-25

DISASSEMBLY STEPS

1.

OUTER RECLINING ADJUSTER
COVER

2.

CATCH RELEASE KNOB

3.

CATCH RELEASE KNOB
GARNISH

4.

LATCH COVER

5.

CATCH CABLE CONNECTION

6.

INNER RECLINING ADJUSTER
COVER

7.

THIRD SEATBACK ASSEMBLY

8.

RECLINING KNOB

9.

RECLINING ADJUSTER COVER

10. DAMPER
11. FOLDING LEVER KNOB
12. FOLDING KNOB GARNISH
13. THIRD SEATBACK BOARD

<<A>>

14. HEAD RESTRAINT GUIDE
15. HOG RING
16. THIRD SEATBACK FRAME
17. THIRD SEATBACK PAD

18. THIRD SEATBACK COVER
19. ROD
20. SPRING
21. RECLINING ADJUSTER
22. INNER RECLINING ADJUSTER

COVER

23. SHAFT
24. INNER SEAT BELT
25. HOG RING
26. THIRD SEAT CUSHION FRAME
27. THIRD SEAT CUSHION PAD
28. THIRD SEAT CUSHION COVER
29. CATCH CABLE
30. THIRD SEAT LATCH
31. ARM COVER
32. CAM
33. THIRD SEAT LEG FRAME
34. CATCH ASSEMBLY
35. STRIKER COVER
36. STRIKER

DISASSEMBLY STEPS

THIRD SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-26

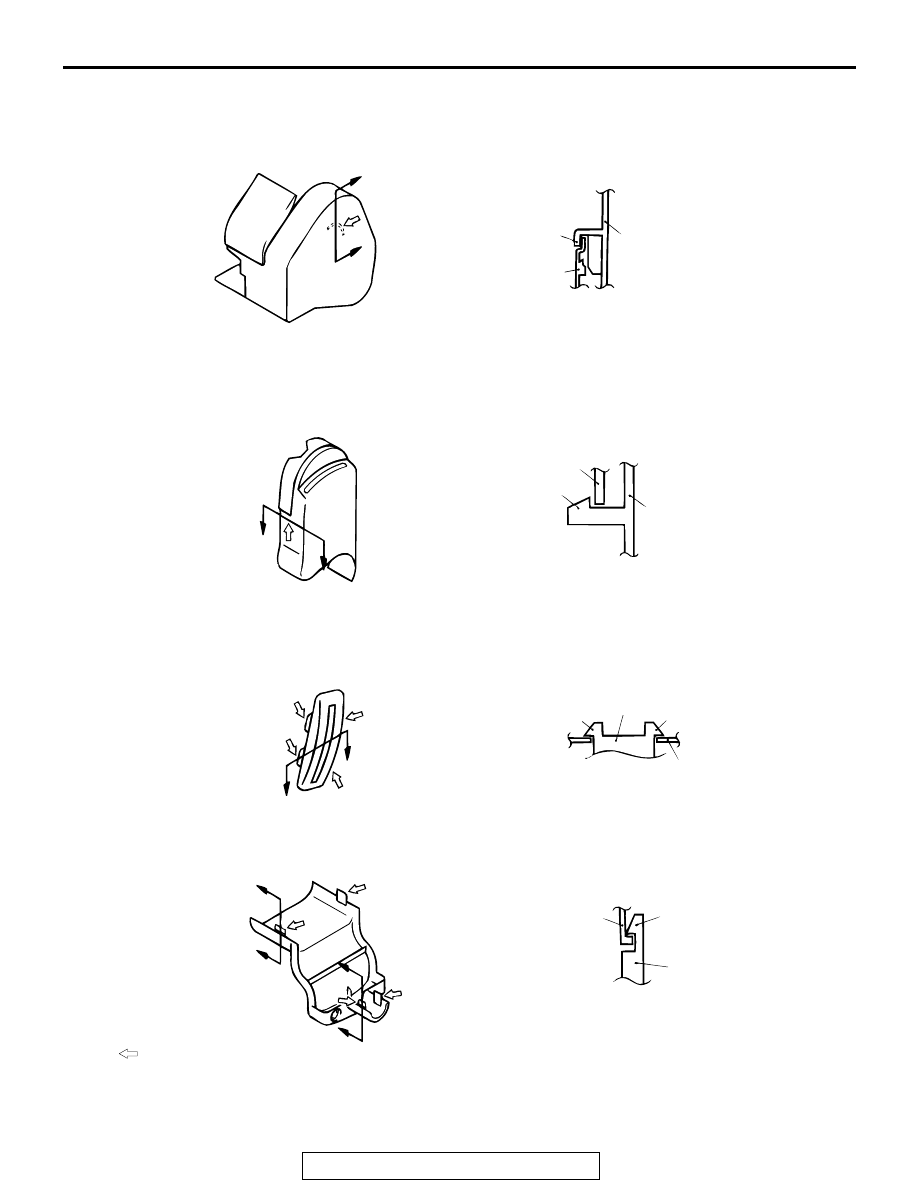

CLAW POSITIONS

ACX00633

<OUTER RECLINING ADJUSTER COVER>

SECTION A - A

<RECLINING ADJUSTER COVER>

SECTION B - B

<FOLDING KNOB GARNISH>

SECTION C -



C

<ARM COVER>

SECTION D - D

A

A

CLAW

CLAW

CLAW

CLAW

CLAW

OUTER RECLINING
ADJUSTER COVER

RECLINING
ADJUSTER

RECLINING
ADJUSTER COVER

THARD SEAT BACK
ASSEMBLY

THARD SEAT BACK
ASSEMBLY

B

B

C

D

D

D

D

C

FOLDING KNOB
GARNISH

ARM COVER

ARM COVER

AB

NOTE

:Claw position

THIRD SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-27

REMOVAL SERVICE POINTS

.

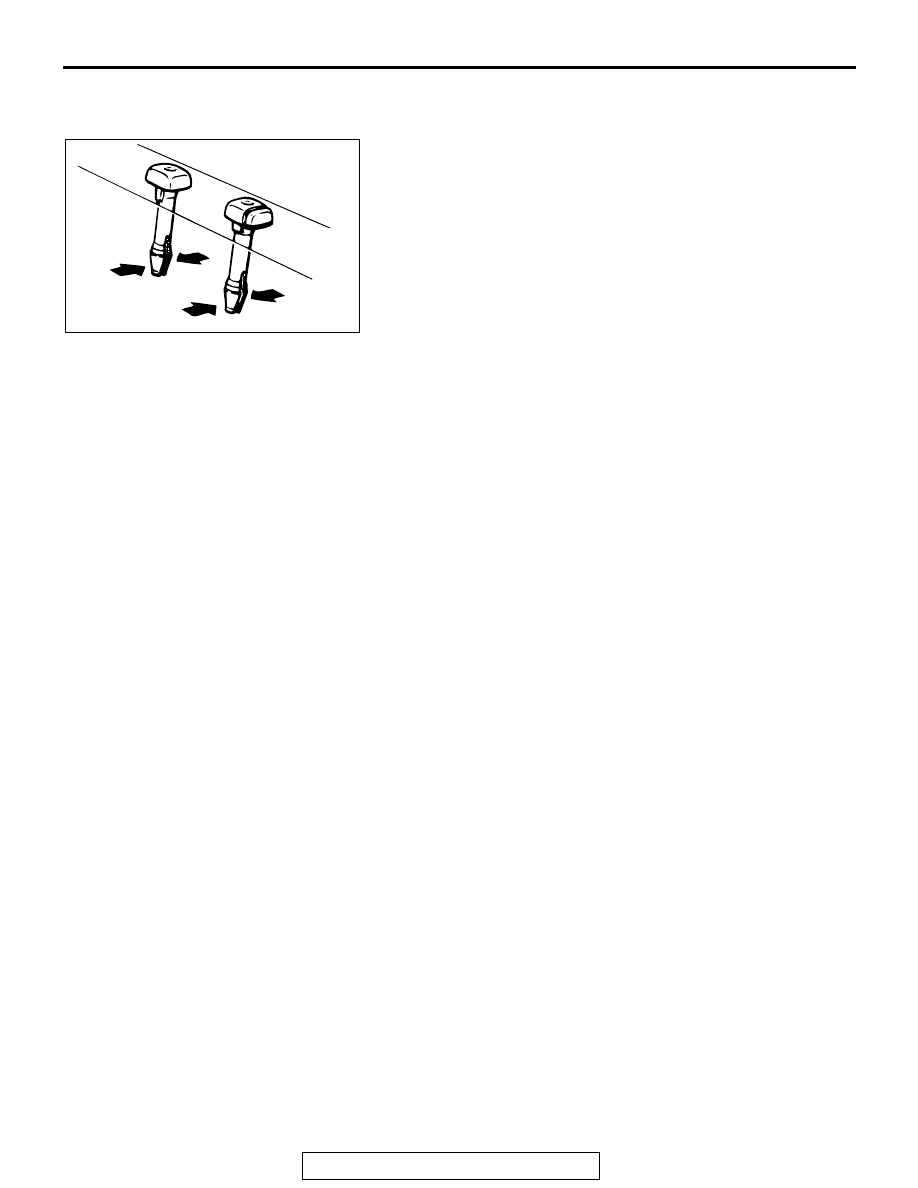

<<A>>HEAD RESTRAINT GUIDE REMOVAL

ACX01300AB

FRONT SEAT BELT

TSB Revision

INTERIOR

52A-28

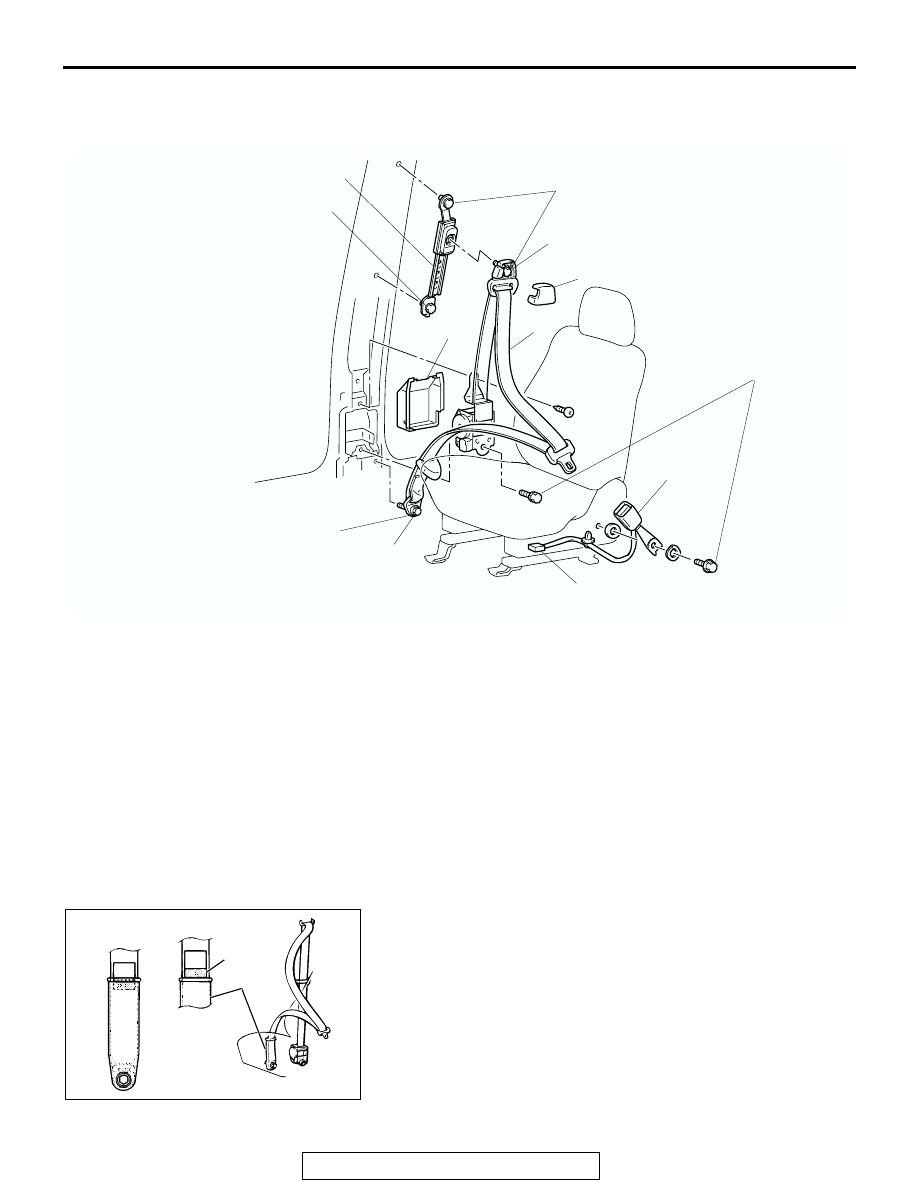

FRONT SEAT BELT

REMOVAL AND INSTALLATION

M1523001300239

INSPECTION

M1523001400270

OUTER SEAT BELT CHECK

Check that the A section (red) of the label attached to the outer
seat belt is not exposed from the outer seat belt sleeve. If it is
exposed, replace the outer seat belt.

ACX00634AE

1

3

4

5

6

7

44 ±1 0 N·m
33 ± 7 ft-lb

44 ± 10 N·m
33 ± 7 ft-lb

44 ± 10 N·m
33 ± 7 ft-lb

44 ± 10 N·m
33 ± 7 ft-lb

2

2

OUTER SEAT BELT REMOVAL
STEPS

1. SASH GUIDE COVER
2. OUTER SEAT BELT CONNECTION
• FRONT SCUFF PLATE, REAR

SCUFF PLATE, LOWER CENTER
PILLAR TRIM AND UPPER CENTER
PILLAR TRIM (REFER TO

P.52A-8

.)

3. OUTER SEAT BELT
4. FRONT NOISE PROTECTOR
5. ADJUSTABLE SEAT BELT ANCHOR

INNER SEAT BELT REMOVAL
STEPS

• FRONT SEAT ASSEMBLY (REFER

TO

P.52A-11

.)

• HINGE COVER (REFER TO

P.52A-

13

.)

6. SEAT BELT SWITCH HARNESS

CONNECTOR (DRIVER'S SIDE)

7. INNER SEAT BELT

ACX00635

AC

A

SLEEVE

CORRECT INCORRECT
