Mitsubishi Montero (2002-2004). Manual - part 404





FRONT SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-17

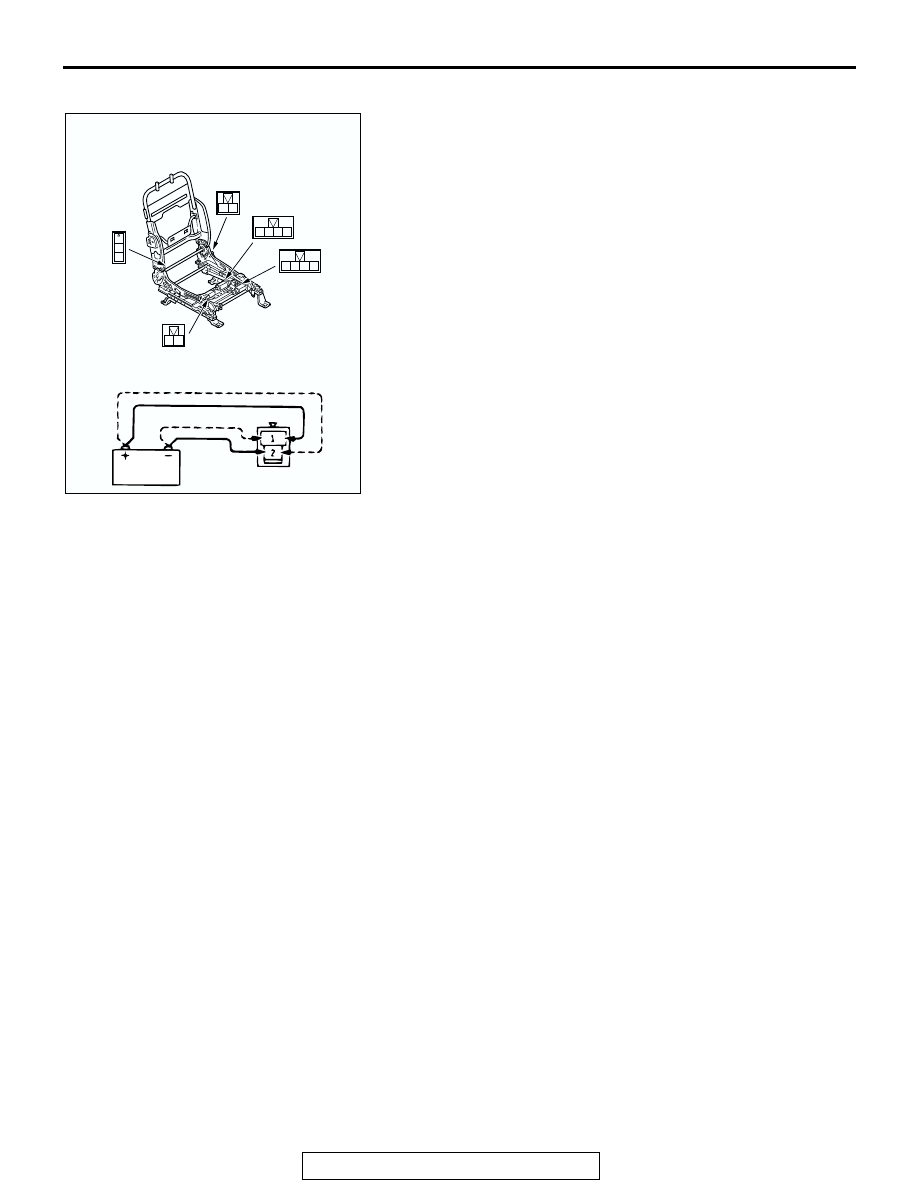

Operation check of power seat motor

1. Disconnect the connector of each motor.
2. Check that when the battery is directly connected to the

motor terminal, the motor turns smoothly and each adjusting
mechanism operates as stated below for each motor.

(1) Connect the battery power supply to the terminal 1 and

ground the terminal 2 for the front height down side, rear
slide side and the rear lumbar support side.

(2) Connect the battery power supply to the terminal 2 and

ground the terminal 1 for the front height up side, front
slide side and front lumbar support side.

(3) Connect the battery power supply to the terminal 3 and

ground the terminal 4 for the rear height down side and
connect the battery power supply to the terminal 4 and
ground the terminal 3 for the rear height up side.

(4) Connect the battery power supply to the terminal 2 and

ground the terminal 1 for the rear reclining side and
connect the battery power supply to the terminal 1 and
ground the terminal 2 for the front reclining side.

3. If abnormality was found, check the power seat adjuster

assembly.

1 2

1

2

1 2

1 2 3 4

1 2 3 4

ACX01837

AB

SAMPLE

RECLINING
MOTOR
CONNECTOR

SLIDEMOTOR
CONNECTOR

LUMBAR
SUPPORT
MOTOR
CONNECTOR

FRONT HEIGHT
MOTOR
CONNECTOR

REAR HEIGHT
MOTOR
CONNECTOR

REAR SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-18

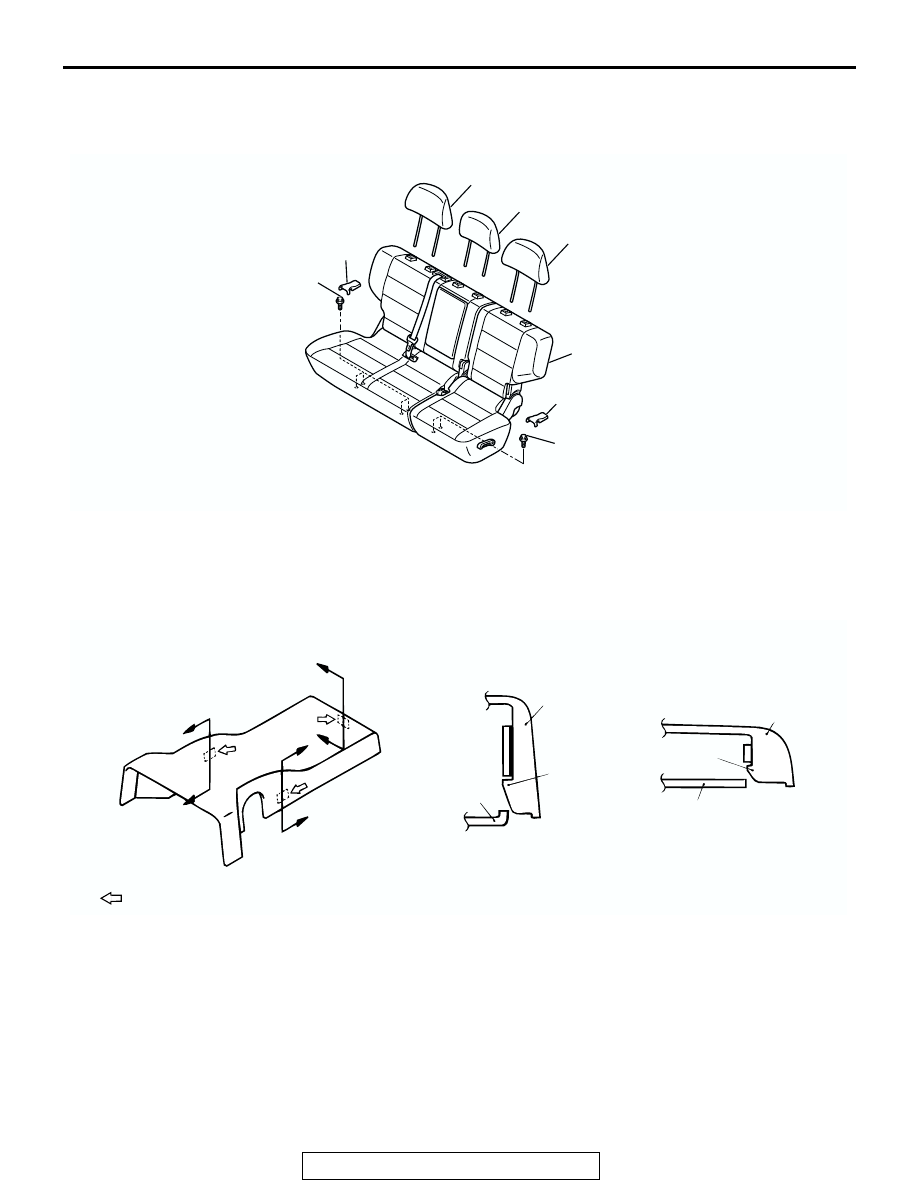

REAR SEAT ASSEMBLY

REMOVAL AND INSTALLATION

M1522001800190

CLAW POSITIONS

AC006064AB

2

1

1

1

3

2

44 ± 10 N·m
33 ± 7 ft-lb

44 ± 10 N·m
33 ± 7 ft-lb

1. HEAD RESTRAINT

REMOVAL STEPS

2. SEAT ANCHOR COVER
3. SECOND SEAT ASSEMBLY

AC101440

<SEAT ANCHOR COVER>

A

A

B

B

A

A

SECTION A - A

SECTION B - B

SEAT ANCHOR
COVER

CLAW

SECOND SEAT
ASSEMBLY

SEAT HINGE COVER

CLAW

SEAT SIDE BACK
ASSEMBLY

AB

NOTE
         :Claw position

REAR SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-19

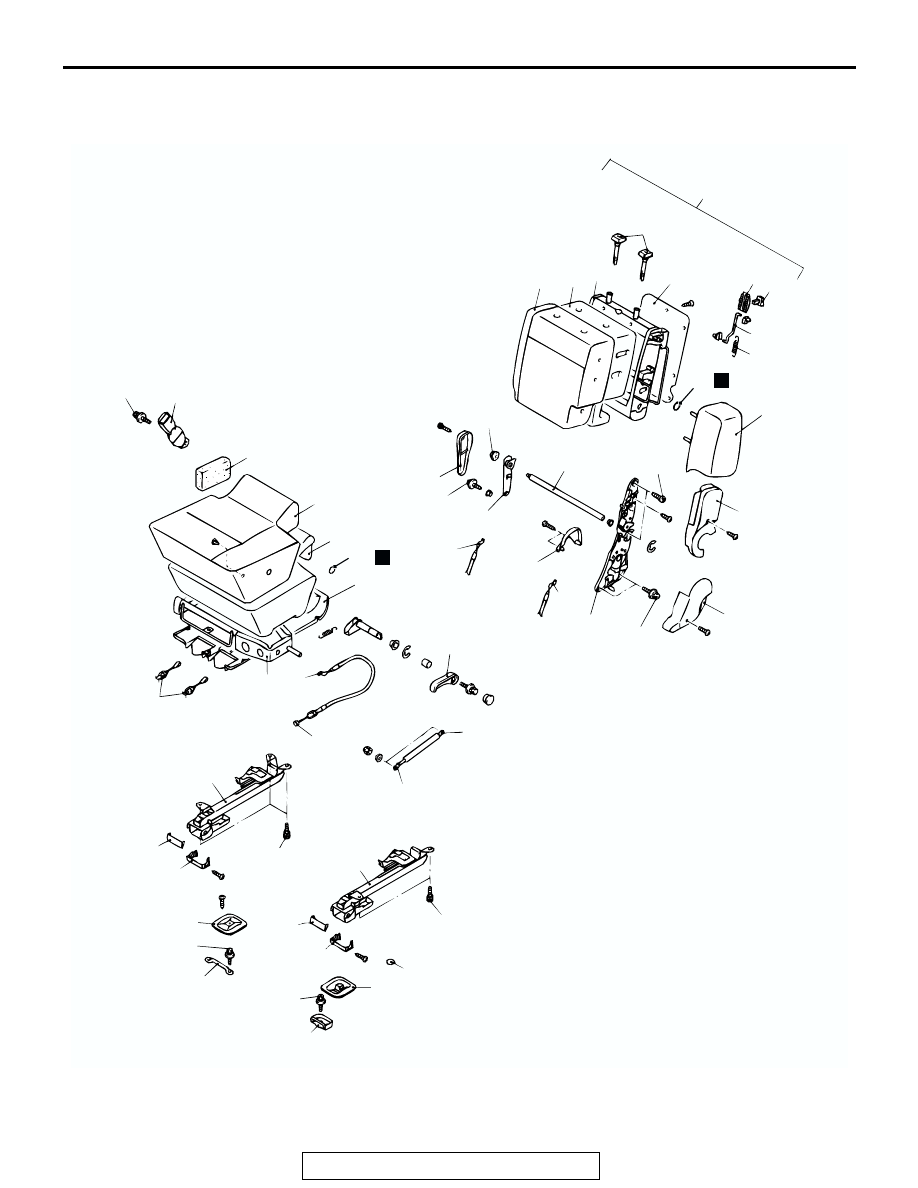

DISASSEMBLY AND ASSEMBLY

M1522002000249

<LH SIDE>

ACX00629

13 ± 2 N·m

AF

28

28

29

29

30

30

38

38

12 ± 2 N·m
107 ± 17 in-lb

44 ± 10 N·m
33 ± 7 ft-lb

44 ± 10 N·m
33 ± 7 ft-lb

44 ± 10 N·m
33 ± 7 ft-lb

39

39

40

26

4

44 ± 10 N·m
33 ± 7 ft-lb

32

7

36

37

35

5

31

6

34

9

22

8

25

27

10

14

3

12 ± 2 N·m
107 ± 17 in-lb

21

52 ± 7 N·m
38 ± 5 ft-lb

44 ± 10 N·m
33 ± 7 ft-lb

1

2

11

15

16

13

12

18

19

20

23

24

115 ± 18 in-lb

17

N

33

N

REAR SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-20

CLAW POSITIONS

DISASSEMBLY STEPS

1.

LOWER RECLINING ADJUSTER
COVER

2.

CENTER RECLINING ADJUSTER
COVER

3.

FREE HINGE COVER

4.

GAS SPRING CONNECTION

5.

SECOND SEAT CUSHION UNDER
COVER

6.

RECLINING CABLE
CONNECTION

7.

CATCH CABLE A AND B
CONNECTION

8.

CATCH CABLE A

9.

HINGE BRACKET

10. CATCH CABLE B
11. SECOND SEATBACK ASSEMBLY
12. FOLDING LEVER KNOB
13. FOLDING KNOB GARNISH
14. SECOND SEAT SIDE BACK

ASSEMBLY

<<A>>

15. HEAD RESTRAINT GUIDE
16. SECOND SEATBACK BOARD
17. HOG RING
18. SECOND SEATBACK FRAME

19. SECOND SEATBACK PAD
20. SECOND SEATBACK COVER
21. SHAFT
22. RECLINING ADJUSTER BACK

COVER

23. ROD
24. SPRING
25. RECLINING ADJUSTER
26. GAS SPRING
27. RECLINING CABLE
28. SECOND SEAT CATCH

ASSEMBLY

29. UPPER FOOT COVER
30. LOWER FOOT COVER
31. RECLINING KNOB
32. INNER SEAT BELT
33. HOG RING
34. SECOND SEAT CUSHION FRAME
35. SECOND SEAT CUSHION PAD
36. SUPPORT PAD
37. SECOND SEAT CUSHION COVER
38. STRIKER COVER
39. STRIKER
40. PLUG

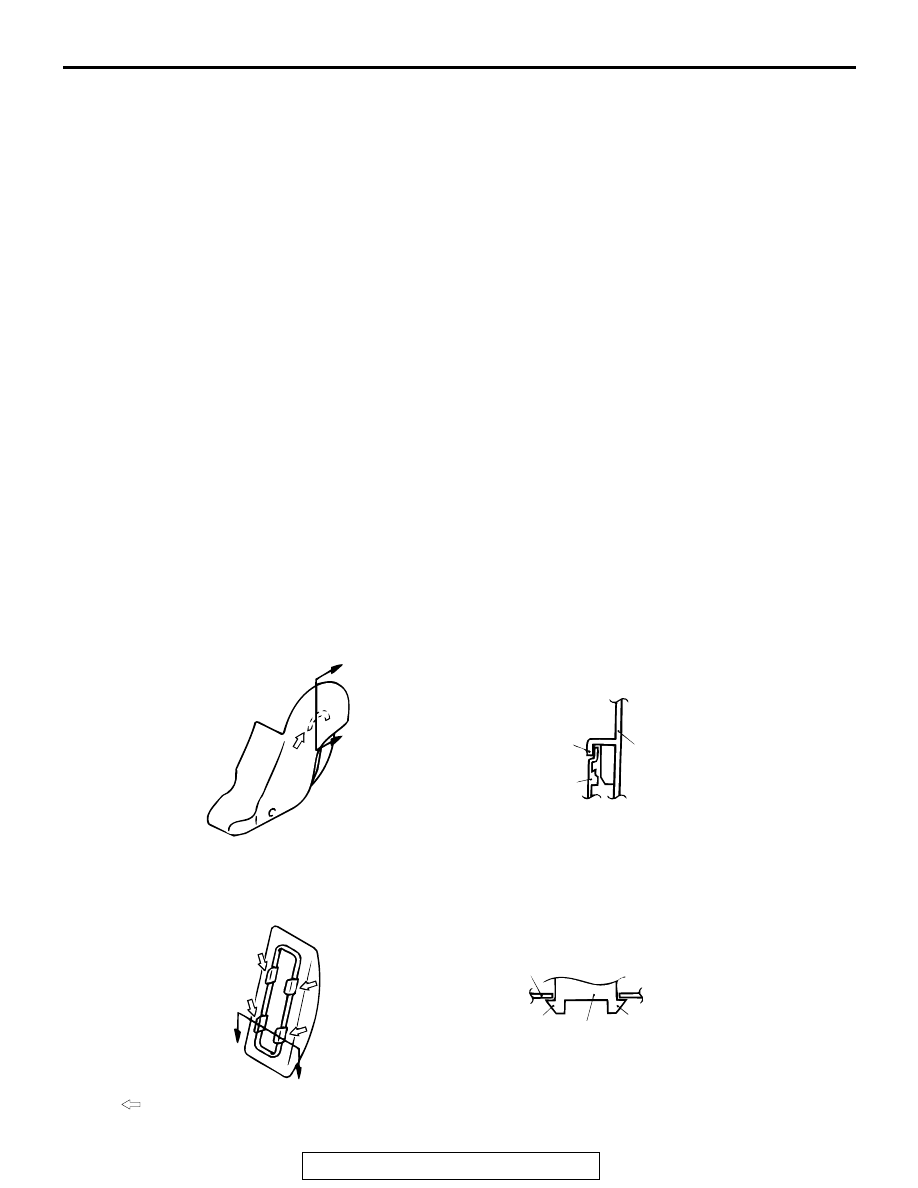

DISASSEMBLY STEPS

ACX00631

A

A

<LOWER RECLINING
ADJUSTER COVER>

<FOLDING KNOB GARNISH>

SECTION A -



A

SECTION B -



B

LOWER RECLINING
ADJUSTER COVER

CLAW

CLAW

CLAW

RECLINING
ADJUSTER

B

B

FOLDING KNOB
GARNISH

SECOND SEAT
BACK ASSEMBLY

AB

NOTE

: Claw position
