FRONT SEAT BELT

TSB Revision

INTERIOR

52A-29

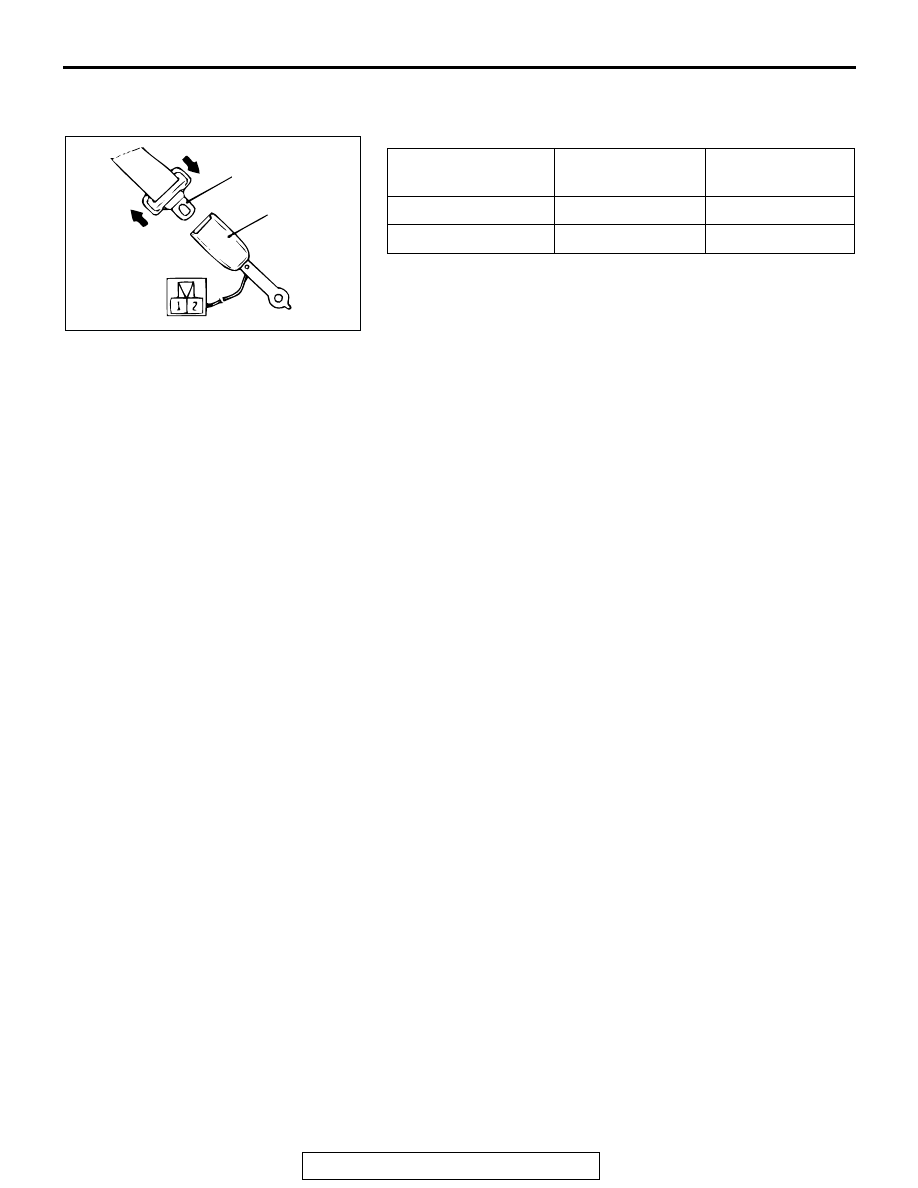

SEAT BELT BUCKLE SWITCH CONTINUITY
CHECK

ITEMS

TESTER
CONNECTION

SPECIFIED
CONDITION

Fastened seat belt

1 - 2

Open circuit

Unfastened seat belt 1 - 2

Less than 2 ohms

ACX00636

TONGUE

BUCKLE

AB

REAR SEAT BELT

TSB Revision

INTERIOR

52A-30

REAR SEAT BELT

REMOVAL AND INSTALLATION

M1523001600230

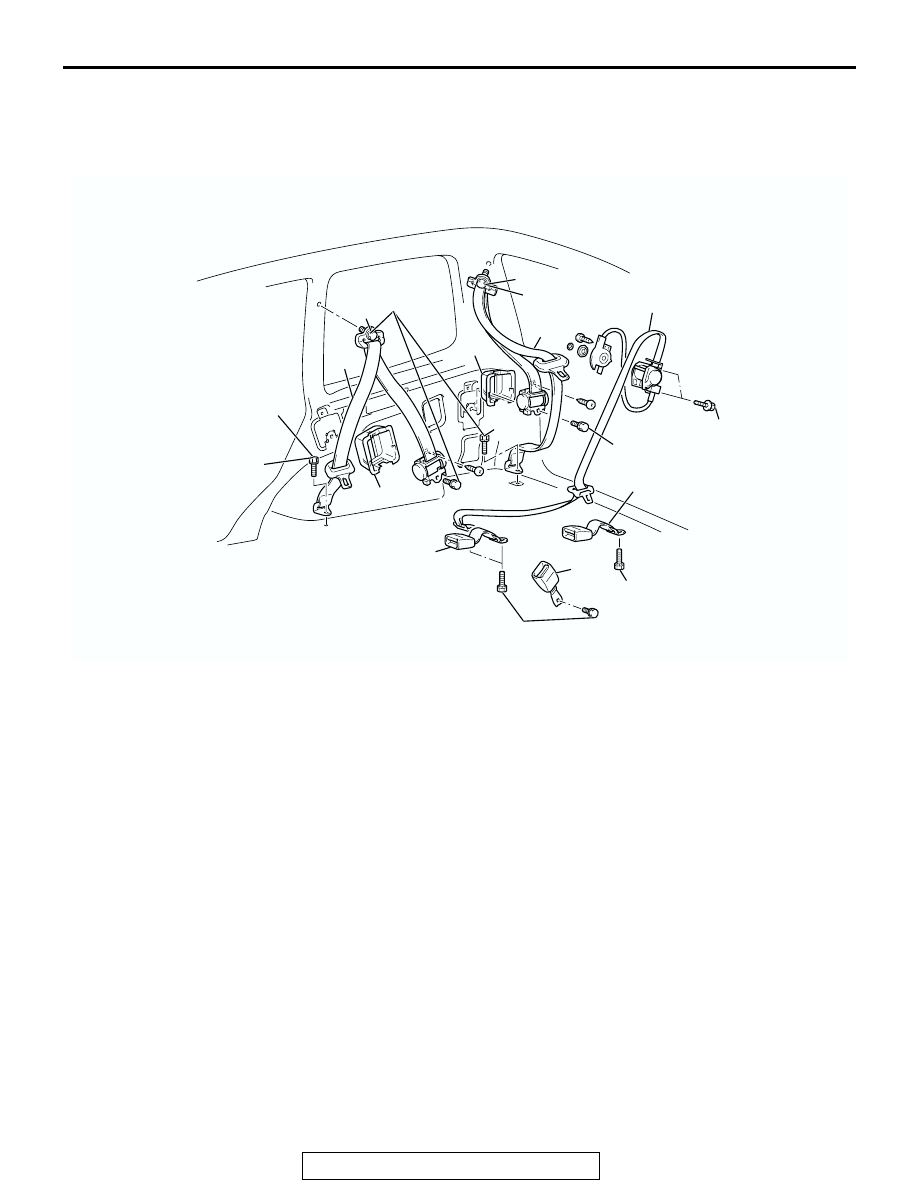

SECOND SEAT BELT AND THIRD SEAT BELT

AC101433

5

9

4

4

6

8

7

6

1

2

3

1

44 ± 10 N·m
33 ± 7 ft-lb

44 ± 10 N·m
33 ± 7 ft-lb

44 ± 10 N·m
33 ± 7 ft-lb

44 ± 10 N·m
33 ± 7 ft-lb

44 ± 10 N·m
33 ± 7 ft-lb

44 ± 10 N·m
33 ± 7 ft-lb

44 ± 10 N·m
33 ± 7 ft-lb

AB

SECOND SEAT BELT REMOVAL
STEPS

• LOWER QUARTER TRIM (REFER

TO

P.52A-8

.)

1. OUTER SEAT BELT CONNECTION
2. OUTER SEAT BELT
3. ELR COVER
4. INNER SEAT BELT (REFER TO

P.52A-19

.)

5. CENTER SEAT BELT

THIRD SEAT BELT REMOVAL
STEPS

• LOWER QUARTER TRIM (REFER

TO

P.52A-8

.)

• PILLAR DUCT (RH) (REFER TO

GROUP 55, VENTILATORS

P.55A-

156

.)

• REAR BLOWER ASSEMBLY

(REFER TO GROUP 55, BLOWER
ASSEMBLY

P.55A-133

.)

6. OUTER SEAT BELT CONNECTION
7. OUTER SEAT BELT
8. ELR COVER
9. INNER SEAT BELT (REFER TO

P.52A-24

.)

REAR SEAT BELT

TSB Revision

INTERIOR

52A-31

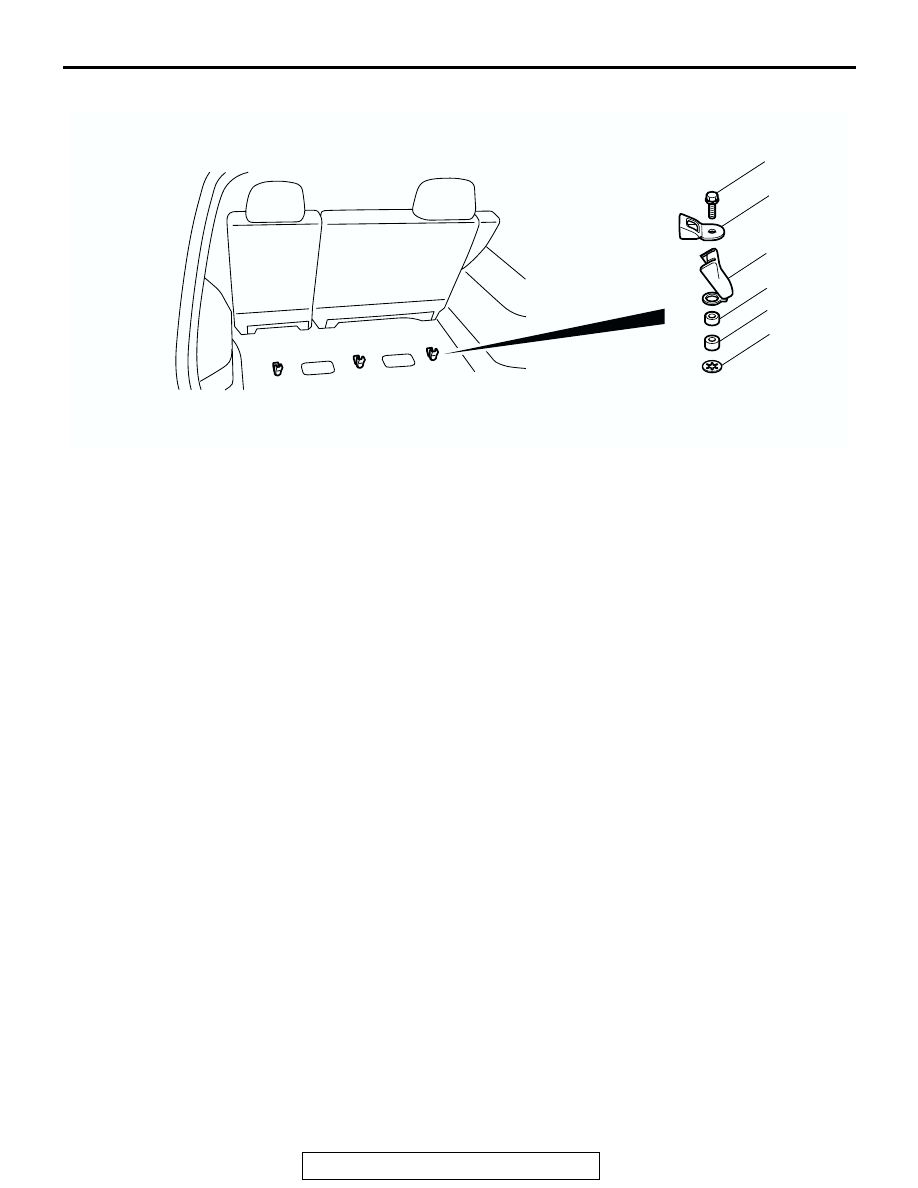

TETHER ANCHOR

ACX01774

1

2

3

4

5

22 – 4 N•m
16 – 3 ft-lb

AD

REMOVAL STEPS

1. TETHER ANCHOR BRACKET
2. COVER
3. SPACER 5 mm (0.2 inch)

4. SPACER 10 mm (0.4 inch)
5. FIBER WASHER

REMOVAL STEPS (Continued)

SPECIFICATIONS

TSB Revision

INTERIOR

52A-32

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

M1521004100186

ITEM

SPECIFICATION

Armrest nut

22

± 4 N⋅m (16 ± 3 ft-lb)

Catch assembly bolt

44

± 10 N⋅m (33 ± 7 ft-lb)

Center seat belt bolt

44

± 10 N⋅m (33 ± 7 ft-lb)

Front seatback frame bolt

44

± 10 N⋅m (33 ± 7 ft-lb)

Front seat belt bolt

44

± 10 N⋅m (33 ± 7 ft-lb)

Front seat bolt

44

± 10 N⋅m (33 ± 7 ft-lb)

Front seat cushion frame bolt

21

± 4 N⋅m (16 ± 2 ft-lb)

Front seat frame bolt

5

± 1 N⋅m (44 ± 9 in-lb)

Front seat nut

30

± 5 N⋅m (22 ± 4 ft-lb)

Hinge bracket lower bolt

13

± 2 N⋅m (115 ± 18 in-lb)

Hinge bracket upper nut

12

± 2 N⋅m (107 ± 17 in-lb)

Inner seat belt bolt

44

± 10 N⋅m (33 ± 7 ft-lb)

Reclining adjuster lower bolt

44

± 10 N⋅m (33 ± 7 ft-lb)

Reclining adjuster upper bolt

52

± 7 N⋅m (38 ± 5 ft-lb)

Second seat bolt

44

± 10 N⋅m (33 ± 7 ft-lb)

Second seat belt bolt

44

± 10 N⋅m (33 ± 7 ft-lb)

Second seat catch assembly bolt

44

± 10 N⋅m (33 ± 7 ft-lb)

Striker bolt

44

± 10 N⋅m (33 ± 7 ft-lb)

Striker bolt

12

± 2 N⋅m (107 ± 17 in-lb)

Tether anchor bolt

22

± 4 N⋅m (16 ± 3 ft-lb)

Third seat belt bolt

44

± 10 N⋅m (33 ± 7 ft-lb)

Third seat frame bolt

44

± 10 N⋅m (33 ± 7 ft-lb)

Third seat latch bolt

44

± 10 N⋅m (33 ± 7 ft-lb)
