Mitsubishi Montero (2002-2004). Manual - part 251
SYMPTOM PROCEDURES
TSB Revision
SWS SYMPTOM PROCEDURES
54Bb-51

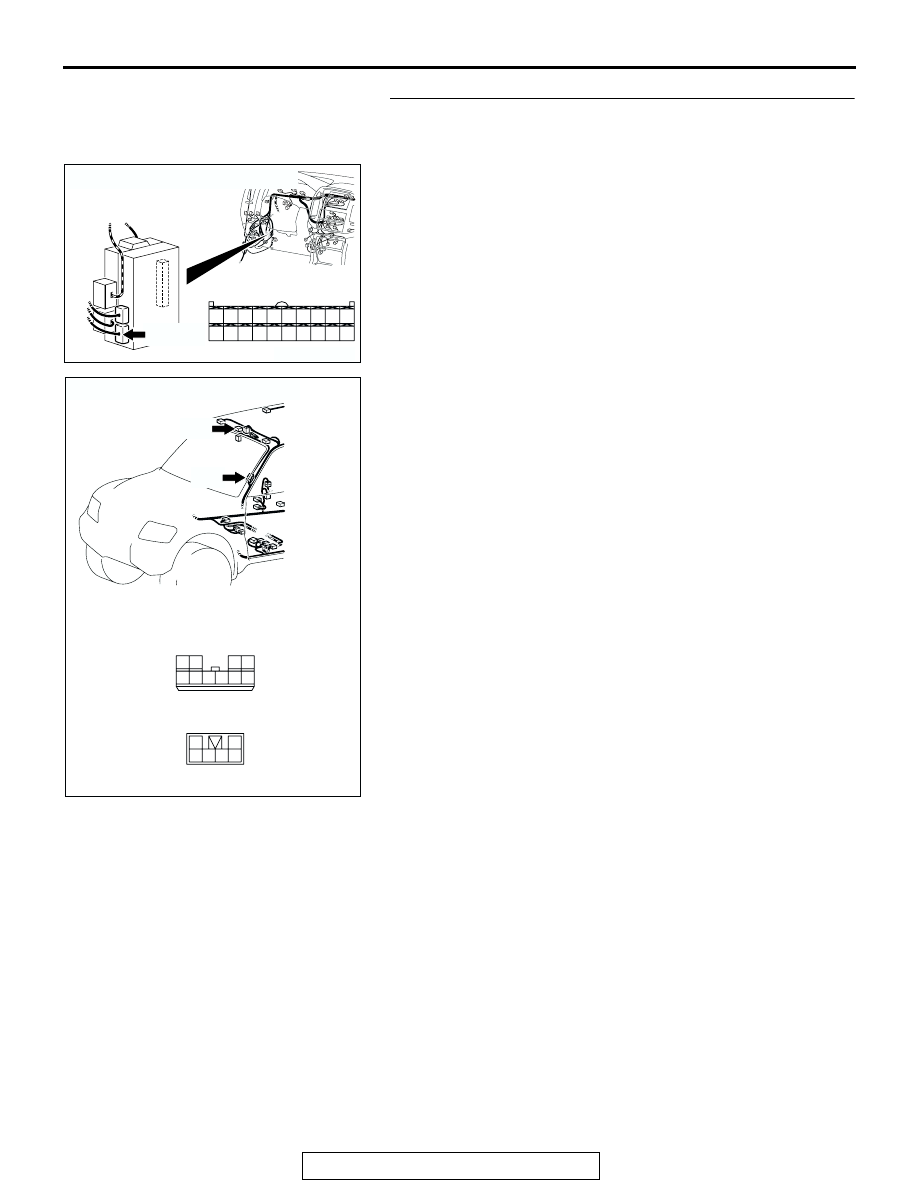

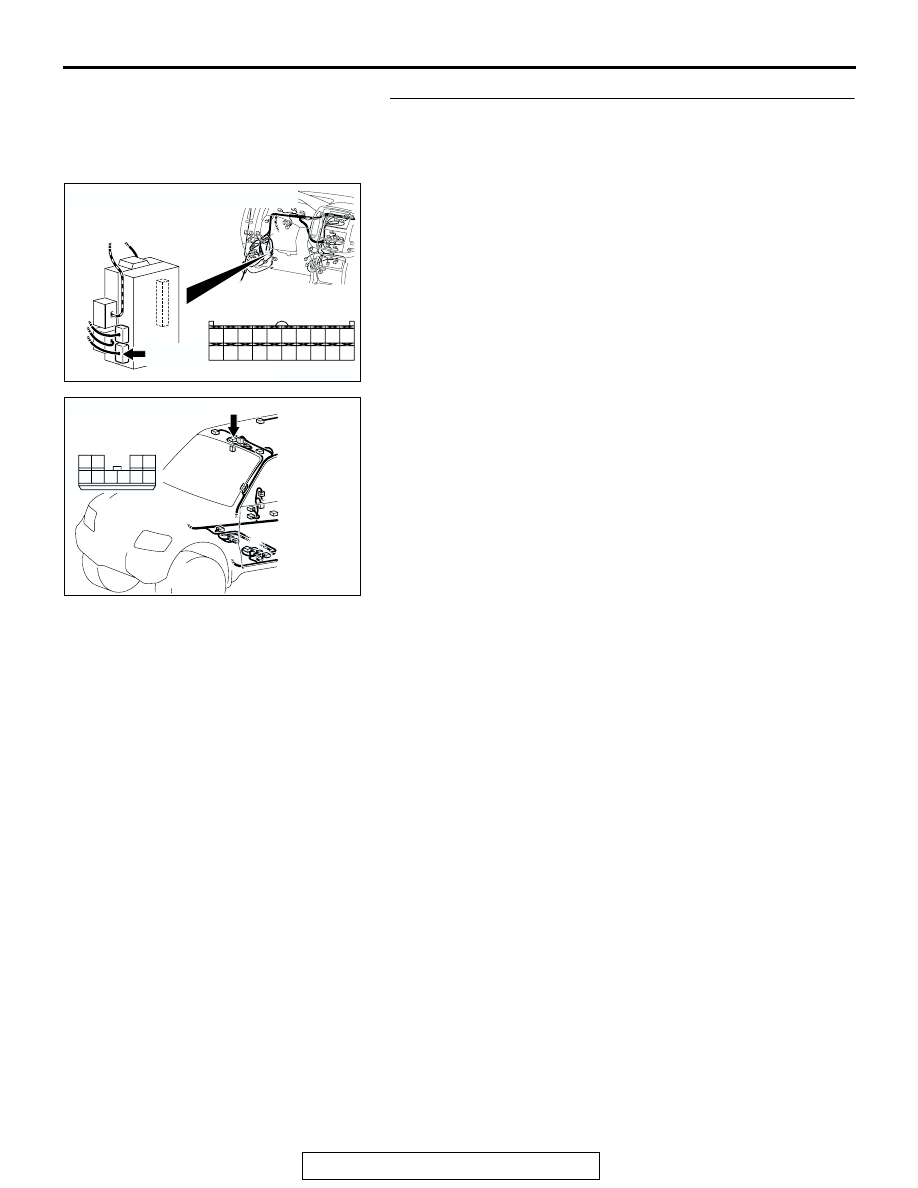

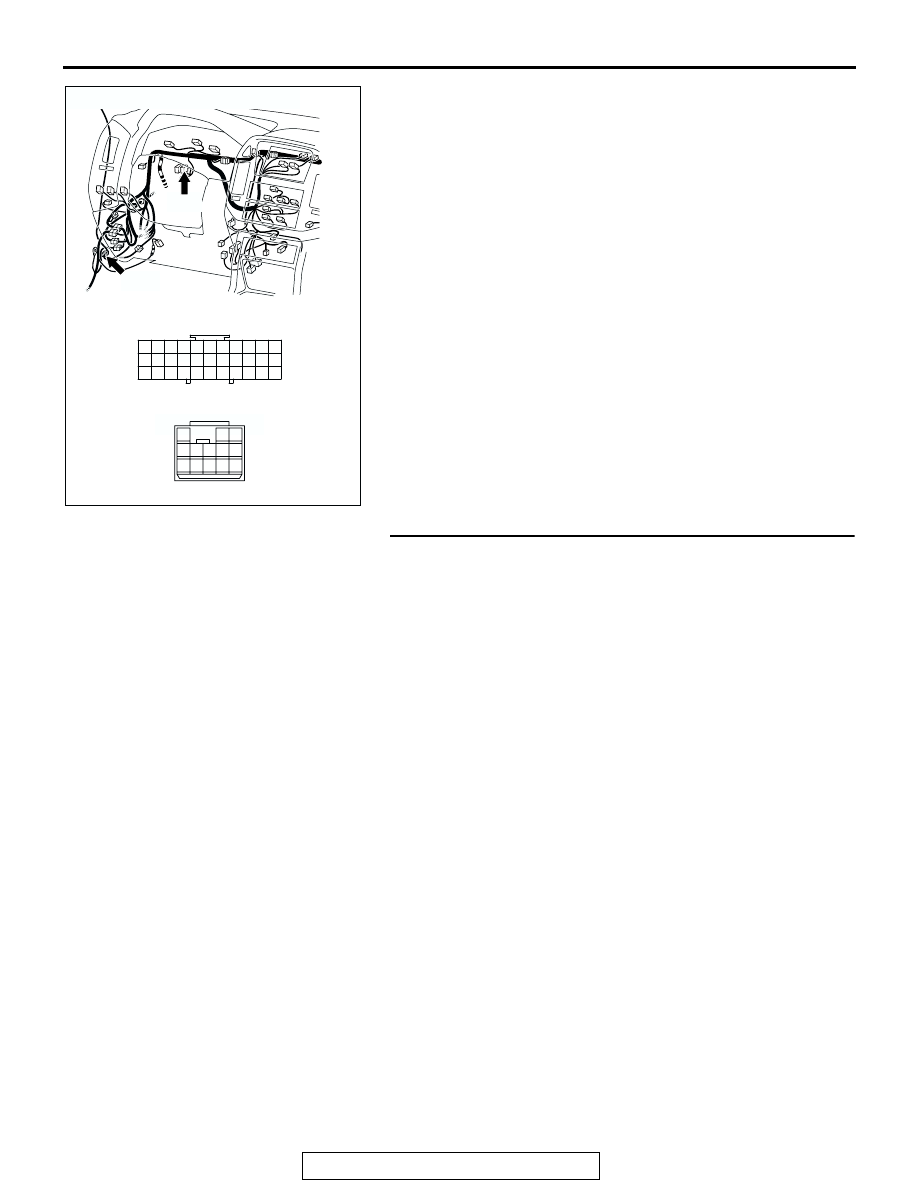

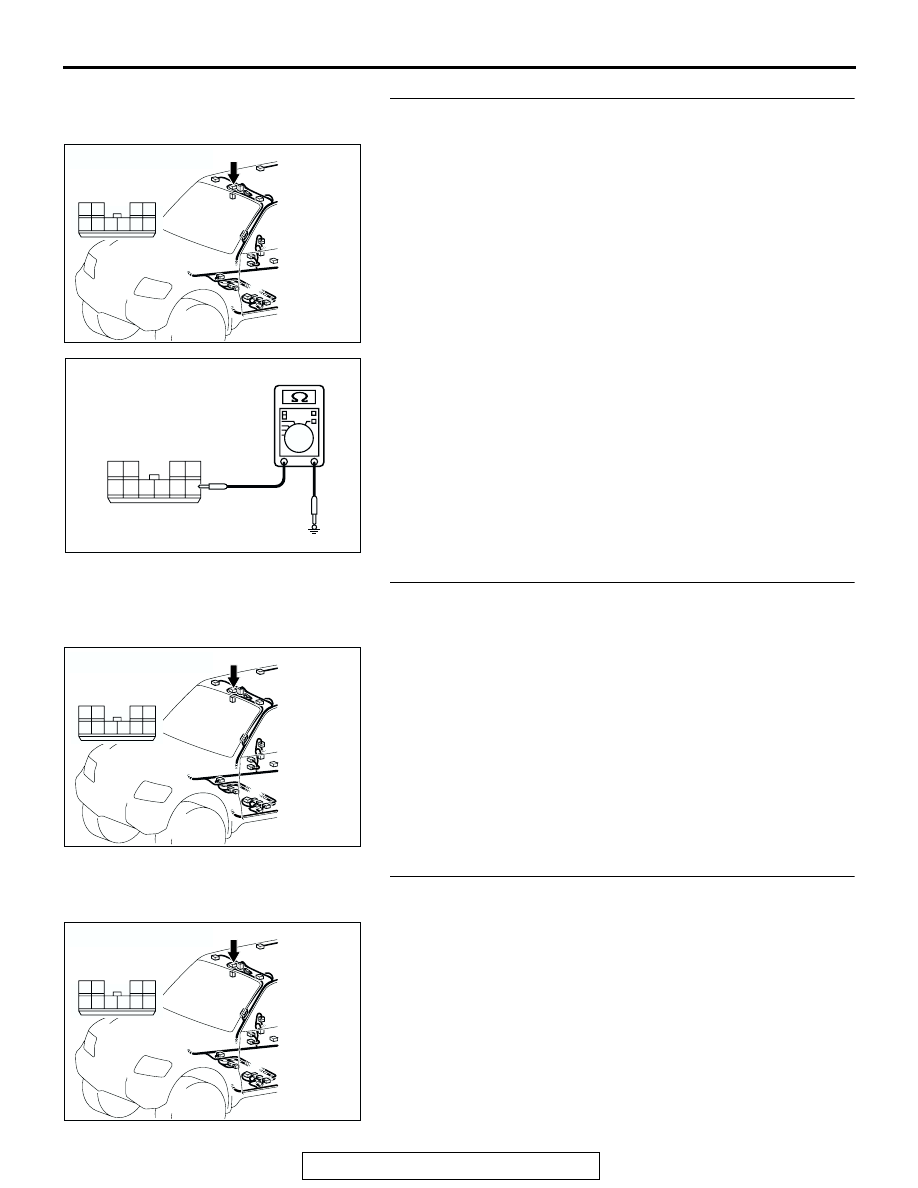

STEP 10. Check the ground circuit to the sunroof motor
assembly. Test at sunroof motor assembly connector F-02.
(1) Disconnect sunroof motor assembly connector F-02 and
measure the resistance available at the wiring harness side
of the connector.
(2) Measure the resistance value between terminal 5 and
ground.
• The resistance should equal 2 ohms or less.
Q: Is the measured resistance 2 ohms or less?
YES : Go to Step 13.
NO : Go to Step 11.
STEP 11. Check sunroof motor assembly connector F-02
for loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is sunroof motor assembly connector F-02 in good
condition?
YES : Go to Step 12.
NO : Repair or replace the damaged component(s). Refer
to GROUP 00E, Harness Connector Inspection
. The system should communicate with the
sunroof motor assembly (sunroof-ECU) normally.
STEP 12. Check the wiring harness between sunroof motor
assembly connector F-02 (terminal 5) and ground.
Q: Is the wiring harness between sunroof motor assembly
connector F-02 (terminal 5) and ground in good
condition?
YES : No action is necessary and testing is complete.
NO : The wiring harness may be damaged or the
connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. The system
should communicate with the sunroof motor assembly
(sunroof-ECU) normally.
AC204177
CONNECTOR : F-02
AB
HARNESS SIDE
1
5
2
7
8
6
3
4
10 9
F-02
AC201746
5
1
7
8
6
2
9
10
4
3
AC
CONNECTOR: F-02
(HARNESS SIDE)
AC204177
CONNECTOR : F-02
AB
HARNESS SIDE
1
5
2
7
8
6
3
4
10 9
F-02
AC204177
CONNECTOR : F-02
AB
HARNESS SIDE
1
5
2
7
8
6
3
4
10 9
F-02
