SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-43

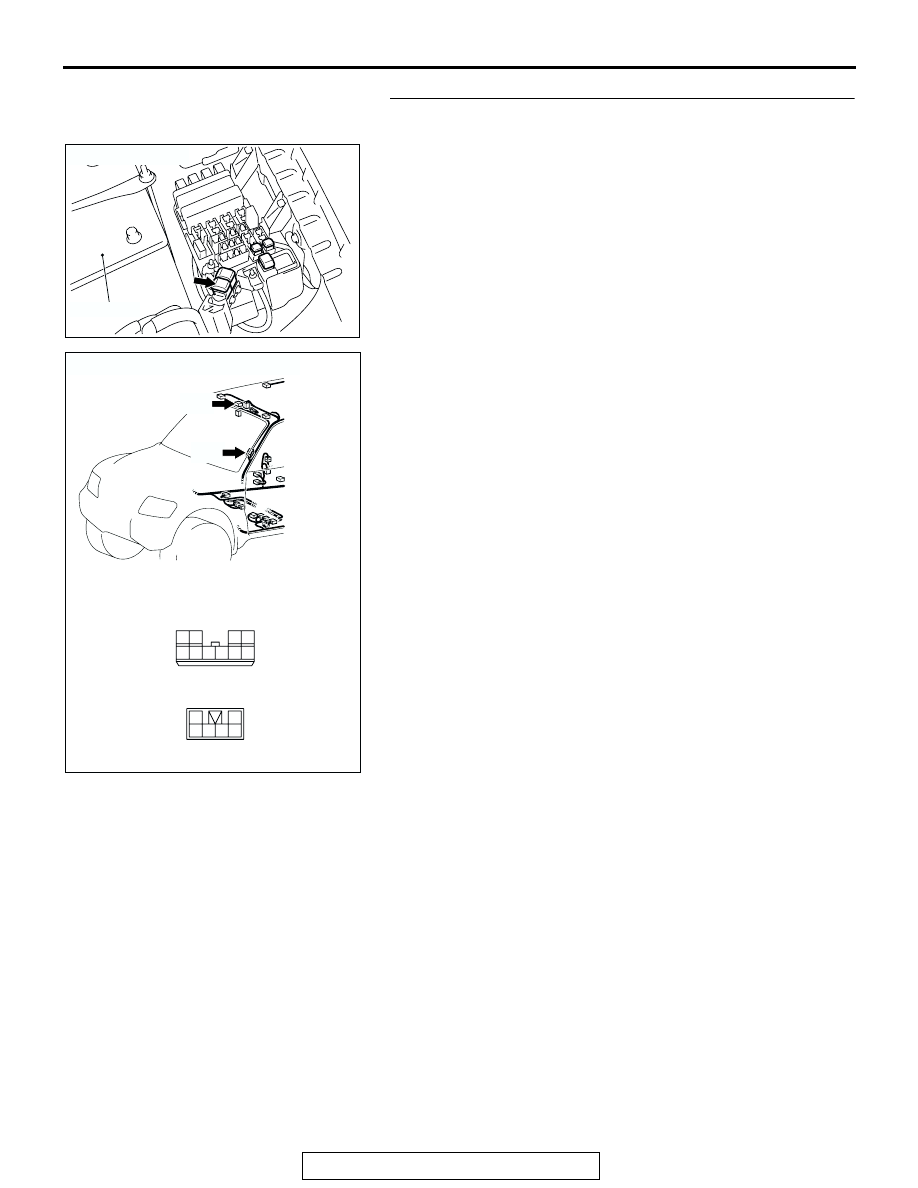

STEP 3. Check the wiring harness between sunroof motor
assembly connector F-02 (terminal 3) and fusible link (1).

ACX02274

FUSIBLE LINK (1)

AE

BATTERY

AC204195

CONNECTORS : F-02, F-24

F-02

AB

HARNESS SIDE

F-24

F-02

F-24

1

5

2

7

8

6

3

4

10 9

6

2

5

4

3

1

SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-44

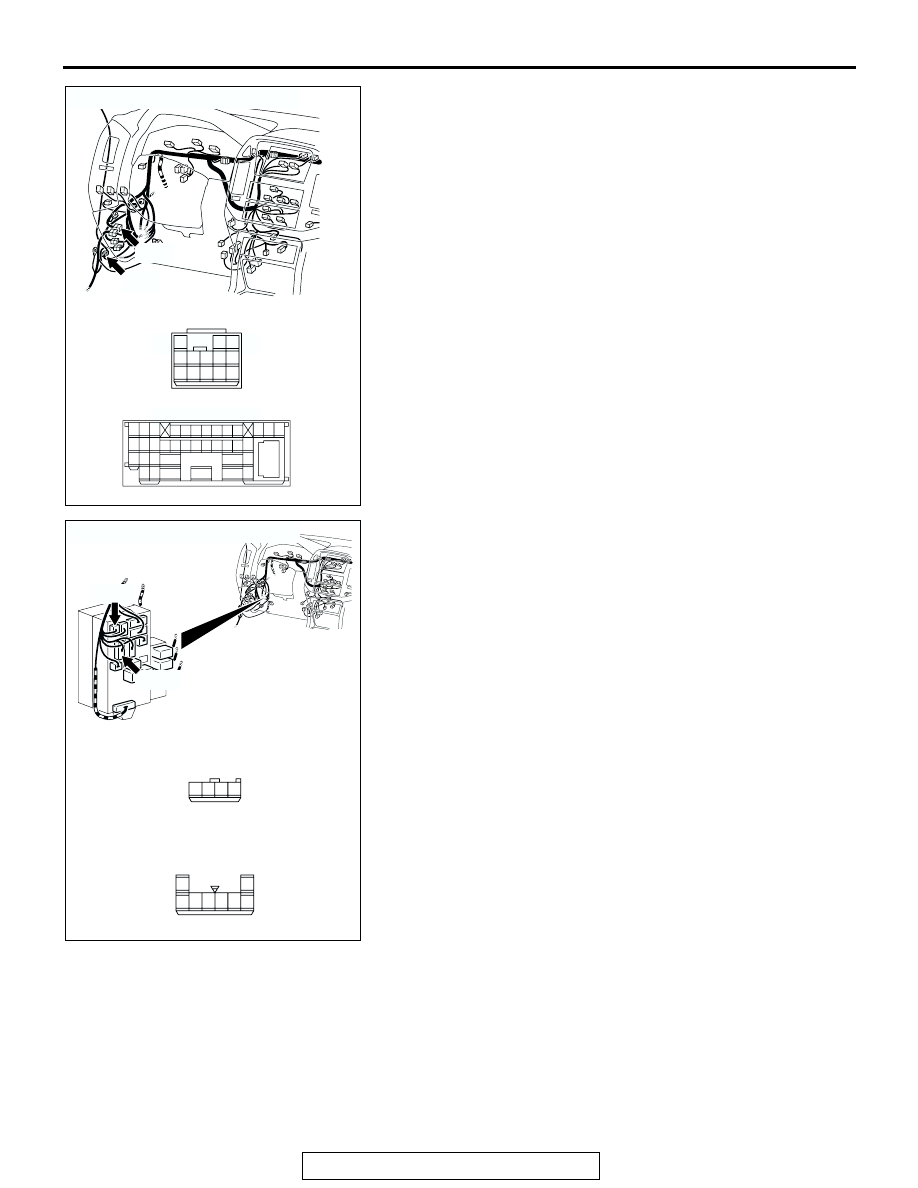

NOTE: Also check junction block connectors D-207, D-221,
intermediate connectors D-26, D-28 and F-24 for loose, cor-
roded, or damaged terminals, or terminals pushed back in the
connector. If junction block connectors D-207, D-221, interme-
diate connectors D-26, D-28 or F-24 is damaged, repair or
replace the damaged component(s) as described in GROUP
00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between sunroof motor assembly

connector F-02 (terminal 3) and fusible link (1) in good
condition?
YES :
No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. The system
should communicate with the sunroof motor assembly
(sunroof-ECU) normally.

AC204188

CONNECTORS : D-26, D-28

D-28

AH

D-26

D-28

D-26

2 3

27

32

28

33

16

15

4 5

19

18

29

17

34

7 8

35

22

21

9 10

30

36

31

37

25

24

23

6

20

1

14

26

11

13

12

38

2 3

1

7

6

12

11

8

13

5

4

9 10

AC204191

CONNECTORS : D-207, D-221

D-207

AB

HARNESS SIDE

HARNESS SIDE

D-221

D-207

D-221

3

1

4

6 5

7

8

2

1

2

3

4

SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-45

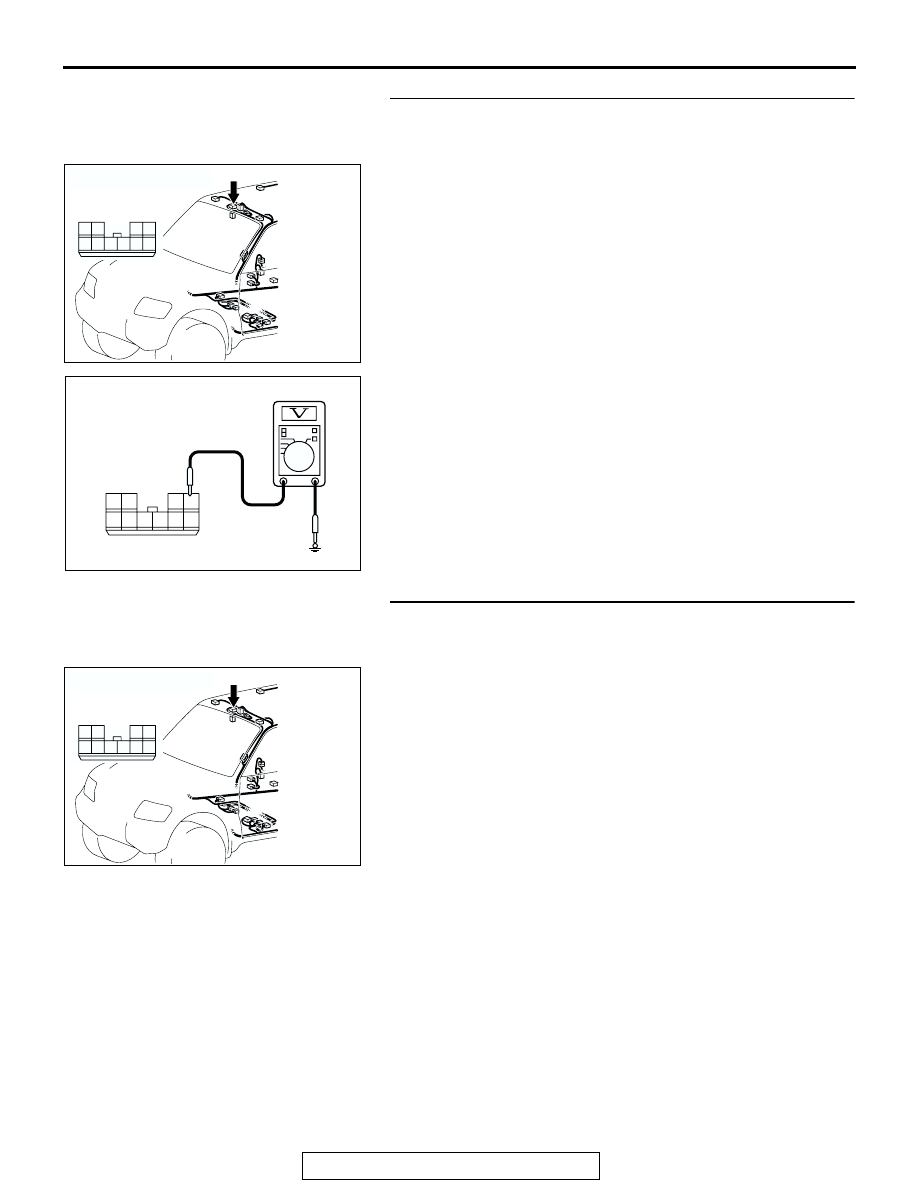

STEP 4. Check the fusible link (4) line of power supply
circuit to the sunroof motor assembly. Test at sunroof
motor assembly connector F-02.
(1) Disconnect sunroof motor assembly connector F-02 and

measure the voltage available at the wiring harness side of
the connector.

(2) Measure the voltage between terminal 1 and ground.

• The voltage should be approximately 12 volts (battery

positive voltage).

Q: Is the measured voltage approximately 12 volts (battery

positive voltage)?
YES :
Go to Step 7.
NO :  Go to Step 5.

STEP 5. Check sunroof motor assembly connector F-02 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is sunroof motor assembly connector F-02 in good

condition?
YES :
Go to Step 6.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. The system should communicate with the

sunroof motor assembly (sunroof-ECU) normally.

AC204177

CONNECTOR : F-02

AB

HARNESS SIDE

1

5

2

7

8

6

3

4

10 9

F-02

AC201738

5

1

7

8

6

2

9

10

4

3

AC

CONNECTOR: F-02
(HARNESS SIDE)

AC204177

CONNECTOR : F-02

AB

HARNESS SIDE

1

5

2

7

8

6

3

4

10 9

F-02

SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-46

STEP 6. Check the wiring harness between sunroof motor
assembly connector F-02 (terminal 1) and fusible link (4).

ACX02274

FUSIBLE LINK (4)

AD

BATTERY

AC204195

CONNECTORS : F-02, F-24

F-02

AB

HARNESS SIDE

F-24

F-02

F-24

1

5

2

7

8

6

3

4

10 9

6

2

5

4

3

1
