Mitsubishi Montero (1998+). Manual - part 282

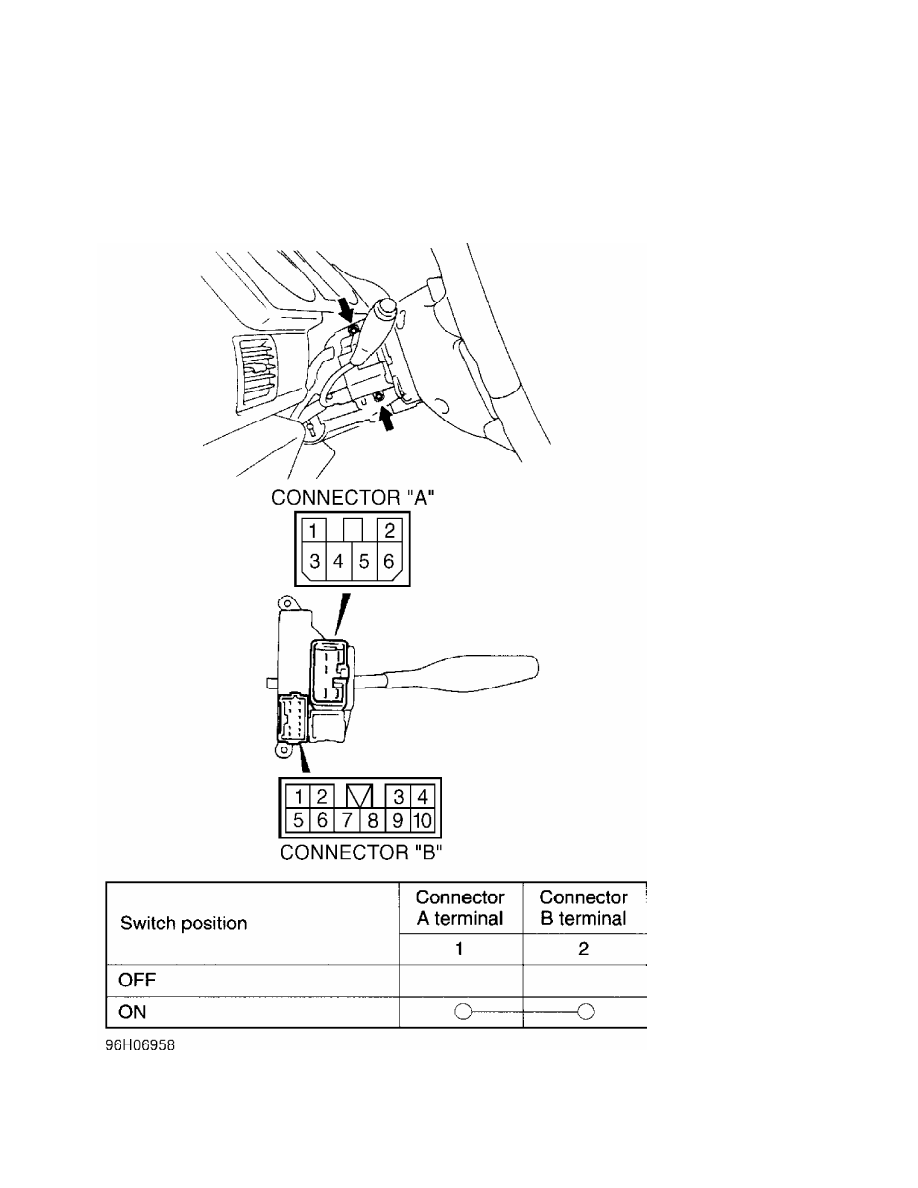

Fig. 20:  Testing Ignition Switch & Key Reminder Switch (Montero)

Courtesy of Mitsubishi Motor Sales of America

         Lighting & Turn Signal Switch Tests

         Disconnect steering column combination switch connector.

Check continuity between specified terminals. See  Figs. 19 and 21. If

continuity is not as specified, replace steering column combination

switch.

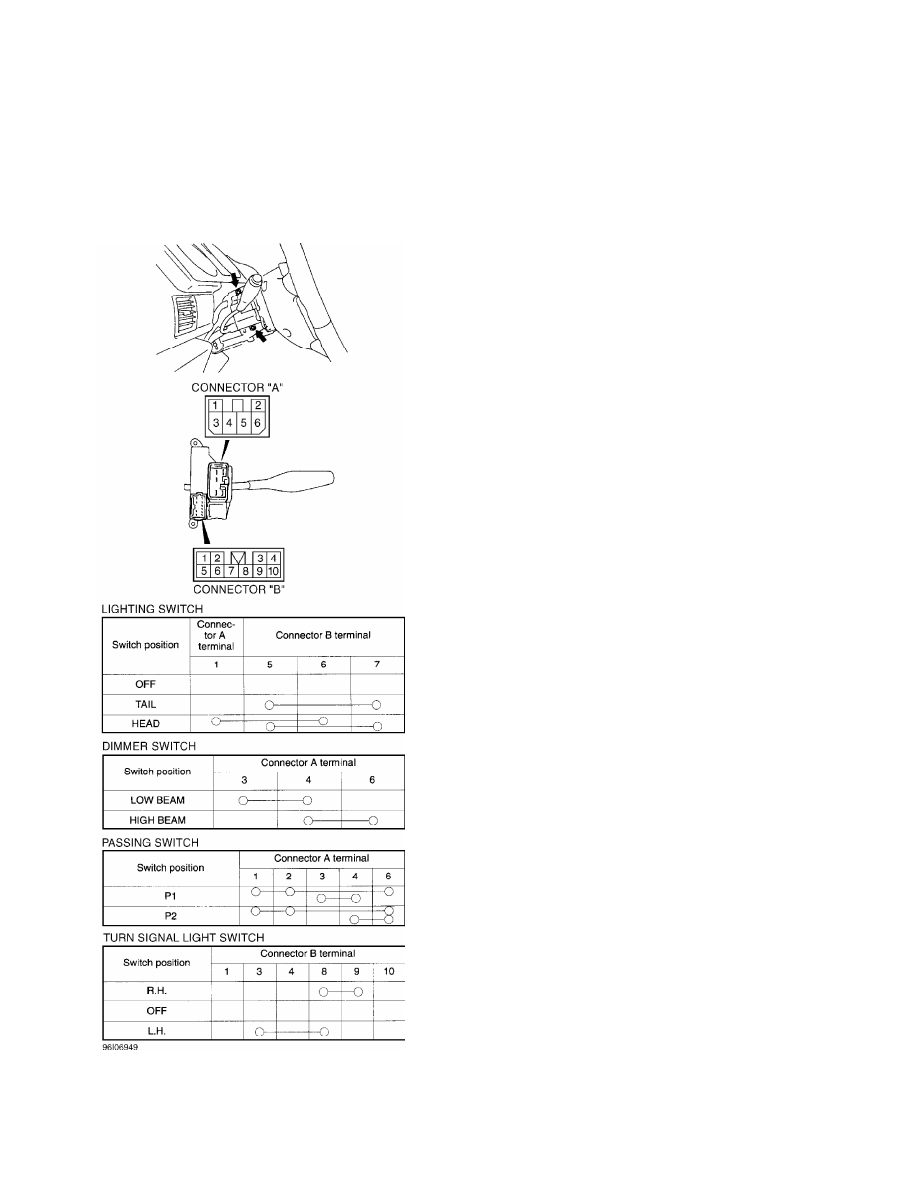

Fig. 21:  Testing Lighting & Turn Signal Switches (Montero)

Courtesy of Mitsubishi Motor Sales of America

         Headlight Washer Switch Test

         Disconnect steering column combination switch connector.

Check continuity between specified terminals. See  Figs. 19 and 22. If

continuity is not as specified, replace steering column combination

switch.

Fig. 22:  Testing Headlight Washer Switch (Montero)

Courtesy of Mitsubishi Motor Sales of America

         Rear Wiper Switch Test

         Disconnect steering column combination switch connector.

Check continuity between specified terminals. See  Figs. 19 and 23. If

continuity is not as specified, replace steering column combination

switch.

Fig. 23:  Testing Rear Wiper Switch (Montero)

Courtesy of Mitsubishi Motor Sales of America

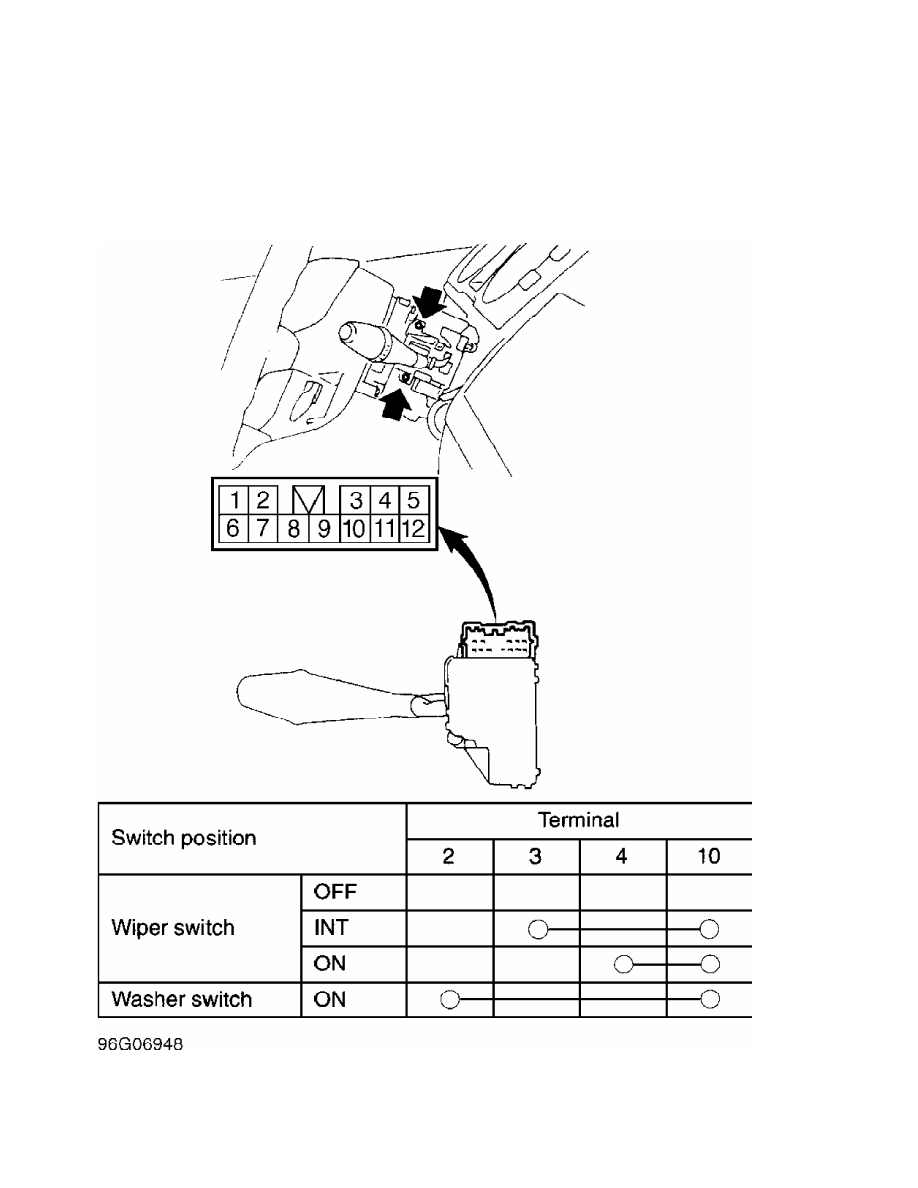

         Wiper/Washer Switch Test

         Disconnect steering column combination switch connector.
