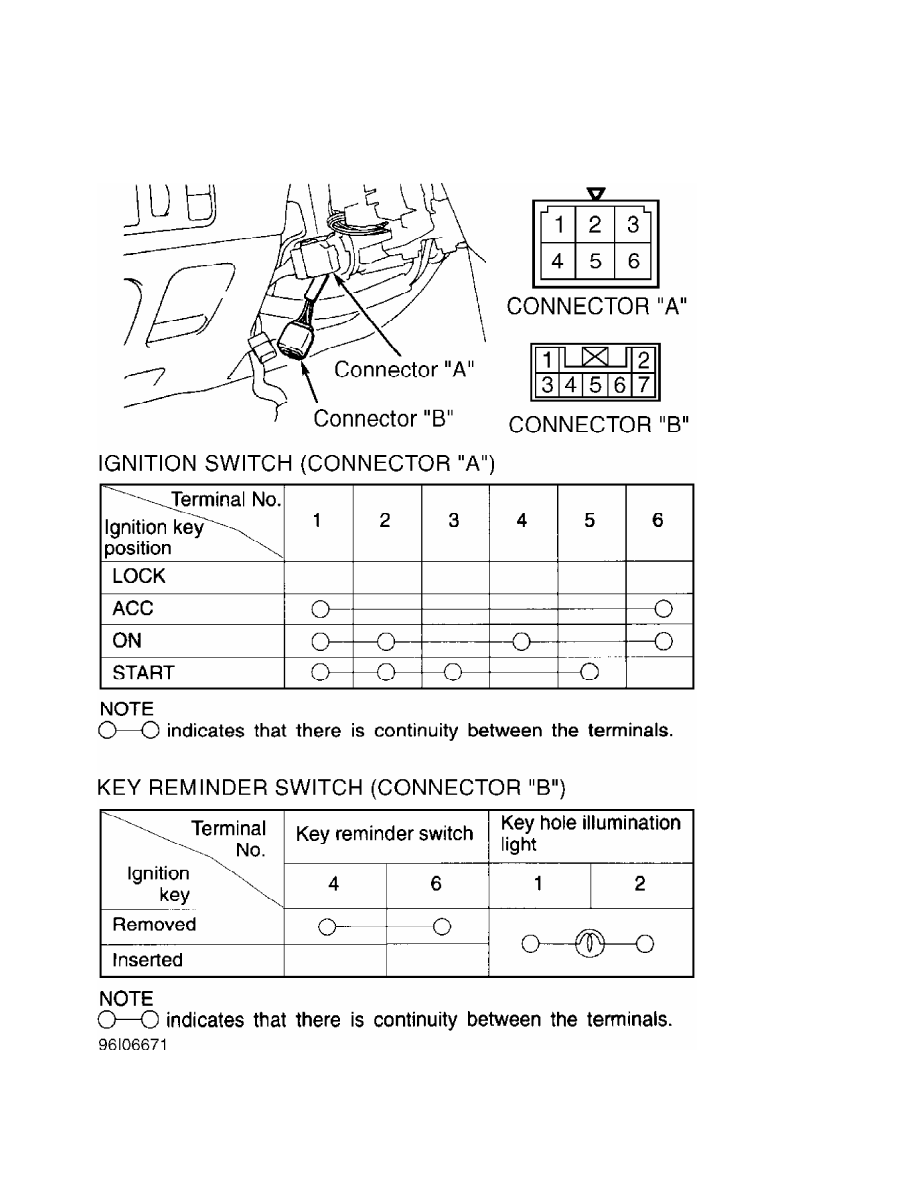

Fig. 12:  Testing Ignition Switch & Key Reminder Switch (Galant)

Courtesy of Mitsubishi Motor Sales of America

         Key Reminder Switch Tests

         Disconnect key reminder switch connector. Check continuity

between specified terminals. See Fig. 12. If continuity is not as

specified, replace key reminder switch.

         Lighting & Turn Signal Switch Tests

         Disconnect steering column combination switch connector.

Check continuity between specified terminals. See

STEERING COLUMN COMBINATION SWITCH CONTINUITY CHECK TABLE (GALANT) .

See Figs. 11 and 13. If continuity is not as specified, replace

steering column combination switch.

STEERING COLUMN COMBINATION SWITCH CONTINUITY CHECK TABLE (GALANT)

Switch                                      Check Continuity

& Position                             Between Terminals No.

Lights Switch

  Headlight ON  ..............  (1) 1 & (2) 6; (2) 5 & (2) 7

  Taillight ON (2)  .................................  5 & 7

Dimmer Switch (1)

  Low Beam  .........................................  4 & 6

  High Beam  ........................................  3 & 4

  Passing

    Low Beam  .............................  1, 2 & 6; 3 & 4

    High Beam  ............................  1, 2 & 6; 4 & 6

Turn Signal Switch (2)

  Left Turn  ........................................  3 & 8

  Right Turn  .......................................  8 & 9

(1) - Check at connector "A". See Fig. 13.

(2) - Check at connector "B". See Fig. 13.

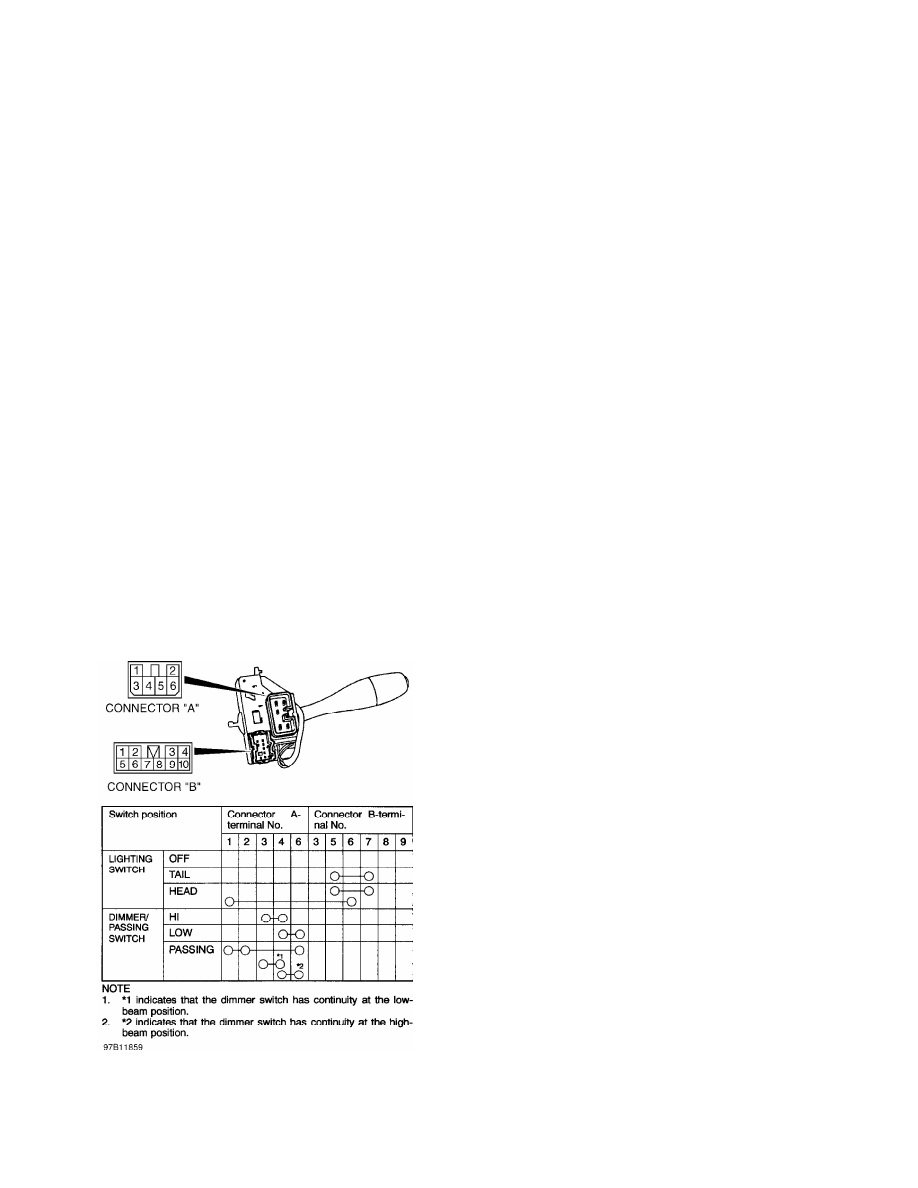

Fig. 13:  Identifying Lighting & Turn Signal Switches (Galant)

Courtesy of Mitsubishi Motor Sales of America

         Wiper/Washer Switch Tests

         Disconnect steering column combination switch connector.

Check continuity between specified terminals. See  Figs. 11 and 14. If

continuity is not as specified, replace wiper/washer switch.

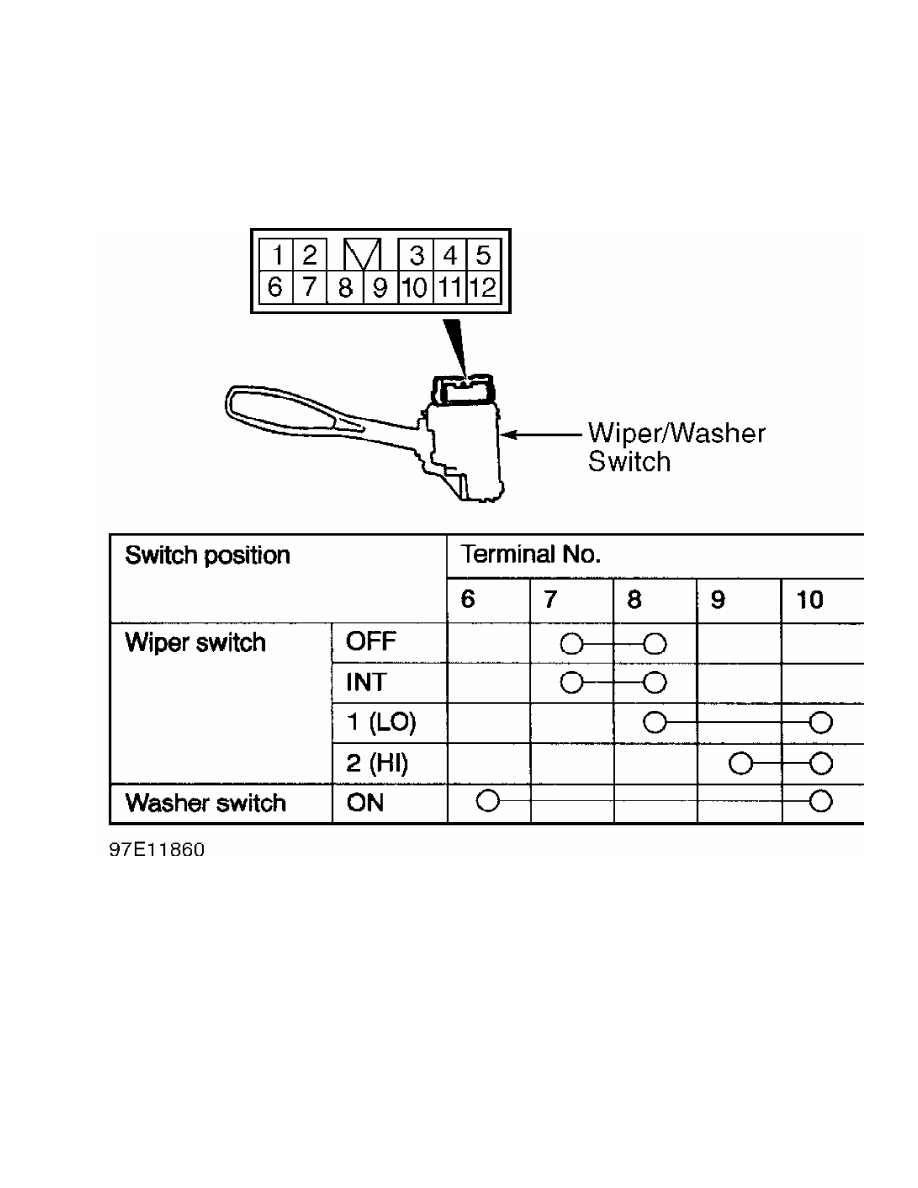

Fig. 14:  Testing Wiper/Washer Switch (Galant & Mirage)

Courtesy of Mitsubishi Motor Sales of America

         MIRAGE

         Ignition Switch Test

         Disconnect ignition switch connector. Check continuity

between specified terminals. See Figs. 15 and 16. If continuity is not

as specified, replace ignition switch.

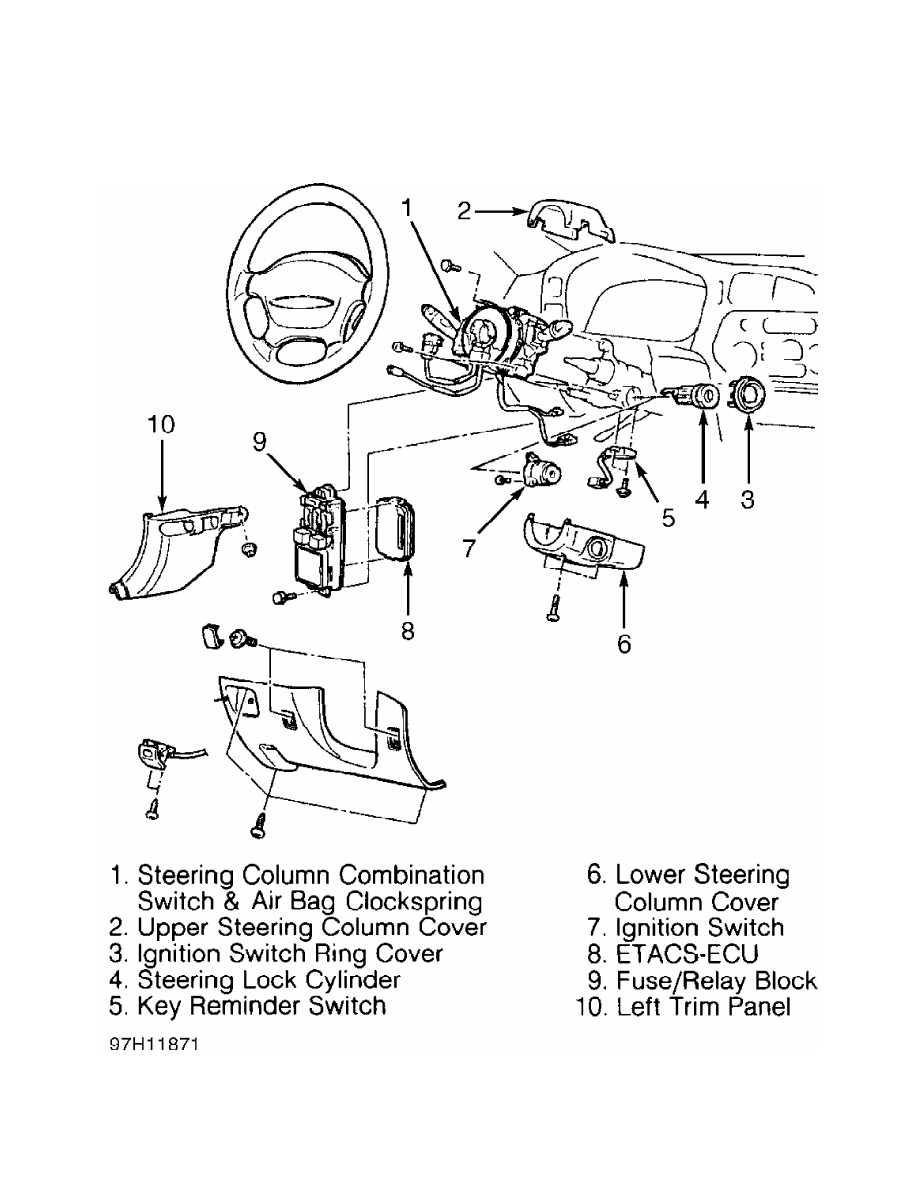

Fig. 15:  Exploded View Of Steering Column (Mirage)

Courtesy of Mitsubishi Motor Sales of America
