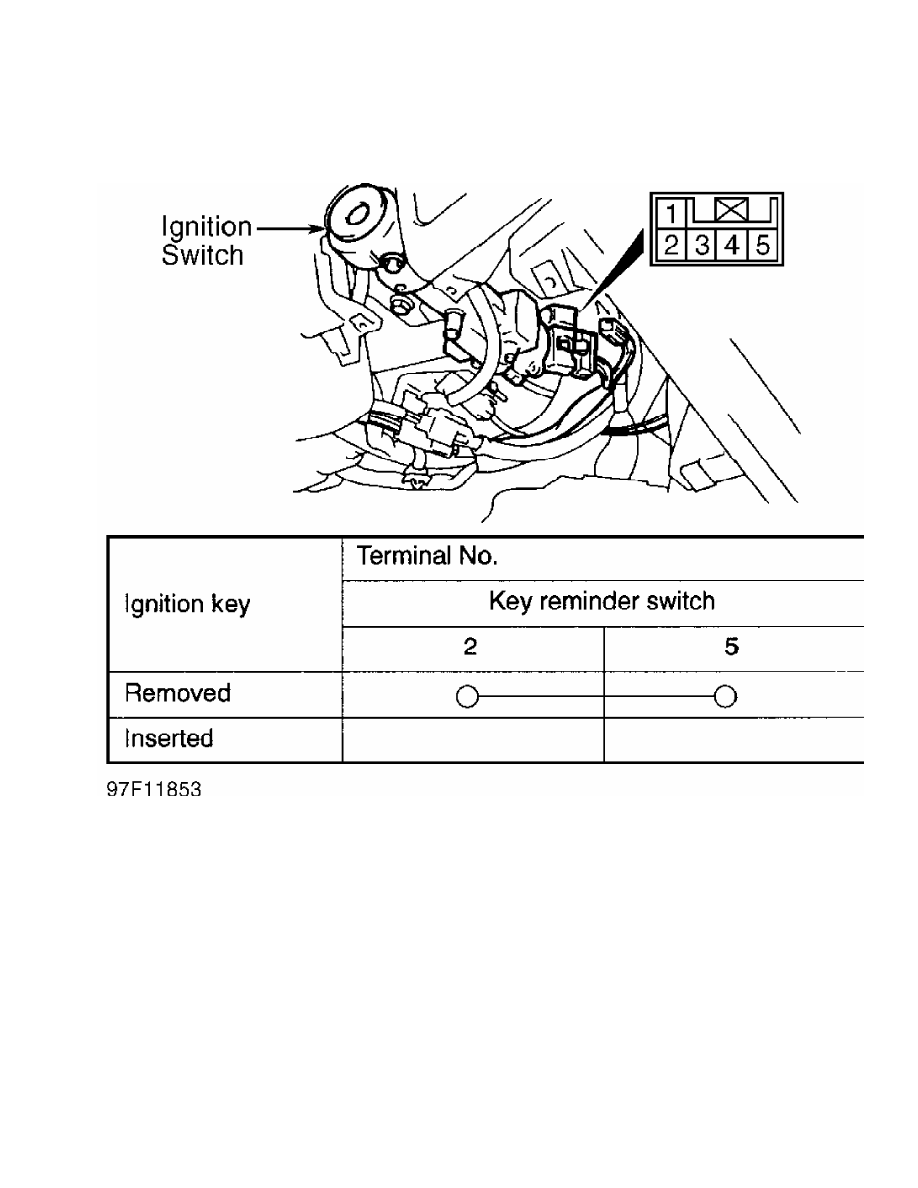

Fig. 4:  Testing Key Reminder Switch (Diamante)

Courtesy of Mitsubishi Motor Sales of America

         Wiper/Washer Switch Tests

         Disconnect steering column combination switch connector.

Check continuity between specified terminals. See  Fig. 5. If

continuity is not as specified, replace wiper/washer switch.

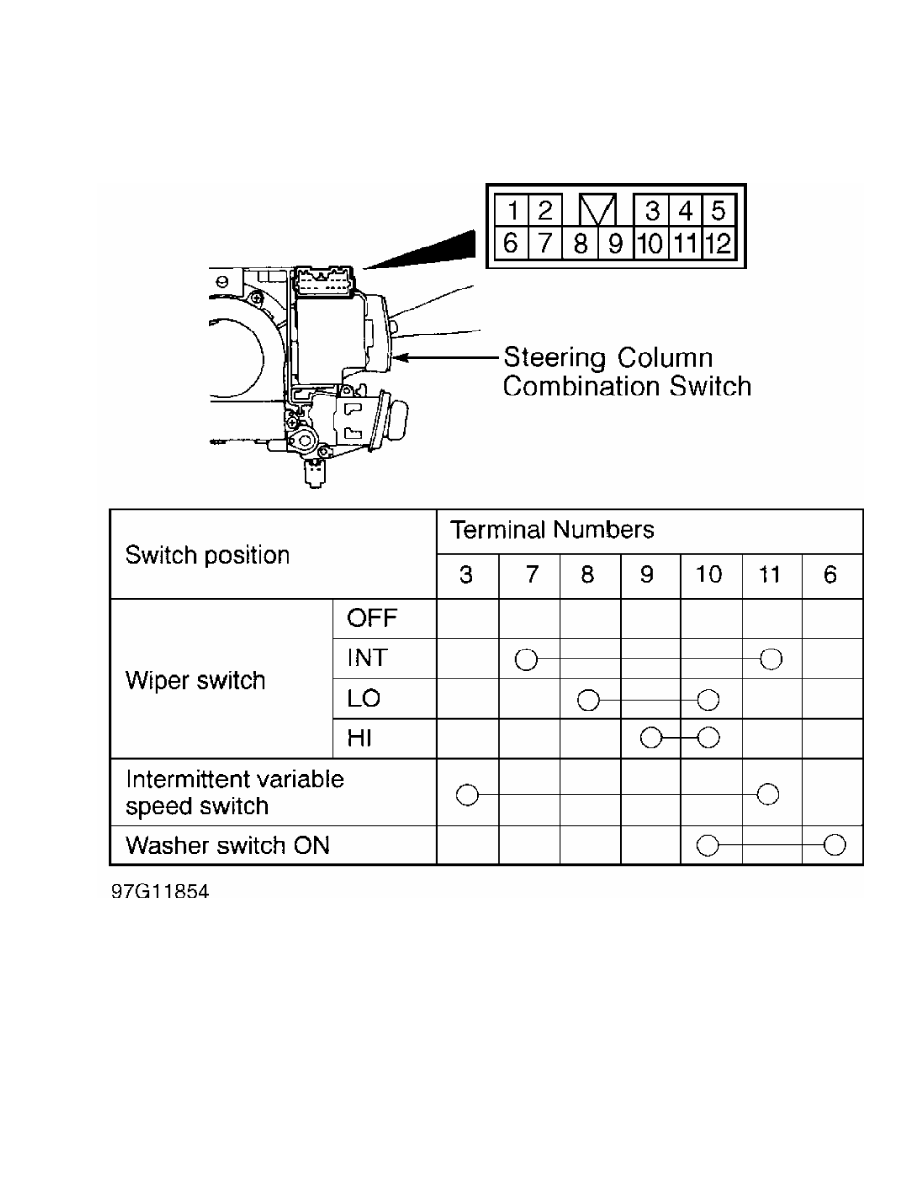

Fig. 5:  Testing Wiper/Washer Switch (Diamante)

Courtesy of Mitsubishi Motor Sales of America

         ECLIPSE

         Lighting & Turn Signal Switch Tests

         Disconnect steering column combination switch connector.

Check continuity between specified terminals. See  Figs. 6 and 7. If

continuity is not as specified, replace steering column combination

switch.

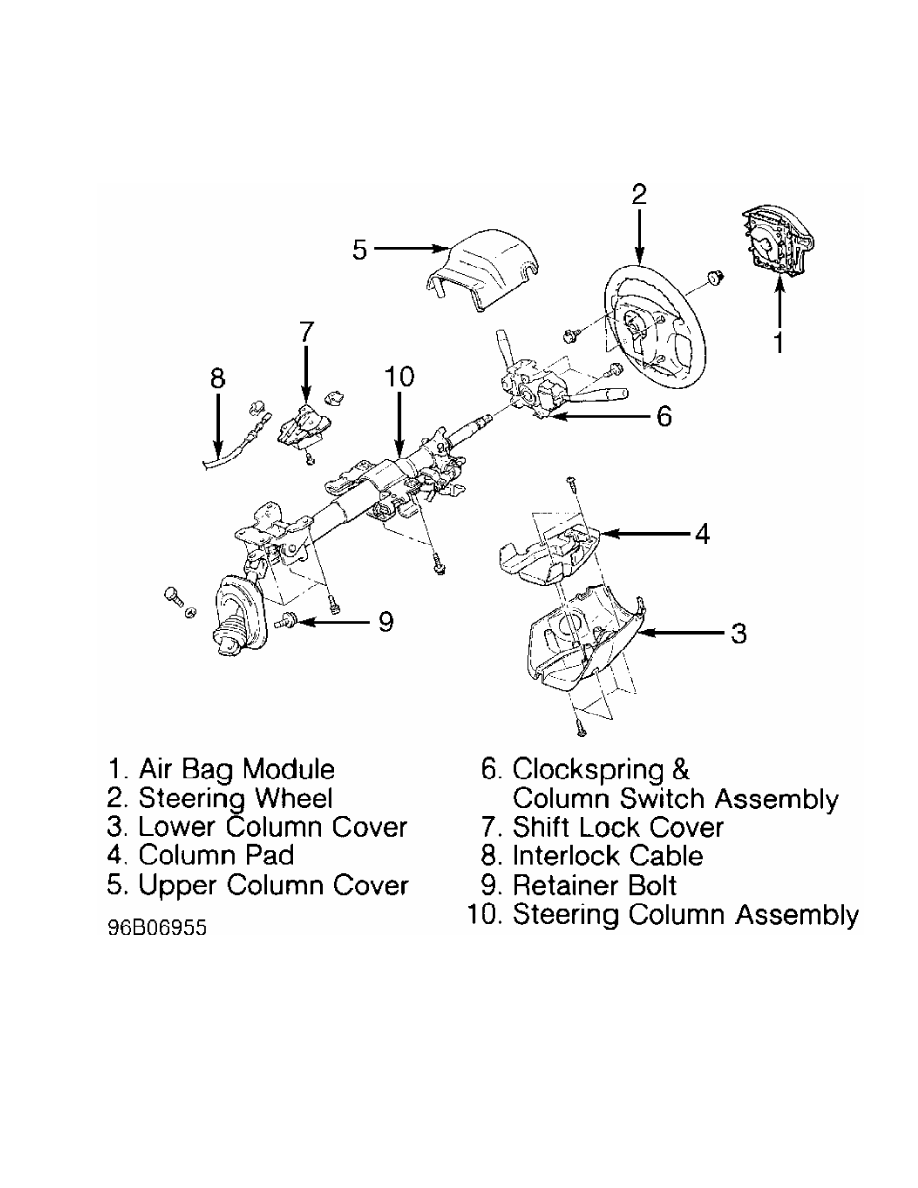

Fig. 6:  Exploded View Of Steering Column (Eclipse)

Courtesy of Mitsubishi Motor Sales of America

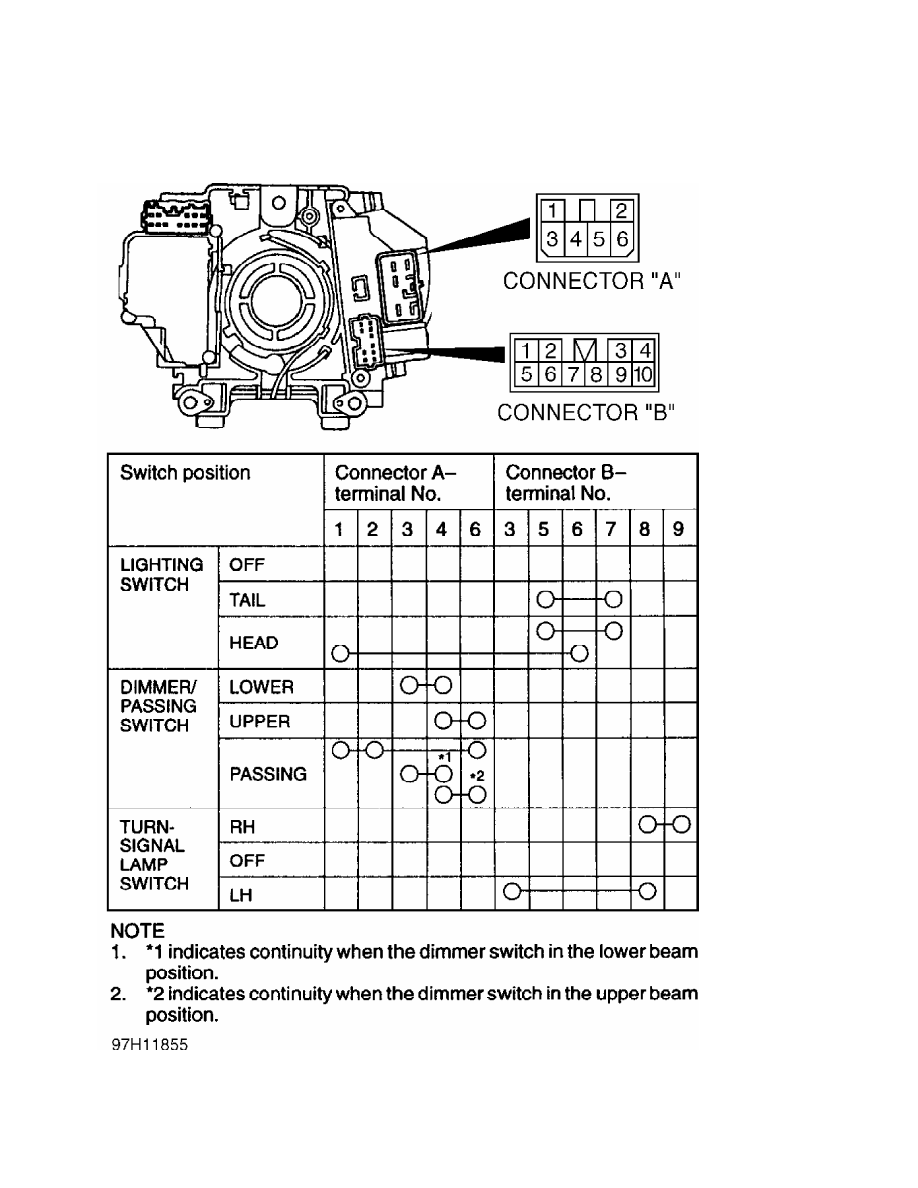

Fig. 7:  Testing Lighting & Turn Signal Switches (Eclipse)

Courtesy of Mitsubishi Motor Sales of America

         Ignition Switch Test

         Disconnect ignition switch connector. Check continuity
