between specified terminals. See Figs. 6 and 8. If continuity is not

as specified, replace ignition switch.

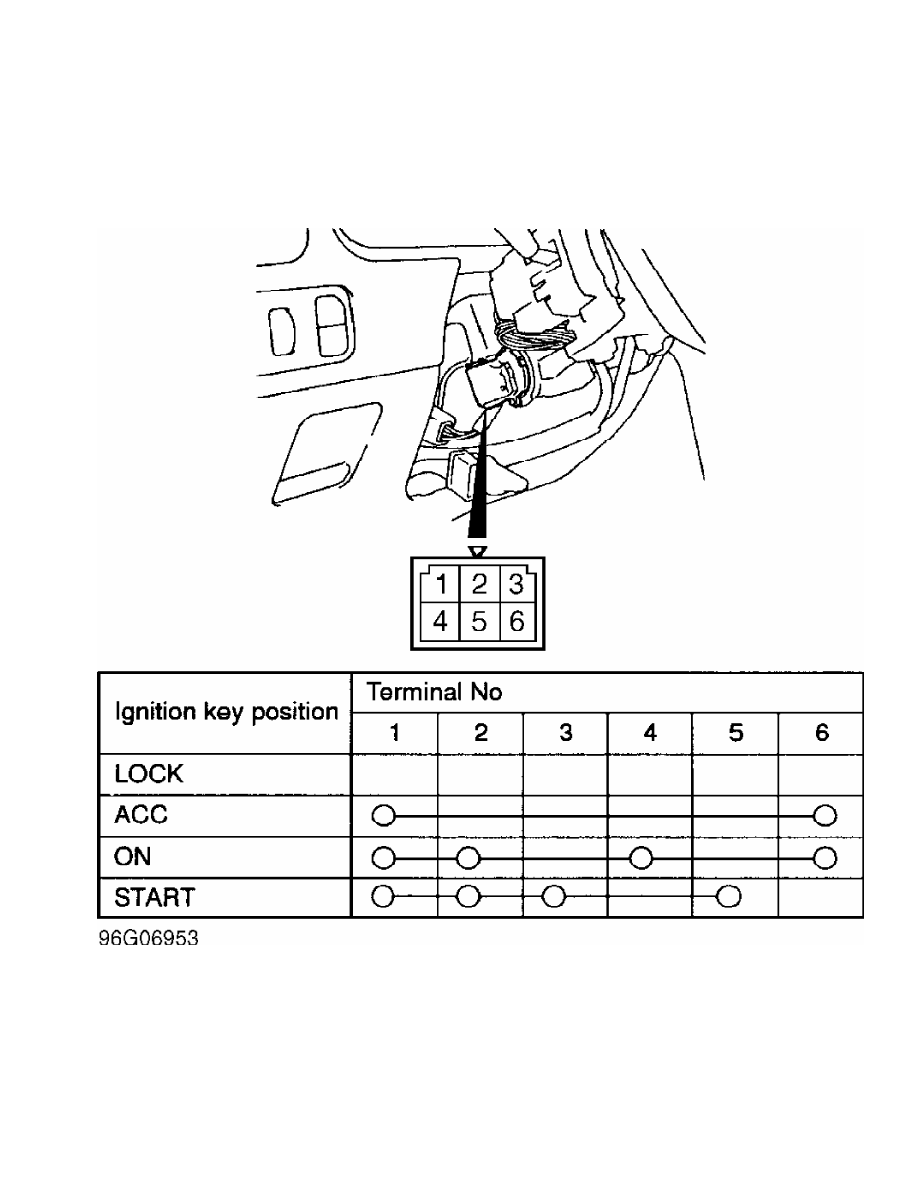

Fig. 8:  Testing Ignition Switch (Eclipse)

Courtesy of Mitsubishi Motor Sales of America

         Key Reminder Switch Test

         Disconnect key reminder switch connector. Check continuity

between specified terminals. See Figs. 6 and 9. If continuity is not

as specified, replace key reminder switch.

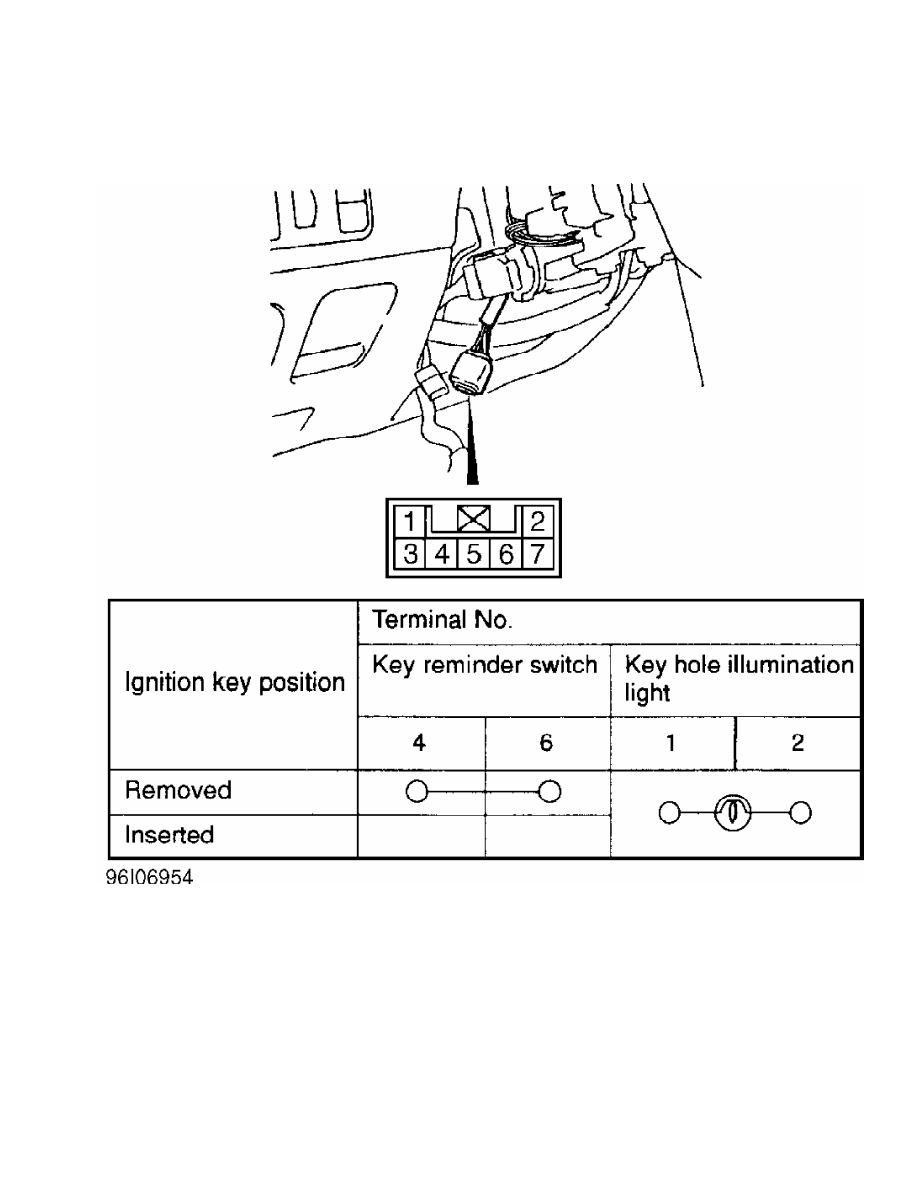

Fig. 9:  Testing Key Reminder Switch (Eclipse)

Courtesy of Mitsubishi Motor Sales of America

         Wiper/Washer Switch Tests

         Disconnect steering column combination switch connector.

Check continuity between specified terminals. See  Figs. 6 and 10. If

continuity is not as specified, replace wiper/washer switch.

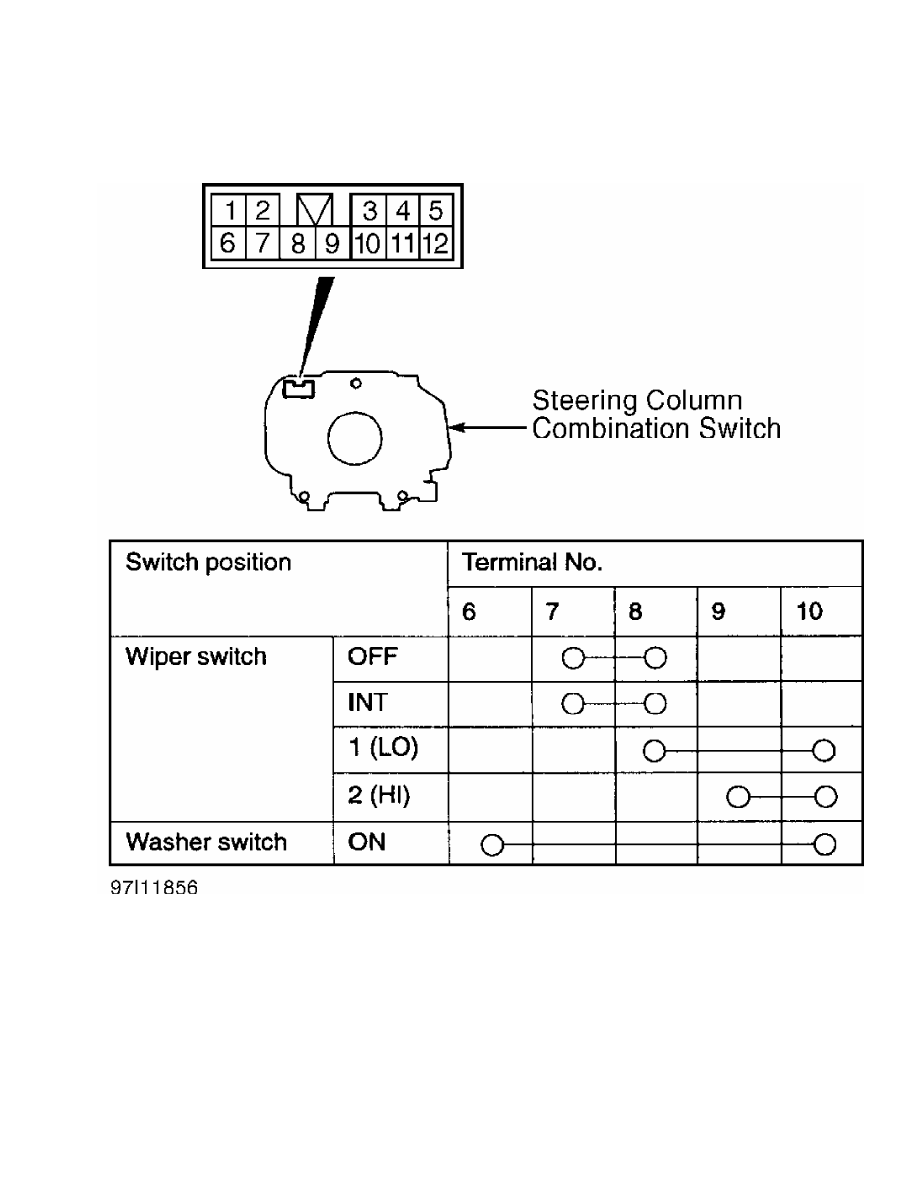

Fig. 10:  Testing Wiper/Washer Switch (Eclipse)

Courtesy of Mitsubishi Motor Sales of America

         GALANT

         Ignition Switch Tests

         Disconnect ignition switch harness connector. Check

continuity between specified terminals. See  Figs. 11 and 12. If

continuity is not as specified, replace ignition or key reminder

switch.

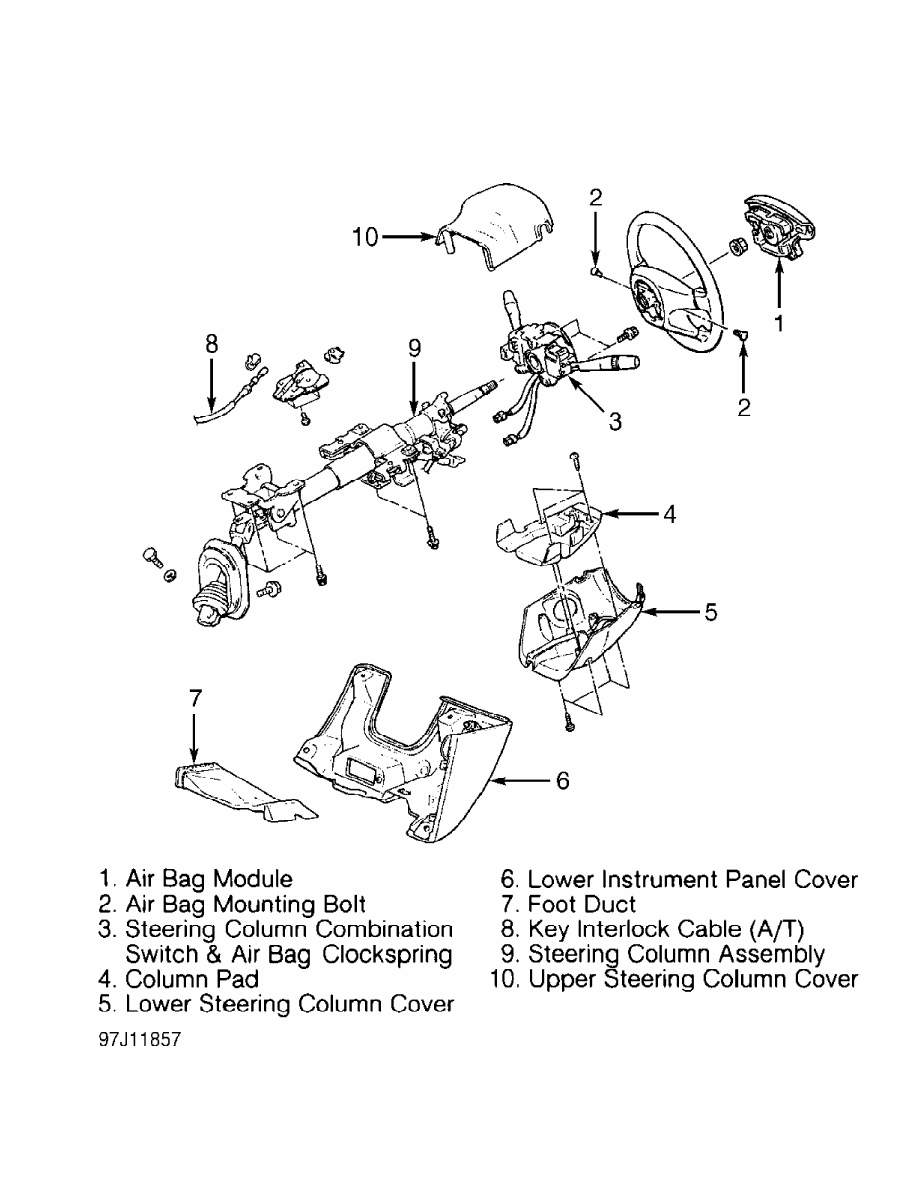

Fig. 11:  Exploded View Of Steering Column (Galant)

Courtesy of Mitsubishi Motor Sales of America
