Fig. 16:  Testing Ignition Switch (Mirage)

Courtesy of Mitsubishi Motor Sales of America

         Key Reminder Switch Test

         Disconnect key reminder switch connector. Check continuity

between specified terminals. See Fig. 17. If continuity is not as

specified, replace key reminder switch.

Fig. 17:  Testing Key Reminder Switch (Mirage)

Courtesy of Mitsubishi Motor Sales of America

         Lighting & Turn Signal Switch Tests

         Disconnect steering column combination switch connector.

Check continuity between specified terminals. See  Figs. 15 and 18. If

continuity is not as specified, replace steering column combination

switch.

Fig. 18:  Testing Lighting & Turn Signal Switches (Mirage)

Courtesy of Mitsubishi Motor Sales of America

         Wiper/Washer Switch Tests

         Disconnect steering column combination switch connector.

Check continuity between specified terminals. See  Fig. 14. If

continuity is not as specified, replace wiper/washer switch.

         MONTERO

         Ignition Switch & Key Reminder Switch Tests

         Disconnect ignition switch and key reminder switch

connectors. Check continuity between specified terminals. See  Figs. 19

and 20. If continuity is not as specified, replace ignition switch or

key reminder switch.

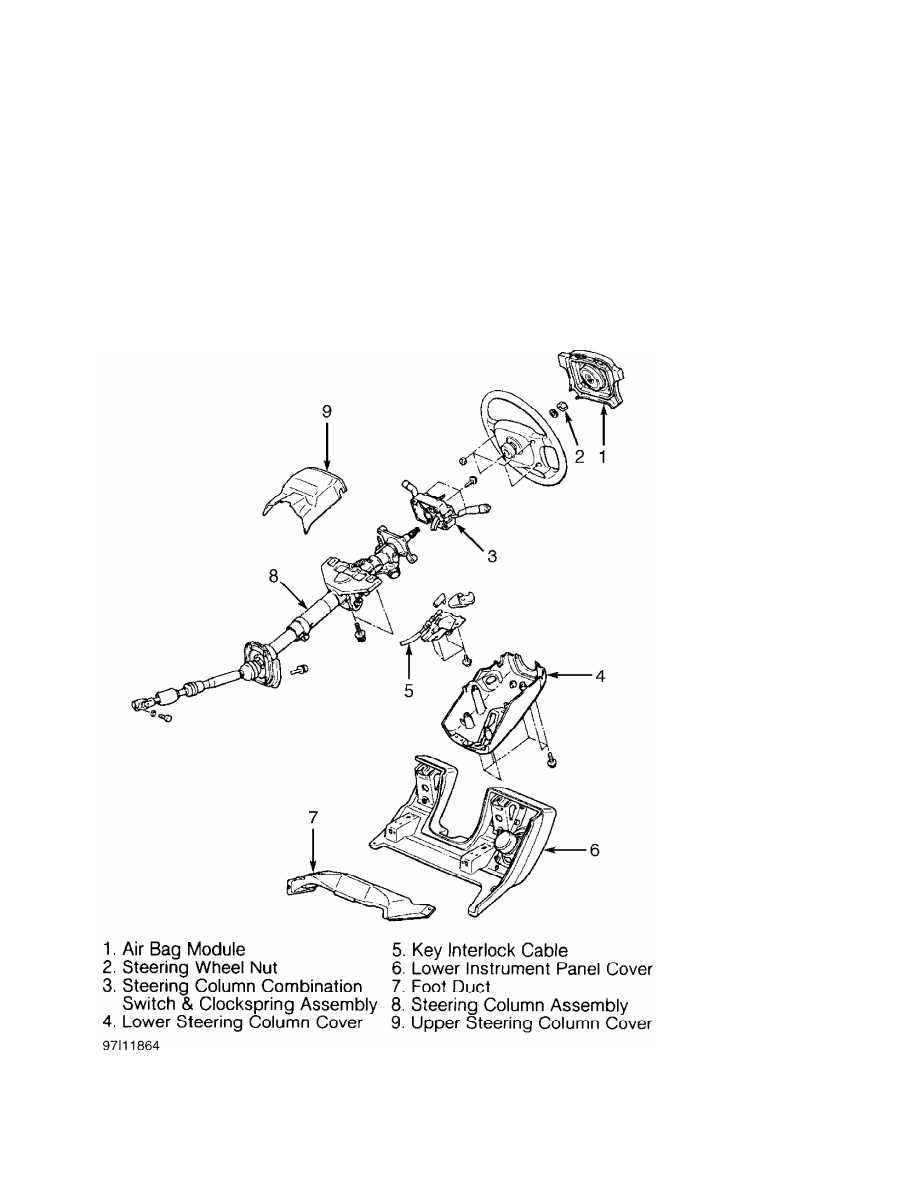

Fig. 19:  Exploded View Of Steering Column (Montero)

Courtesy of Mitsubishi Motor Sales of America
