Check continuity between specified terminals. See  Figs. 19 and 24. If

continuity is not as specified, replace steering column combination

switch.

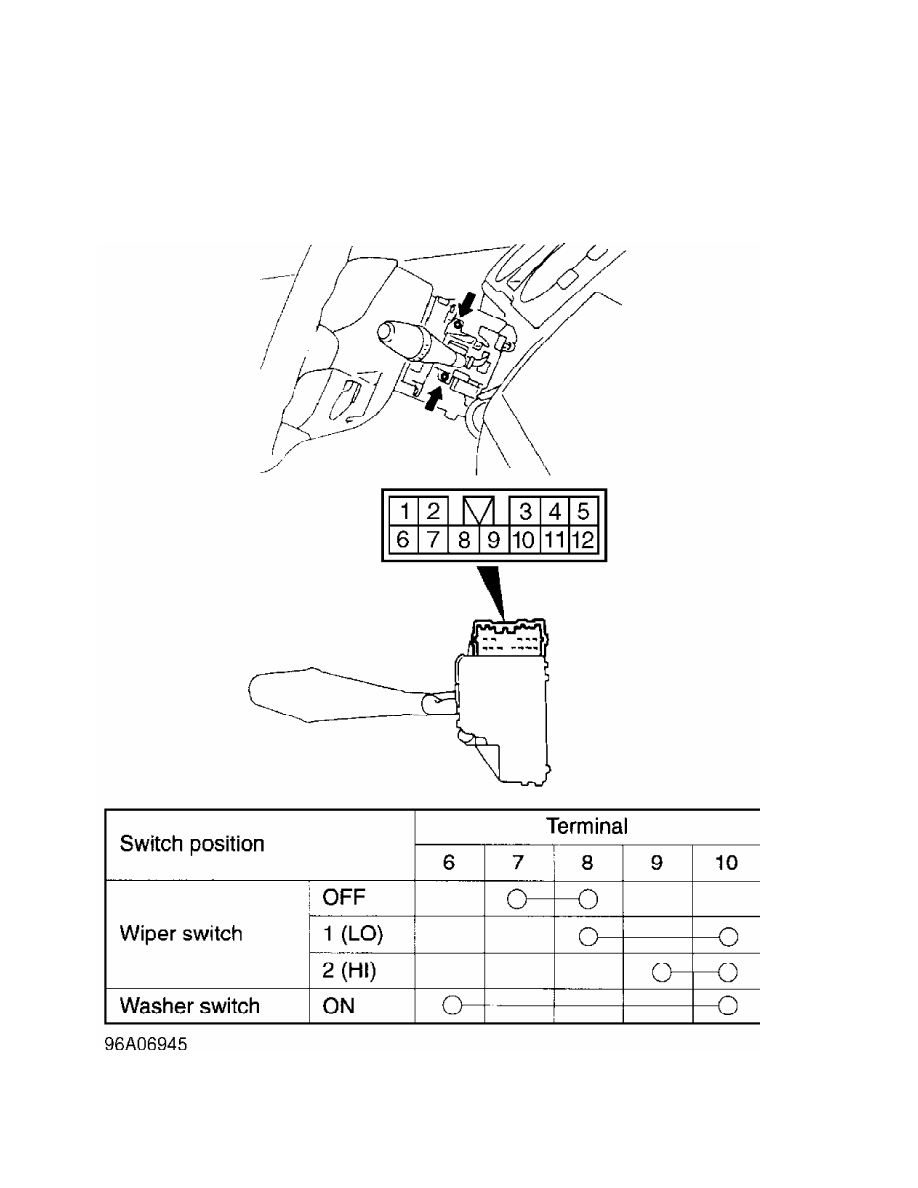

Fig. 24:  Testing Wiper/Washer Switch (Montero)

Courtesy of Mitsubishi Motor Sales of America

         MONTERO SPORT

         Ignition Switch Test

         Disconnect ignition switch connectors. Check continuity

between specified terminals. See Figs. 25 and 26. If continuity is not

as specified, replace ignition switch.

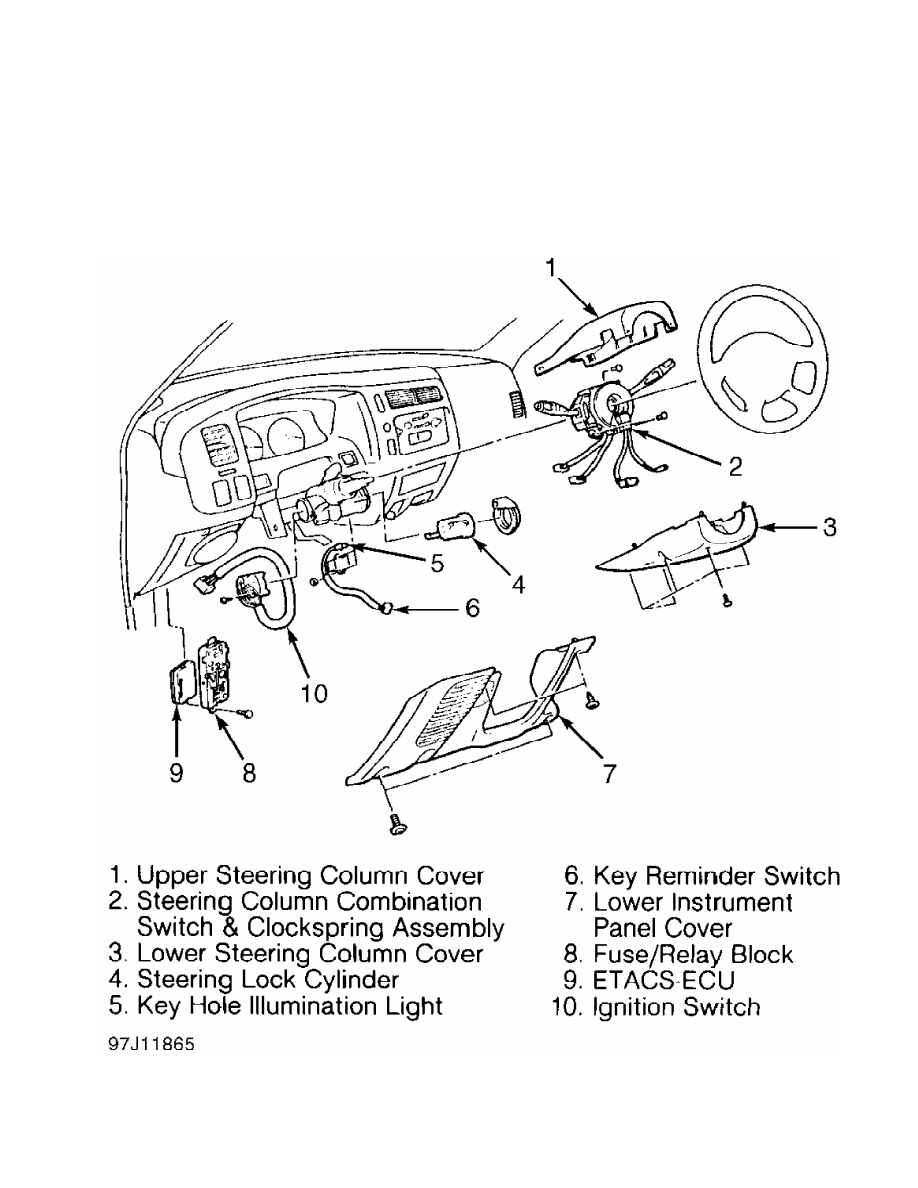

Fig. 25:  Exploded View Of Steering Column (Montero Sport)

Courtesy of Mitsubishi Motor Sales of America

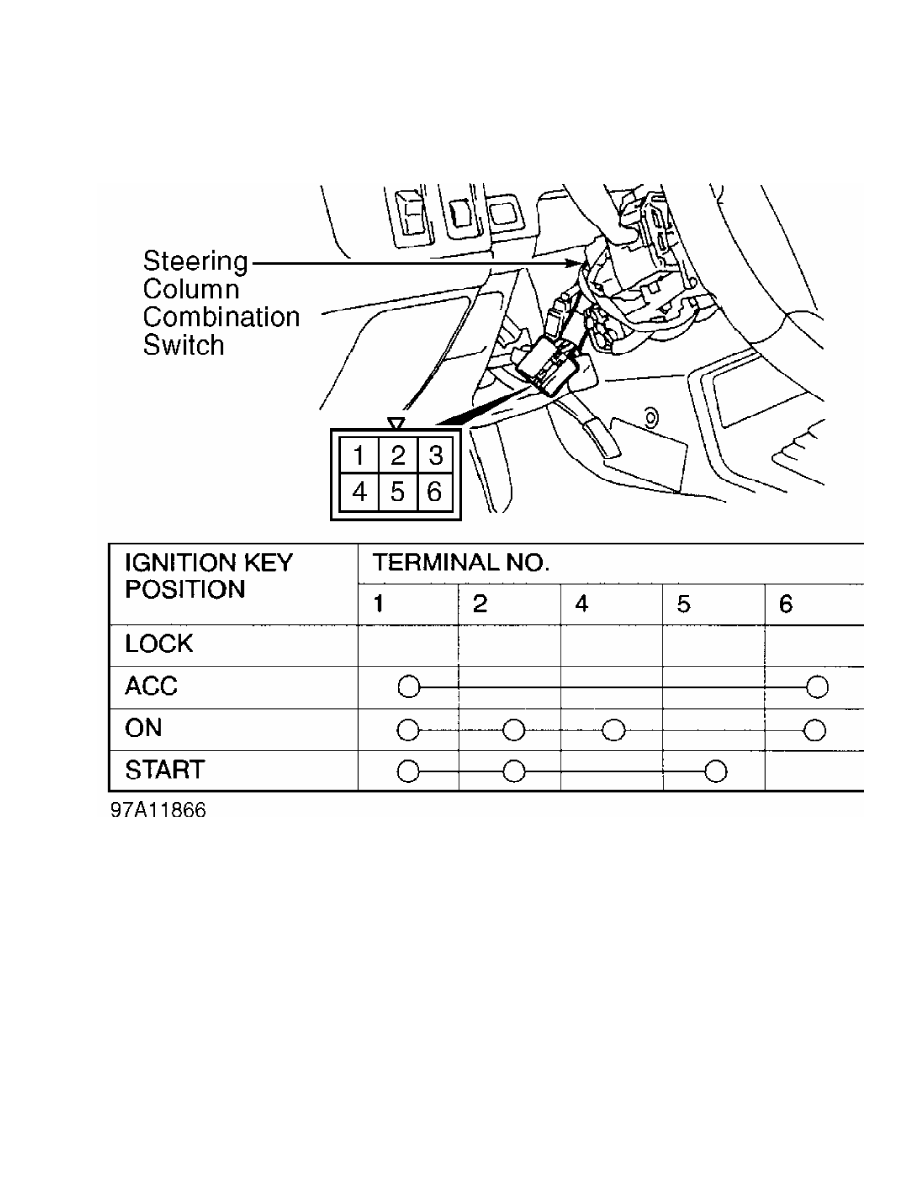

Fig. 26:  Testing Ignition Switch (Montero Sport)

Courtesy of Mitsubishi Motor Sales of America

         Lighting & Turn Signal Switch Tests

         Disconnect steering column  combination switch connector.

Check continuity between specified terminals. See  Figs. 25 and 27. If

continuity is not as specified, replace steering column combination

switch.

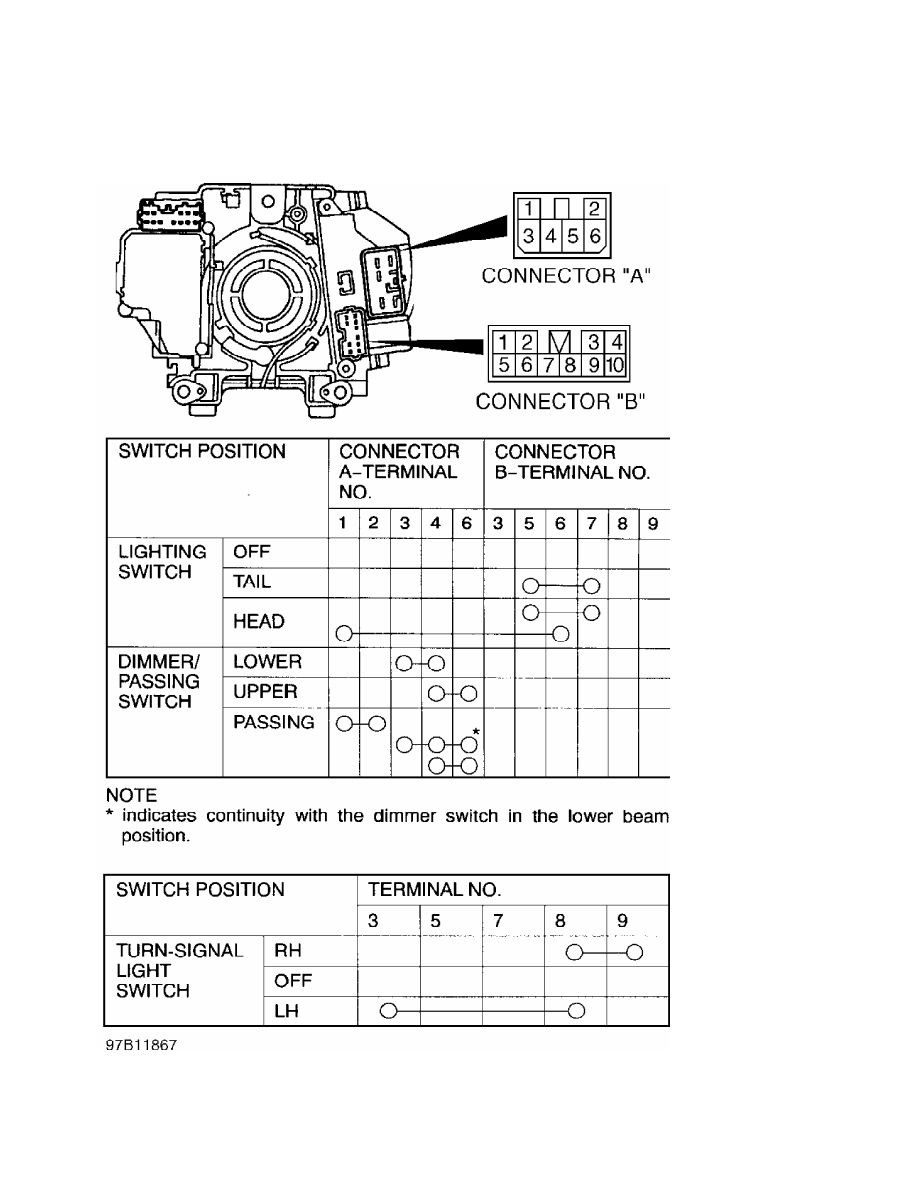

Fig. 27:  Testing Lighting & Turn Signal Switches (Montero Sport)

Courtesy of Mitsubishi Motor Sales of America

         Front Wiper/Washer Switch Test

         Disconnect steering column combination switch connector.
