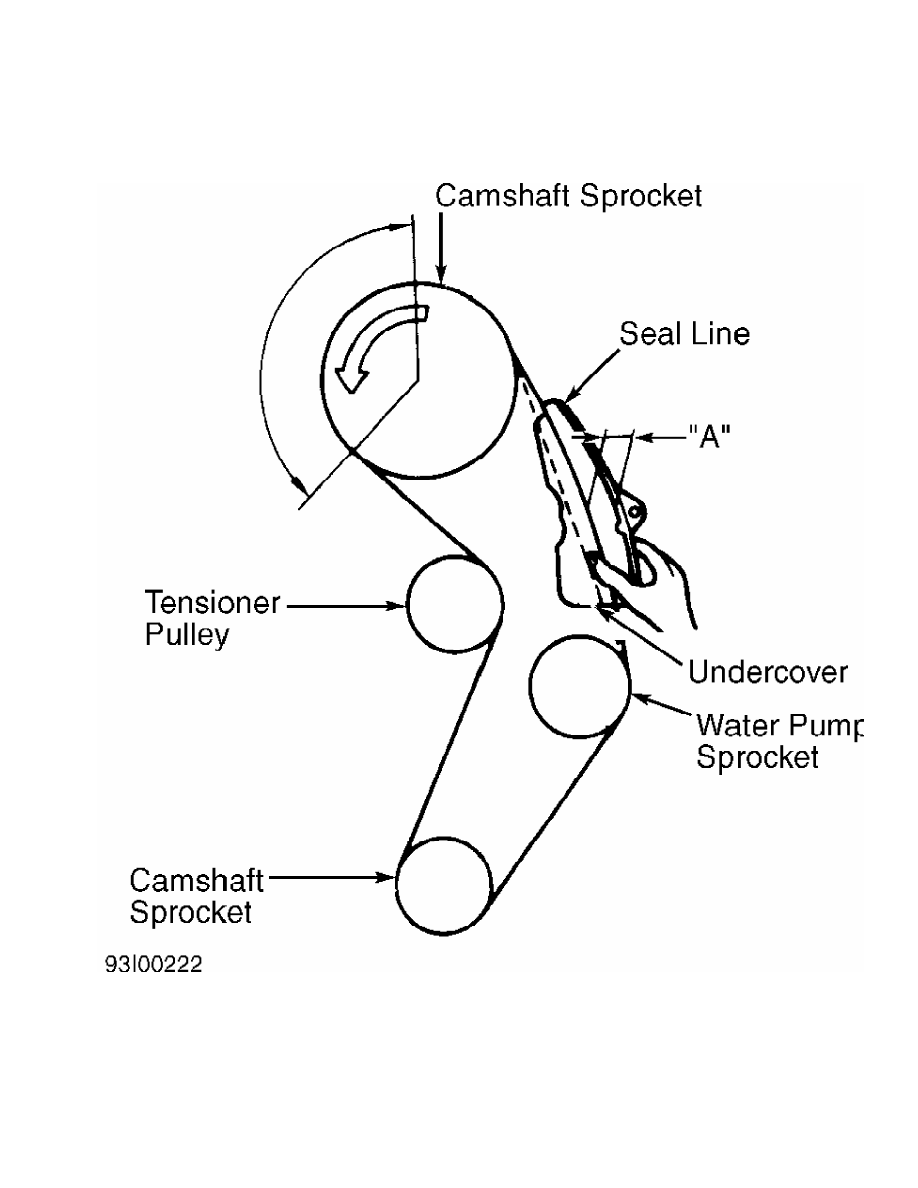

Fig. 4:  Routing Timing/Water Pump Belt (Mirage - 1.8L)

Courtesy of Mitsubishi Motor Sales of America.

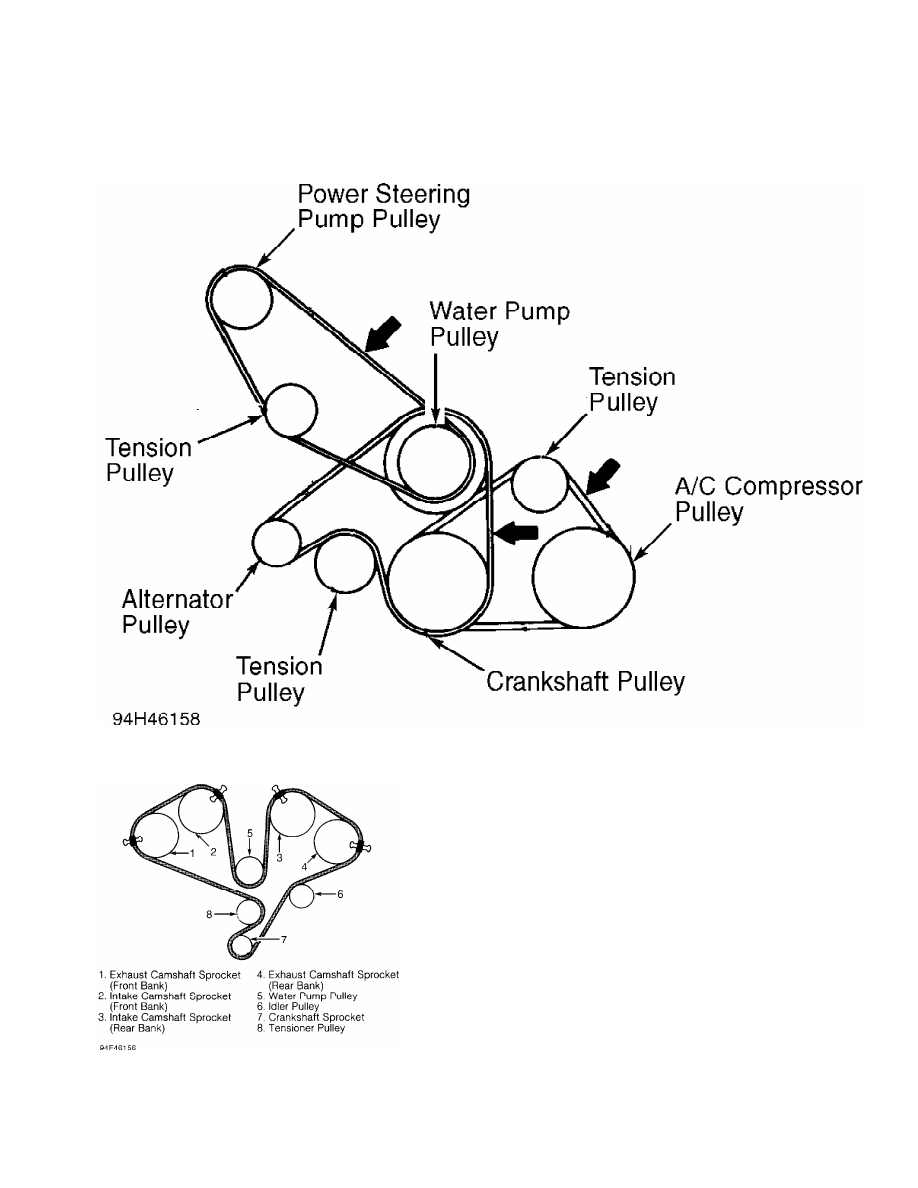

Fig. 5:  Routing Accessory Drive Belts (Montero - 3.5L & Montero

Sport - 3.0L; Montero Sport - 2.4L Similar)

Courtesy of Mitsubishi Motor Sales of America.

Fig. 6:  Routing Timing/Water Pump Belt (3000GT - DOHC)

Courtesy of Mitsubishi Motor Sales of America.

         COOLING SYSTEM SPECIFICATIONS

COOLING SYSTEM SPECIFICATIONS

Application                                              Specification

Coolant Replacement Interval  .............  30,000 Miles Or 24 Months

Coolant Capacity (Includes Heater & Reserve Tank)

  Diamante  ........................................  10.0 Qts. (9.5L)

  Eclipse  ..........................................  7.4 Qts. (7.0L)

  Galant  ...........................................  7.4 Qts. (7.0L)

  Mirage

    1.5L  ...........................................  5.3 Qts. (5.0L)

    1.8L  ...........................................  6.3 Qts. (6.0L)

  Montero  .........................................  10.0 Qts. (9.5L)

  Montero Sport

    2.4L

      With Rear Heater  .............................  9.5 Qts. (9.0L)

      Without Rear Heater  ..........................  8.5 Qts. (8.0L)

    3.0L

      With Rear Heater  ...........................  10.6 Qts. (10.0L)

      Without Rear Heater  ..........................  9.5 Qts. (9.0L)

  3000GT  ...........................................  8.5 Qts. (8.0L)

Pressure Cap

  Except Eclipse 2.0L Non-Turbo  ..........................  11-15 psi

  Eclipse 2.0L Non-Turbo  .................................  14-18 psi

Thermostat Opens

  Diamante

    1997

      Starts To Open  ..................................  180



F (82



C)

      Fully Open  ......................................  203



F (95



C)

    1998

      Starts To Open  ..................................  192



F (89



C)

      Fully Open  ......................................  203



F (95



C)

  Eclipse

    2.0L Turbo & 2.4L

      Starts To Open  ..................................  180



F (82



C)

      Fully Open  ......................................  203



F (95



C)

    2.0L Non-Turbo

      Starts To Open  ................................  195



F (90.5



C)

      Fully Open  .....................................  216



F (102



C)

  Galant

    Starts To Open  ....................................  180



F (82



C)

    Fully Open  ........................................  203



F (95



C)

  Mirage

    Starts To Open  .........................  177-183



F (80.5-83.9



C)

    Fully Open  ........................................  203



F (95



C)

  Montero

    1997

      Starts To Open  ..................................  180



F (82



C)

      Fully Open  ......................................  203



F (95



C)

    1998

      Starts To Open  ..................................  190



F (88



C)

      Fully Open  .....................................  212



F (100



C)

  Montero Sport

    Starts To Open  .........................  177-183



F (80.5-83.9



C)

    Fully Open  ........................................  203



F (95



C)

  3000GT (SOHC)

    Starts To Open  ....................................  180



F (82



C)

    Fully Open  ........................................  203



F (95



C)

  3000GT (DOHC)

    Starts To Open  ....................................  170



F (77



C)

    Fully Open  ........................................  194



F (90



C)

         ELECTRIC COOLING FAN

         COMPONENT TESTING

         Radiator Fan Motor (Diamante)

         1) Disconnect radiator fan motor connectors A39 and A40.

Ground fan motor connector A39 terminal No. 2 (Black wire). Using a

fused jumper wire, connect battery voltage to fan motor connector A39

terminal No. 1 (Blue/Black wire). See Fig. 7. See  WIRING DIAGRAMS. Fan

motor should operate at low speed with no abnormal noises or

interferences. Repair or replace components as necessary.

         2) Ground fan motor connector A39 terminal No. 2 (Black wire)

and connector A40 terminal No. 2 (Black wire). Using a fused jumper

wire, connect battery voltage to fan motor connector A39 terminal No.

1 (Blue/Black wire). See Fig. 7. See WIRING DIAGRAMS. Fan motor should

operate at medium speed with no abnormal noises or interferences.

Repair or replace components as necessary.

         3) Ground fan motor connector A39 terminal No. 2 (Black wire)

and connector A40 terminal No. 2 (Black wire). Using 2 fused jumper

wires, connect battery voltage to fan motor connector A39 terminal No.

1 (Blue/Black wire) and to connector A40 terminal No. 1 (Green wire).

See Fig. 7. See WIRING DIAGRAMS. Fan motor should operate at high

speed with no abnormal noises or interferences. Repair or replace

components as necessary.

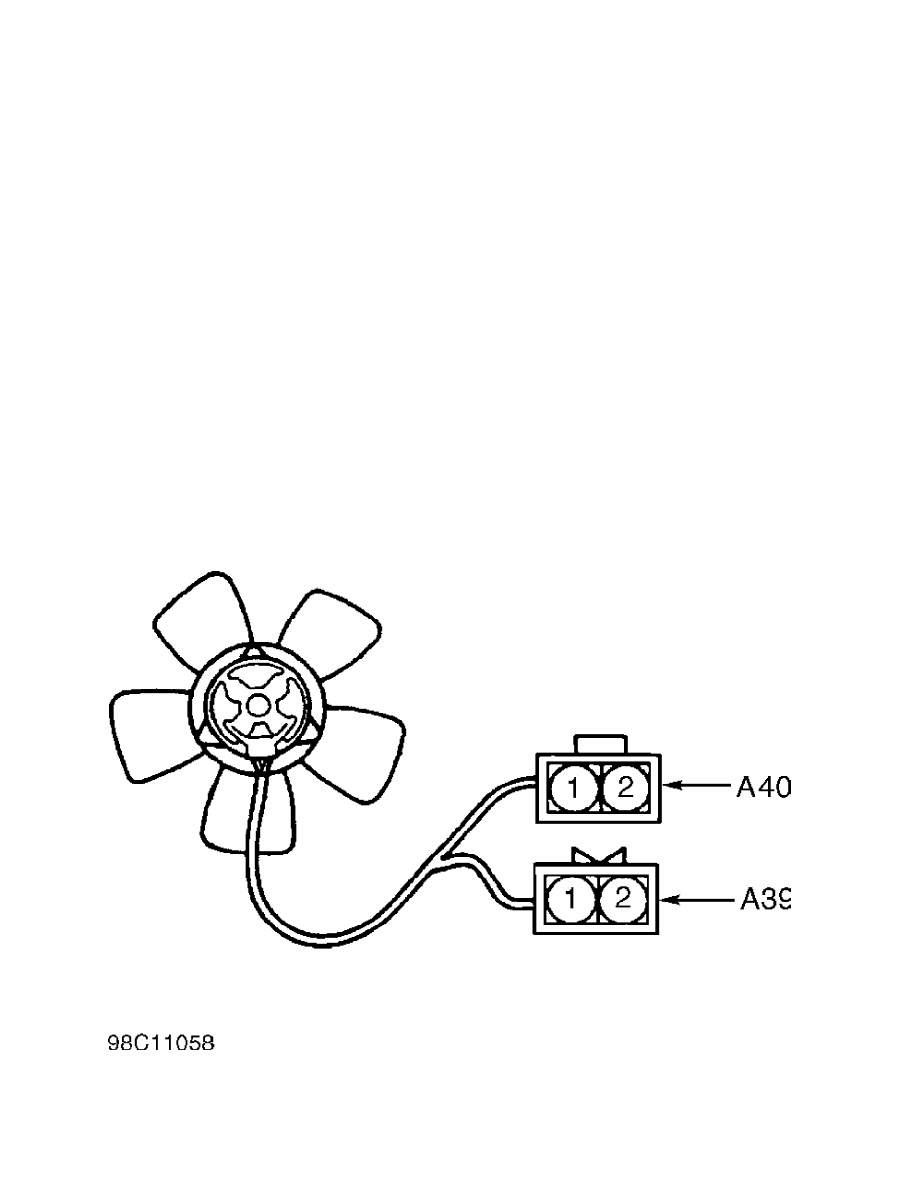

Fig. 7:  Testing Radiator Fan Motor (Diamante)

Courtesy of Mitsubishi Motor Sales of America.

         Radiator Fan Motor (Eclipse)

         1) Disconnect radiator fan motor 4-pin connector. Ground fan
