      *  Place transmission in Neutral position.

      *  Ensure emergency brake has been set and all accessories

         are turned off.

      *  Start engine and bring to normal operating temperature.

      *  Allow vehicle to idle in Neutral for one minute.

      *  Initial relearn is complete: process will be completed during

         normal driving.

         Some manufacturers identify a specific relearn procedure

which will help establish suitable driveability during relearn stage.

These procedures are especially important if vehicle is equipped with

and electronically controlled automatic transmission or transaxle.

Always complete procedure before returning vehicle to customer.

COOLING SYSTEM SPECIFICATIONS & ENGINE COOLING FANS

1998 Mitsubishi Montero

         1997-98 ENGINE COOLING

         Mitsubishi Specifications & Electric Cooling Fans

         Diamante, Eclipse, Galant, Mirage, Montero, Montero Sport,

         3000GT

         SPECIFICATIONS

         BELT ADJUSTMENT

NOTE:    Use illustration for water pump drive belt routing. See

         Figs. 1-6. The terms alternator and generator are used

         interchangeably.

BELT ADJUSTMENT

Application                                    Deflection  (1) In. (mm)

Diamante  .......................................................  ( 2)

Eclipse & Galant

  2.0L Non-Turbo  ...............................................  ( 2)

  2.0L Turbo & 2.4L

    Generator & Water Pump  ....................  0.35-0.45 (9.0-11.4)

    Water Pump & Power Steering  ................  0.22-0.32 (5.6-8.1)

Mirage

  1.5L  ........................................  0.34-0.45 (8.6-11.4)

  1.8L  .........................................................  ( 2)

Montero

  A/C  ..........................................  0.26-0.30 (6.6-7.6)

  Generator & Water Pump  ...................  ( 3) 0.22-0.26 (5.6-6.6)

  Water Pump & Power Steering  ................  0.54-0.70 (13.7-17.8)

Montero Sport

  2.4L

    A/C  ........................................  0.24-0.26 (6.1-6.6)

    Generator & Water Pump  .................  ( 4) 0.28-0.35 (7.1-8.9)

    Water Pump & Power Steering  ................  0.22-0.30 (5.6-7.6)

  3.0L

    A/C  ........................................  0.22-0.26 (5.6-6.6)

    Generator & Water Pump  .................  ( 3) 0.20-0.27 (5.1-6.8)

    Water Pump & Power Steering  ..............  0.52-0.68 (13.2-17.3)

3000GT  .........................................................  ( 3)

(1) - With 22 lbs. (10 kg) pressure applied midway on belt run.

      Values are for a used belt.

(2) - Water pump is driven by timing belt. Timing belt deflection is

      controlled by timing belt automatic tensioner.

(3) - Measured between water pump pulley and crankshaft pulley.

(4) - Measured between water pump pulley and generator pulley.

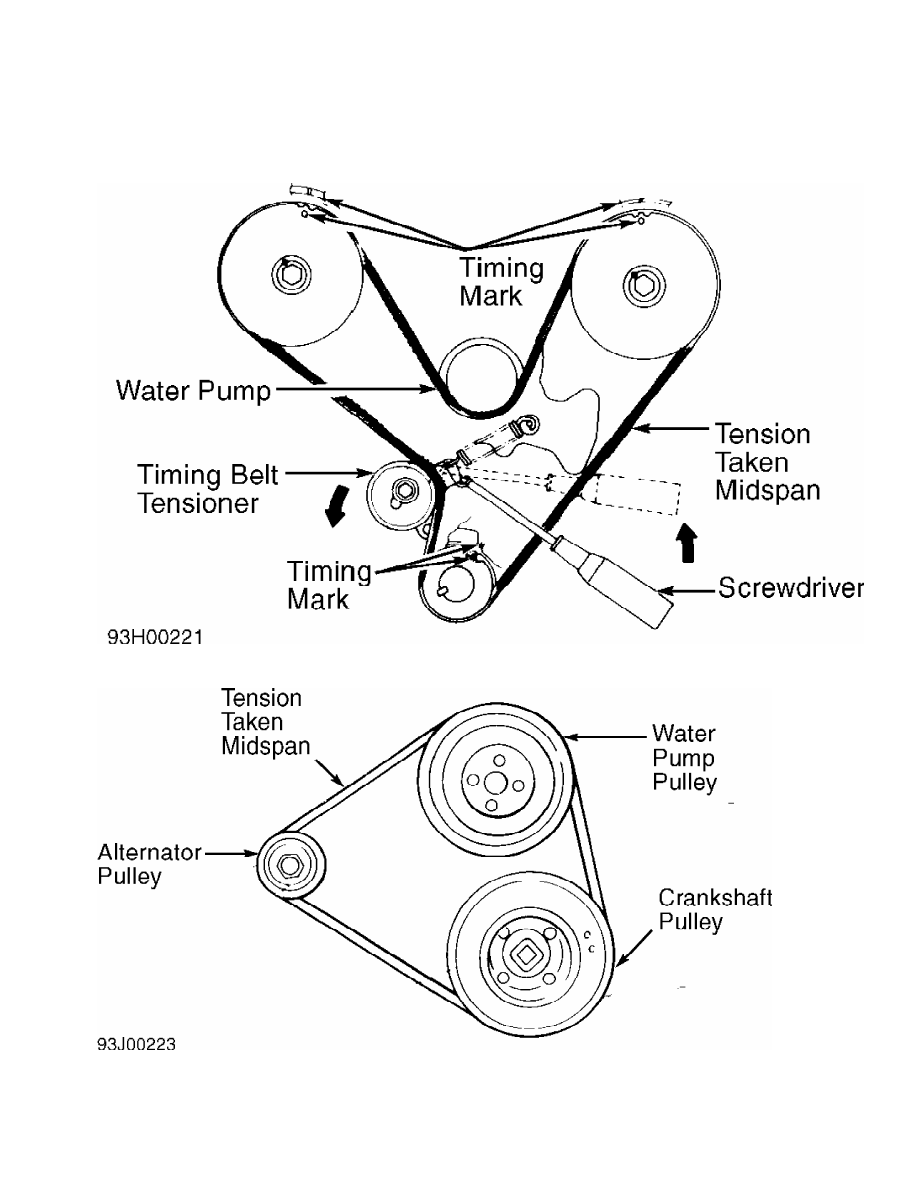

Fig. 1:  Routing Timing/Water Pump Belt (Diamante & 3000GT SOHC)

Courtesy of Mitsubishi Motor Sales of America.

Fig. 2:  Routing Alternator & Water Pump Belt (Eclipse - 2.0L

Turbo & 2.4L, Galant & Mirage - 1.5L)

Courtesy of Mitsubishi Motor Sales of America.

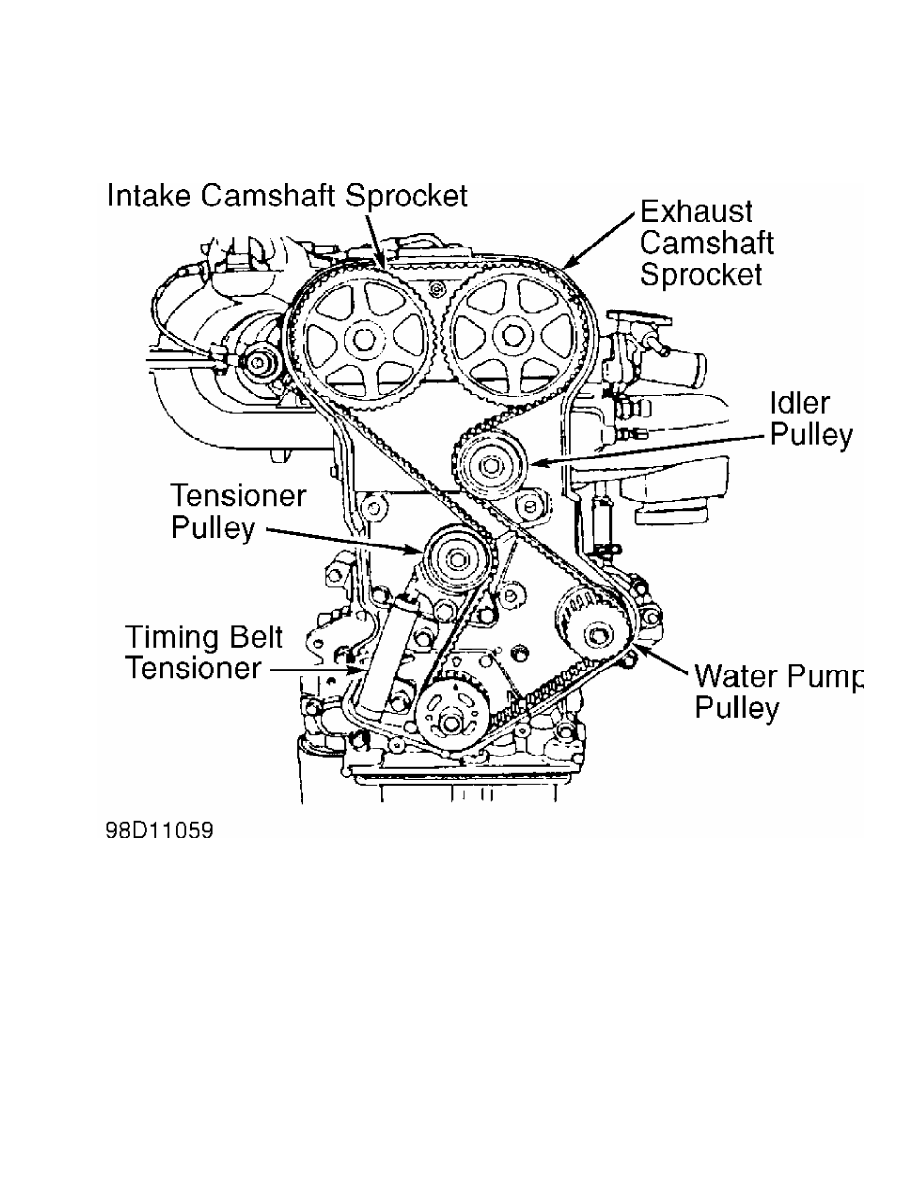

Fig. 3:  Routing Timing/Water Pump Belt (Eclipse - 2.0L Non-Turbo)

Courtesy of Mitsubishi Motor Sales of America.
