motor connector terminal No. 2 (Black wire). Using a fused jumper

wire, connect battery voltage to fan motor connector terminal No. 1

(White/Black wire). See WIRING DIAGRAMS. Fan motor should operate with

no abnormal noises or interferences. Repair or replace components as

necessary.

         2) On all models except 1998 2.0L non-turbo, ground fan motor

4-pin connector terminal No. 4 (Black wire). Using a fused jumper

wire, connect battery voltage to fan motor connector terminal No. 3

(White/Blue wire). See WIRING DIAGRAMS. Fan motor should operate with

no abnormal noises or interferences. Repair or replace components as

necessary.

         Radiator Fan Motor (Galant)

         1) Disconnect radiator fan motor 4-pin connector. Ground fan

motor connector terminal No. 2 (Black wire). Using a fused jumper

wire, connect battery voltage to fan motor connector terminal No. 1

(Blue wire). See WIRING DIAGRAMS. Fan motor should operate with no

abnormal noises or interferences. Repair or replace components as

necessary. If no problems exist, go to next step.

         2) Ground fan motor 4-pin connector terminal No. 4 (Black

wire). Using a fused jumper wire, connect battery voltage to fan motor

connector terminal No. 3 (Blue/Black wire). See  WIRING DIAGRAMS. Fan

motor should operate with no abnormal noises or interferences. Repair

or replace components as necessary.

         Radiator Fan Motor (Mirage)

         Disconnect radiator fan motor 2-pin connector. Ground fan

motor 2-pin connector terminal No. 2 (Black wire). Using a fused

jumper wire, connect battery voltage to 2-pin connector terminal No. 1

(Blue/Black wire). See WIRING DIAGRAMS. Fan motor should operate with

no abnormal noises or interferences. Repair or replace components as

necessary.

         Radiator Fan Motor (3000GT)

         1) Disconnect radiator fan motor 4-pin connector. Ground fan

motor connector terminal No. 4 (Blue/Green wire). Using a fused jumper

wire, connect battery voltage to fan motor connector terminal No. 2

(Red/Black wire). See WIRING DIAGRAMS. Fan motor should operate with

no abnormal noises or interferences. Repair or replace components as

necessary. If radiator fan motor operates as specified, go to next

step.

         2) Disconnect battery voltage and ground from radiator fan

motor 4-pin connector. Using an ohmmeter, measure resistance between

radiator fan motor 4-pin connector terminals No. 1 (Black wire) and

No. 3 (Yellow/Blue wire). See WIRING DIAGRAMS. Resistance should be 0.

29-0.35 ohms. Replace radiator fan motor if resistance is not as

specified.

         Condenser Fan Motor (Diamante)

         1) Using a fused jumper wire, connect battery voltage to

condenser fan motor 4-pin connector terminal No. 1 (Blue/White wire).

Connect ground to connector terminal No. 2 (Black wire). Fan motor

should operate with no abnormal noises or interferences. Repair or

replace components as necessary. If no problems exist, go to next

step.

         2) Using a fused jumper wire, connect battery voltage to

condenser fan motor 4-pin connector terminal No. 3 (Yellow wire). When

terminal No. 4 (Black wire) is connected to ground, condenser fan

should operate faster. Replace condenser fan if operation is not as

specified. Ensure there are no abnormal noises or interferences during

fan operation.

         Condenser Fan Motor (Eclipse)

         1) Using a fused jumper wire, connect battery voltage to

condenser fan motor 4-pin connector terminal No. 1 (Blue wire).

Connect ground to connector to terminal No. 4 (Black wire). Fan motor

should operate with no abnormal noises or interferences. Repair or

replace components as necessary. If no problems exist, go to next

step.

         2) Using a fused jumper wire, connect battery voltage to

condenser fan motor 4-pin connector terminal No. 3 (Blue/White wire).

When terminal No. 2 (Black wire) is connected to ground, condenser fan

should operate faster. Replace condenser fan if operation is not as

specified. Ensure there are no abnormal noises or interferences during

fan operation.

         Condenser Fan Motor (Galant)

         1) Using a fused jumper wire, connect battery voltage to

condenser fan motor 4-pin connector terminal No. 1 (Blue wire).

Connect ground to connector to terminal No. 2 (Black wire). Fan motor

should operate with no abnormal noises or interferences. Repair or

replace components as necessary. If no problems exist, go to next

step.

         2) Using a fused jumper wire, connect battery voltage to

condenser fan motor 4-pin connector terminal No. 3 (Blue/White wire).

When terminal No. 4 (Black wire) is connected to ground, condenser fan

should operate faster. Replace condenser fan if operation is not as

specified. Ensure there are no abnormal noises or interferences during

fan operation.

         Condenser Fan Motor (Mirage)

         Disconnect radiator fan motor 2-pin connector. Ground fan

motor 2-pin connector terminal No. 2 (Black/Blue wire). Using a fused

jumper wire, connect battery voltage to 2-pin connector terminal No. 1

(Black/Orange wire). See WIRING DIAGRAMS. Fan motor should operate

with no abnormal noises or interferences. Repair or replace components

as necessary.

         Condenser Fan Motor (Montero & Montero Sport)

         Disconnect radiator fan motor 2-pin connector. Ground fan

motor 2-pin connector terminal No. 1 (Blue/Black wire). Using a fused

jumper wire, connect battery voltage to 2-pin connector terminal No. 2

(Blue/White wire). See WIRING DIAGRAMS. Fan motor should operate with

no abnormal noises or interferences. Repair or replace components as

necessary.

         Condenser Fan Motor (1997 3000GT)

         1) Disconnect both condenser fan motor 2-pin connectors

located on driver side of radiator. Ground fan motor 2-pin connector

terminal No. 2 (Black wire). Using a fused jumper wire, connect

battery voltage to 2-pin connector terminal No. 1 (Blue wire). See

WIRING DIAGRAMS. Fan motor should operate with no abnormal noises or

interferences. Repair or replace components as necessary. If no

problems exist, go to next step.

         2) Ground fan motor 2-pin connector terminal No. 2

(Blue/Black wire). Using a fused jumper wire, connect battery voltage

to 2-pin connector terminal No. 1 (Blue/White wire). See

WIRING DIAGRAMS. Fan motor should operate with no abnormal noises or

interferences. Repair or replace components as necessary.

         Condenser Fan Motor (1998 3000GT)

         1) Disconnect condenser fan motor 3-pin connector located on

driver-side of radiator. Ground fan motor 2-pin connector terminal No.

3 (Black wire). Using a fused jumper wire, connect battery voltage to

3-pin connector terminal No. 1 (Blue/White wire). See  WIRING DIAGRAMS.

Fan motor should operate with no abnormal noises or interferences.

Repair or replace components as necessary. If no problems exist, go to

next step.

         2) Ground fan motor 3-pin connector terminal No. 3 (Black

wire). Using a fused jumper wire, connect battery voltage to 3-pin

connector terminal No. 2 (Blue wire). See WIRING DIAGRAMS. Fan motor

should operate with no abnormal noises or interferences. Repair or

replace components as necessary.

         Engine Coolant Temperature (ECT) Sensor

         Remove ECT sensor from vehicle. Suspend sensor in water so

that sensor does not touch container. Slowly heat water. Using an

ohmmeter, check sensor continuity as temperature increases. Replace

ECT sensor if resistance is not as specified. See

ENGINE COOLANT TEMPERATURE SENSOR RESISTANCE  table.

ENGINE COOLANT TEMPERATURE SENSOR RESISTANCE



Temperature



F (



C)                                               Ohms

Diamante, Eclipse 2.0L Turbo & 2.4L

  32 (0)  .................................................  5100-6500

  68 (20)  ................................................  2100-2700

  104 (40)  ................................................  900-1300

  176 (80)  .................................................  260-360

Eclipse Non-Turbo

  77 (25)  .................................................  900-1100

  212 (100)  ................................................  600-800

Galant & Mirage

  68 (20)  ................................................  2100-2700

  176 (80)  .................................................  260-360

Montero

  68 (20)  ................................................  2130-2610

  176 (80)  .................................................  258-322

Montero Sport

  68 (20)  ................................................  2100-2700

  176 (80)  .................................................  260-360

3000GT

  32 (0)  ......................................................  5800

  68 (20)  .....................................................  2400

  104 (40)  ....................................................  1100

  176 (80)  .....................................................  300



         Electric Cooling Fan Relay (Diamante, Eclipse, Galant &

         Mirage)

         1) Remove radiator fan motor relay from relay box located at

right side of engine compartment. Check for continuity between relay

terminals No. 1 and 3. If continuity exists, go to next step. If

continuity does not exist, replace cooling fan relay. See  Fig. 8.

         2) Using a fused jumper wire, connect battery voltage to

cooling fan relay terminal No. 1. Using another jumper wire, connect

cooling fan relay terminal No. 3 to battery ground. With cooling fan

relay energized, there should be continuity between cooling fan relay

terminals No. 4 and 5. With cooling fan relay not energized, there

should be no continuity between terminals No. 4 and 5. If continuity

does not exist as specified, replace cooling fan relay. See  Fig. 8.

         Electric Cooling Fan Relay (Montero, Montero Sport & 3000GT)

         1)Remove relay from relay box in engine compartment relay

box. Check for continuity between relay terminals No. 2 and 4. If

continuity exists, go to next step. If continuity does not exist,

replace cooling fan relay. See Fig. 9.

         2) Using a fused jumper wire, connect battery voltage to

cooling fan relay terminal No. 2. Using another jumper wire, connect

cooling fan relay terminal No. 4 to battery ground. With cooling fan

relay energized, there should be continuity between cooling fan relay

terminals No. 1 and 3. With cooling fan relay not energized, there

should be no continuity between terminals No. 1 and 3. If continuity

does not exist as specified, replace cooling fan relay. See  Fig. 9.

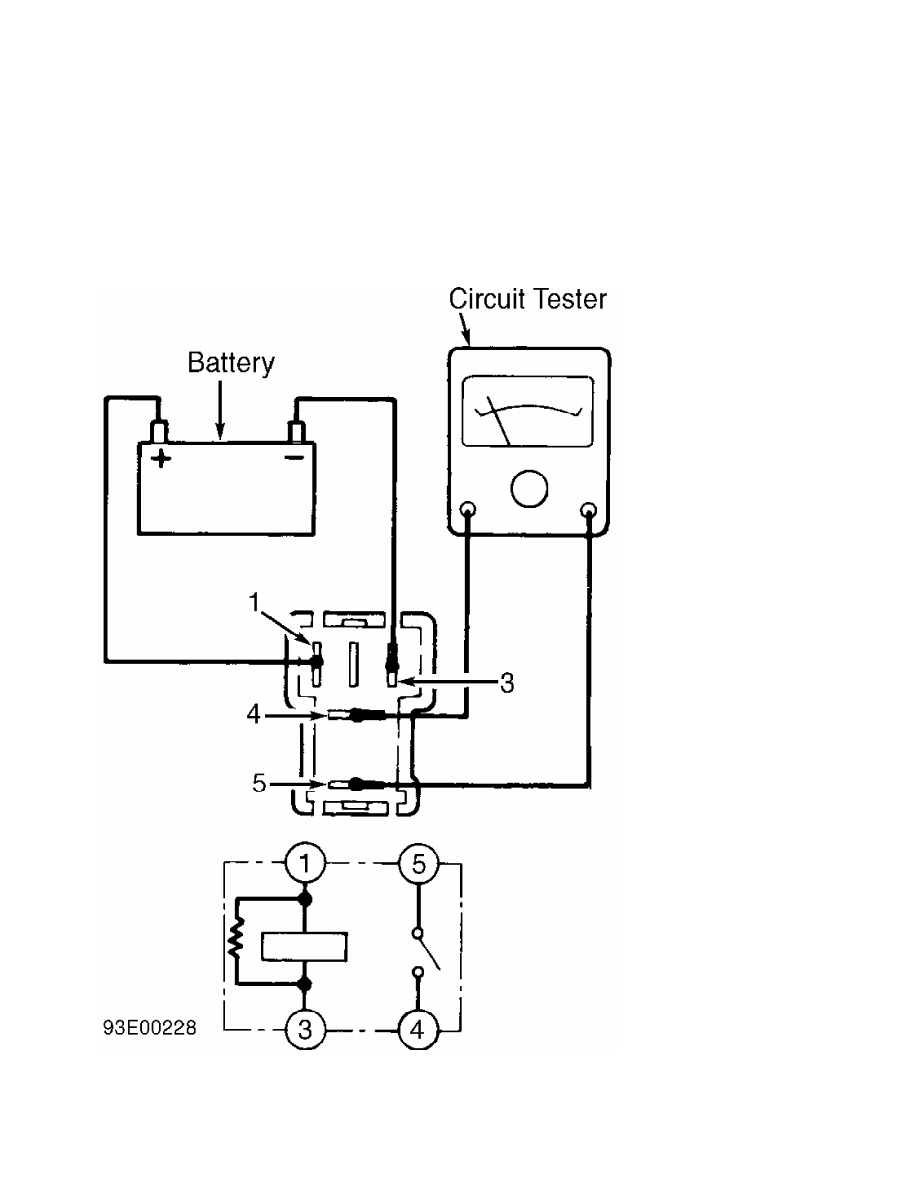

Fig. 8:  Testing Electric Cooling Fan Relay (Diamante, Eclipse,

Galant & Mirage)

Courtesy of Mitsubishi Motor Sales of America.
