Mitsubishi Montero (1991+). Manual - part 279

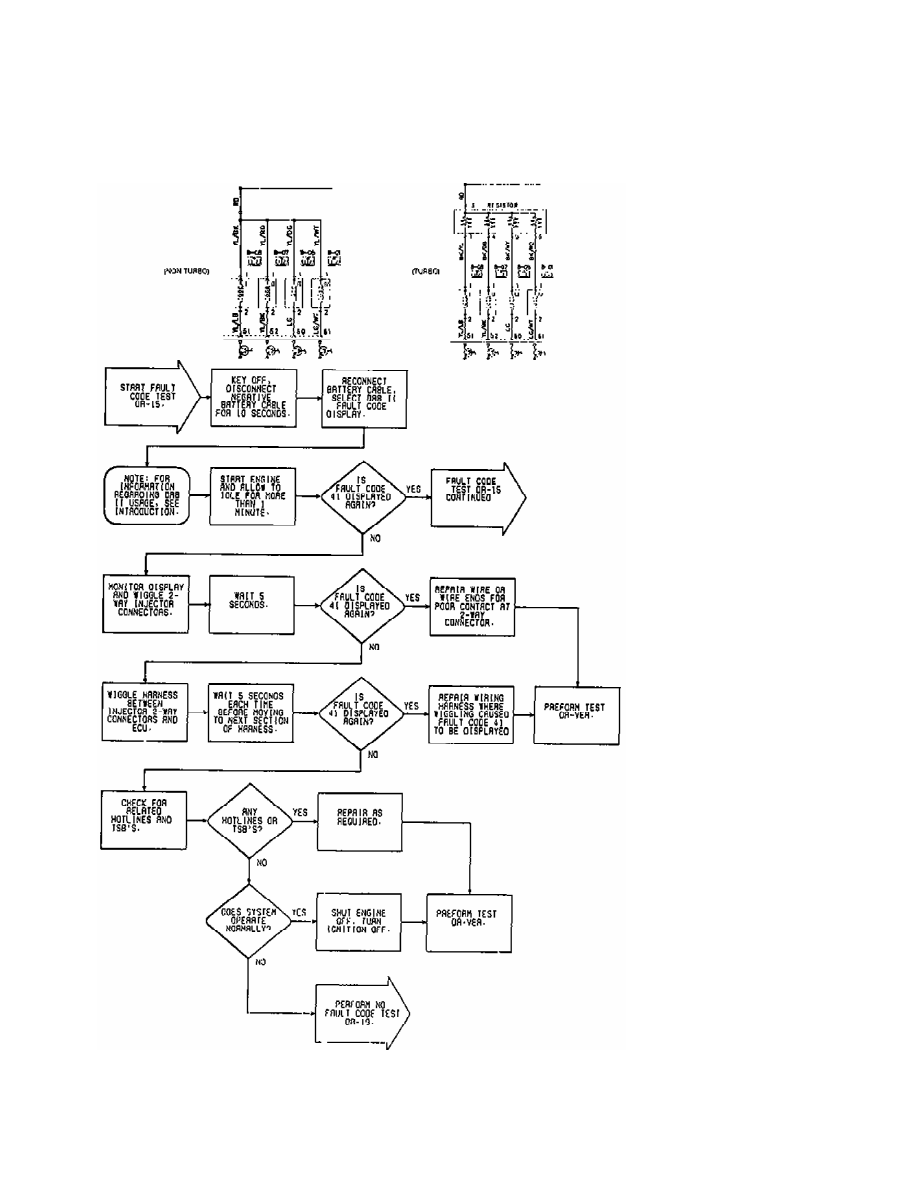

Fig. 277:  DR-15 Flow Chart & Circuit Diagram (2.0L) (1 of 5)

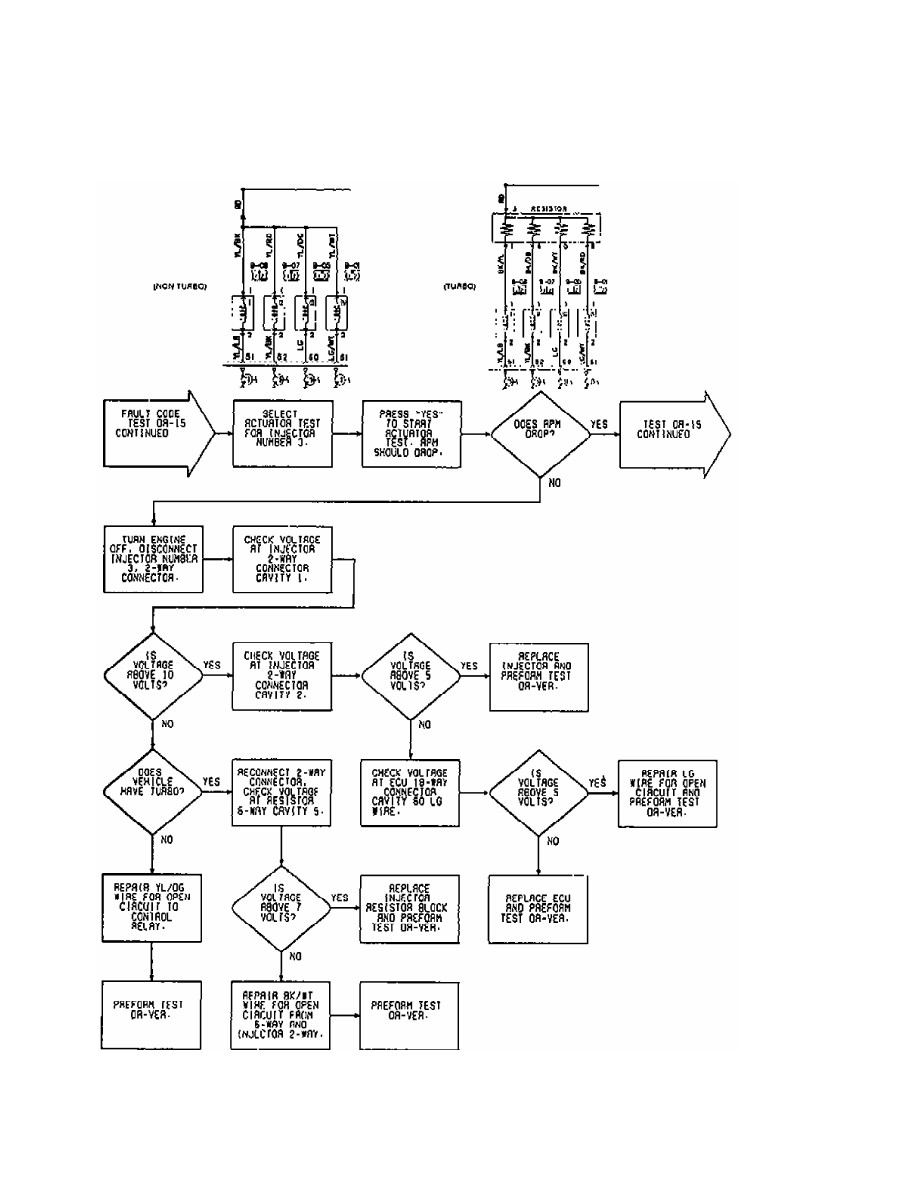

Fig. 278:  DR-15 Flow Chart & Circuit Diagram (2.0L) (2 of 5)

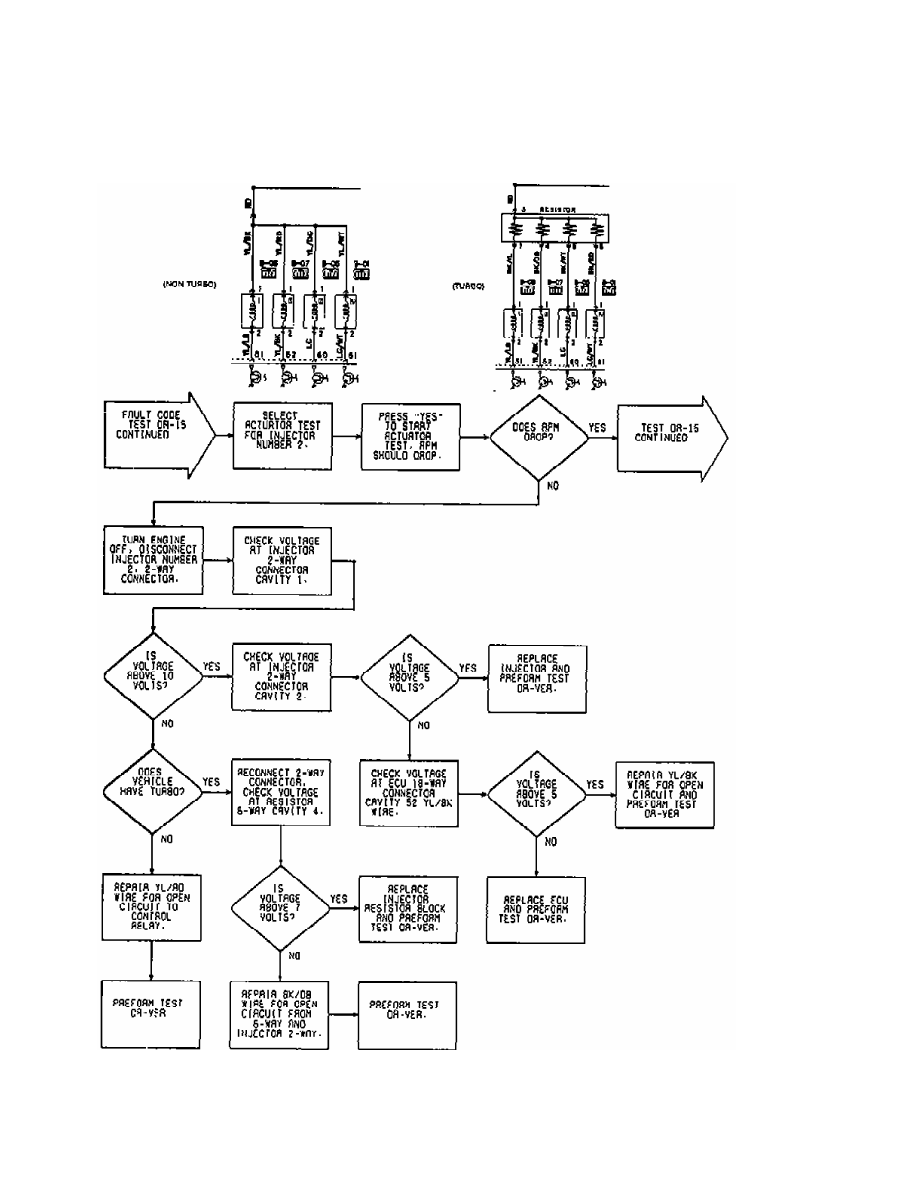

Fig. 279:  DR-15 Flow Chart & Circuit Diagram (2.0L) (3 of 5)

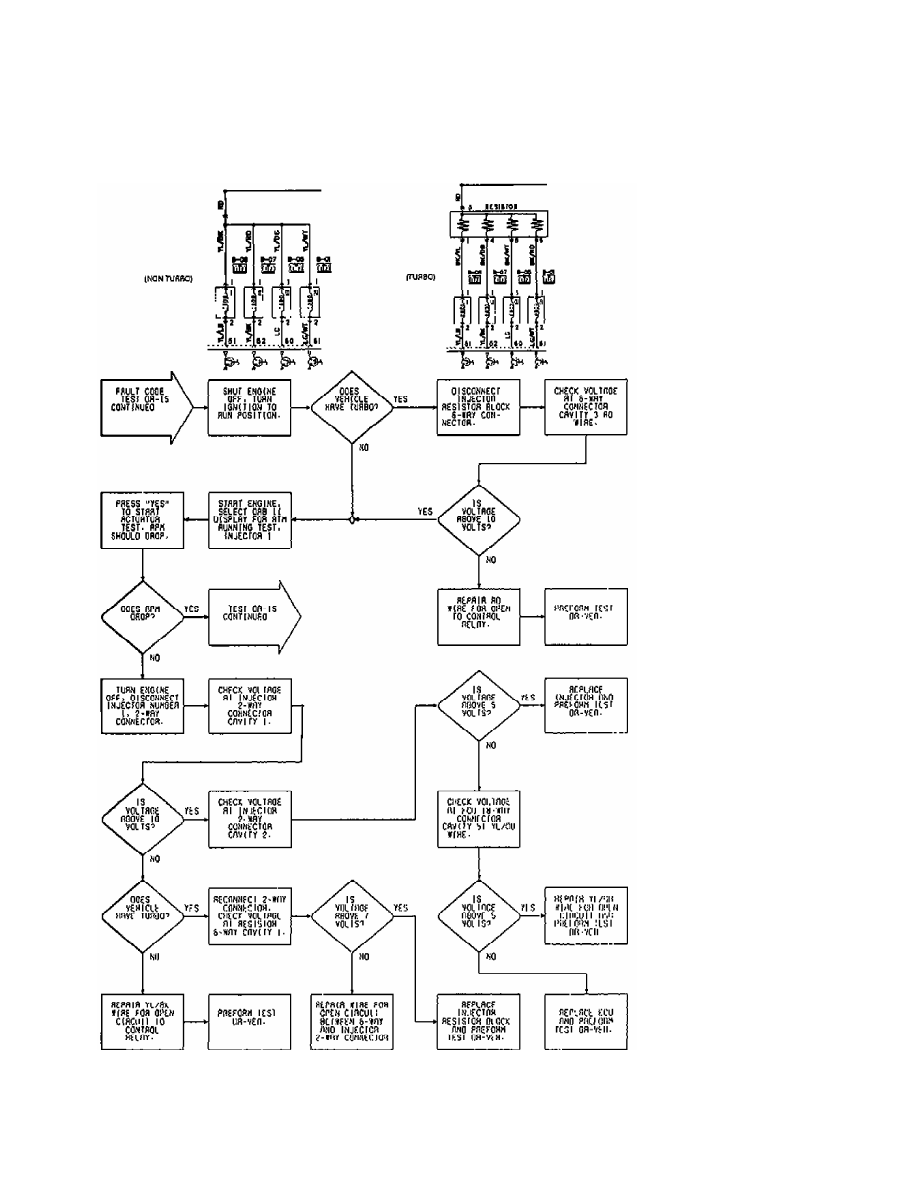

Fig. 280:  DR-15 Flow Chart & Circuit Diagram (2.0L) (4 of 5)
