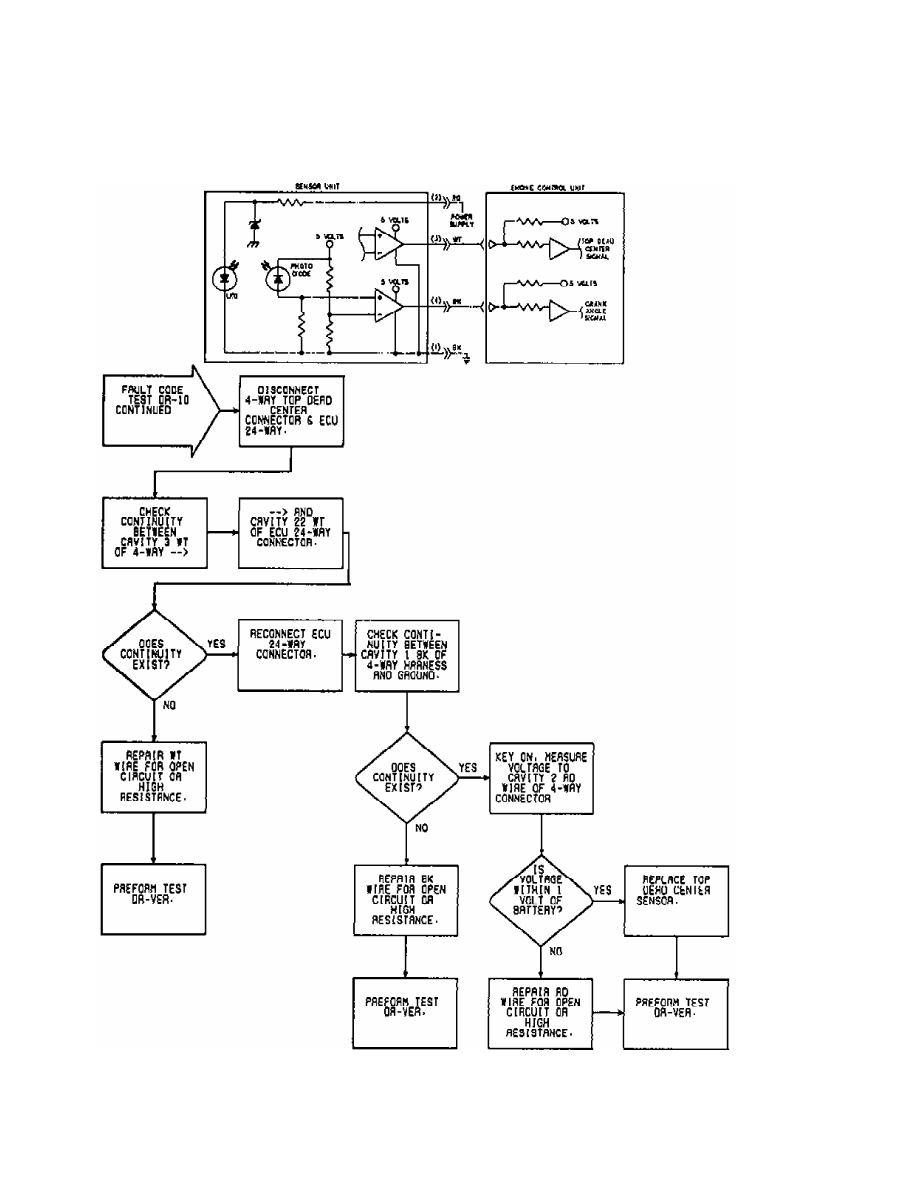

Fig. 269:  DR-10 Flow Chart & Circuit Diagram (2.0L) (2 of 2)

         DR-11: CHECKING VEHICLE SPEED SENSOR - 2.0L

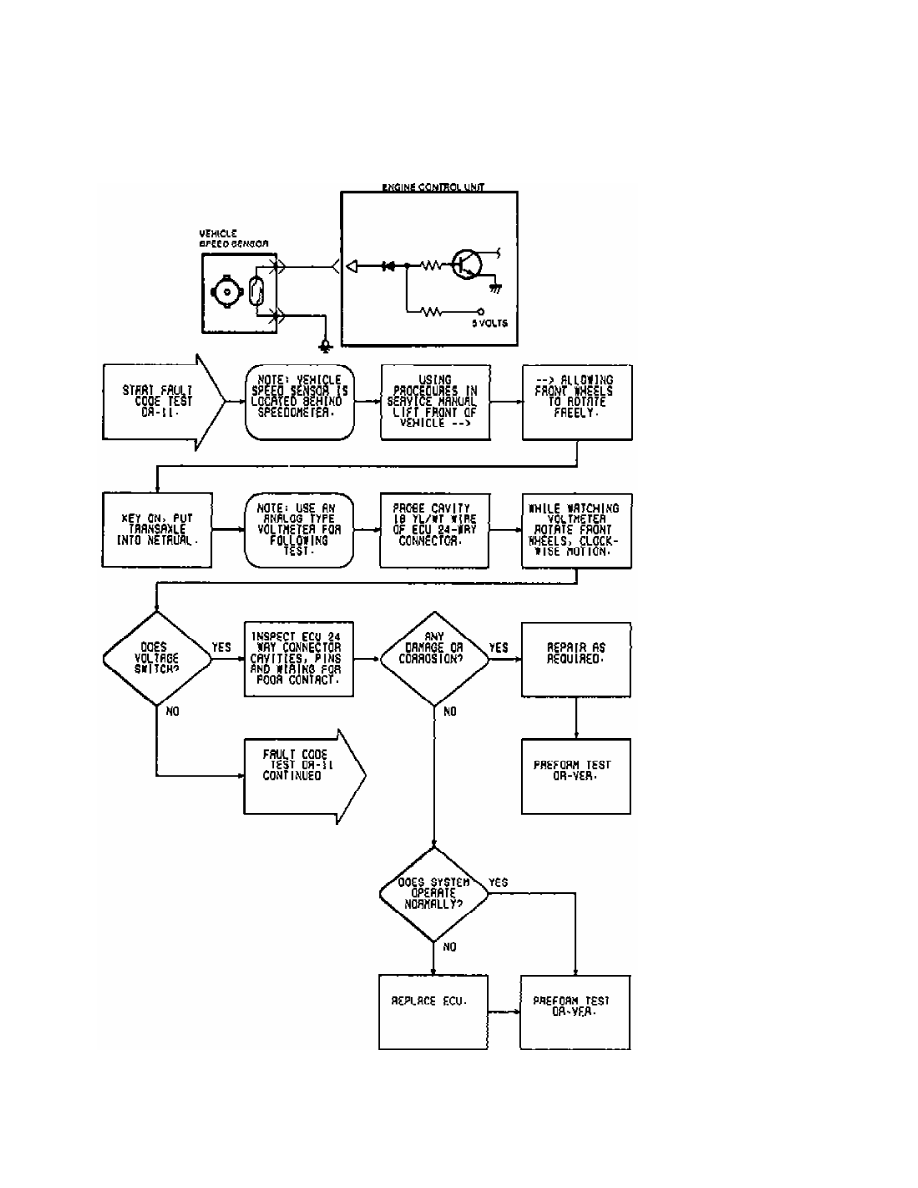

Fig. 270:  DR-11 Flow Chart & Circuit Diagram (2.0L) (1 of 2)

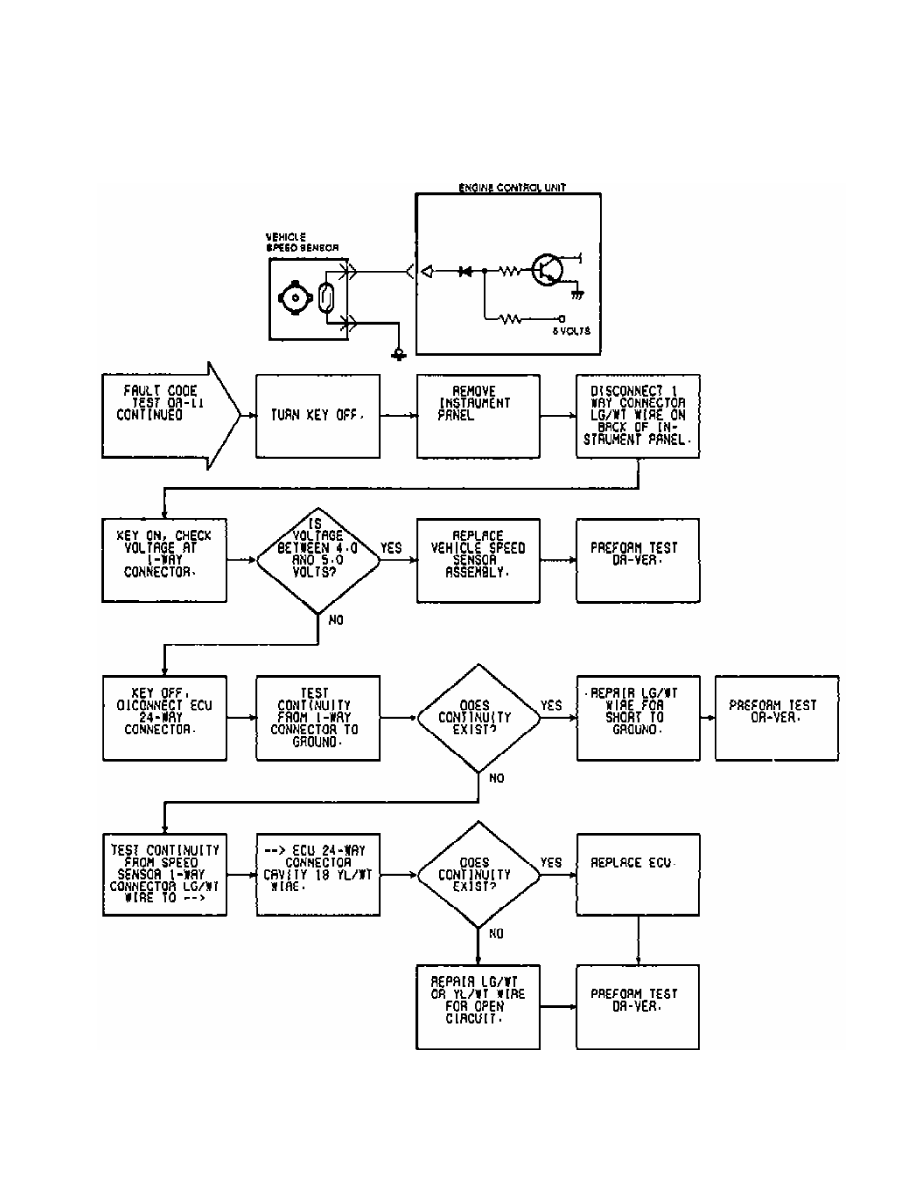

Fig. 271:  DR-11 Flow Chart & Circuit Diagram (2.0L) (2 of 2)

         DR-12: CHECKING BAROMETRIC PRESSURE SENSOR - 2.0L TURBO

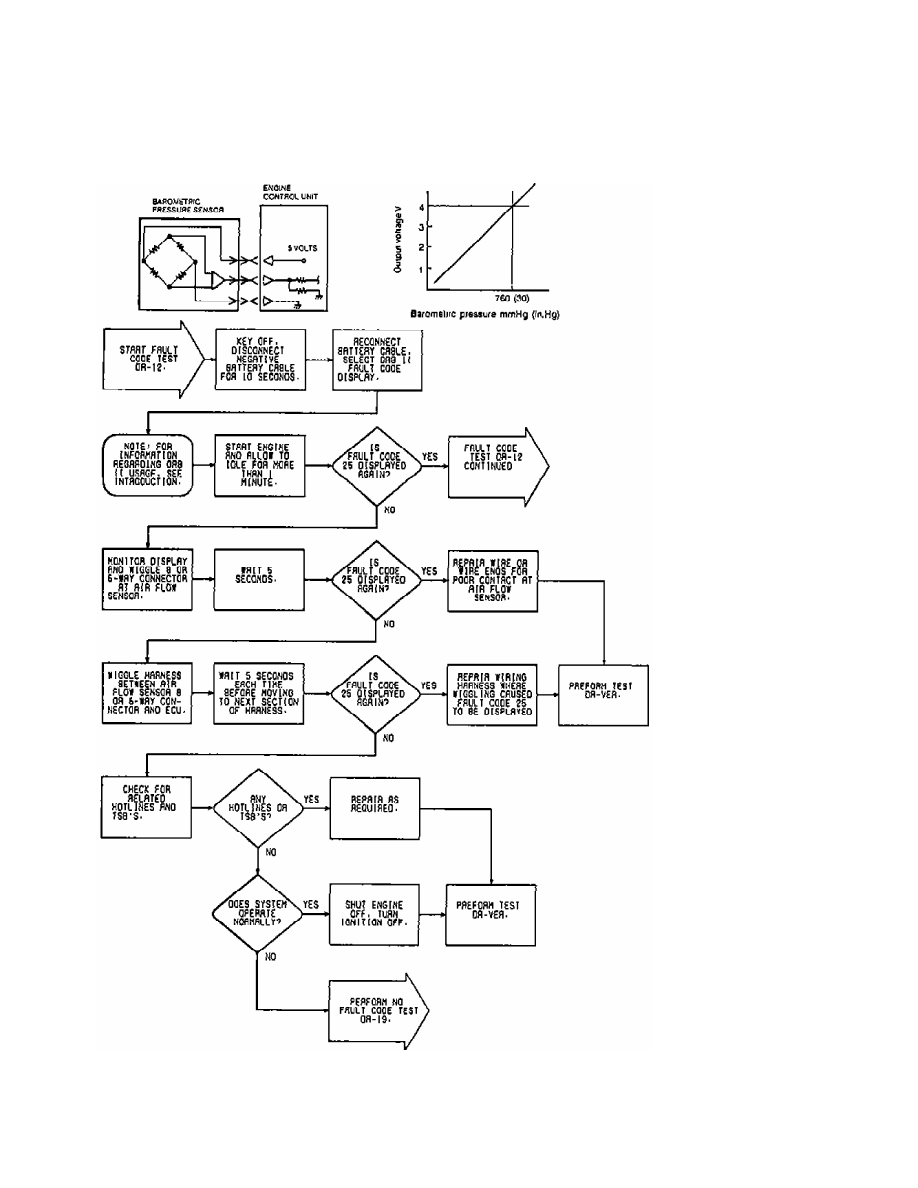

Fig. 272:  DR-12 Flow Chart & Circuit Diagram (2.0L Turbo) (1 of 2)
