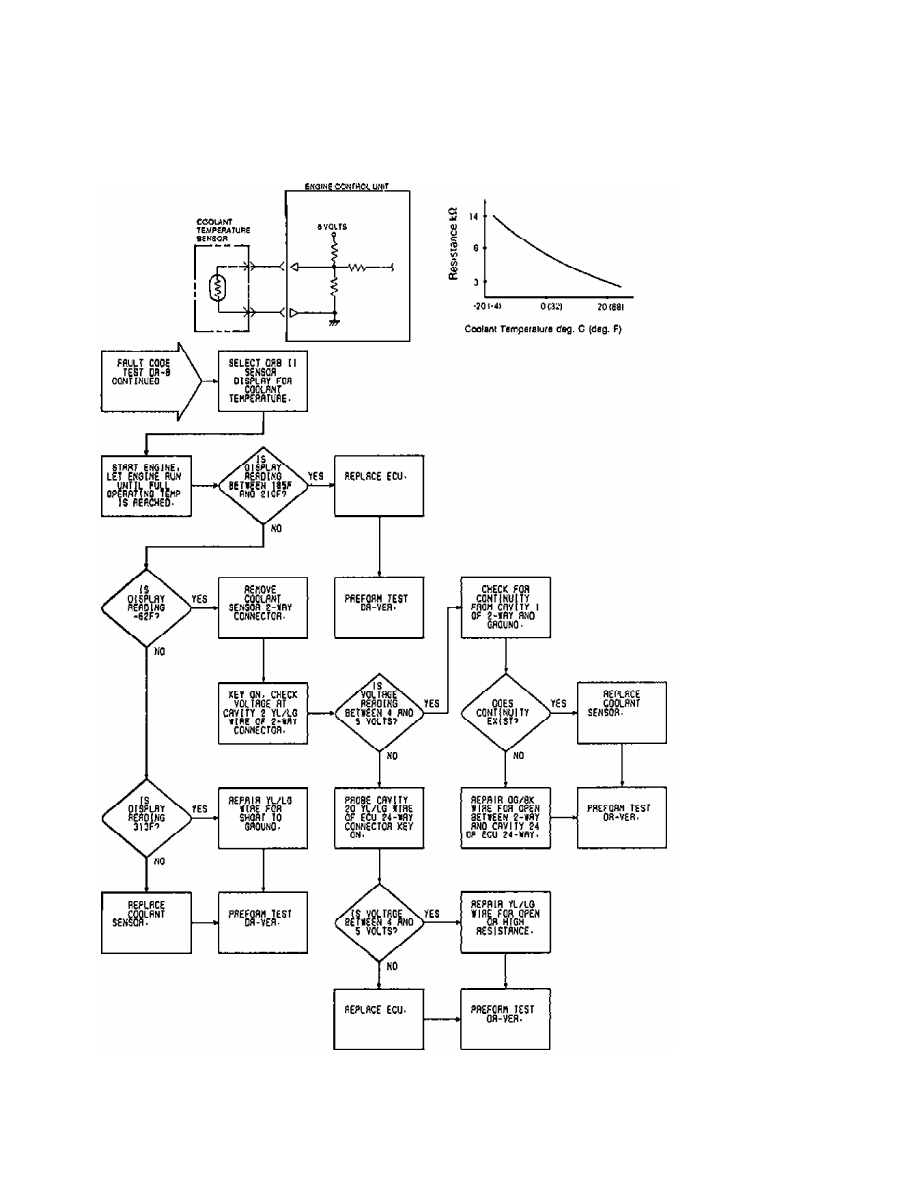

Fig. 265:  DR-8 Flow Chart & Circuit Diagram (2.0L) (2 of 2)

         DR-9: CHECKING CRANK ANGLE SENSOR - 2.0L

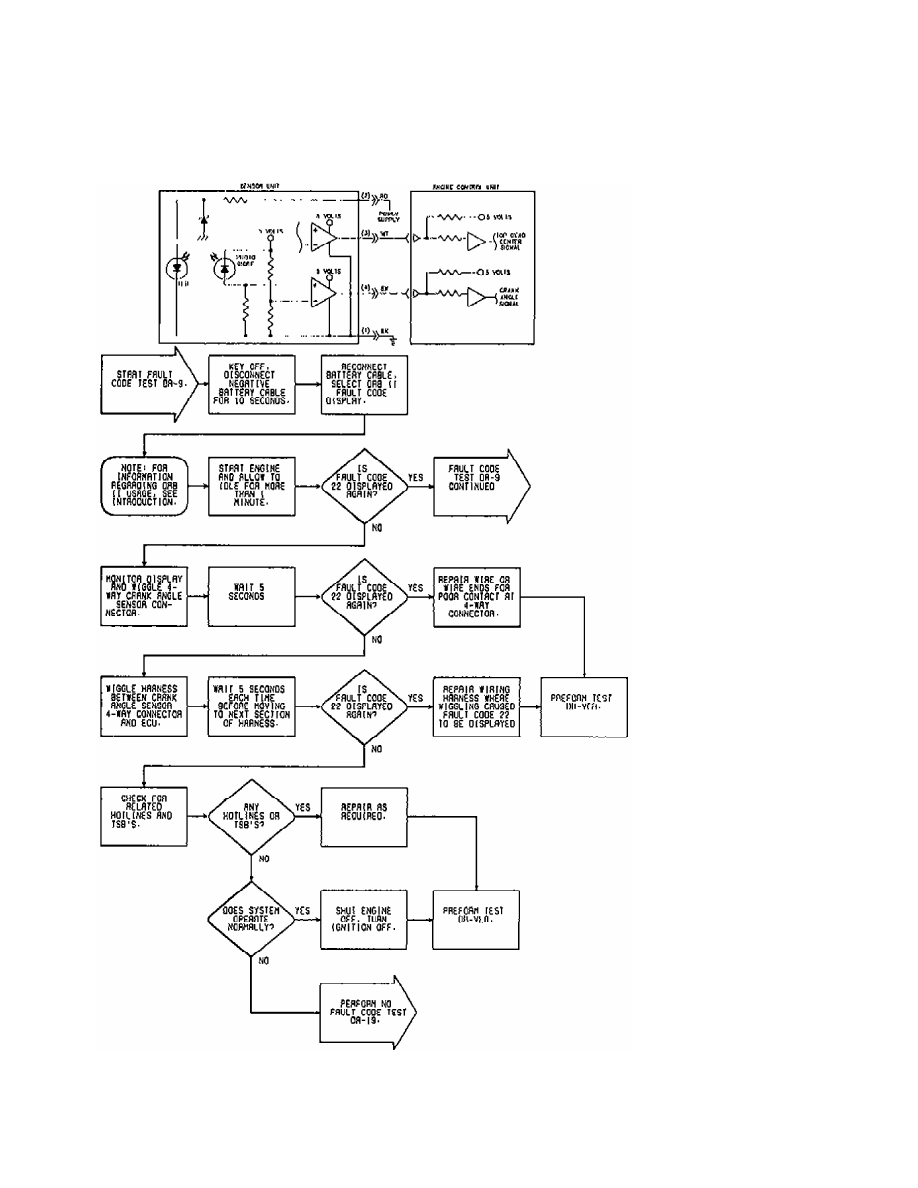

Fig. 266:  DR-9 Flow Chart & Circuit Diagram (2.0L) (1 of 2)

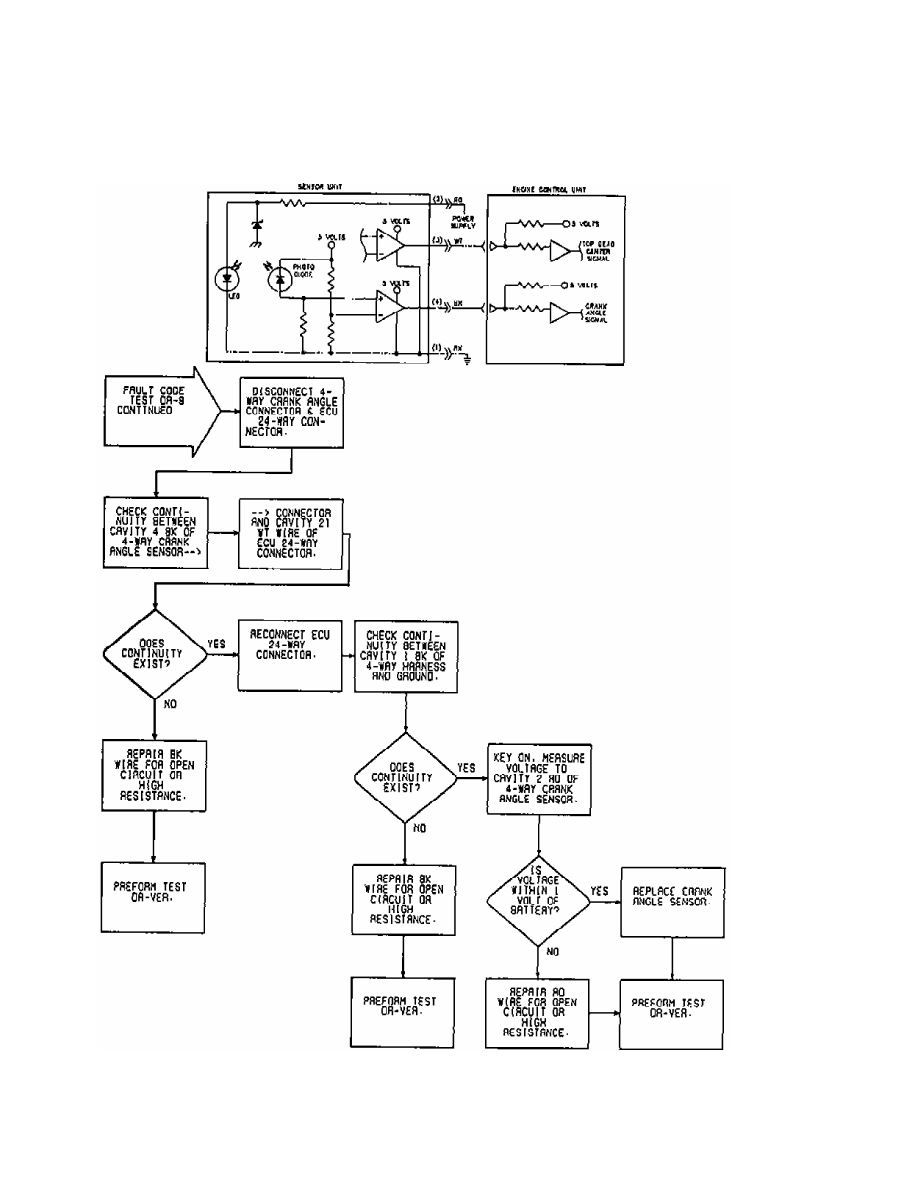

Fig. 267:  DR-9 Flow Chart & Circuit Diagram (2.0L) (2 of 2)

         DR-10: CHECKING TDC SENSOR - 2.0L

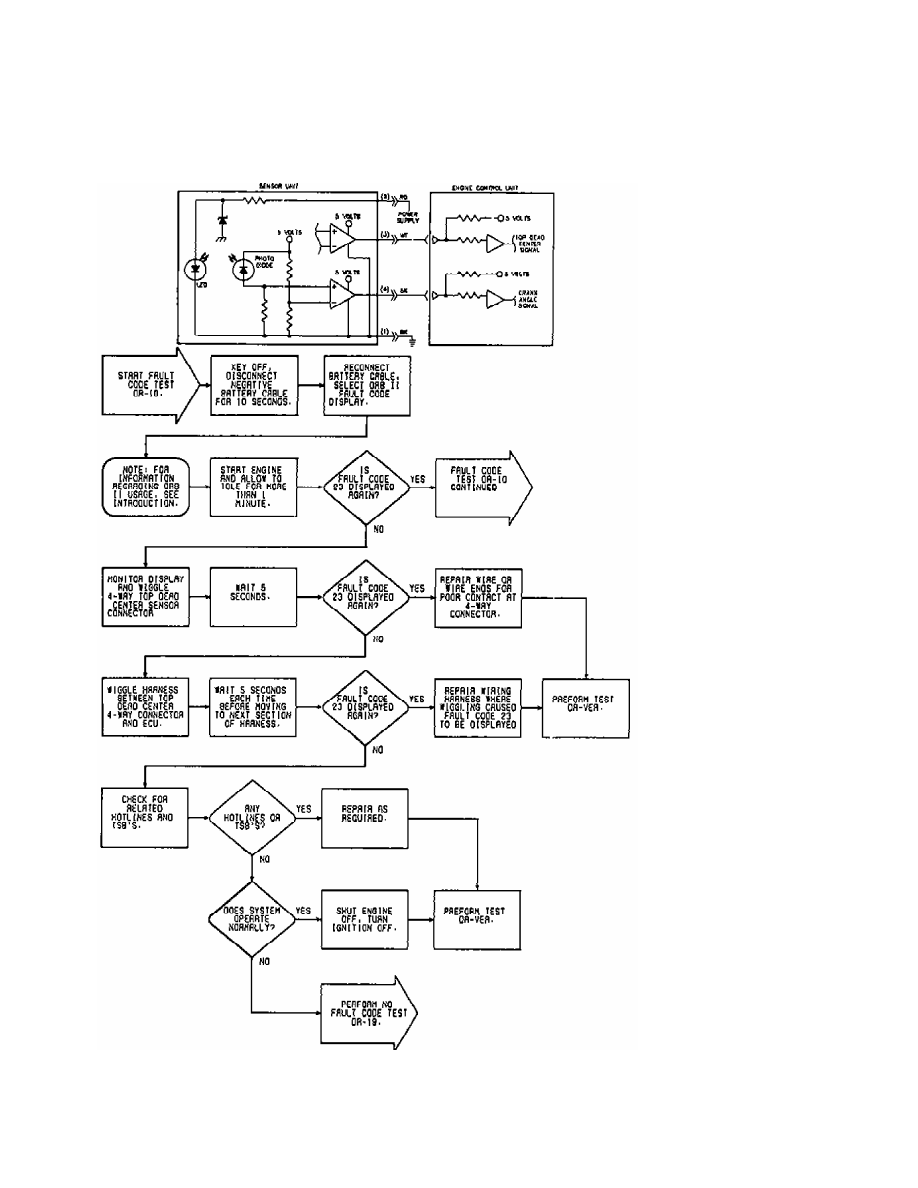

Fig. 268:  DR-10 Flow Chart & Circuit Diagram (2.0L) (1 of 2)
