Mitsubishi Montero (1991+). Manual - part 274

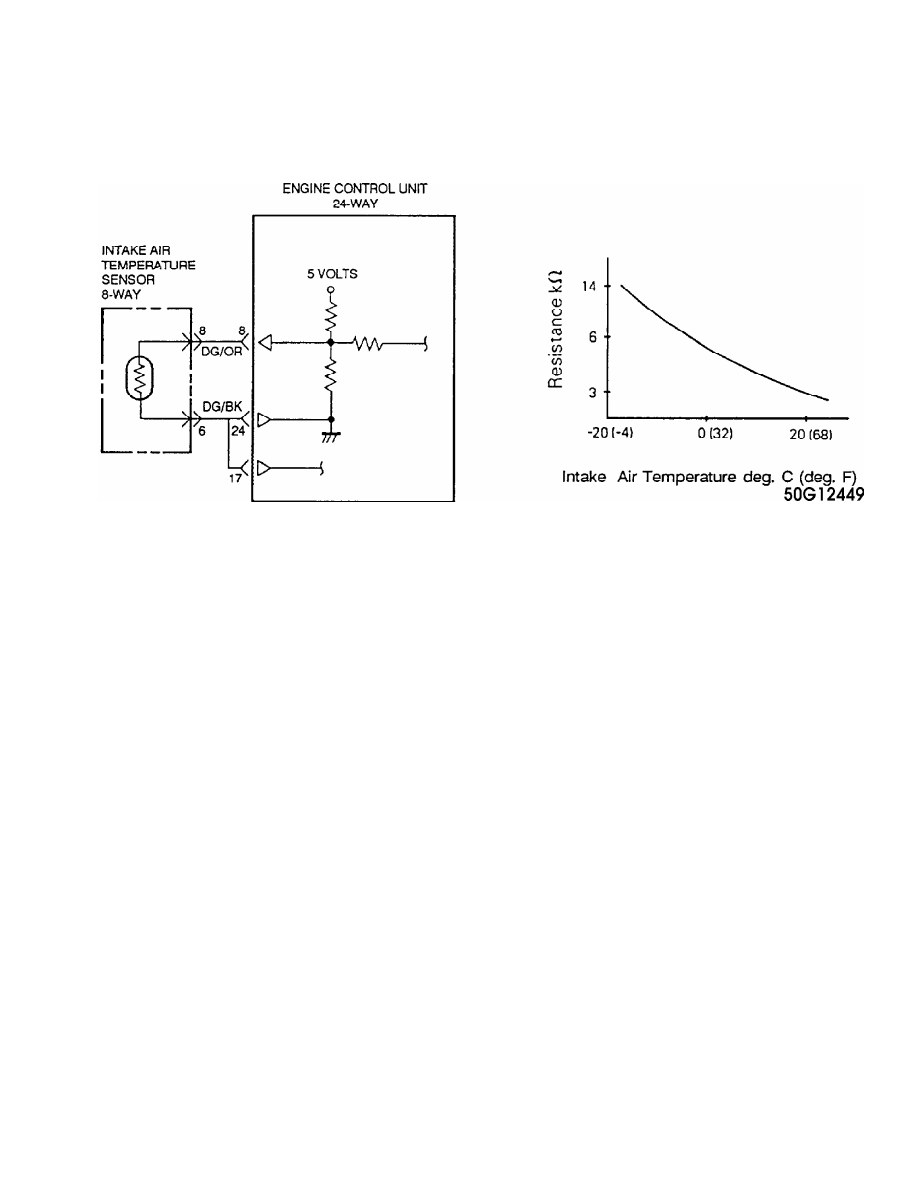

Fig. 257:  DR-5 Circuit Diagram (2.0L Turbo)

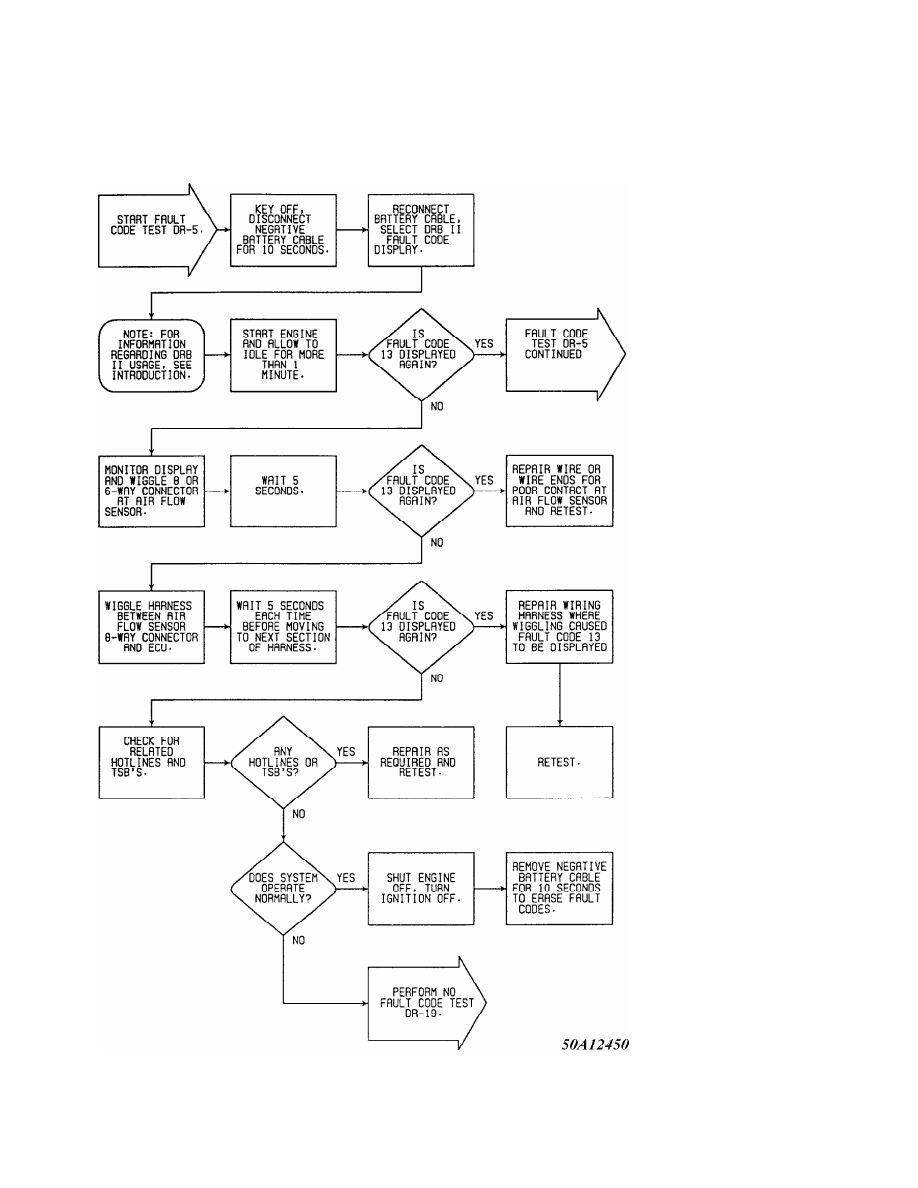

Fig. 258:  DR-5 Flow Chart (1 of 2) (2.0L Turbo)

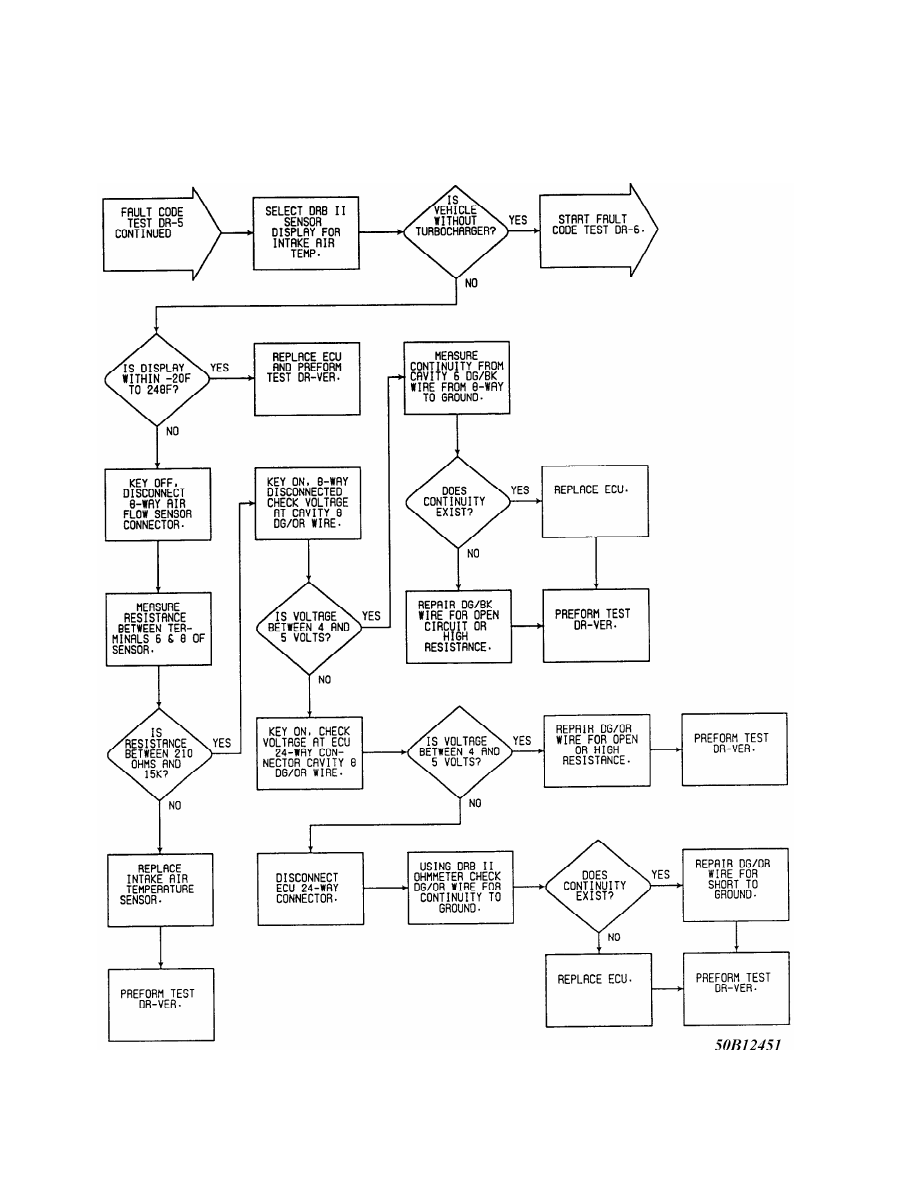

Fig. 259:  DR-5 Flow Chart (2 of 2) (2.0L Turbo)

         DR-6: CHECKING INTAKE AIR TEMP SENSOR - 2.0L NON-TURBO

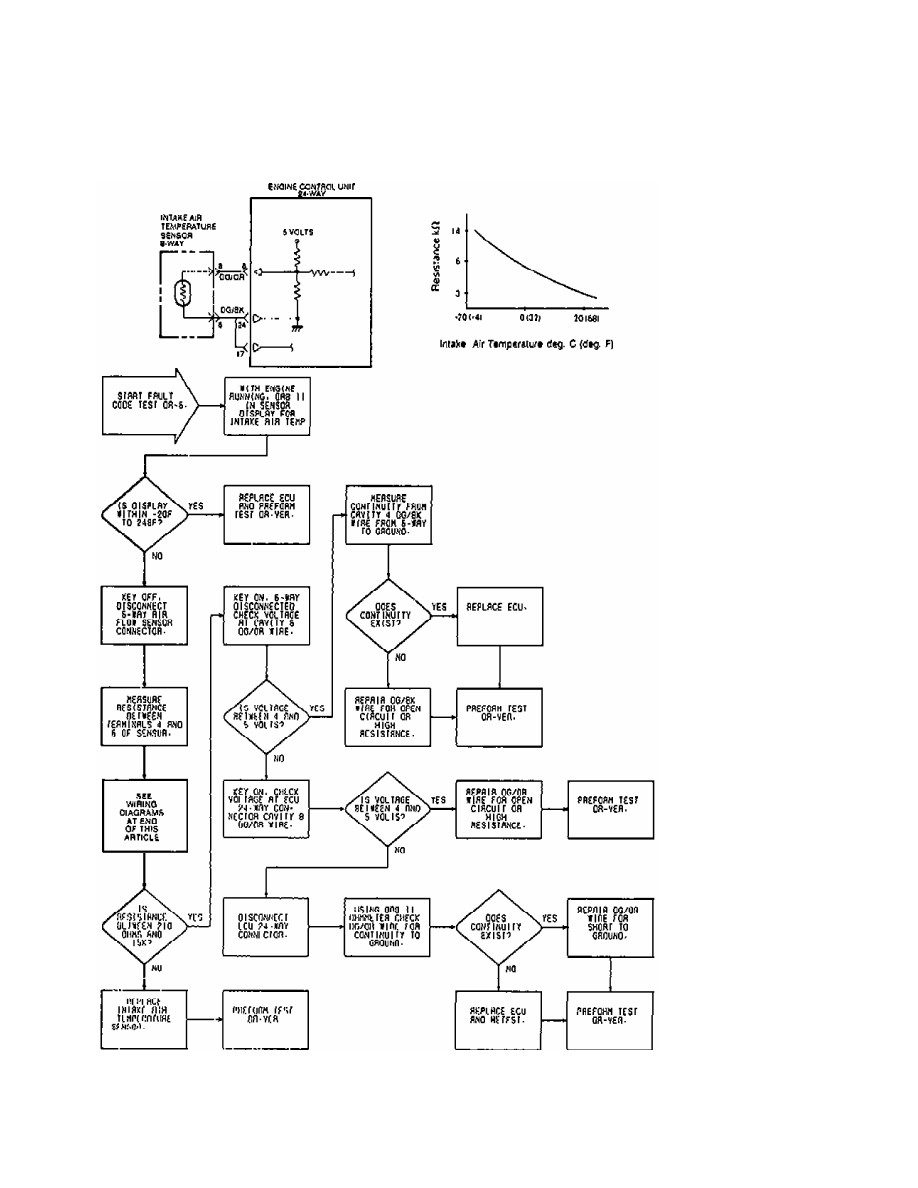

Fig. 260:  DR-6 Flow Chart & Circuit Diagram (2.0L Non-Turbo)

         DR-7: CHECKING THROTTLE POSITION SENSOR (TPS) - 2.0L
