Mitsubishi Montero (1991+). Manual - part 275

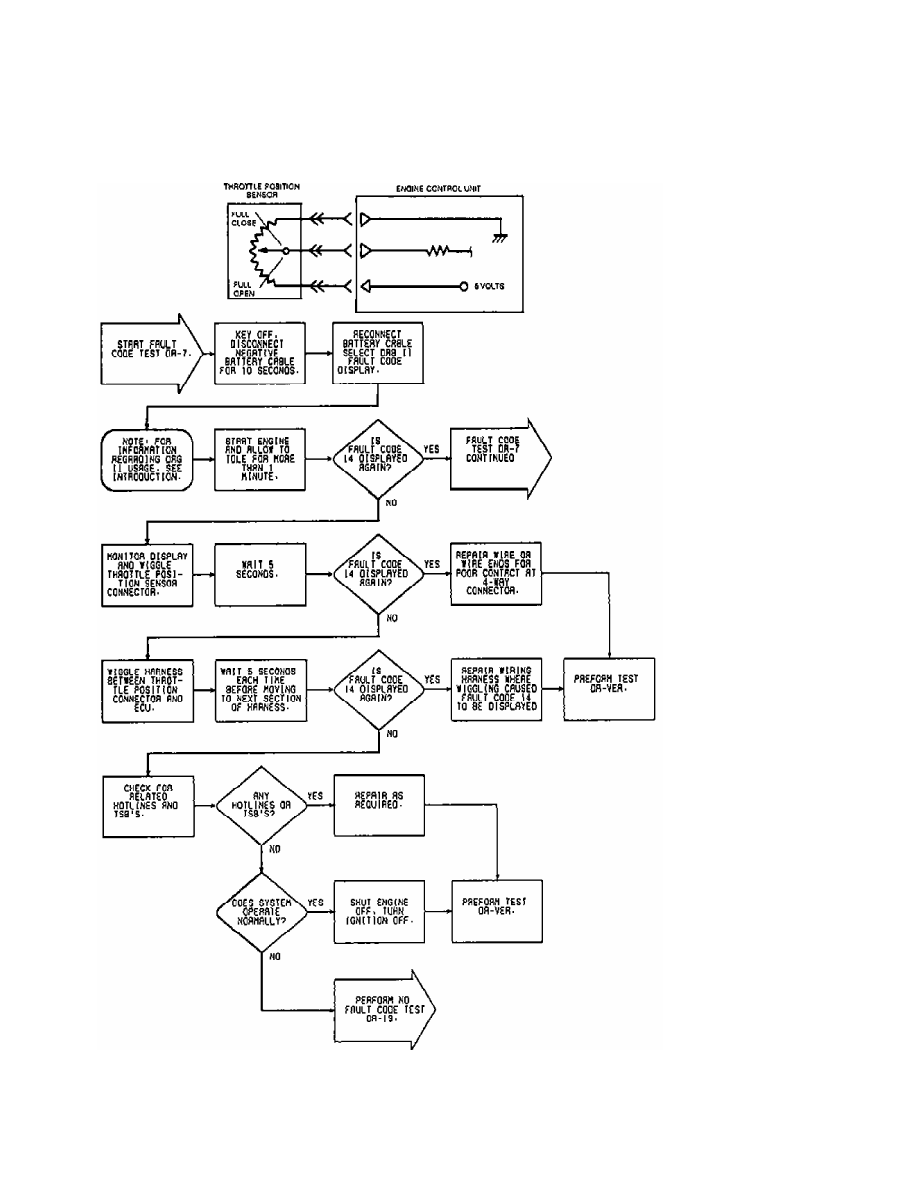

Fig. 261:  DR-7 Flow Chart & Circuit Diagram (2.0L) (1 of 3)

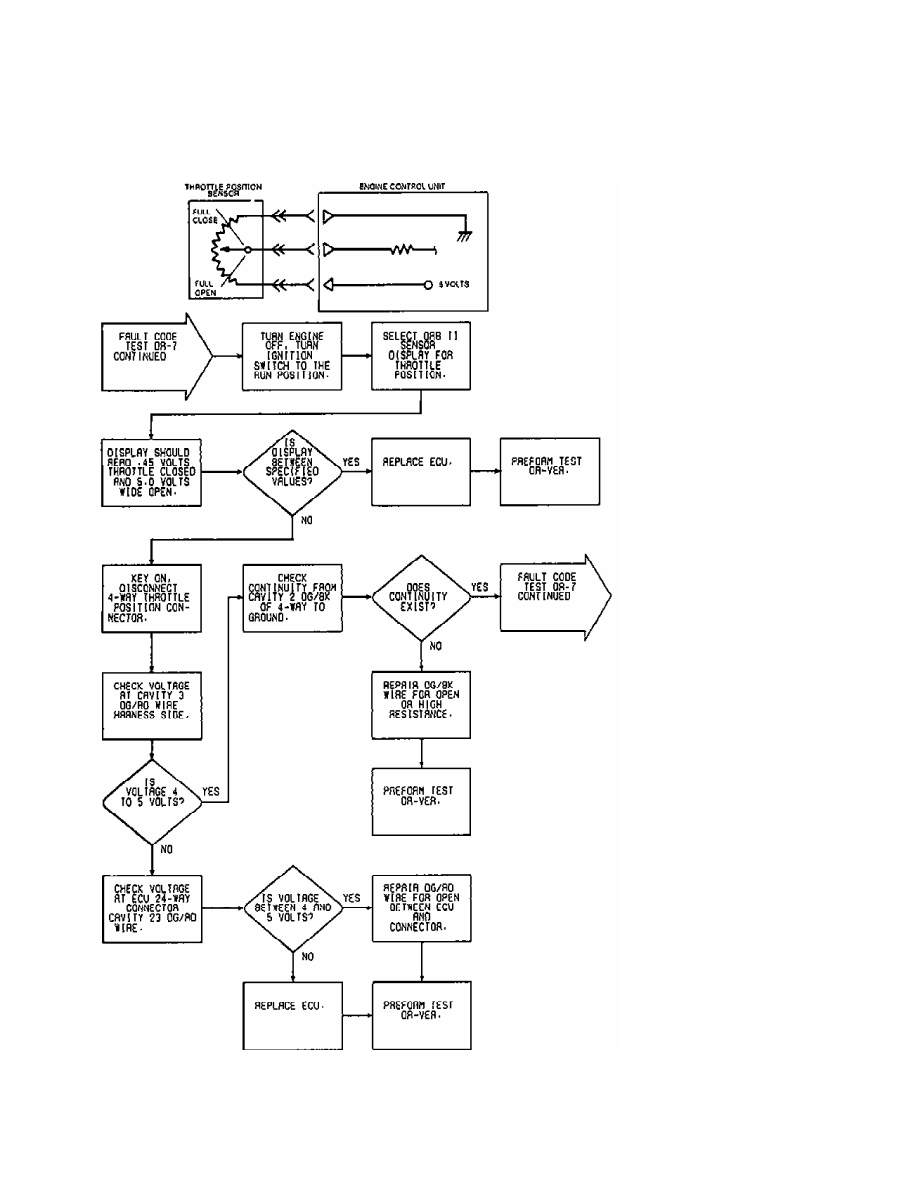

Fig. 262:  DR-7 Flow Chart & Circuit Diagram (2.0L) (2 of 3)

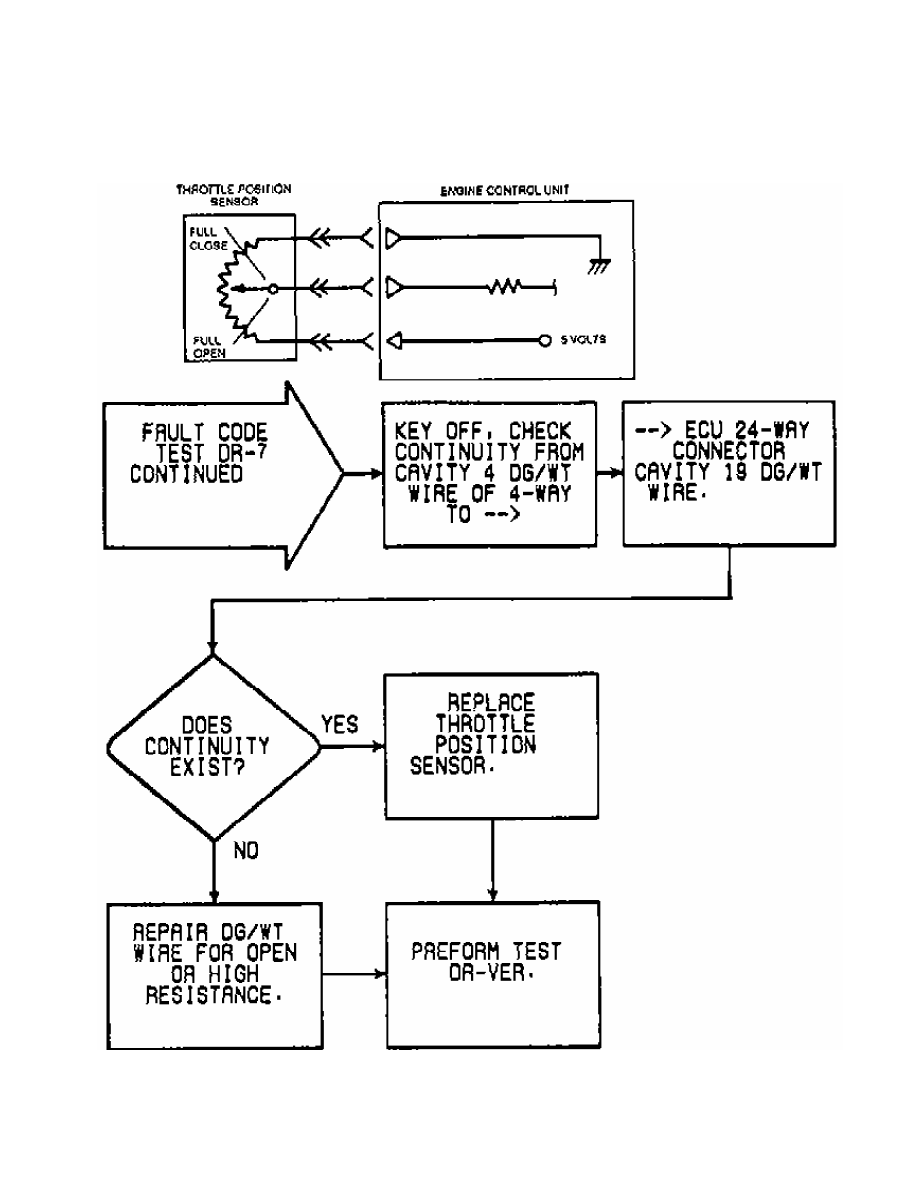

Fig. 263:  DR-7 Flow Chart & Circuit Diagram (2.0L) (3 of 3)

         DR-8: CHECKING COOLANT TEMPERATURE SENSOR (CTS) - 2.0L

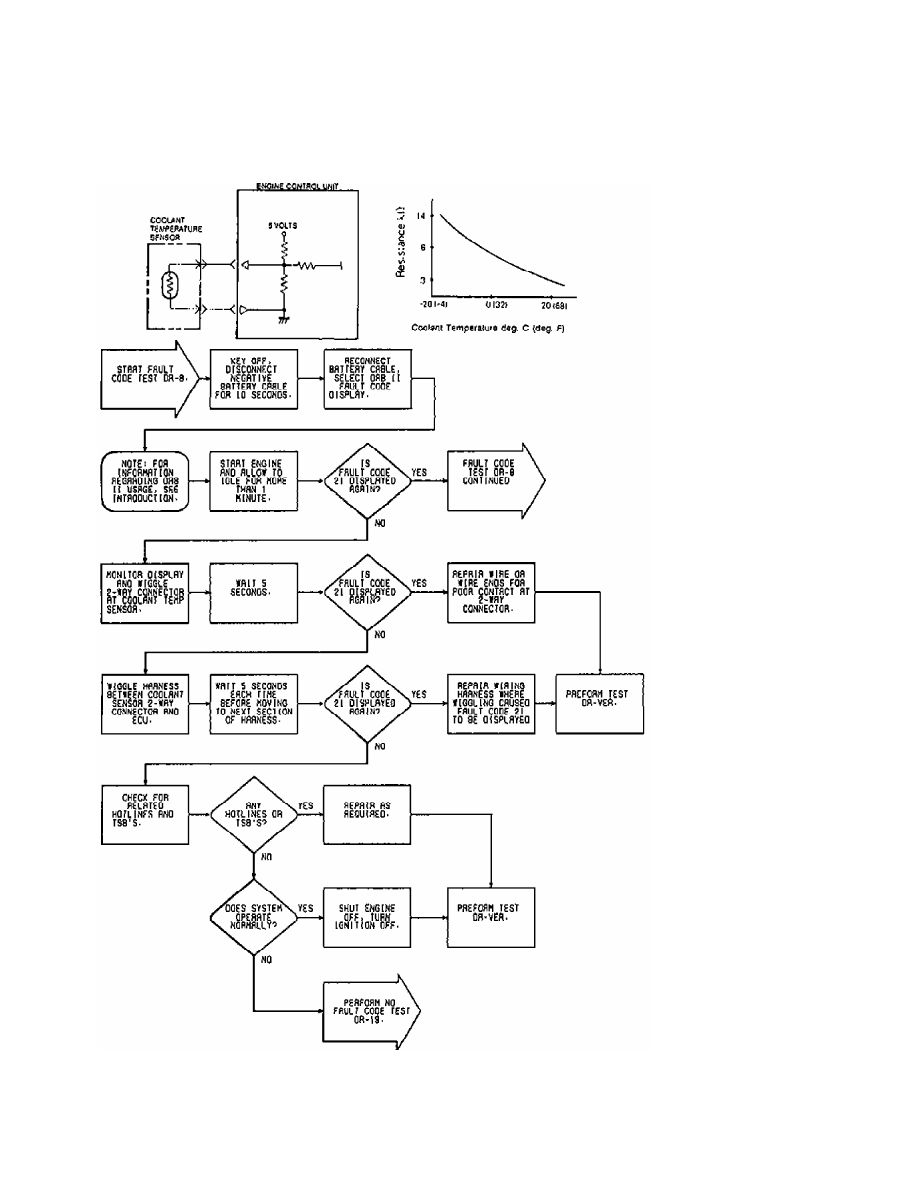

Fig. 264:  DR-8 Flow Chart & Circuit Diagram (2.0L) (1 of 2)
