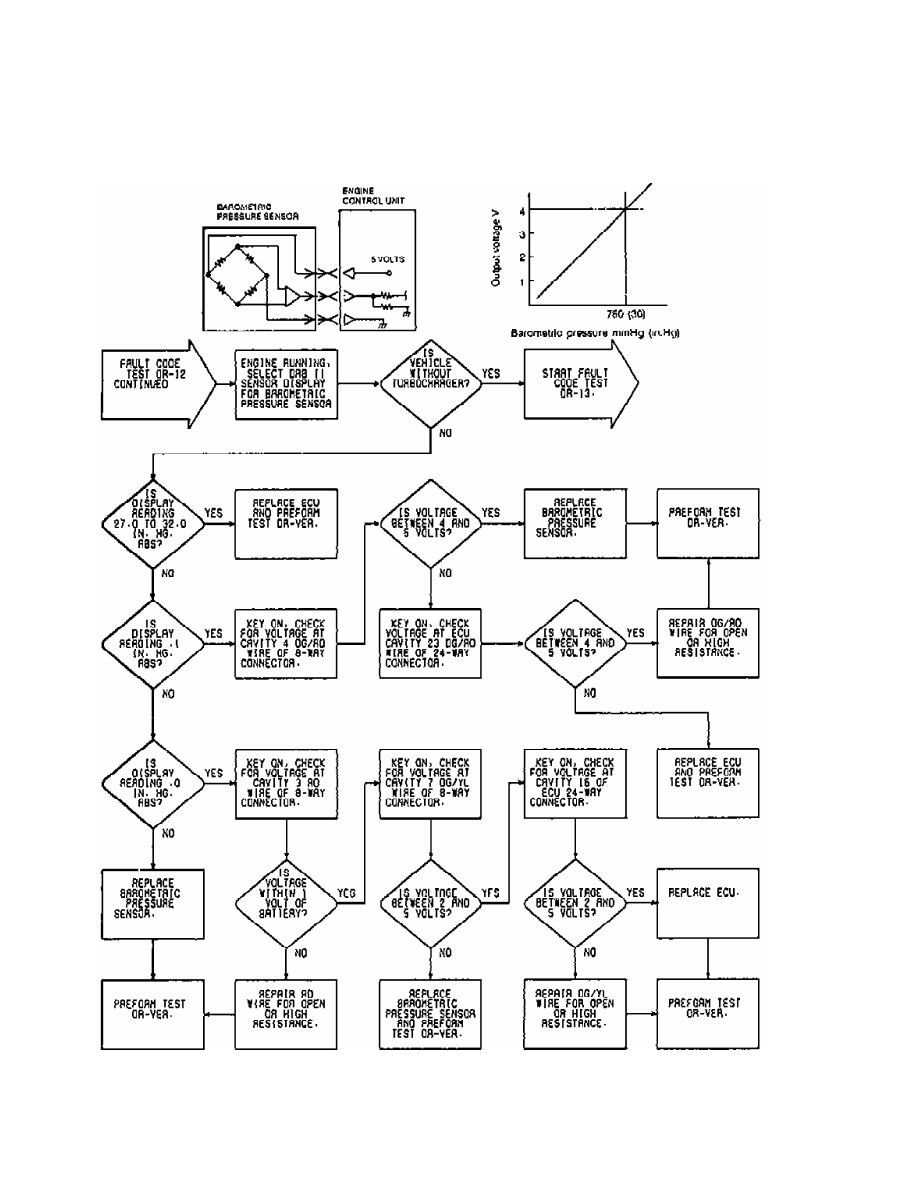

Fig. 273:  DR-12 Flow Chart & Circuit Diagram (2.0L Turbo) (2 of 2)

         DR-13: CHECKING BAROMETRIC PRESSURE SENSOR - 2.0L NON-TURBO

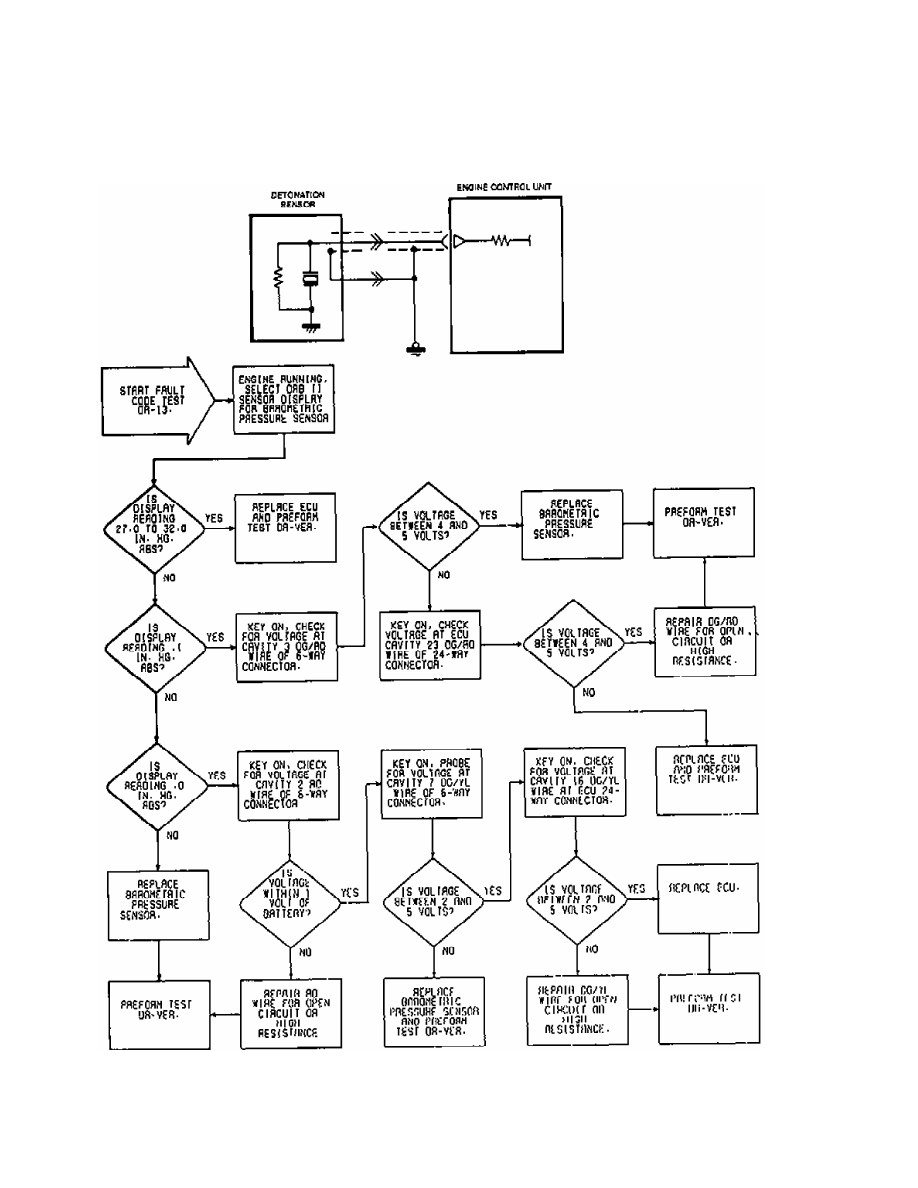

Fig. 274:  DR-13 Flow Chart & Circuit Diagram (2.0L)

         DR-14: CHECKING DETONATION SENSOR - 2.0L

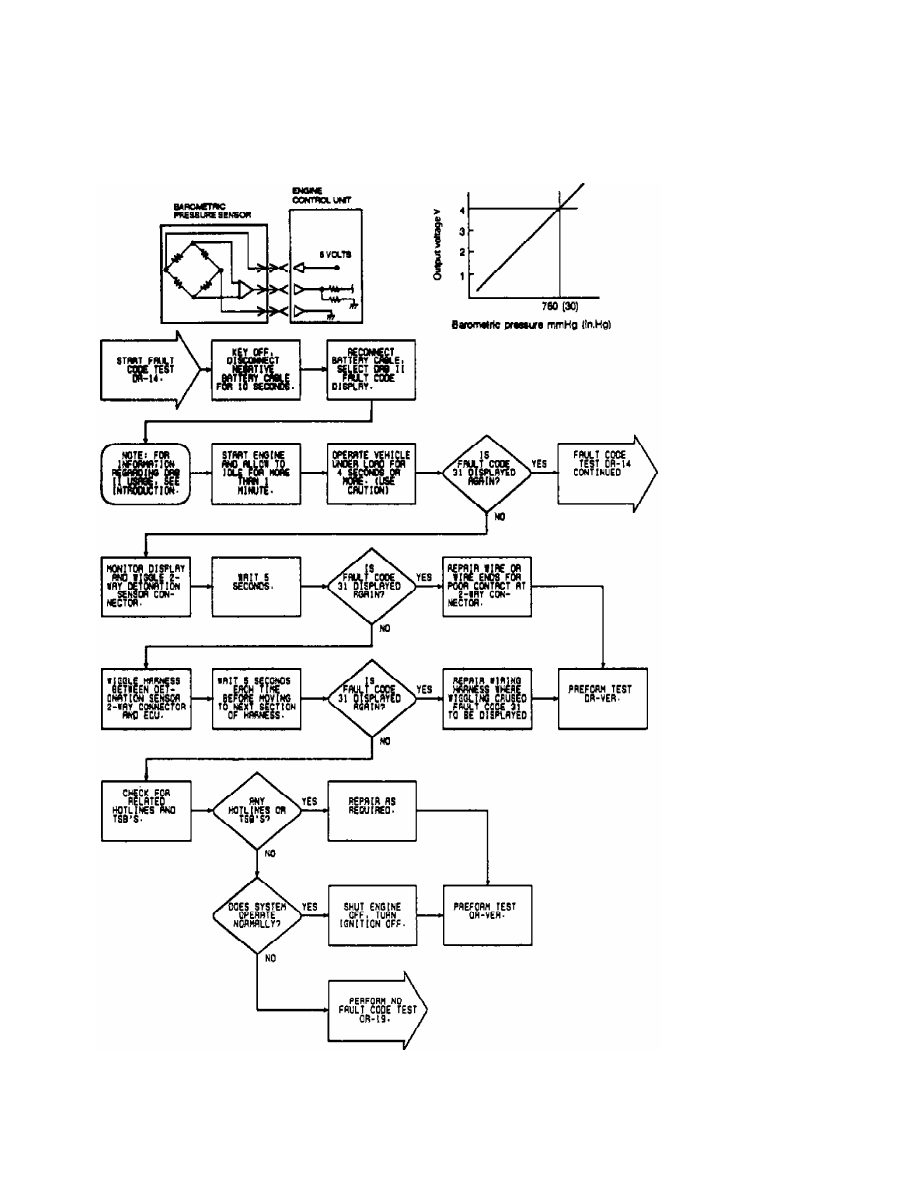

Fig. 275:  DR-14 Flow Chart & Circuit Diagram (2.0L) (1 of 2)

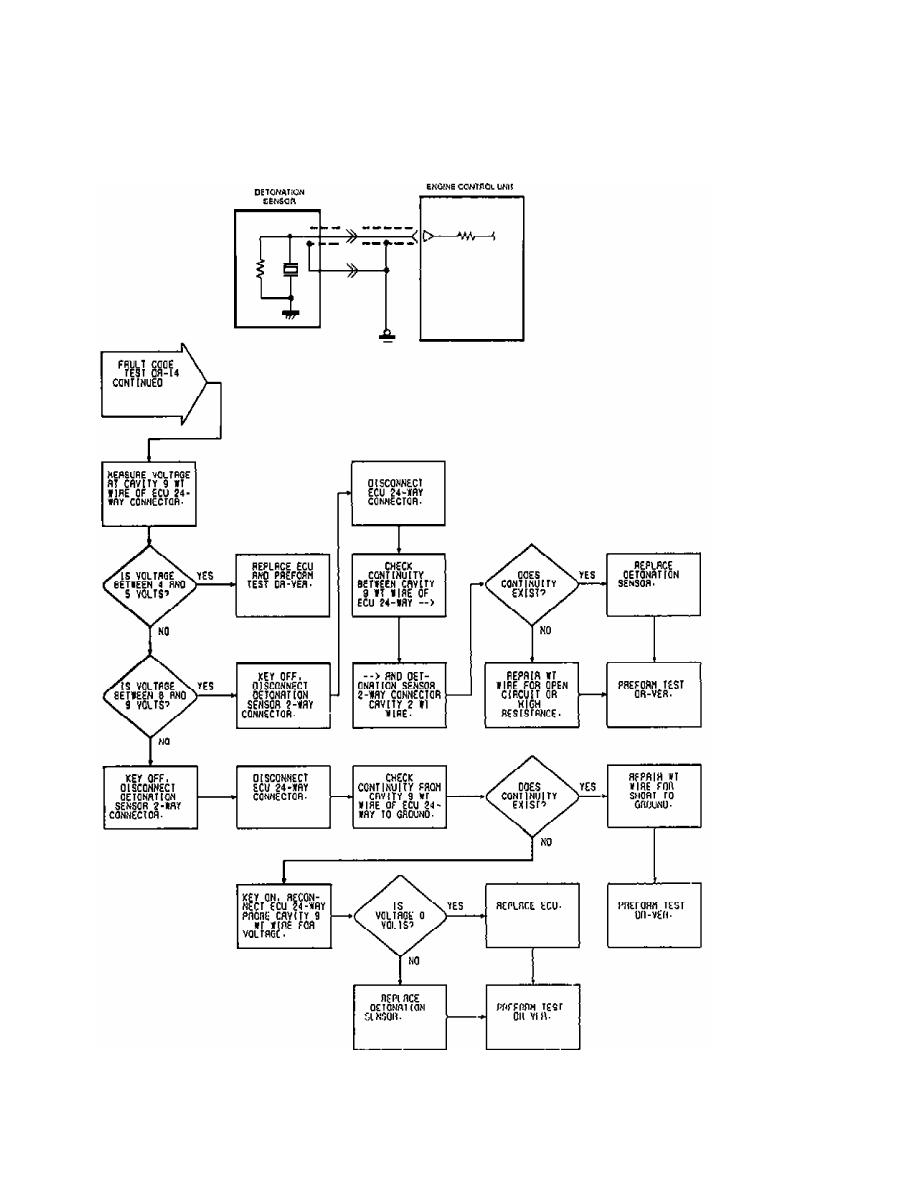

Fig. 276:  DR-14 Flow Chart & Circuit Diagram (2.0L) (2 of 2)

         DR-15: CHECKING INJECTOR CIRCUIT - 2.0L
