13D-1

GROUP 13D

TRACTION

CONTROL SYSTEM

(TCL)

CONTENTS

GENERAL DESCRIPTION. . . . . . . . .

13D-2

TRACTION CONTROL SYSTEM (TCL)
DIAGNOSIS . . . . . . . . . . . . . . . . . . . .

13D-3

INTRODUCTION TO TRACTION CONTROL

SYSTEM (TCL) DIAGNOSIS  . . . . . . . . . . .

13D-3

TCL DIAGNOSTIC TROUBLESHOOTING
STRATEGY. . . . . . . . . . . . . . . . . . . . . . . . .

13D-3

DIAGNOSIS FUNCTION. . . . . . . . . . . . . . .

13D-4

DIAGNOSTIC TROUBLE CODE CHART . .

13D-8

DIAGNOSTIC TROUBLE CODE
PROCEDURES. . . . . . . . . . . . . . . . . . . . . .

13D-10

SYMPTOM CHART. . . . . . . . . . . . . . . . . . .

13D-26

SYMPTOM PROCEDURES . . . . . . . . . . . .

13D-27

DATA LIST REFERENCE TABLE  . . . . . . .

13D-41

ACTUATOR TEST REFERENCE TABLE. .

13D-41

CHECK AT ABS/TCL-ECU TERMINAL
VOLTAGE . . . . . . . . . . . . . . . . . . . . . . . . . .

13D-42

SPECIAL TOOLS . . . . . . . . . . . . . . . .

13D-44

ON-VEHICLE SERVICE . . . . . . . . . . .

13D-45

TCL INDICATOR LIGHT CHECK  . . . . . . . .

13D-45

TCL OPERATION CHECK  . . . . . . . . . . . . .

13D-46

TCL SWITCH CHECK . . . . . . . . . . . . . . . . .

13D-46

WHEEL SPEED SENSOR CHECK . . . . . . .

13D-46

TCL SWITCH  . . . . . . . . . . . . . . . . . . .

13D-47

REMOVAL AND INSTALLATION  . . . . . . . .

13D-47

WHEEL SPEED SENSOR  . . . . . . . . .

13D-47

REMOVAL AND INSTALLATION  . . . . . . . .

13D-47

ABS/TCL-ECU  . . . . . . . . . . . . . . . . . .

13D-47

REMOVAL AND INSTALLATION  . . . . . . . .

13D-47

GENERAL DESCRIPTION

TSB Revision

TRACTION CONTROL SYSTEM (TCL)

13D-2

GENERAL DESCRIPTION

M1136000100029

The traction control system (TCL) controls engine
output to prevent the wheelspin of the drive wheels
(front wheels) for improved stability.

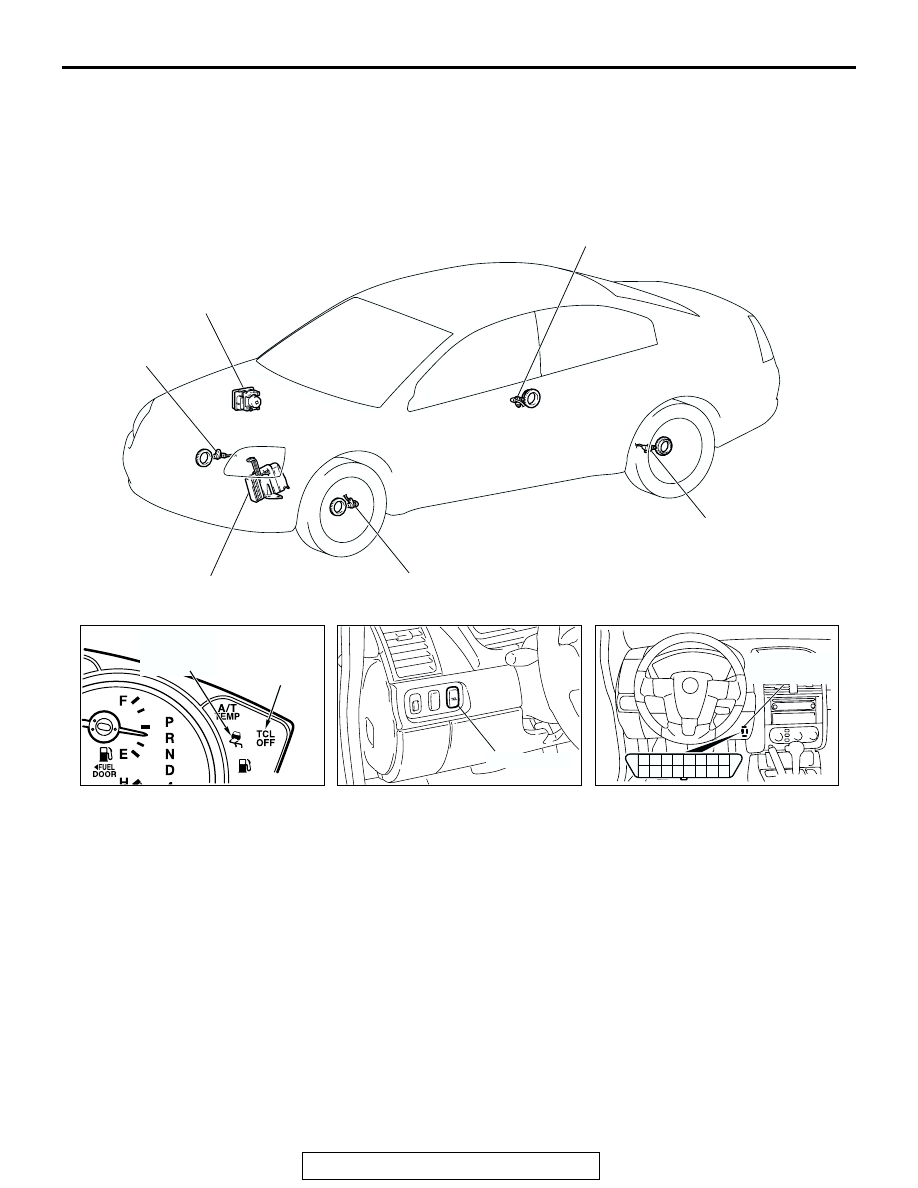

CONSTRUCTION DIAGRAM

AC305708

AC305706

AC305703

9 10 11 12 13 14 15 16

1

2 3

4 5 6 7 8

AC305705

AC305707

WHEEL SPEED SENSOR

PCM

HYDRAULIC UNIT
ASSEMBLY
(BUILT-IN ABS/TCL-ECU)

"TCL OFF"
INDICATOR
LIGHT

TCL SWITCH

DATA LINK
CONNECTOR

TCL WORK
INDICATOR
LIGHT

WHEEL SPEED SENSOR

WHEEL SPEED SENSOR

WHEEL SPEED
SENSOR

AB

TRACTION CONTROL SYSTEM (TCL) DIAGNOSIS

TSB Revision

TRACTION CONTROL SYSTEM (TCL)

13D-3

TRACTION CONTROL SYSTEM (TCL)  DIAGNOSIS

INTRODUCTION TO TRACTION CONTROL SYSTEM (TCL) DIAGNOSIS

M1136004600026

TCL Diagnostic Trouble Code Detection
Conditions

TCL diagnostic trouble codes (TCL DTCs) are set
under different conditions, depending on the mal-
function detected. Most TCL DTCs will only be set
during vehicle operation. Some TCL DTCs will also
be set during the TCL self-check immediately after
the engine is started. When you check if an TCL DTC

will be displayed again after the DTC has been
erased, you should recreate the TCL DTC set condi-
tions. Depending on the detection timing and set
conditions for the specific TCL DTC, you must either
drive the vehicle or turn the engine off and restart it.
To set the proper conditions for that DTC again, refer
to "TCL DTC SET CONDITIONS" for each TCL DTC
that you are trying to reset.

TCL DIAGNOSTIC TROUBLESHOOTING STRATEGY

M1136003100028

Use these steps to plan your diagnostic strategy. If
you follow them carefully, you will check most of the
possible causes of a TCL problem.
1. Gather information from the customer.
2. Verify that the condition described by the

customer exists.

3. Check the vehicle for any TCL DTC.
4. If you can verify the condition but no TCL DTCs

are set, and the malfunction may be intermittent.
Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How

to Cope with Intermittent Malfunctions

P.00-6

.

5. If you can verify the condition but there is no TCL

DTCs, or the system cannot communicate with
scan tool MB991958 (MUT-III sub assembly),
refer to

P.13D-26

, Symptom Chart, and find the

fault.

6. If there is a TCL DTC, record the number of the

code, then erase the code from vehicle memory
using the scan tool MB991958 (MUT-III sub
assembly).

7. Re-create the TCL DTC set conditions to see if

the same TCL DTC will set again.

• If the same TCL DTC sets again, perform the

diagnostic procedures for the set code. Refer to

P.13D-8

, TCL Diagnostic Trouble Code Chart.

TRACTION CONTROL SYSTEM (TCL) DIAGNOSIS

TSB Revision

TRACTION CONTROL SYSTEM (TCL)

13D-4

DIAGNOSIS FUNCTION

M1136003200025

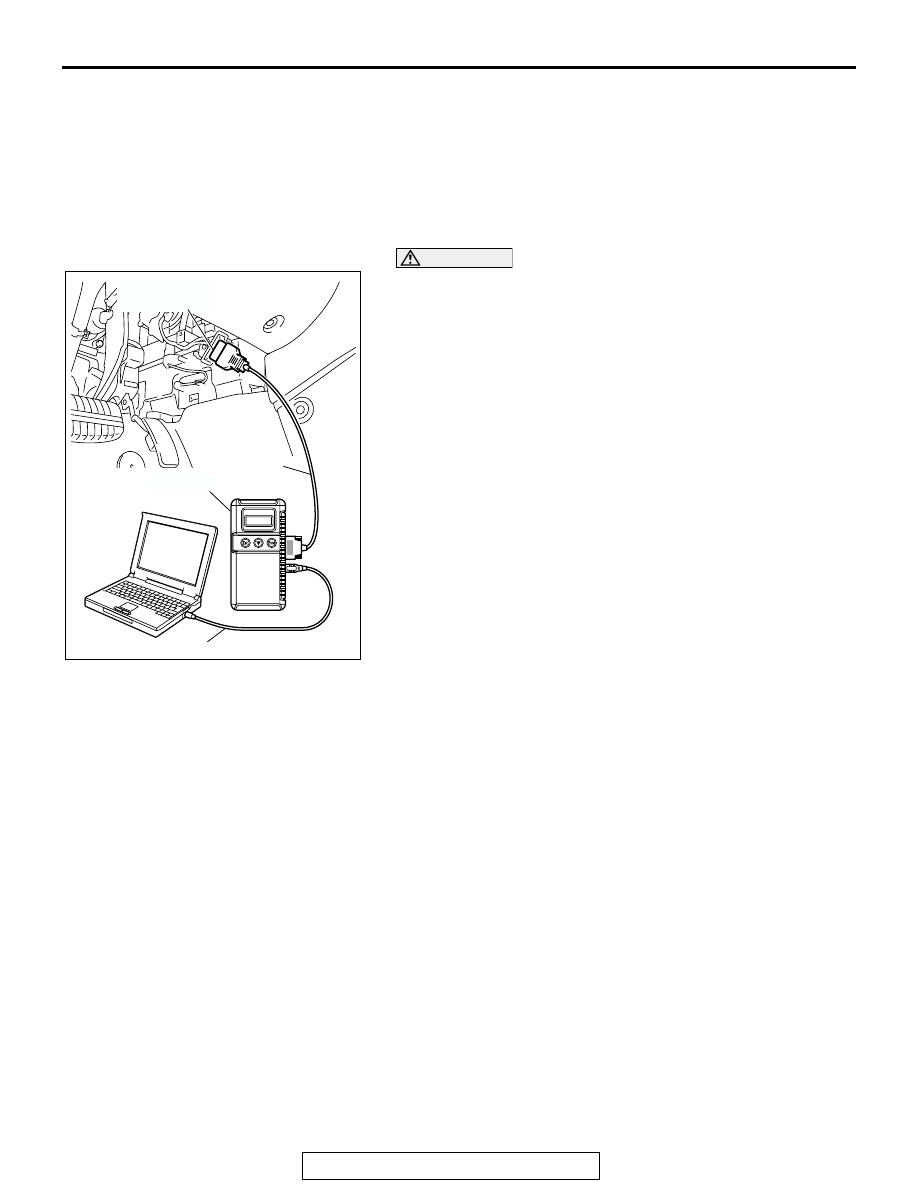

HOW TO CONNECT THE SCAN TOOL (MUT-III)

Required Special Tools:

•  MB991958: Scan tool (MUT-III sub assembly)

• MB991824: Vehicle communication interface (V.C.I.)

• MB991827: MUT-III USB cable

• MB991910: MUT-III main harness A

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
1. Ensure that the ignition switch is at the "LOCK" (OFF)

position.

2. Start up the personal computer.
3. Connect special tool MB991827 to special tool MB991824

and the personal computer.

4. Connect special tool MB991910 to special tool MB991824.
5. Connect special tool MB991910 to the data link connector.
6. Turn the power switch of special tool MB991824 to the "ON"

position.
NOTE: When special tool MB991824 is energized, special
tool MB991824 indicator light will be illuminated in a green
color.

7. Start the MUT-III system on the personal computer.

NOTE: Disconnect the scan tool MB991958 is the reverse of
the connecting sequence, making sure that the ignition
switch is at the "LOCK" (OFF) position.

HOW TO READ AND ERASE DIAGNOSTIC
TROUBLE CODES

Required Special Tools:

•  MB991958: Scan tool (MUT-III sub assembly)

• MB991824: V.C.I.

• MB991827: MUT-III USB cable

• MB991910: MUT-III main harness A

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827
