AMBIENT TEMPERATURE SENSOR

TSB Revision

CHASSIS ELECTRICAL

54A-299

AMBIENT TEMPERATURE SENSOR

INSPECTION

M1543019502623

.

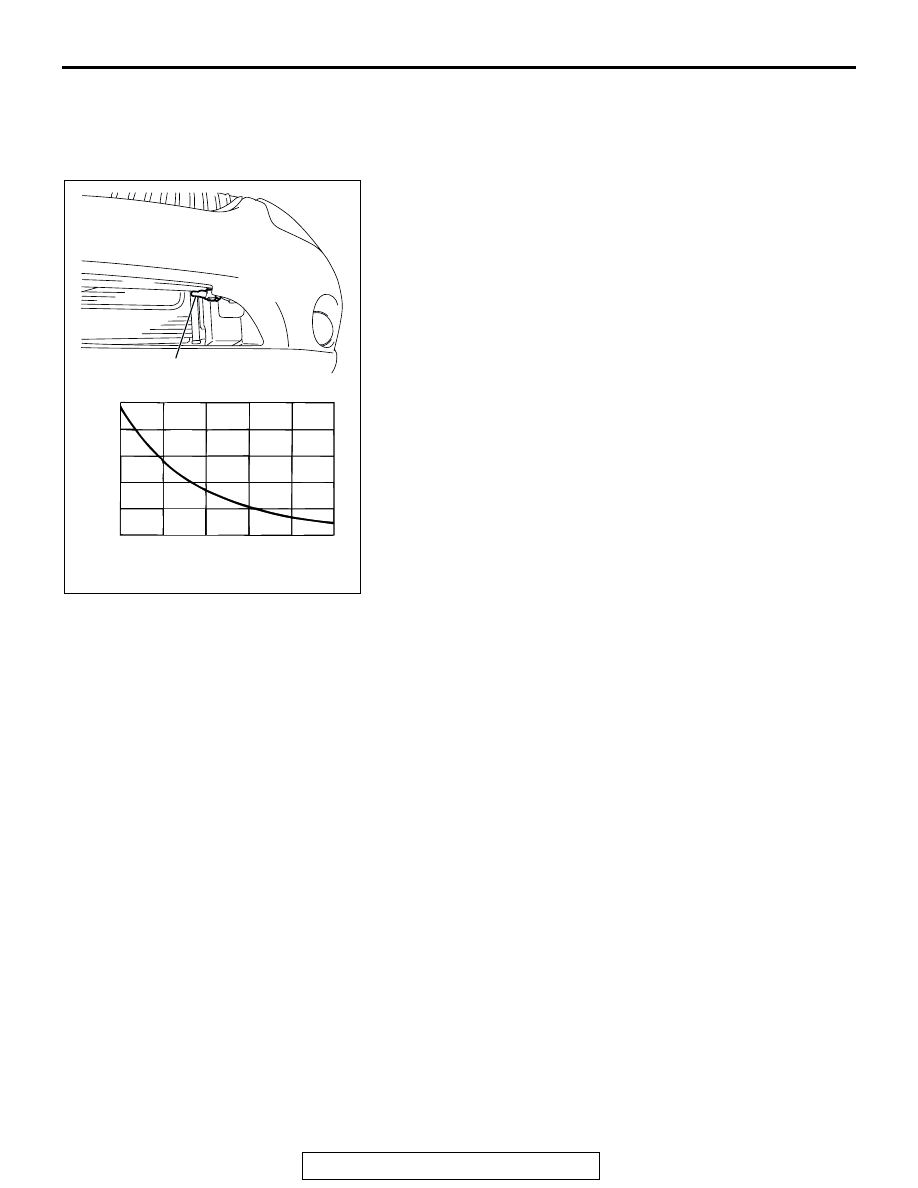

AMBIENT AIR TEMPERATURE SENSOR CHECK
The ambient air temperature sensor should be checked in situ.
Once the sensor is removed, it is rendered unserviceable.
Measure the resistance between the sensor terminals under at
least two temperatures. The resistance values should meet the
values shown.
NOTE: The temperature should be within the shown range.

PANIC ALARM

REMOVAL AND INSTALLATION

M1547002600011

Panic alarm system component parts

• Head light assembly (refer to

P.54A-117

).

• Horn (refer to

P.54A-134

).

AC306643AB

AMBIENT AIR TEMPERATURE SENSOR

REGISTANCE k

Ω

10

8

6

4

2

0

-10

0

10

20

30

40

(14) (32)

(50)

(68)

(86) (104)

TEMPERATURE ˚C (˚F)

SPECIFICATIONS

TSB Revision

CHASSIS ELECTRICAL

54A-300

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

M1541001600076

SERVICE SPECIFICATIONS

M1541000300210

<BATTERY>

<COMBINATION METER>

ITEM

SPECIFICATION

Air bag module torx screw

9.0

± 2.0N⋅m (80 ± 17 in-lb)

Amplifier box bracket mounting bolts

5.0

± 1.0 N⋅m (44 ± 9 in-lb)

Antenna feeder cable mounting screws

1.5

± 0.5 N⋅m (14 ± 4 in-lb)

Audio amplifier mounting bolt

5.0

± 1.0 N⋅m (44 ± 9 in-lb)

Choke coil mounting bolts

9.0

± 2.0 N⋅m (80 ± 17 in-lb)

Clock spring and column swith assembly mounting screw

2.5

± 0.5 N⋅m (23 ± 4 in-lb)

Fog light assembly mounting screw

2.5

± 0.3 N⋅m (22 ± 3 ft-lb)

Headlight assembly mounting bolts

4.9

± 0.7 N⋅m (44 ± 6 in-lb)

Headlight assembly mounting screw

1.5

± 0.2 N⋅m (14 ± 1 in-lb)

High-mounted stoplight mounting bolts or nuts

4.9

± 0.7 N⋅m (44 ± 6 in-lb)

Hole cover mounting screw

1.5

± 0.5 N⋅m (14 ± 0.5 in-lb)

Horn monting bolts

21

± 4 N⋅m (16 ± 2 in-lb)

Immobilizer-ECU mounting nut

5.0

± 1.0 N⋅m (44 ± 9 in-lb)

Key ring antenna mounting screw

2.0

± 1.0 N⋅m (18 ± 9 in-lb)

License plate assembly mounting screw

1.7

± 0.3 N⋅m (15 ± 3 in-lb)

Rear combination light mounting nut

4.9

± 0.7 N⋅m (44 ± 6 in-lb)

Rear speaker mounting screw

1.5

± 0.5 N⋅m (14 ± 4 in-lb)

Steering wheel mounting nuts

41

± 8 N⋅m (30 ± 6 ft-lb)

ITEM

STANDARD VALUE

Specific gravity of battery electrolyte [at 20

°C (68°F)]

1.220

− 1.290

ITEM

STANDARD VALUE

Speedometer indication error mph (km/h) <except
vehicles for CANADA>

10 (16)

10

± 1.5 (16 ± 2.4)

25 (40)

25

± 1.5 (40 ± 2.4)

50 (80)

50

± 1.5 (80 ± 2.4)

75 (120)

75

± 1.5 (120 ± 2.4)

100 (161)

98.5

− 102.5 (158.5 − 165.0)

Speedometer indication error mph (km/h)
<vehicles for CANADA>

20 (12.4)

19

− 24 (11.8 − 14.9)

40 (24.8)

40

− 44 (24.8 − 27.3)

80 (49.7)

80

− 85 (49.7 − 52.8)

120 (74.6)

120.5

− 125.5 (74.9 − 78.0)

160 (99.4)

160.5

− 165.5 (99.7 − 102.8)

SPECIFICATIONS

TSB Revision

CHASSIS ELECTRICAL

54A-301

<HEADLIGHT>

<FOG LIGHT>

Tachometer indication error r/min

600

600

± 100

2,000

2,000

± 100

3,000

3,000

± 150

4,000

4,000

± 150

5,000

5,000

± 150

6,000

6,000

± 150

Fuel level sensor
resistance

Ω

Fuel level sensor
(main)

Point "F" (highest)

6.5

± 1.0

Point "E" (lowest)

44.6

± 1.0

Fuel level sensor (sub) Point "F" (highest)

6.5

± 1.0

Point "E" (lowest)

75.4

± 1.0

Fuel level sensor float
height mm (in)

Fuel level sensor
(main)

A at point "F"

35.5

± 3.0 (1.4 ± 0.1)

B at point "E"

133.7

± 3.0 (5.3 ± 0.1)

Fuel level sensor (sub) A at point "F"

25.0

± 3.0 (1.0 ± 0.1)

B at point "E"

173.1

± 3.0 (6.8 ± 0.1)

ITEM

STANDARD VALUE

ITEM

STANDARD VALUE

LIMIT

Headlight aiming (vertical direction) [at 7.62
m (25.0 feet)]

Horizontal center line

± 50.5

mm (2.0 in) (0.38

°)

-

Headlight intensity cd (at high-beam) [at
7.62 m (25.0 feet)]

-

40,000 or more {when a screen
is set 18.3m(60 feet) ahead of
the vehicles}

ITEM

STANDARD VALUE

LIMIT

Fog light aiming (vertical direction) [at
7.62 m (25.0 feet)]

 Top of the hot zone should be
101 mm (4.0 inches) (0.76

°)

downward from the height of the
fog light center.

 Top of the hot zone should be
152 mm (6.0 in) (1.14

°) in

maximum downward from the
height of the fog light center.
