MULTI-CENTER DISPLAY

TSB Revision

CHASSIS ELECTRICAL

54A-295

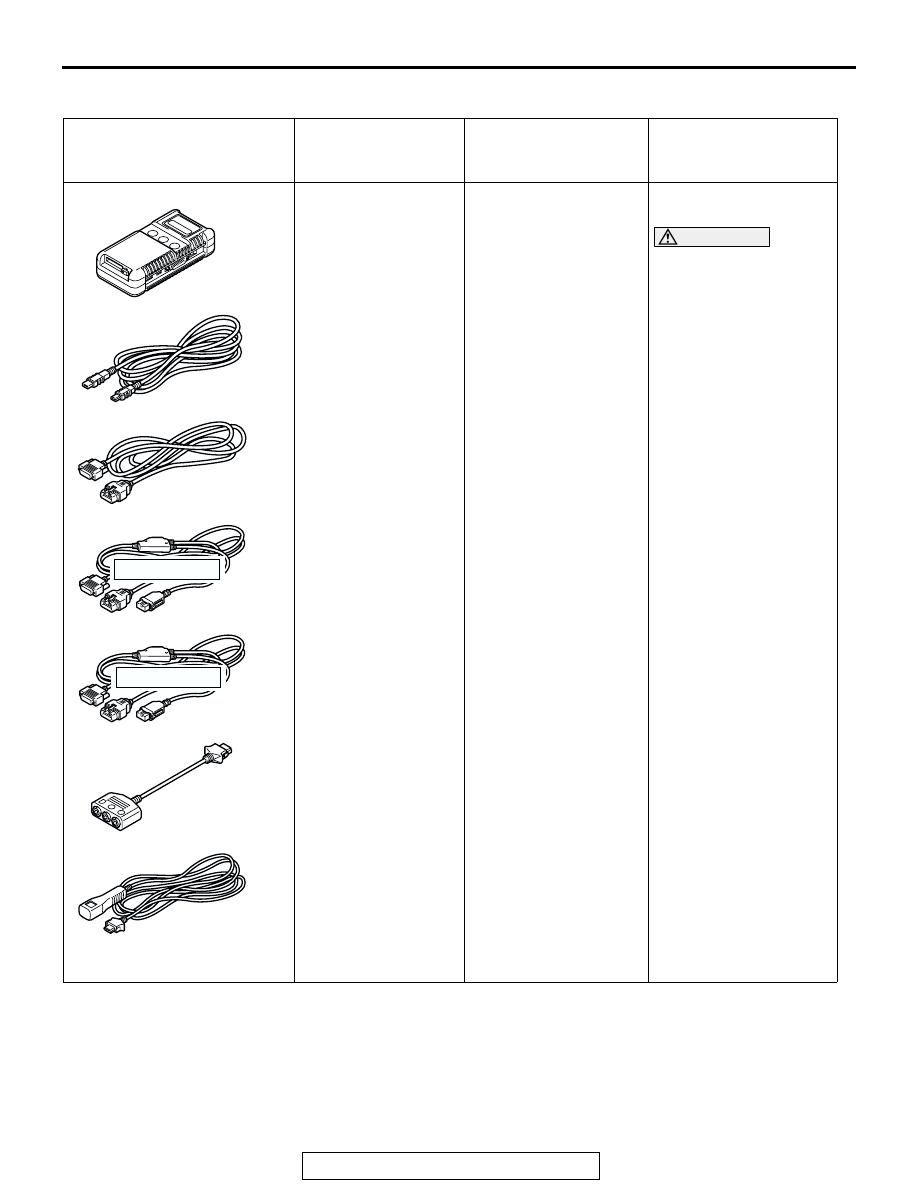

SPECIAL TOOLS

M1543000601782

TOOL

TOOL NUMBER
AND NAME

REPLACED BY
MILLER TOOL
NUMBER

APPLICATION

MB991958

A: MB991824
B: MB991827
C: MB991910
D: MB991911
E: MB991914
F: MB991825
G: MB991826

MUT-III sub assembly

A: Vehicle

communication
interface (V.C.I.)

B: MUT-III USB cable
C: MUT-III main

harness A
(Vehicles with CAN
communication
system)

D: MUT-III main

harness B
(Vehicles without
CAN
communication
system)

E: MUT-III main

harness C (for
daimler chrysler
models only)

F: MUT-III

measurement
adapter Harness

G: MUT-III trigger

harness

MB991824-KIT
NOTE: G: MB991826
MUT-III Trigger Harness
is not necessary when
pushing V.C.I. ENTER
key.

Reading diagnostic
trouble code

CAUTION

MUT-III main harness A
(MB991910) should be
used. MUT-III main
harness B and C
should not be used for
this vehicle.

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

DO NOT USE

A

B

C

D

E

F

G

DO NOT USE

MULTI-CENTER DISPLAY

TSB Revision

CHASSIS ELECTRICAL

54A-296

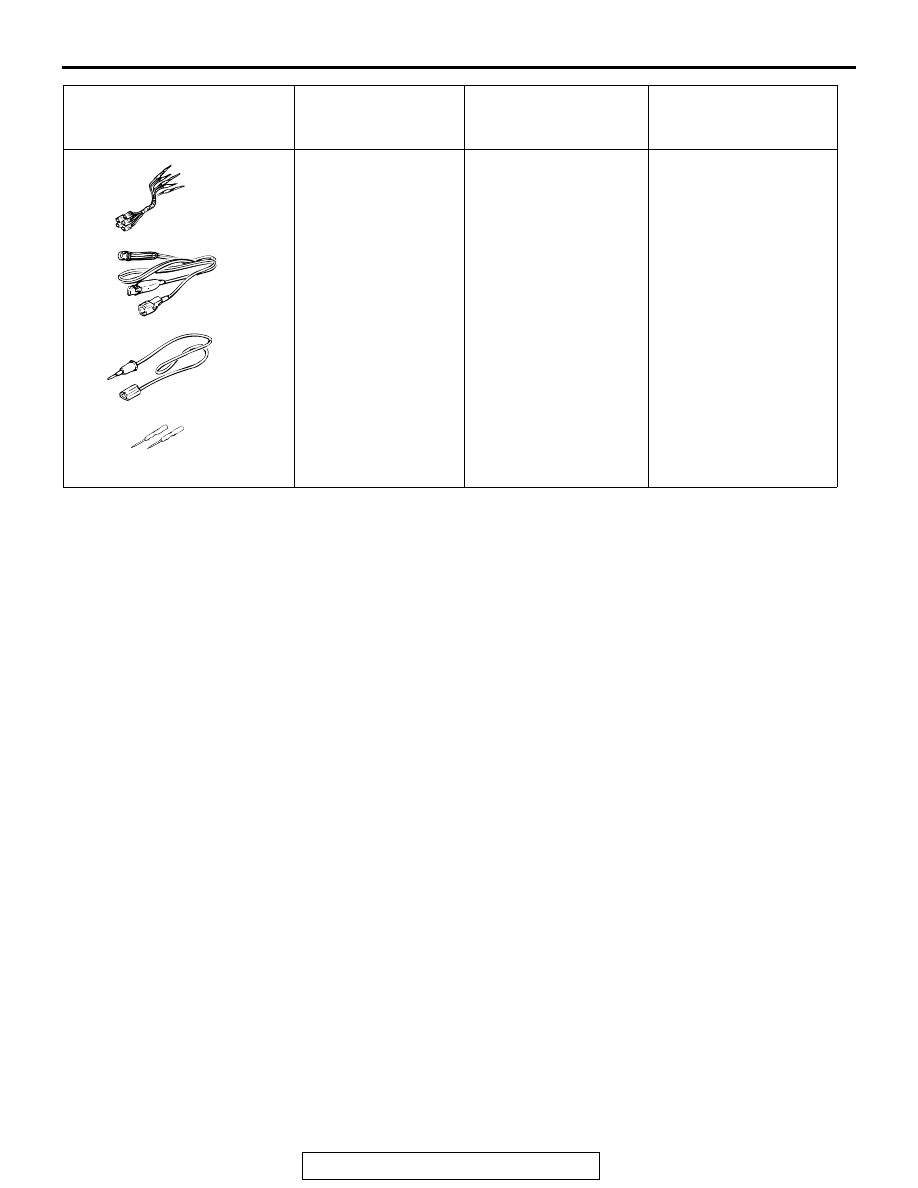

MB991223
A: MB991219
B: MB991220
C: MB991221
D: MB991222

Harness set

A: Test harness
B: LED harness
C: LED harness

adapter

D: Probe

General service tool
(jumper)

Making voltage and
resistance
measurements during
troubleshooting

A: Connect pin contact

pressure inspection

B: Power circuit

inspection

C: Power circuit

inspection

D: Commercial tester

connection

TOOL

TOOL NUMBER
AND NAME

REPLACED BY
MILLER TOOL
NUMBER

APPLICATION

MB991223

A

D

C

B

AF

MULTI-CENTER DISPLAY

TSB Revision

CHASSIS ELECTRICAL

54A-297

MULTI-CENTER DISPLAY

REMOVAL AND INSTALLATION

M1543013600121

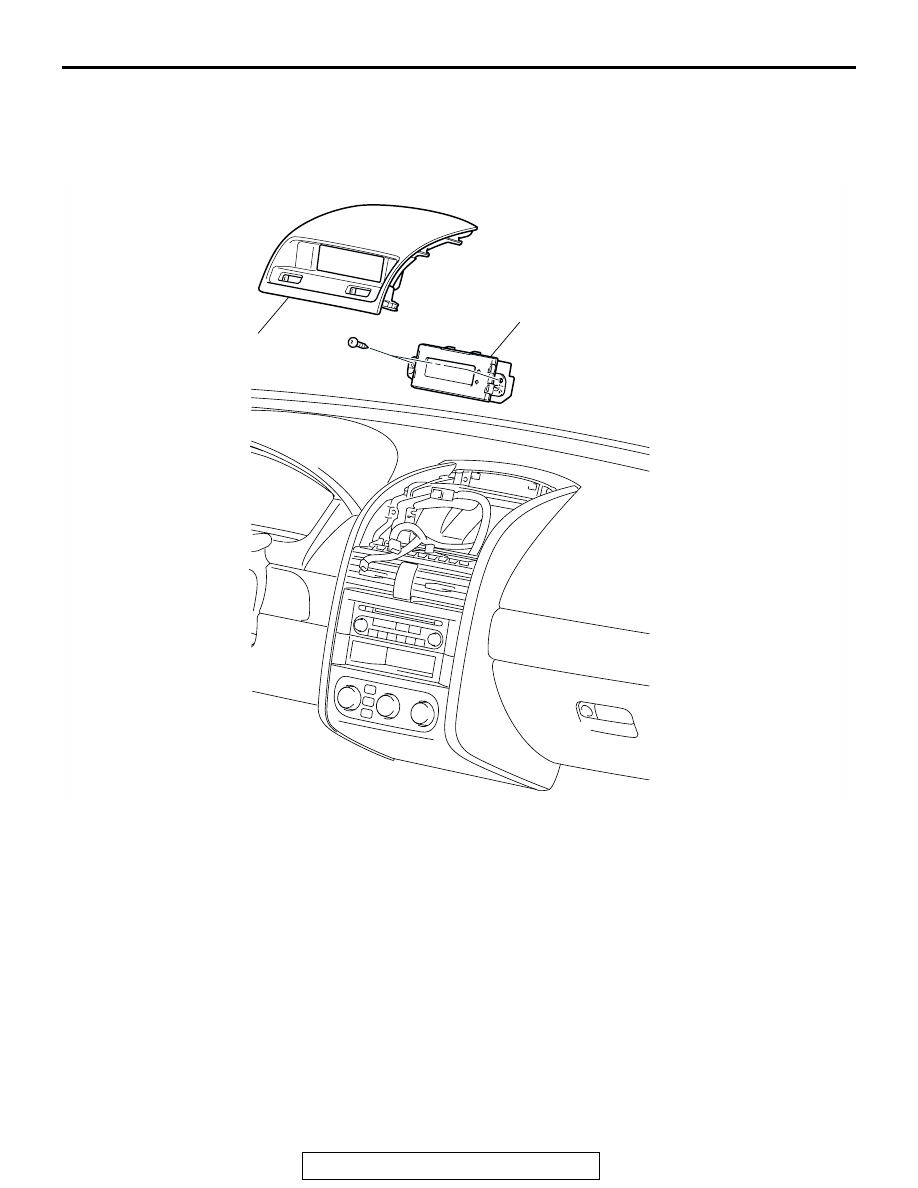

<LOW GRADE TYPE>

AC306858

AC306702 AB

1

2

REMOVAL STEPS

1.

CONSOLE METER HOOD (REFER TO
GROUP 52A, INSTRUMENT PANEL
ASSEMBLY

P.52A-3

.)

2.

MULTI-CENTER DISPLAY

MULTI-CENTER DISPLAY

TSB Revision

CHASSIS ELECTRICAL

54A-298

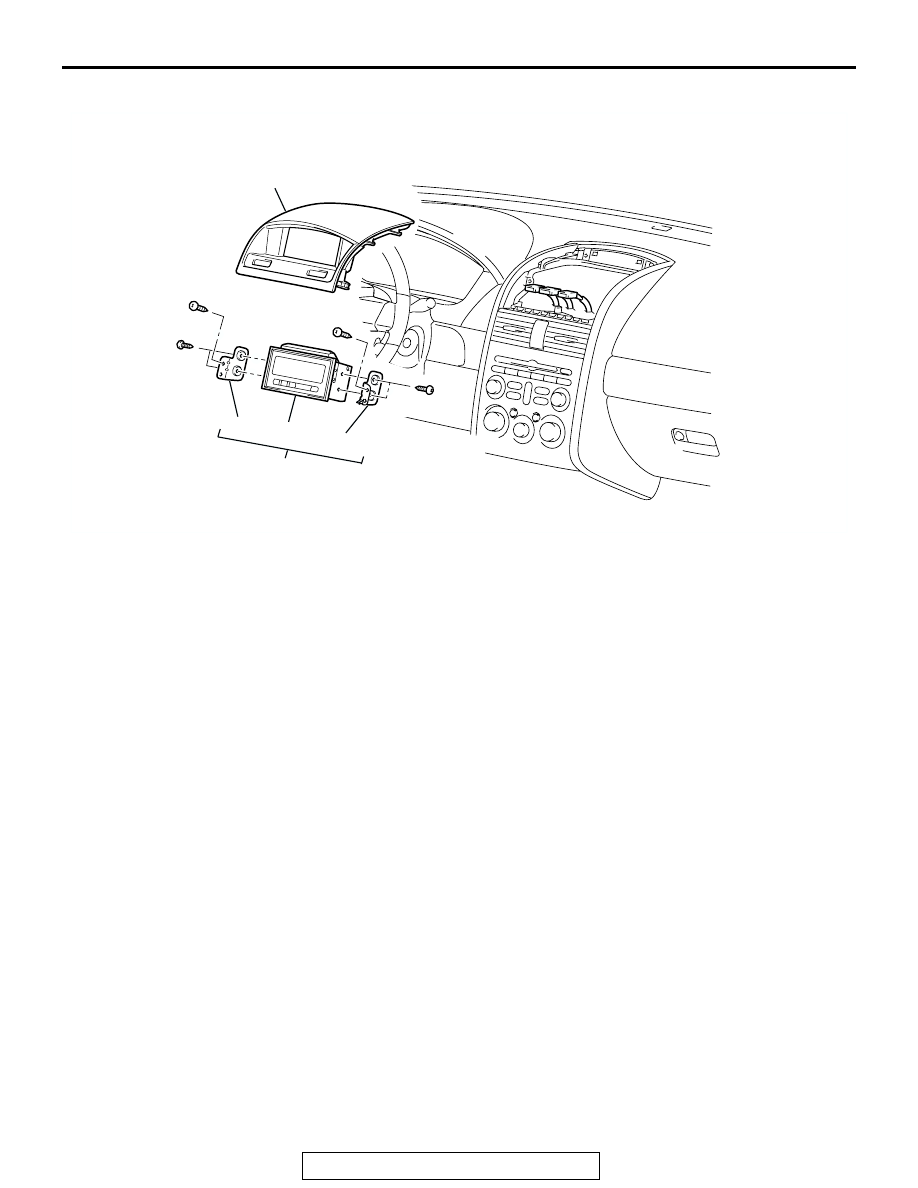

<MIDDLE GRADE TYPE>

AC307018

1

4

3

4

2

AB

REMOVAL STEPS

1.

CONSOLE METER HOOD (REFER TO
GROUP 52A, INSTRUMENT PANEL
ASSEMBLY

P.52A-3

.)

2.

MULTI-CENTER DISPLAY ASSEMBLY

3.

MULTI-CENTER DISPLAY

4.

MULTI-CENTER DISPLAY BRACKET

REMOVAL STEPS (Continued)
