Mitsubishi Galant (2004+). Manual - part 1516





TRACTION CONTROL SYSTEM (TCL) DIAGNOSIS

TSB Revision

TRACTION CONTROL SYSTEM (TCL)

13D-5

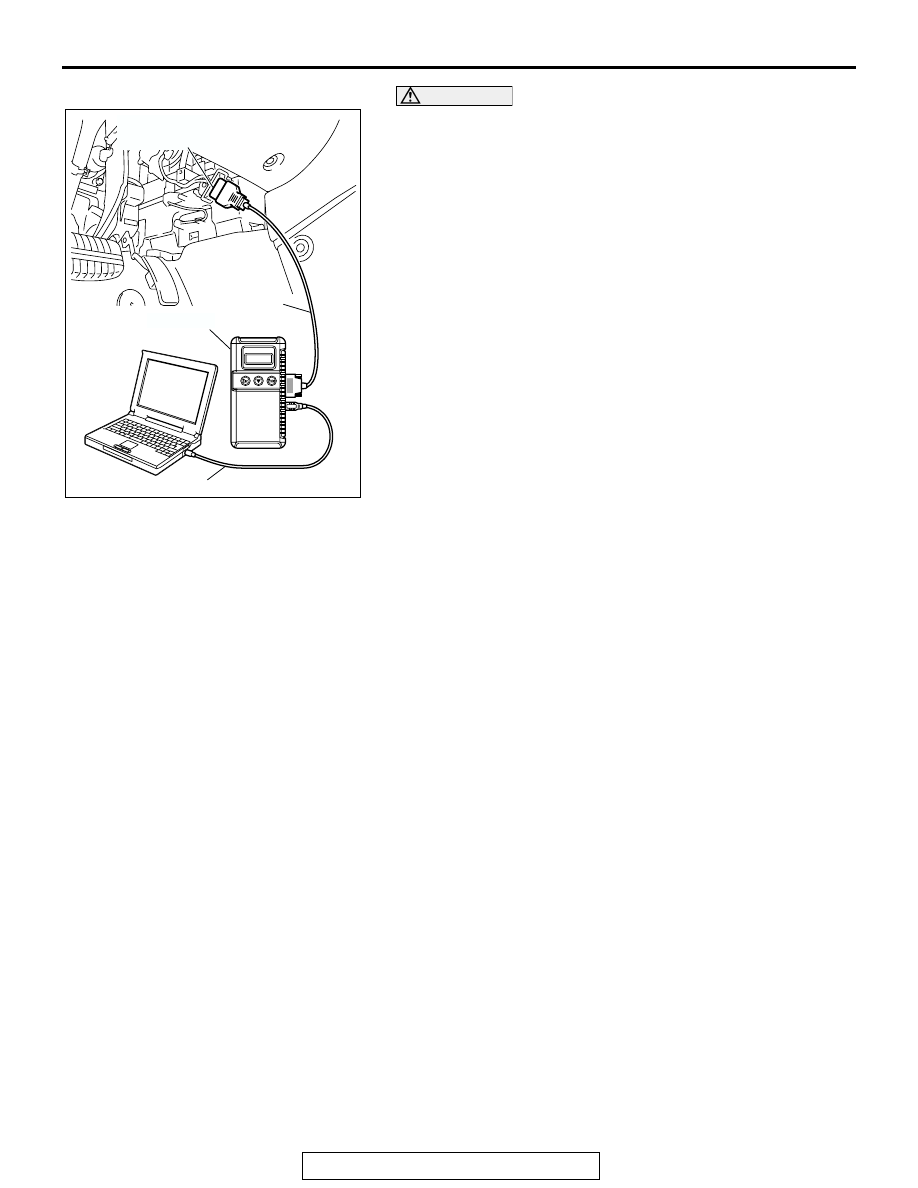

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
NOTE: If the battery voltage is low, diagnostic trouble codes will
not be set. Check the battery if scan tool MB991958 does not
display.
1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "Interactive Diagnosis" from the start-up screen.
4. Select "System Select."
5. Choose "TCL" from the "POWERTRAIN" tab.
6. Select "Diagnostic Trouble Code."
7. If a DTC is set, it is shown.
8. Choose "DTC erase" to erase the DTC.

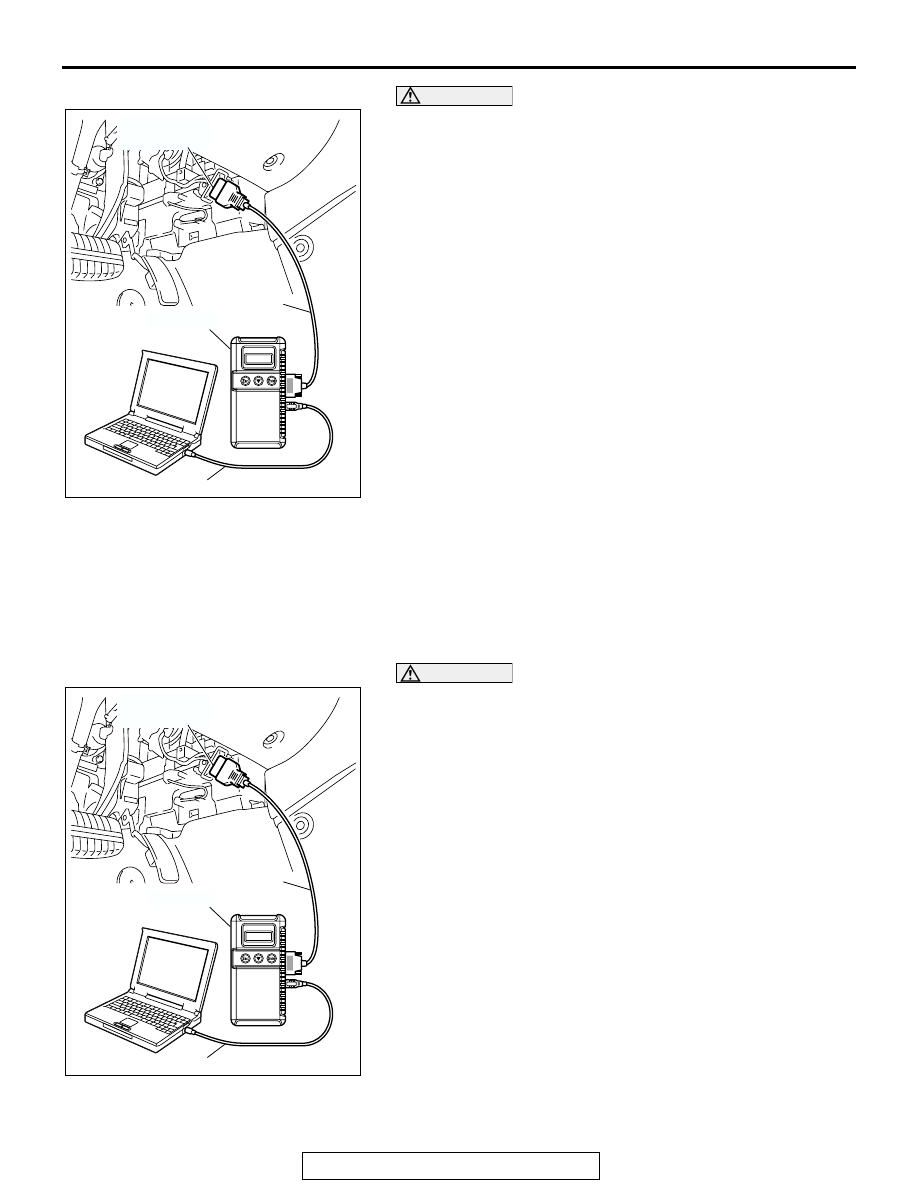

HOW TO READ DATA LIST

Required Special Tools:

•  MB991958: Scan tool (MUT-III sub assembly)

• MB991824: V.C.I.

• MB991827: MUT-III USB cable

• MB991910: MUT-III main harness A

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "Interactive Diagnosis" from the start-up screen.
4. Select "System Select."
5. Choose "TCL" from the "POWERTRAIN" tab.
6. Select "Data List."
7. Choose an appropriate item.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

TRACTION CONTROL SYSTEM (TCL) DIAGNOSIS

TSB Revision

TRACTION CONTROL SYSTEM (TCL)

13D-6

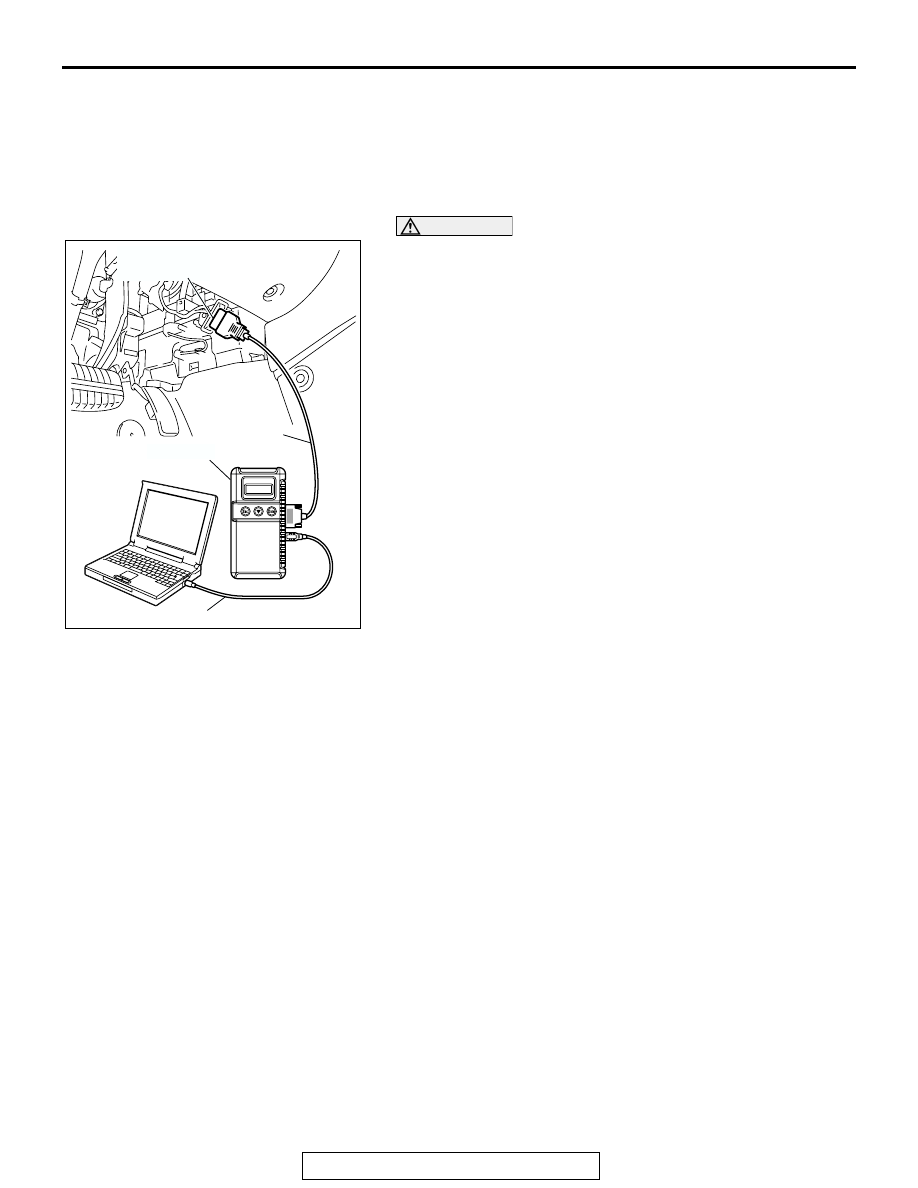

HOW TO PERFORM ACTUATOR TEST

Required Special Tools:

•  MB991958: Scan tool (MUT-III sub assembly)

• MB991824: V.C.I.

• MB991827: MUT-III USB cable

• MB991910: MUT-III main harness A

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "Interactive Diagnosis" from the start-up screen.
4. Select "System Select."
5. Choose "TCL" from the "POWERTRAIN" tab.
6. Choose "Actuator Test" from "TCL" screen.
7. Choose an appropriate item.

HOW TO DIAGNOSE THE CAN BUS LINE

Required Special Tools:

•  MB991958: Scan tool (MUT-III sub assembly)

• MB991824: V.C.I.

• MB991827: MUT-III USB cable

• MB991910: MUT-III main harness A

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

TRACTION CONTROL SYSTEM (TCL) DIAGNOSIS

TSB Revision

TRACTION CONTROL SYSTEM (TCL)

13D-7

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "CAN bus diagnosis" from the start-up screen.
4. When the vehicle information is displayed, confirm that it

matches the vehicle.

• If the information is correct, go to step 8.

• If not, go to step 5.

5. Select "view vehicle information" button.
6. Input the vehicle information and press "OK".
7. When the vehicle information is displayed, confirm again

that it matches the vehicle which is diagnosed CAN bus line.

• If they match, go to step 8.

• If not, go to step 5.

8. Press the "OK" button.
9. When the options are displayed, choose the options (mark

the check) and then select "OK".

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

TRACTION CONTROL SYSTEM (TCL) DIAGNOSIS

TSB Revision

TRACTION CONTROL SYSTEM (TCL)

13D-8

DIAGNOSTIC TROUBLE CODE CHART

M1136003300022

CAUTION

During diagnosis, a DTC code associated with
other system may be set when the ignition switch
is turned on with connector(s) disconnected. On
completion, confirm all systems for DTC code(s).
If DTC code(s) are set, erase them all.
Follow the inspection chart that is appropriate for the
diagnostic trouble code.

DTC

INSPECTION ITEM

DIAGNOSTIC CONTENT

REFERENCE PAGE

C1200

Front right wheel speed sensor

Open circuit or short circuit

GROUP 35B,
Diagnostic Trouble
Code Procedures

P.35B-13

C1201

Front right wheel speed sensor

Abnormal output signal

GROUP 35B,
Diagnostic Trouble
Code Procedures

P.35B-30

C1205

Front left wheel speed sensor

Open circuit or short circuit

GROUP 35B,
Diagnostic Trouble
Code Procedures

P.35B-13

C1206

Front left wheel speed sensor

Abnormal output signal

GROUP 35B,
Diagnostic Trouble
Code Procedures

P.35B-30

C1210

Rear right wheel speed sensor

Open circuit or short circuit

GROUP 35B,
Diagnostic Trouble
Code Procedures

P.35B-13

C1211

Rear right wheel speed sensor

Abnormal output signal

GROUP 35B,
Diagnostic Trouble
Code Procedures

P.35B-30

C1215

Rear left wheel speed sensor

Open circuit or short circuit

GROUP 35B,
Diagnostic Trouble
Code Procedures

P.35B-13

C1216

Rear left wheel speed sensor

Abnormal output signal

GROUP 35B,
Diagnostic Trouble
Code Procedures

P.35B-30

C1226*

ABS front right solenoid inlet valve

-

C1231*

ABS front right solenoid outlet valve

-

C1236*

ABS front left solenoid valve inlet valve

-

C1241*

ABS front left solenoid valve outlet valve

-

C1246*

ABS rear right solenoid valve inlet valve

-

C1251*

ABS rear right solenoid valve outlet valve

-
