STEERING SHAFT

TSB Revision

POWER STEERING

37A-29

STEERING SHAFT

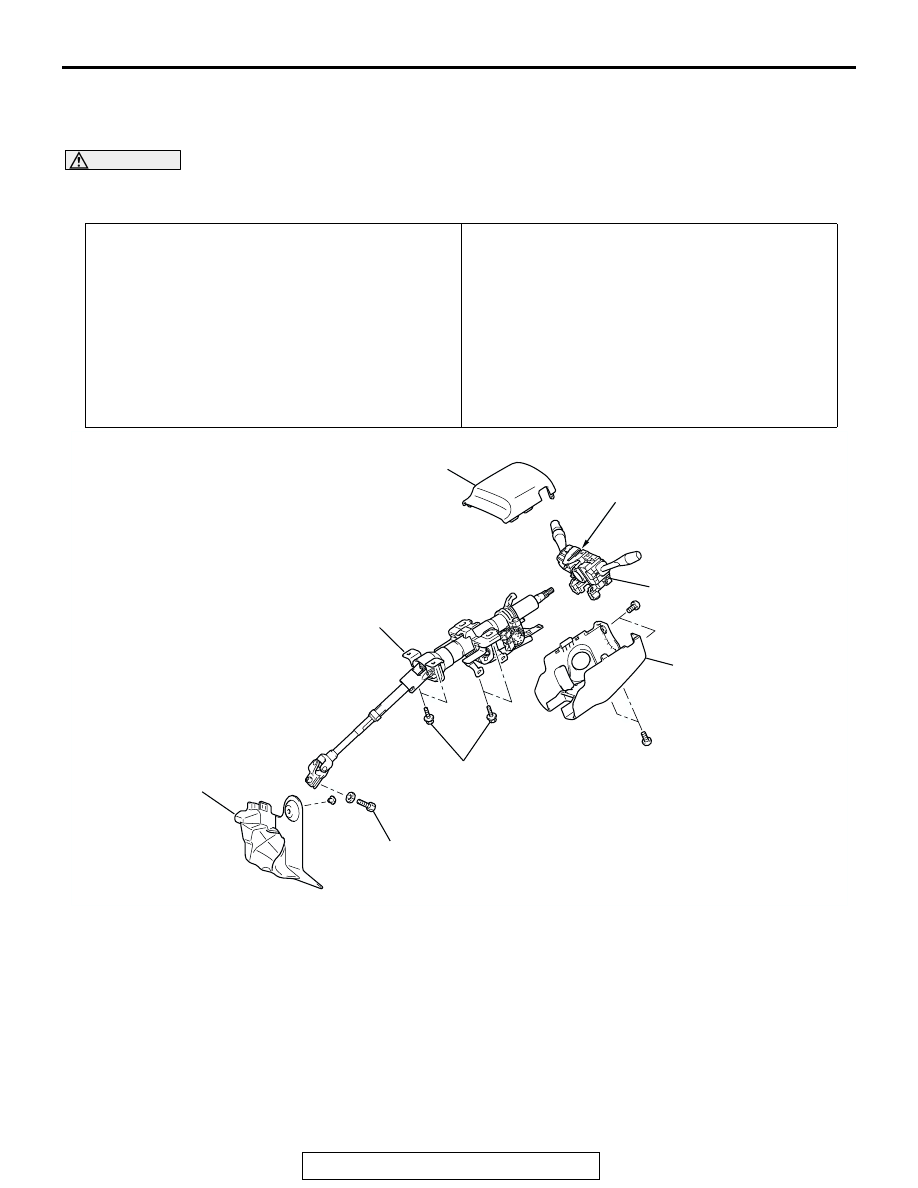

REMOVAL AND INSTALLATION

M1372011500135

WARNING

Before removing the air bag module and steering wheel assembly, refer to GROUP 52B, Ser-
vice Precautions and Air Bag Module and Clock Spring (

P.52B-26

 and

P.52B-368

).

Pre-removal Operation
• Air bag Module and Steering Wheel Assembly Removal

(Refer to

P.37A-27

).

• Instrument Panel Lower Panel Removal (Refer to

GROUP 52A, Instrument Panel

P.52A-3

).

• Floor Console Assembly Removal (Refer to GROUP 52A,

Floor Console Assembly

P.52A-9

).

• Front Scuff Plate and Cowl Side Trim Removal (Refer to

GROUP 52A, Trims

P.52A-10

).

• Trunk Lid Opener Cover Removal

• Accelerator Pedal Stopper Removal

• Front Floor Carpet Removal

Post-installation Operation
• Front Floor Carpet Installation

• Accelerator Pedal Stopper Installation
• Trunk Lid Opener Cover Installation

• Front Scuff Plate and Cowl Side Trim Installation (Refer to

GROUP 52A, Trims

P.52A-10

).

• Floor Console Assembly Installation (Refer to GROUP

52A, Floor Console Assembly

P.52A-9

).

• Instrument Panel Lower Panel Installation (Refer to

GROUP 52A, Instrument Panel

P.52A-3

).

• Steering Wheel Assembly and Air bag Module Installation

(Refer to

P.37A-27

).

AC306562 AB

12 ± 2 N·m
102 ± 22 in-lb

18 ± 2 N·m
13 ± 2 ft-lb

3

2

1

5

4

MOUNTING SCREW

REMOVAL STEPS

1. STEERING COLUMN LOWER

COVER

2. STEERING COLUMN UPPER

COVER

3. CLOCK SPRING AND COLUMN

SWITCH ASSEMBLY (REFER TO
GROUP 52B, AIR BAG MODULE
AND CLOCK SPRING

P.52B-368

).

•

KEY INTERLOCK CABLE
CONNECTION (REFER TO
GROUP 23, A/T KEY INTERLOCK
AND SHIFT LOCK MECHANISM

P.23A-389

).

4. STEERING SHAFT PAD

<<A>> >>A<<

5. STEERING COLUMN ASSEMBLY

REMOVAL STEPS (Continued)

STEERING SHAFT

TSB Revision

POWER STEERING

37A-30

REMOVAL SERVICE POINT

.

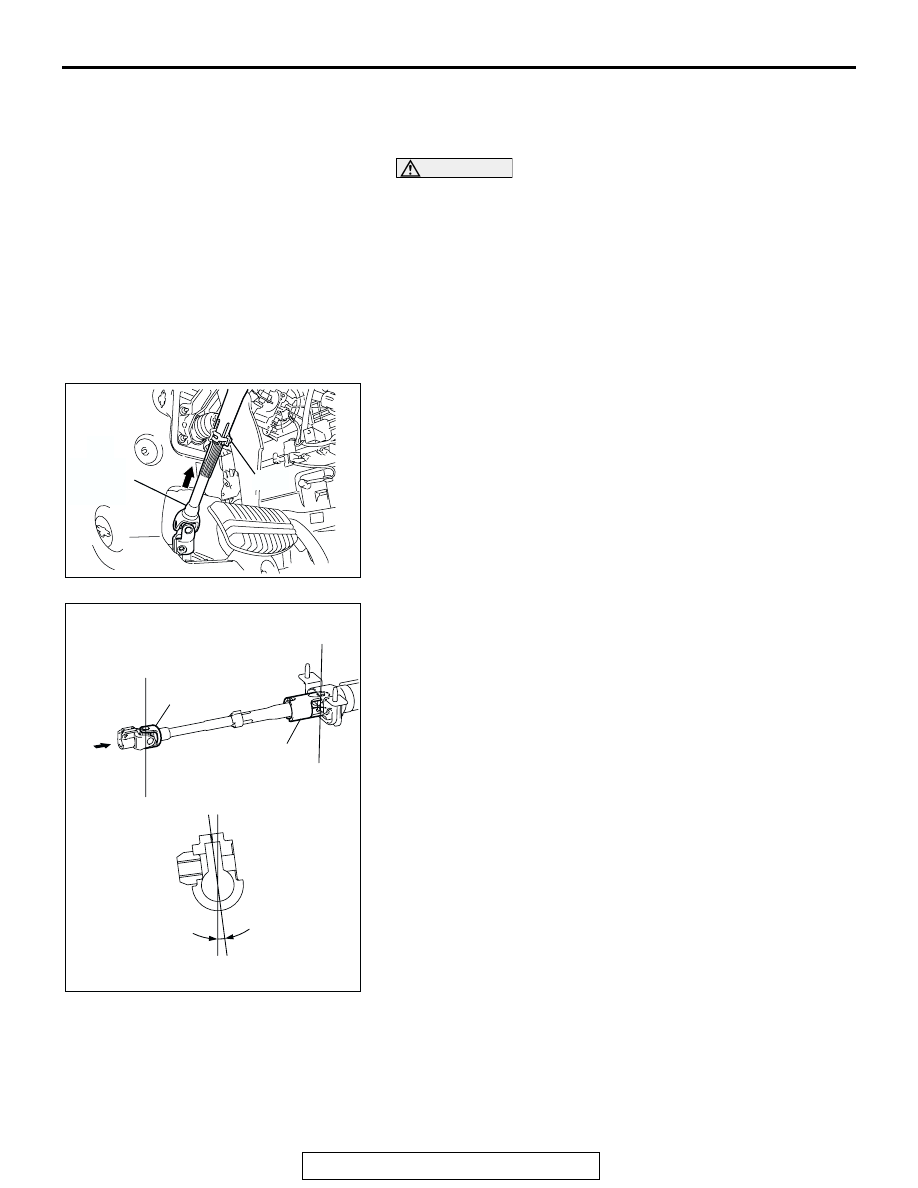

<<A>> STEERING COLUMN ASSEMBLY REMOVAL

CAUTION

The tilt lever should be held in the lock position until the
steering column assembly is installed to the vehicle. If the
steering column assembly is removed with the tilt lever
released, or the tilt lever is released after the steering col-
umn assembly was removed from the vehicle, the steering
column assembly cannot be reinstalled correctly. If the
steering column assembly is installed incorrectly, the colli-
sion energy absorbing mechanism may be damaged.
1. Ensure that the tilt lever is in the lock position, and remove

the steering column assembly mounting bolts.

2. Pinch the steering column shaft clip with pliers, and pull up

the shaft in the direction shown to disengage the steering
column assembly.

NOTE: If the steering column shaft is removed accidentally,
remove the steering column assembly and be sure to insert the
steering column shaft into the steering column as shown in the
figure.

AC306565 AB

CLIP

STEERING
COLUMN
SHAFT

AC306564 AB

X

X

Y

Y

X

X

Y

Y

YOKE Y

VIEW A

7.6˚ ± 3˚

YOKE X

A

STEERING SHAFT

TSB Revision

POWER STEERING

37A-31

INSTALLATION SERVICE POINT

.

>>A<< STEERING COLUMN ASSEMBLY INSTALLATION

CAUTION

1. If reusing the steering column assembly, do not release

the tilt lever until the steering column assembly has
been installed.

2. If a new steering column assembly is being installed,

do not release the tilt lever until it has been installed.
Do not remove the tilt lever fixing band until the instal-
lation is completed.

3. When installing the steering column assembly, do not

leave it fixed temporarily at only one point and make
sure the steering column assembly is not shaken
strongly. If this happens, the collision absorbing mech-
anism at the steering column assembly mounting loca-
tion may be damaged.

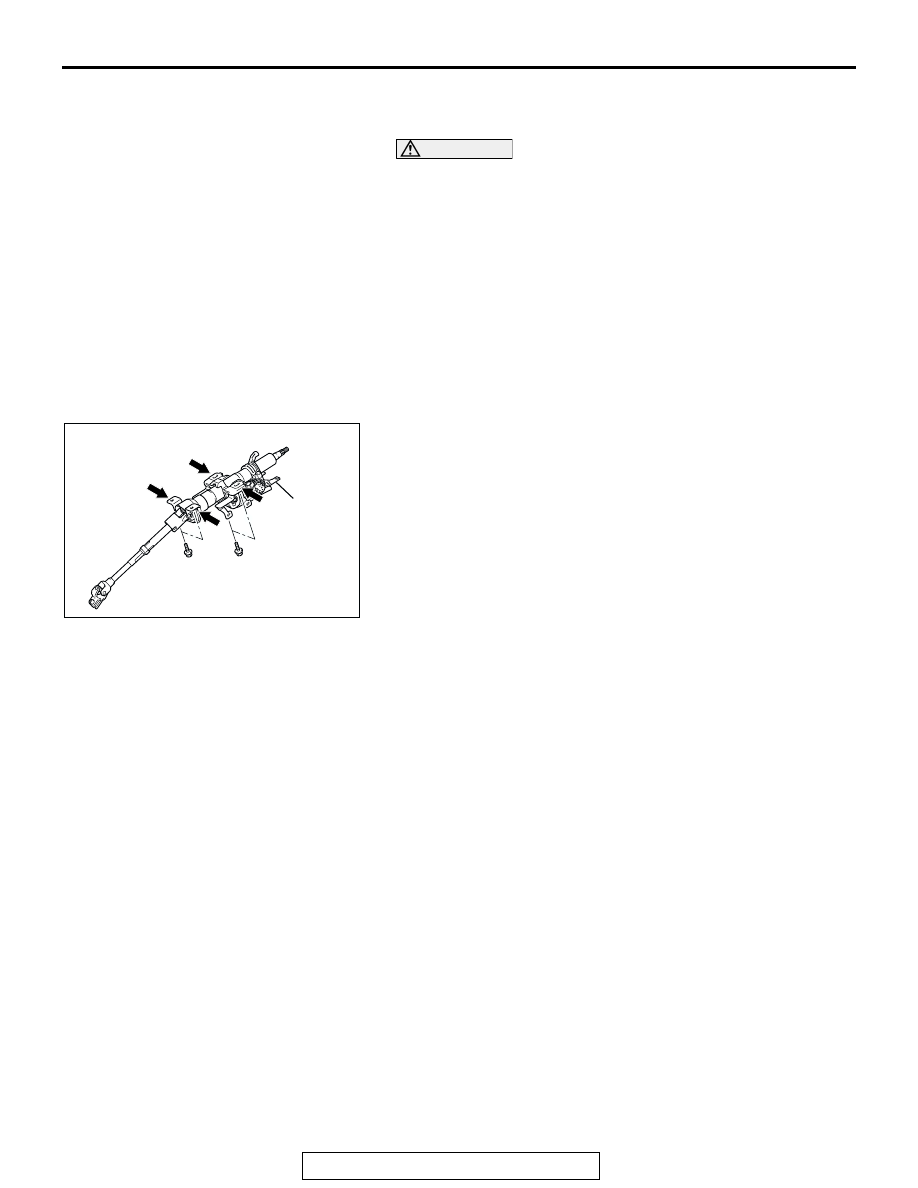

Ensure that the tilt lever is in the lock position, and install the
steering column assembly. Tighten the four bolts finger-tight in
the order shown, and then tighten them to the specified torque
in the order shown.

Tightening torque: 12

± 2 N⋅m (102 ± 22 in-lb)

AC306794AB

1

4

3

2

TILT
LEVER

STEERING SHAFT

TSB Revision

POWER STEERING

37A-32

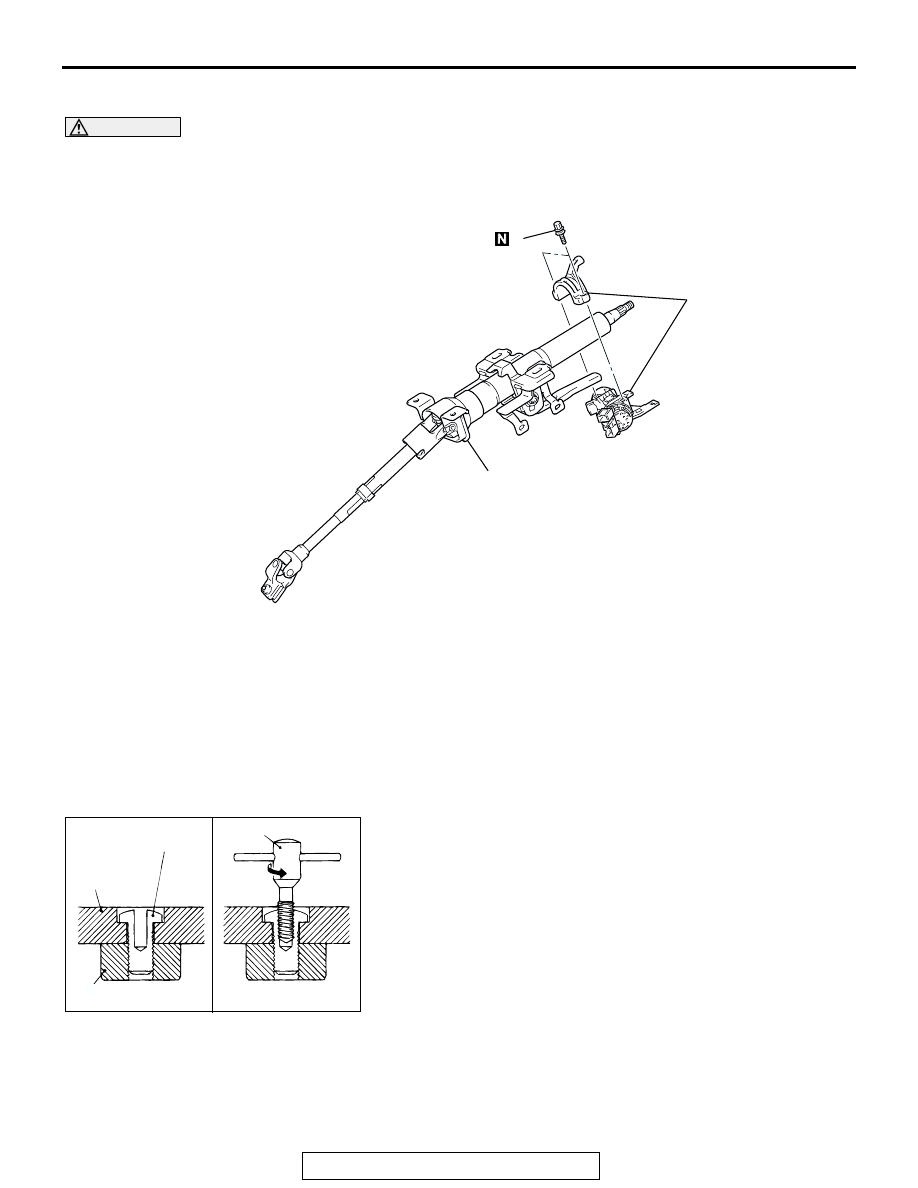

DISASSEMBLY AND ASSEMBLY

M1372011700117

WARNING

Do not move the tilt lever from the lock position until the installation is completed. If you
move it accidentally, the steering column cannot be reinstalled correctly.

DISASSEMBLY SERVICE POINT

.

<<A>> STEERING LOCK BOLT REMOVAL
1. Drill in the steering lock bolt a hole deep enough for the tap

to stand.

2. Remove the steering lock bolt with a left-hand tap.

AC306566 AB

3

2

1

DISASSEMBLY STEPS

<<A>> >>A<<

1.

STEERING LOCK BOLT

>>A<<

2.

ENGINE STARTING SWITCH
ASSEMBLY

3.

STEERING COLUMN ASSEMBLY

DISASSEMBLY STEPS (Continued)

ACX01138 AE

CLAMP

ENGINE STARTING
SWITCH ASSEMBLY

REVERSE SCREW TAP

STEERING
LOCK BOLT
