SPECIAL TOOL

TSB Revision

POWER PLANT MOUNT

32-3

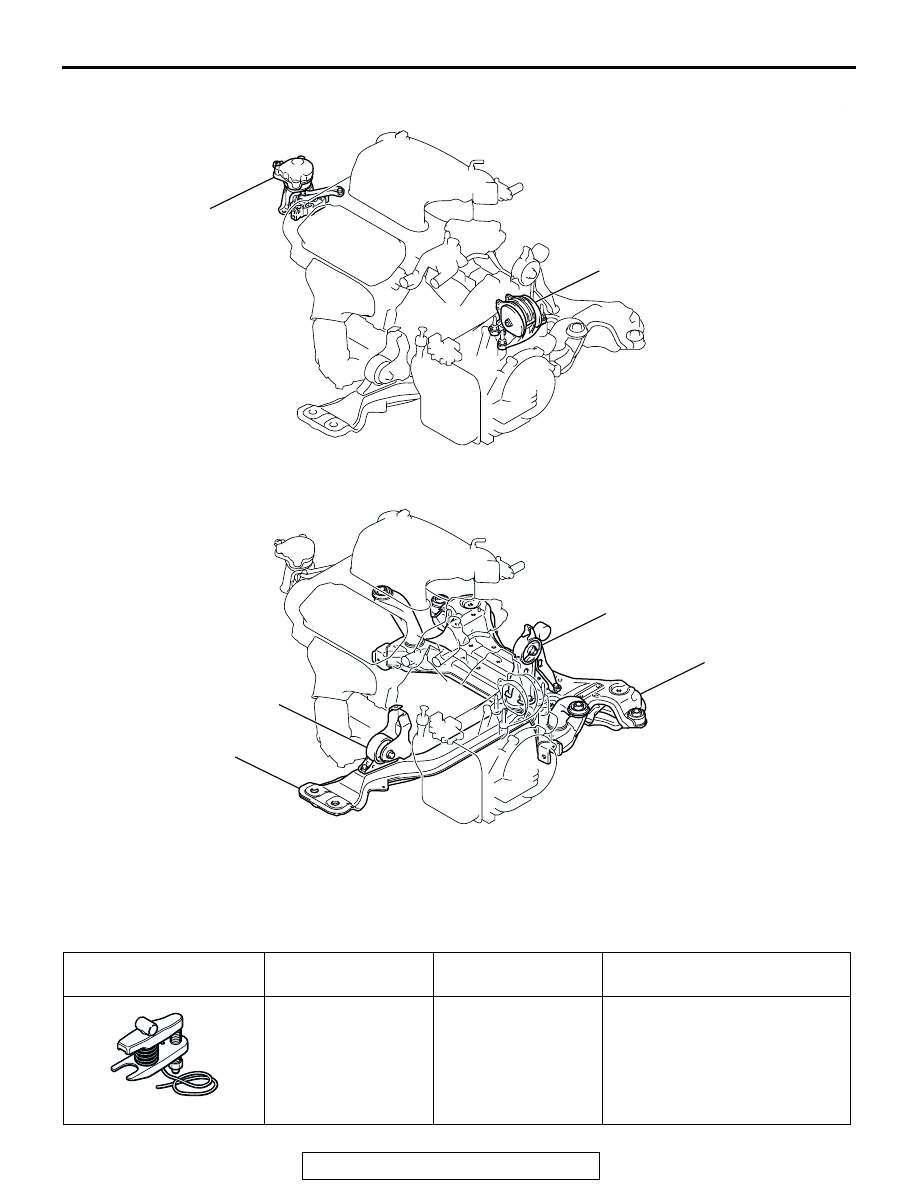

<3.8L ENGINE>

SPECIAL TOOL

M1321000600390

AC305861

AC305860

AC305862

ENGINE FRONT
MOUNTING
BRACKET

TRANSAXLE MOUNTING
BODY SIDE BRACKET

ENGINE REAR
ROLL STOPPER
BRACKET

FRONT AXLE NO.1
CROSSMEMBER

ENGINE FRONT
ROLL STOPPER
BRACKET

CENTERMEMBER

AB

TOOL

TOOL NUMBER
AND NAME

SUPERSESSION

APPLICATION

MB991897
Ball joint remover

MB991113-01,
MB990635-01 or
General service tool

Knuckle and tie rod end ball joint
disconnection
NOTE: Steering linkage puller
(MB990635 or MB991113)is also
used to disconnect the knuckle
and tie rod end ball joint.

AC106827

ENGINE MOUNTING

TSB Revision

POWER PLANT MOUNT

32-4

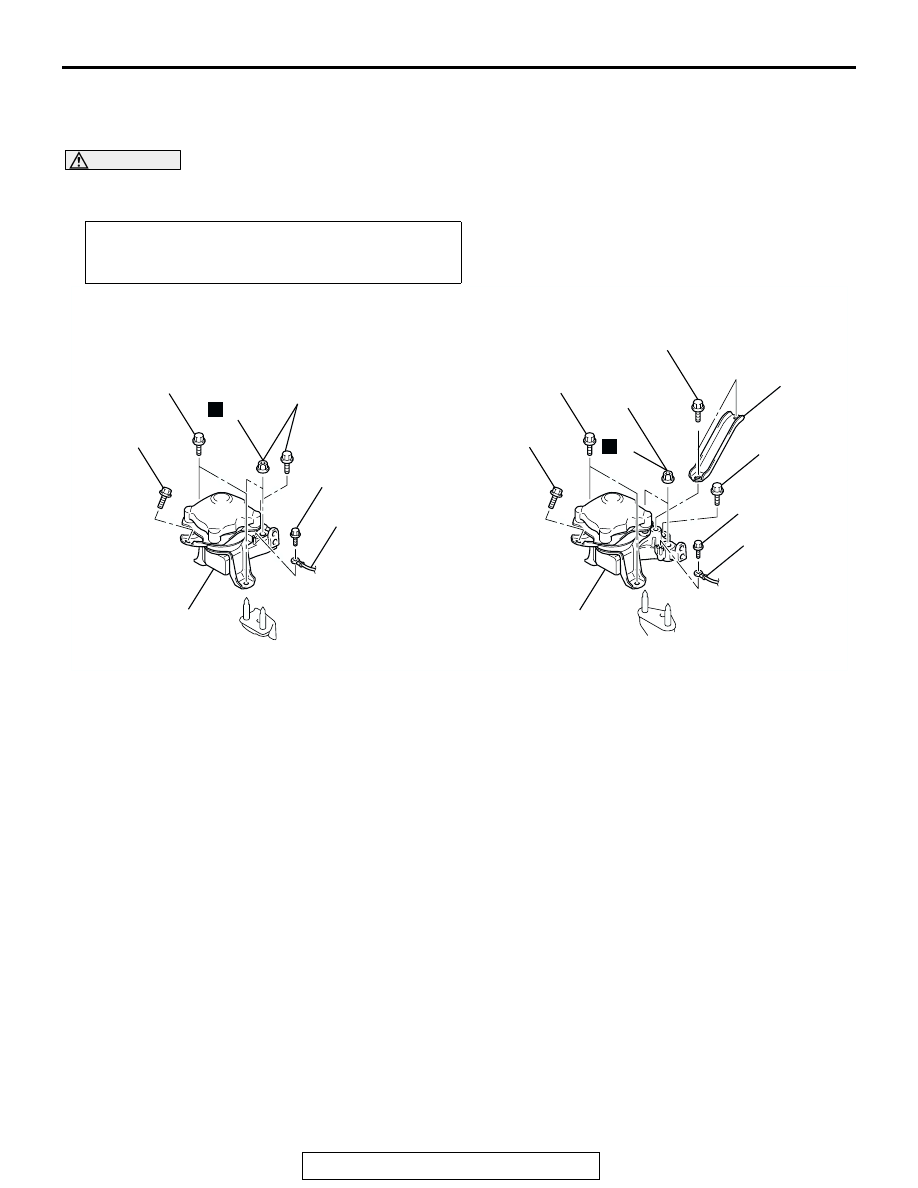

ENGINE MOUNTING

REMOVAL AND INSTALLATION

M1321001100462

CAUTION

*: Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle
horizontally and loading the full weight of the engine on the vehicle body.

REMOVAL SERVICE POINT

.

<<A>> POWER STEERING OIL RESERVOIR REMOVAL
With the hose installed, remove the power steering oil reservoir
from the vehicle. (Refer to GROUP 37A, Power Steering Hoses

P.37A-57

).

NOTE: After removing the power steering oil reservoir, secure it
with a cord in the location where the removal and installation of
the engine front mounting bracket cannot be hindered.

Pre-removal Operation
Raise the engine and transaxle assembly until its weight is
not applied to the insulator, and support it securely.

AC307311

4

2

3

83 ± 12 N·m*
61 ± 9 ft-lb*

58 ± 7 N·m*
43 ± 5 ft-lb*

N

58 ± 7 N·m*
43 ± 5 ft-lb*

4

2

3

83 ± 12 N·m*
61 ± 9 ft-lb*

58 ± 7 N·m*
43 ± 5 ft-lb*

N

58 ± 7 N·m*
43 ± 5 ft-lb*

1

36 ± 6 N·m
27 ± 4 ft-lb

83 ± 12 N·m*
61 ± 9 ft-lb*

AB

<2.4L ENGINE>

<3.8L ENGINE>

9.0 ± 2.0 N·m
80 ± 17 in-lb

9.0 ± 2.0 N·m
80 ± 17 in-lb

REMOVAL STEPS

1.

ENGINE MOUNTING STAY <3.8L
ENGINE>

2.

GROUNDING CABLE
CONNECTION

<<A>>

•

POWER STEERING OIL
RESERVOIR

3.

SELF-LOCKING NUTS

4.

ENGINE FRONT MOUNTING
BRACKET

REMOVAL STEPS (Continued)

TRANSAXLE MOUNTING

TSB Revision

POWER PLANT MOUNT

32-5

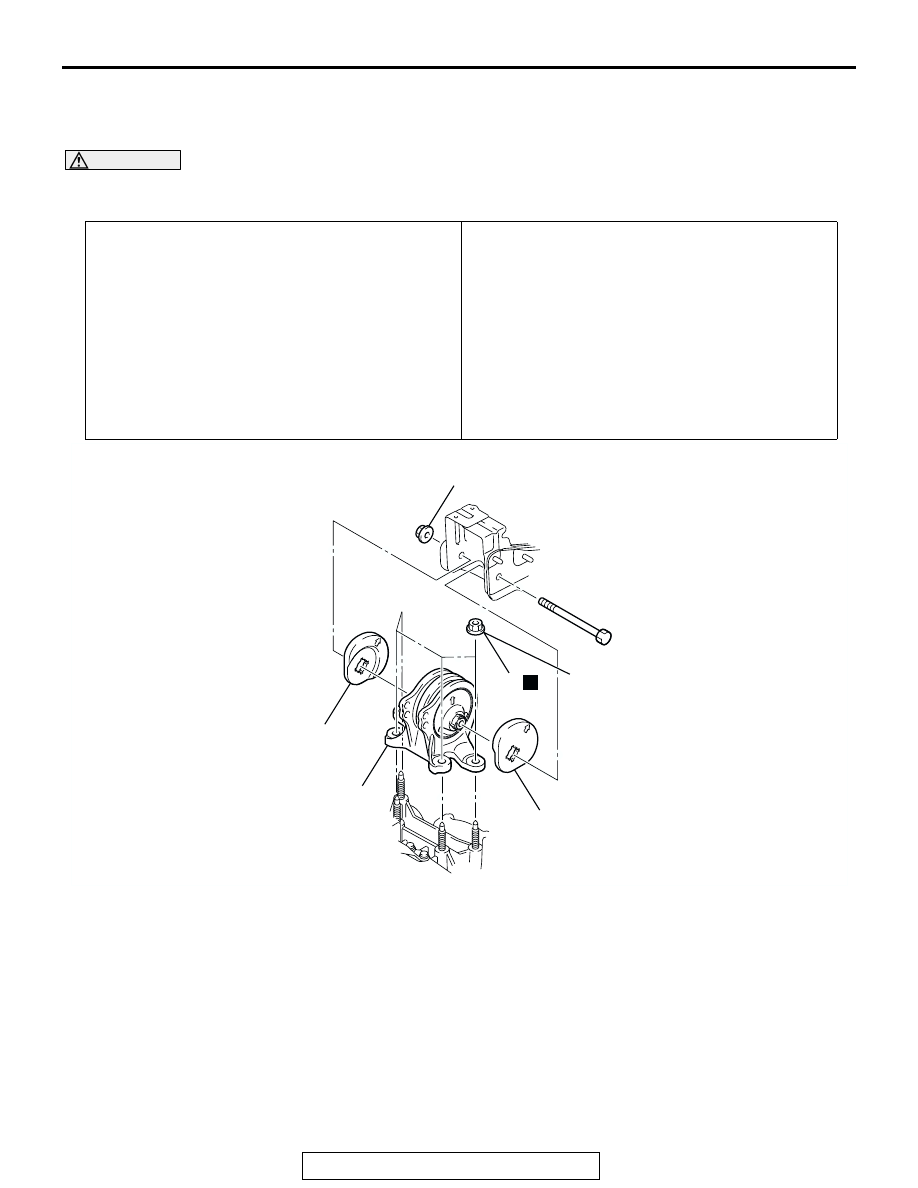

TRANSAXLE MOUNTING

REMOVAL AND INSTALLATION

M1321001400452

CAUTION

*: Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle
horizontally and loading the full weight of the engine on the vehicle body.

Pre-removal Operation
• Powertrain Control Module (PCM) Removal (2.4L

ENGINE: Refer to GROUP 13A, Powertrain Control Mod-

ule (PCM)

P.13A-1121

, 3.8L ENGINE: Refer to GROUP

13B, Powertrain Control Module (PCM)

P.13B-1146

).

• Air Cleaner Removal (Refer to GROUP 15, Air Cleaner

P.15-4

).

• Battery and Battery Tray Removal

• Centermember Removal (Refer to

P.32-7

).

• Engine Rear Roll Stopper Bracket Removal (Refer to

P.32-7

).

• Raise the engine and transaxle assembly until its weight

is not applied to the insulator, and support it securely.

Post-installation Operation
• Engine Rear Roll Stopper Bracket Installation (Refer to

P.32-7

).

• Centermember Installation (Refer to

P.32-7

).

• Battery and Battery Tray Installation
• Air Cleaner Installation (Refer to GROUP 15, Air Cleaner

P.15-4

).

• Powertrain Control Module (PCM) Installation (2.4L

ENGINE: Refer to GROUP 13A, Powertrain Control Mod-

ule (PCM)

P.13A-1121

, 3.8L ENGINE: Refer to GROUP

13B, Powertrain Control Module (PCM)

P.13B-1146

).

AC306763

1

2

3

83 ± 12 N·m*
61 ± 9 ft-lb*

58 ± 7 N·m*
43 ± 5  ft-lb*

AB

N

3

REMOVAL STEPS

1.

SELF-LOCKING NUTS

2.

TRANSAXLE MOUNTING BODY
SIDE BRACKET

>>A<<

3.

TRANSAXLE MOUNTING
STOPPER

REMOVAL STEPS (Continued)

TRANSAXLE MOUNTING

TSB Revision

POWER PLANT MOUNT

32-6

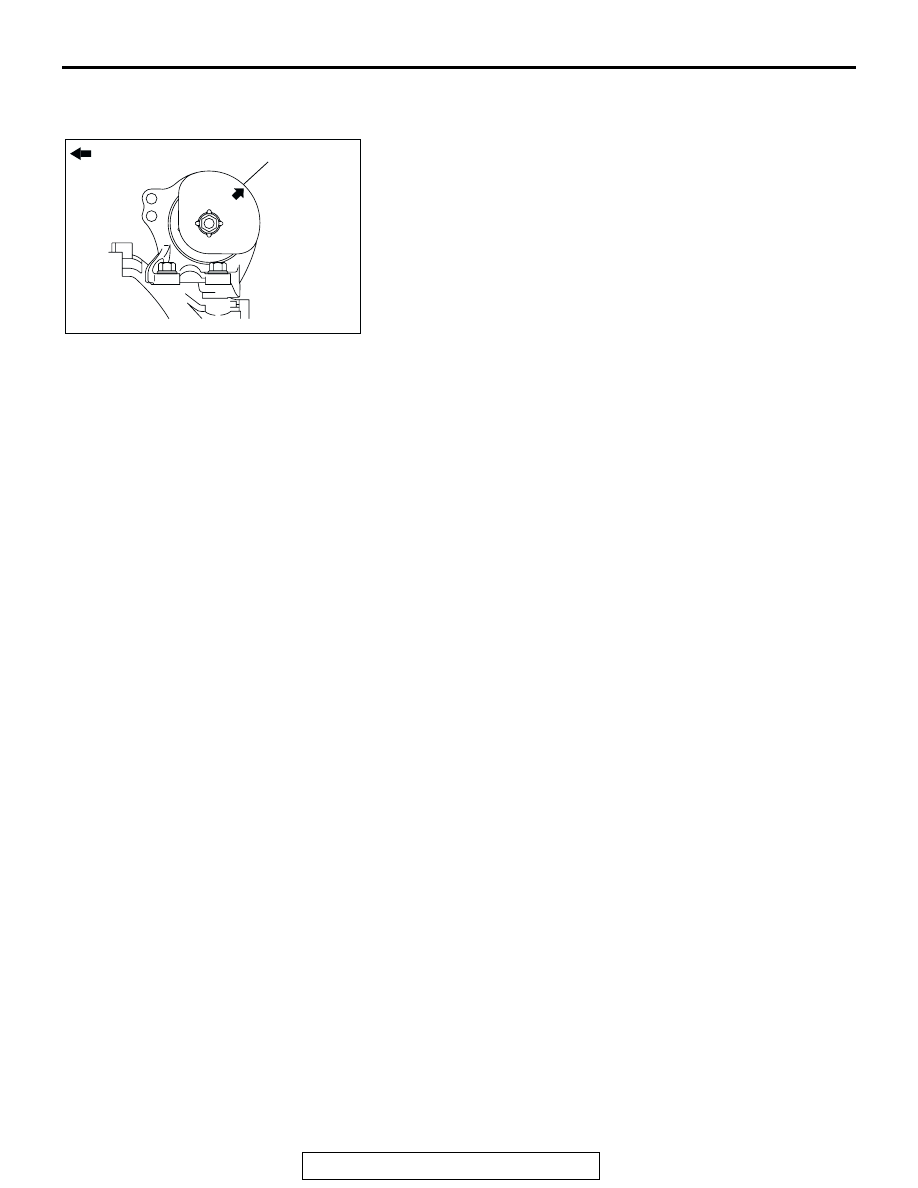

INSTALLATION SERVICE POINT

.

>>A<< TRANSAXLE MOUNTING STOPPER INSTALLATION
Install the transaxle mounting stopper so that its arrow points
upward.

AC205424

ENGINE SIDE

TRANSAXLE
MOUNTING
STOPPER

AC
