DOOR MIRROR

TSB Revision

EXTERIOR

51-41

STEP 13. Check the wiring harness between remote
controlled mirror (RH) connector E-01 (terminal 1) and
junction block connector C-211 (terminal 3).

NOTE: Also check intermediate connector C-12 for loose, cor-
roded or damaged terminals, or terminals pushed back in the
connector. If intermediate connector C-12 is damaged, repair or
replace the damaged component(s) as described in GROUP
00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between remote controlled mirror

(RH) connector E-01 (terminal 1) and junction block
connector C-211 (terminal 3) in good condition?
YES :
No action is necessary and testing is complete.
NO :  Repair the wiring harness as necessary. And then

check to see that the heater function of the door
mirror (RH) operates normally.

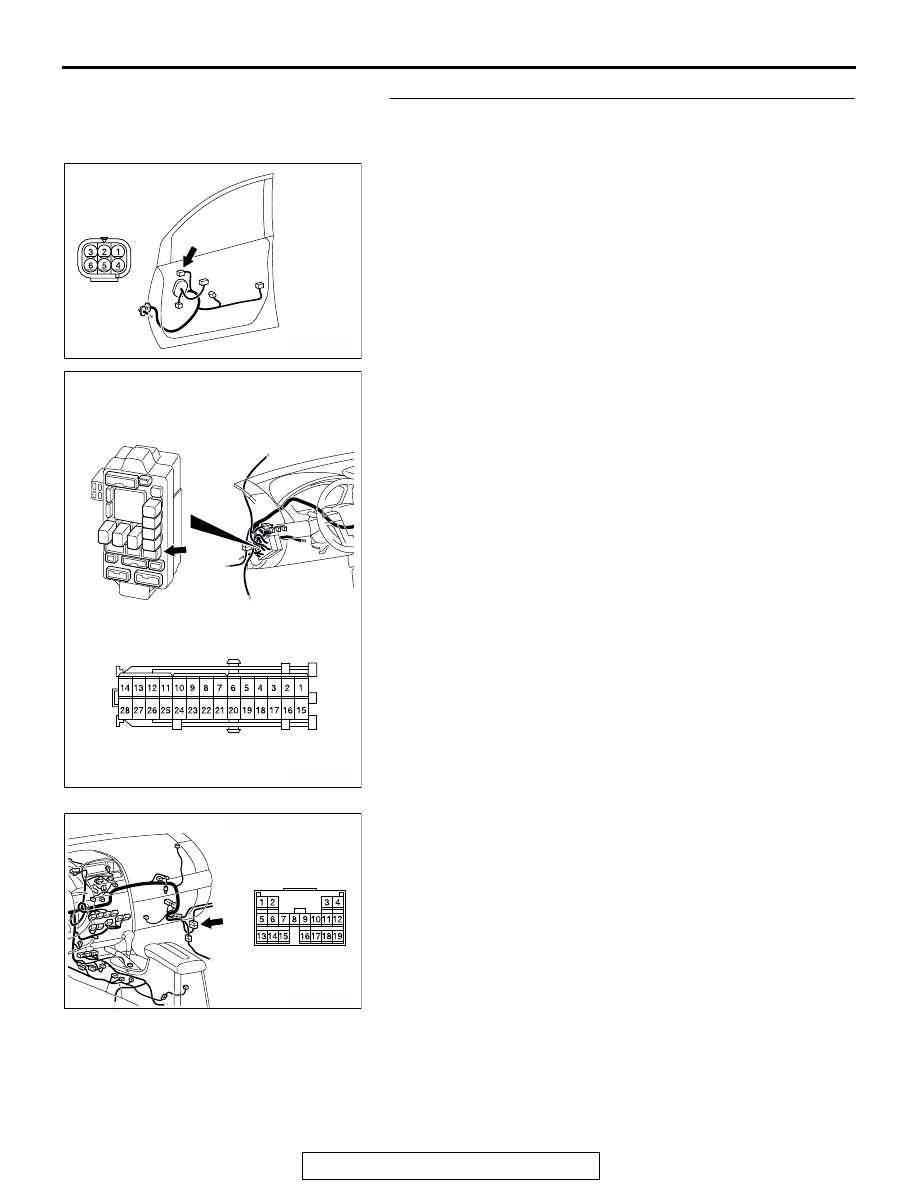

AC307124

E-01 (GR)

CONNECTOR: E-01

HARNESS SIDE

AC

AC307123

JUNCTION BLOCK (FRONT VIEW)

CONNECTOR: C-211

AB

AC307120

CONNECTOR: C-12

AB

DOOR MIRROR

TSB Revision

EXTERIOR

51-42

DOOR MIRROR

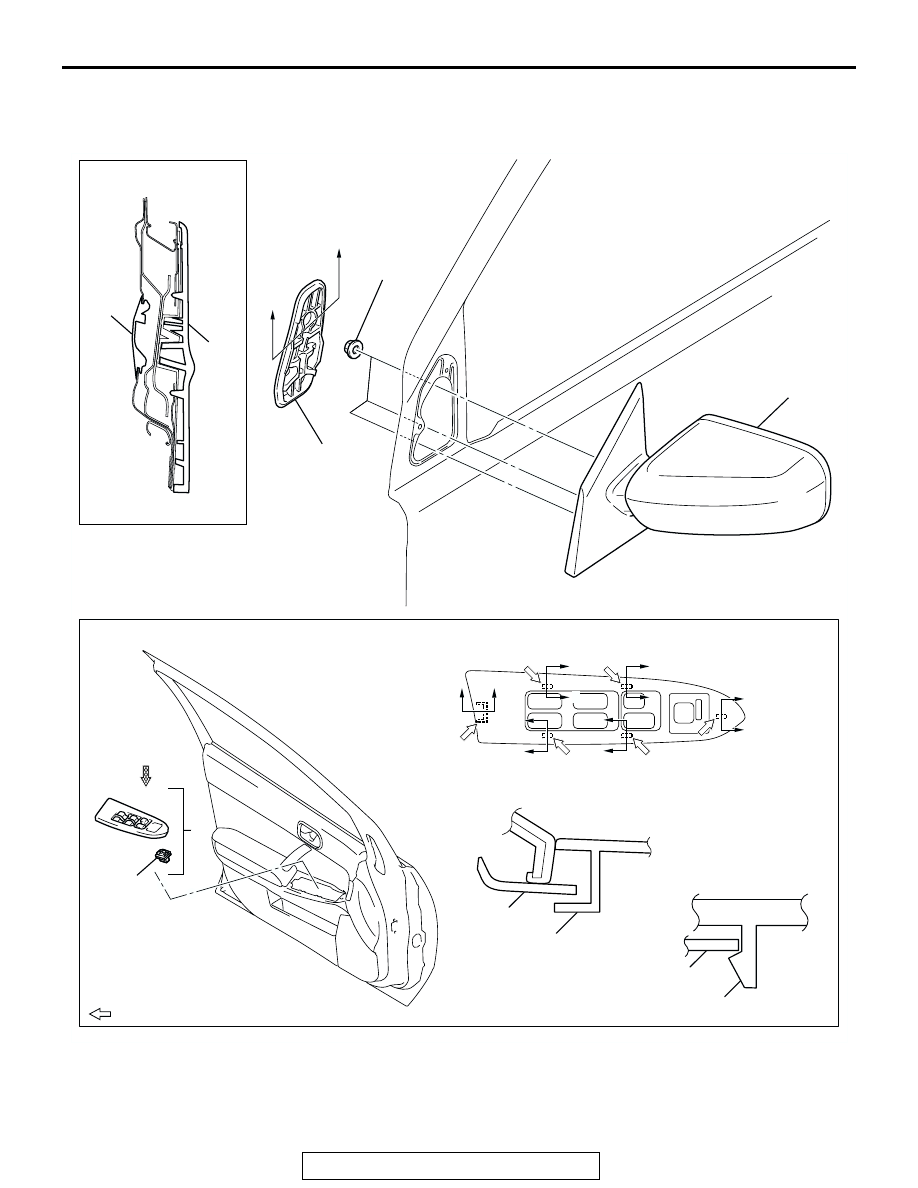

REMOVAL AND INSTALLATION

M1511006400331

AC307158

AC307265

AB

1

2

2

B

B

<FRONT DOOR>

3

NOTE
         : CLAW POSITIONS

A

5.0 ± 1.0 N·m

44 ± 9 in-lb

1

2

SECTION B – B

VIEW A

SECTION C – C

SECTION D – D

C

C

D

D

D

D

D

D

D

D

D

CLAW

CLAW

TRIM

TRIM

D

DOOR MIRROR

TSB Revision

EXTERIOR

51-43

REMOVAL SERVICE POINT

.

<<A>> POWER WINDOW SWITCH PANEL ASSEMBLY
REMOVAL

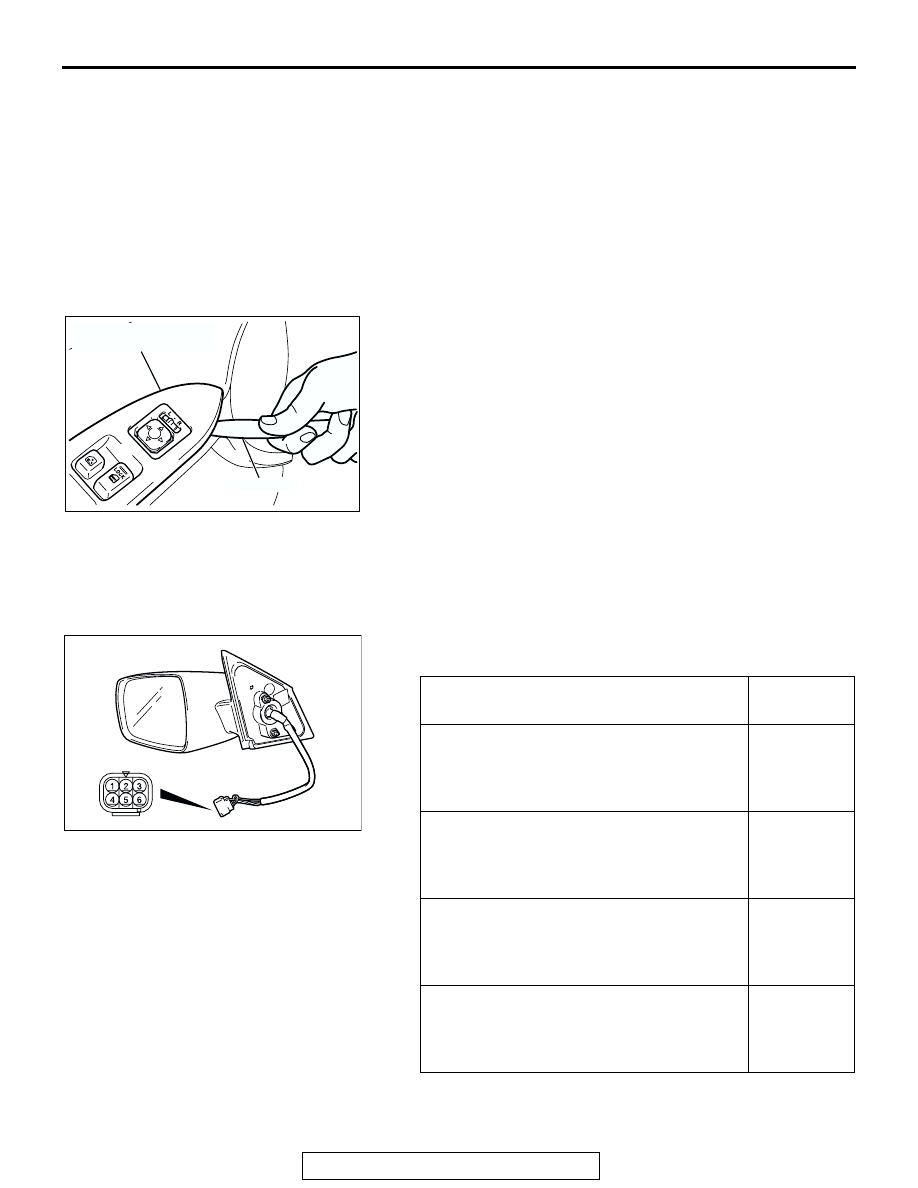

Insert special tool MB990874 as shown to remove the power
window switch panel assembly.

INSPECTION

M1511006500305

ELECTRIC REMOTE CONTROL MIRROR
OPERATION CHECK

Check that the mirror moves as described in the table when
each terminal is connected to the battery.

REMOTE CONTROLLED MIRROR
REMOVAL STEPS

FRONT DOOR TRIM (REFER TO
GROUP 52A, DOOR TRIMS

P.52A-13

).

1. DOOR MIRROR COVER
2. REMOTE CONTROLLED MIRROR

ASSEMBLY

REMOTE CONTROLLED MIRROR
SWITCH REMOVAL STEPS

<<A>>

3. POWER WINDOW SWITCH PANEL

ASSEMBLY

4. REMOTE CONTROLLED MIRROR

SWITCH

AC306721

MB990784

POWER WINDOW SWITCH
PANEL ASSEMBLY

AB

BATTERY CONNECTION

DIRECTION
OPERATION

• Connect terminal 6 to the negative

battery terminal.

• Connect terminal 4 to the positive battery

terminal.

Up

• Connect terminal 6 to the positive battery

terminal.

• Connect terminal 4 to the negative

battery terminal.

Down

• Connect terminal 6 to the negative

battery terminal.

• Connect terminal 5 to the positive battery

terminal.

Right

• Connect terminal 6 to the positive battery

terminal.

• Connect terminal 5 to the negative

battery terminal.

Left

AC307166

DOOR MIRROR

TSB Revision

EXTERIOR

51-44

DOOR MIRROR CONTROL SWITCH CONTINUITY
CHECK

SWITCH POSITION TESTER

CONNECTION

SPECIFIED
CONDITION

OFF

− 2, 9 − 3, 9 − 6,

− 10, 9 − 11, 1 − 2,

 1

− 3, 1 − 6, 1 − 10,

 1

− 11

Open circuit

Left side

OFF

− 6, 9 − 10, 9 − 11,

 1

− 6, 1 − 10, 1 − 11

Open circuit

Up

− 6, 9 − 11

Less than 2
ohms

Down

− 11, 6 − 9

Right

− 6, 9 − 10

Left

− 10, 6 − 9

Right side OFF

− 2, 9 − 3, 9 − 6,

− 2, 1 − 3, 1 − 6

Open circuit

Up

− 6, 3 − 9

Less than 2
ohms

Down

− 3, 6 − 9

Right

− 6, 2 − 9

Left

− 2, 6 − 9

AC005970

2

1

4

3

5

10

9

8

7

6

11
