DOOR MIRROR

TSB Revision

EXTERIOR

51-45

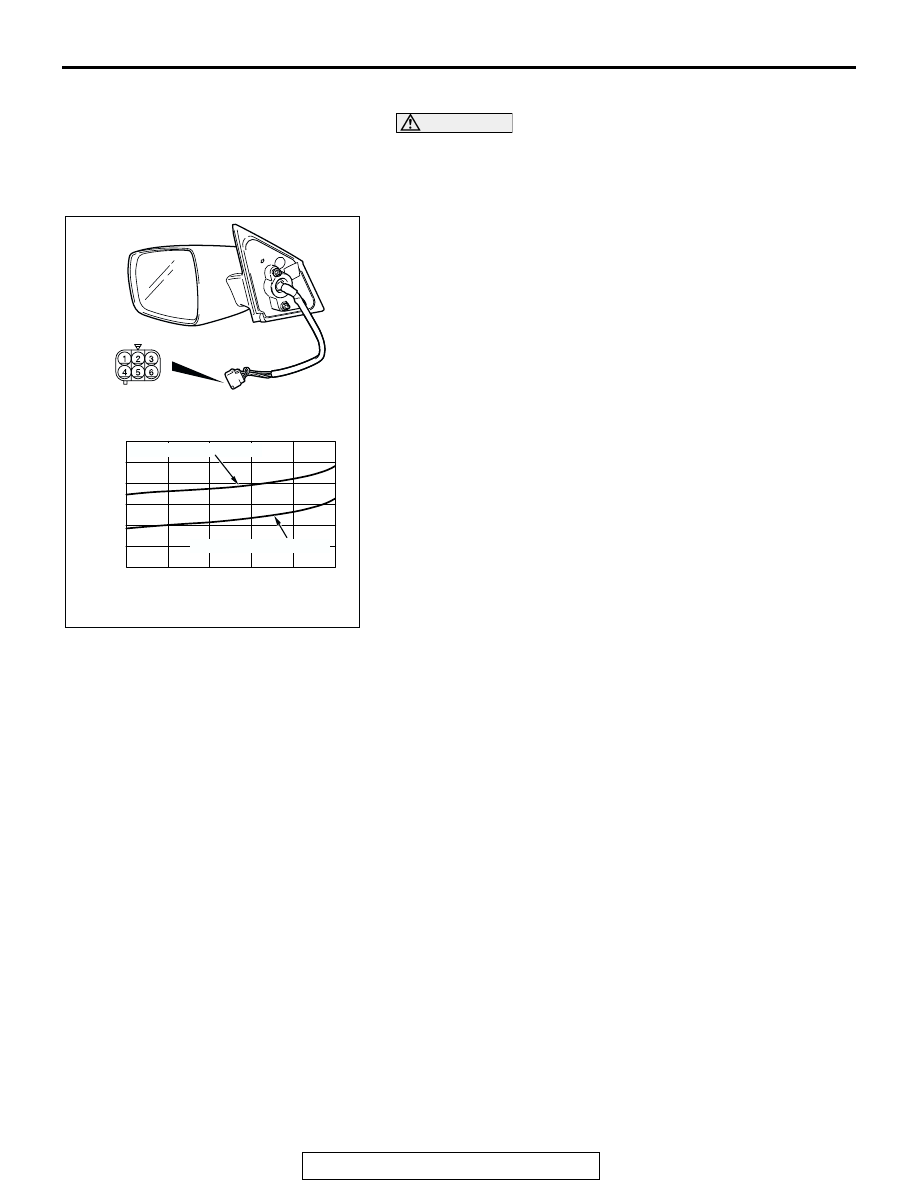

HEATED DOOR MIRROR CHECK

CAUTION

When relocating the car between locations with extremely
different temperatures (warm and cold), leave the car in
the location for a while to adapt to the temperature prior to
checking it.
Check to see that the resistance shown in the graph is almost
satisfied when measuring the resistance of terminal 1 and 3 of
the door mirror connectors.

AC307177

RESISTANCE

TEMPERATURE (˚C)

-10

0

10

20

30

40

(

Ω)

0

2

4

6

8

10

AB

12

UPPER LIMIT VALUE

LOWER LIMIT VALUE

SPECIFICATIONS

TSB Revision

EXTERIOR

51-46

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

M1511015300279

SERVICE SPECIFICATIONS

M1511000300358

ADHESIVE

M1511000500448

ITEM

SPECIFICATION

Front bumper
License plate screw

0.9

± 0.1 N⋅m (8 ± 1 in-lb)

Windshield wiper and washer
Wiper arm and blade assembly nut

25

± 3.0 N⋅m (18 ± 1 ft-lb)

Wiper link assembly bolt

4.9

± 0.5 N⋅m (43 ± 4 in-lb)

Wiper motor screw

7.5

± 1.4 N⋅m (66 ± 13 in-lb)

Washer tank bolt

12

± 1.0 N⋅m (102 ± 15 in-lb)

Door mirror
Remote controlled mirror assembly bolt

5.0

± 1.0 N⋅m (44 ± 9 in-lb)

ITEM

STANDARD VALUE

Windshield wiper blade (RH) park position

38

± 5 mm (1.50 ± 0.20 inches)

Windshield wiper blade (LH) park position

38

± 5 mm (1.50 ± 0.20 inches)

ITEM

SPECIFICATION

Door side protector moulding

Adhesive tape: Double-sided tape
8.0 mm (0.32 inch) width and 1.2 mm (0.05 inch)
thickness

Roof drip moulding

Adhesive tape: Double-sided tape
10.0 mm (0.39 inch) width and 1.52 mm (0.06 inch)
thickness

32-1

GROUP 32

POWER PLANT

MOUNT

CONTENTS

GENERAL DESCRIPTION. . . . . . . . .

32-2

SPECIAL TOOL . . . . . . . . . . . . . . . . .

32-3

ENGINE MOUNTING . . . . . . . . . . . . .

32-4

REMOVAL AND INSTALLATION . . . . . . . .

32-4

TRANSAXLE MOUNTING . . . . . . . . .

32-5

REMOVAL AND INSTALLATION . . . . . . . .

32-5

ENGINE ROLL STOPPER AND
CENTERMEMBER . . . . . . . . . . . . . . .

32-7

REMOVAL AND INSTALLATION  . . . . . . . .

32-7

CROSSMEMBER . . . . . . . . . . . . . . . .

32-10

REMOVAL AND INSTALLATION  . . . . . . . .

32-10

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

32-18

SPECIFICATIONS  . . . . . . . . . . . . . . .

32-19

FASTENER TIGHTENING
SPECIFICATIONS. . . . . . . . . . . . . . . . . . . .

32-19

GENERAL DESCRIPTION

TSB Revision

POWER PLANT MOUNT

32-2

GENERAL DESCRIPTION

M1321000100373

• The engine front mounting bracket is a

dome-shaped fluid-filled mount for improved
responsiveness during acceleration and more
stable vehicle performance against road distur-
bances.

• The liquid-filled transaxle mounting body side

bracket improves riding comfort by its refined
insulator.

• A roll stopper bracket in the upper area limits

engine rolling. Furthermore, large diameter insu-
lator reduces idle vibration.

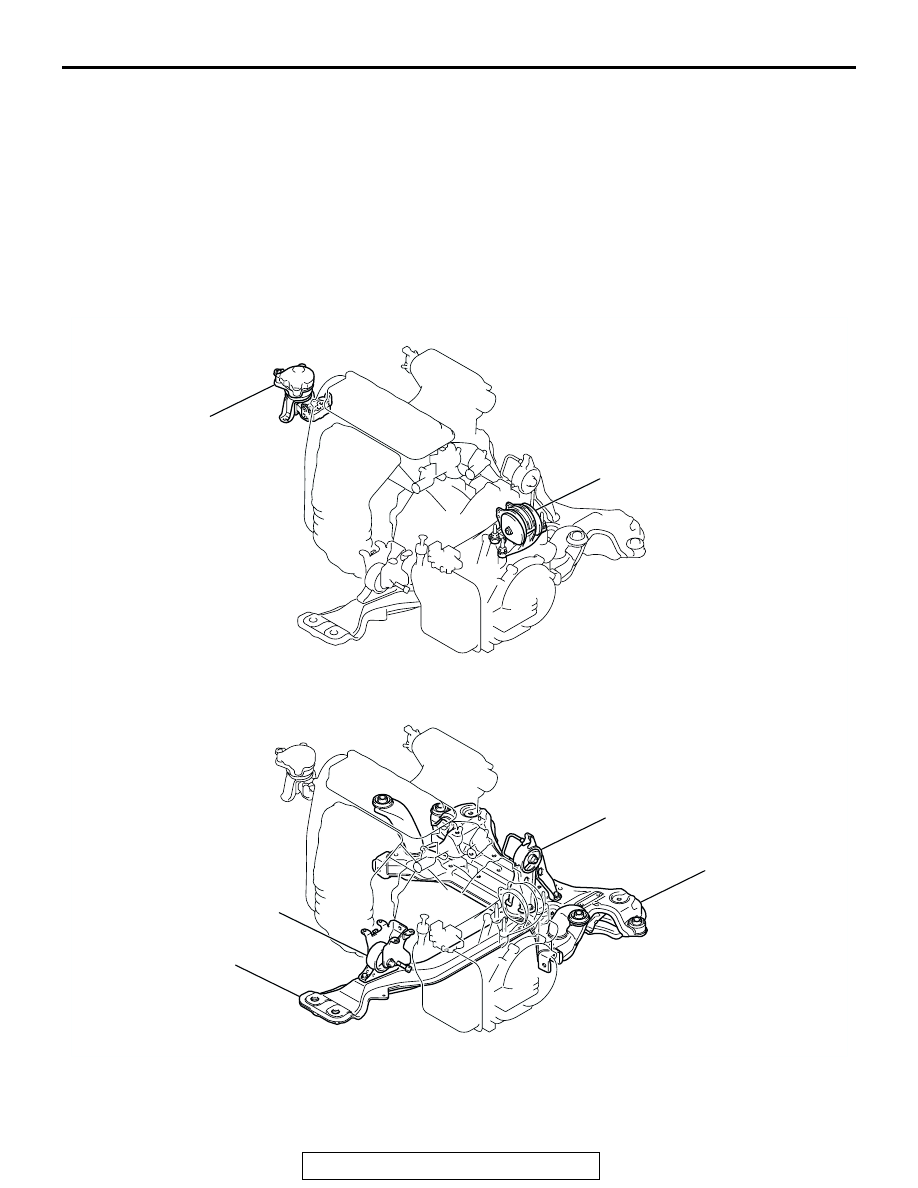

CONSTRUCTION DIAGRAM
<2.4L ENGINE>

AC305858

AC305857

AC305859

ENGINE FRONT
MOUNTING
BRACKET

TRANSAXLE MOUNTING
BODY SIDE BRACKET

ENGINE REAR
ROLL STOPPER
BRACKET

FRONT AXLE NO.1
CROSSMEMBER

ENGINE FRONT
ROLL STOPPER
BRACKET

CENTERMEMBER

AB
