Mitsubishi Galant (2004+). Manual - part 1373





DOOR MIRROR

TSB Revision

EXTERIOR

51-37

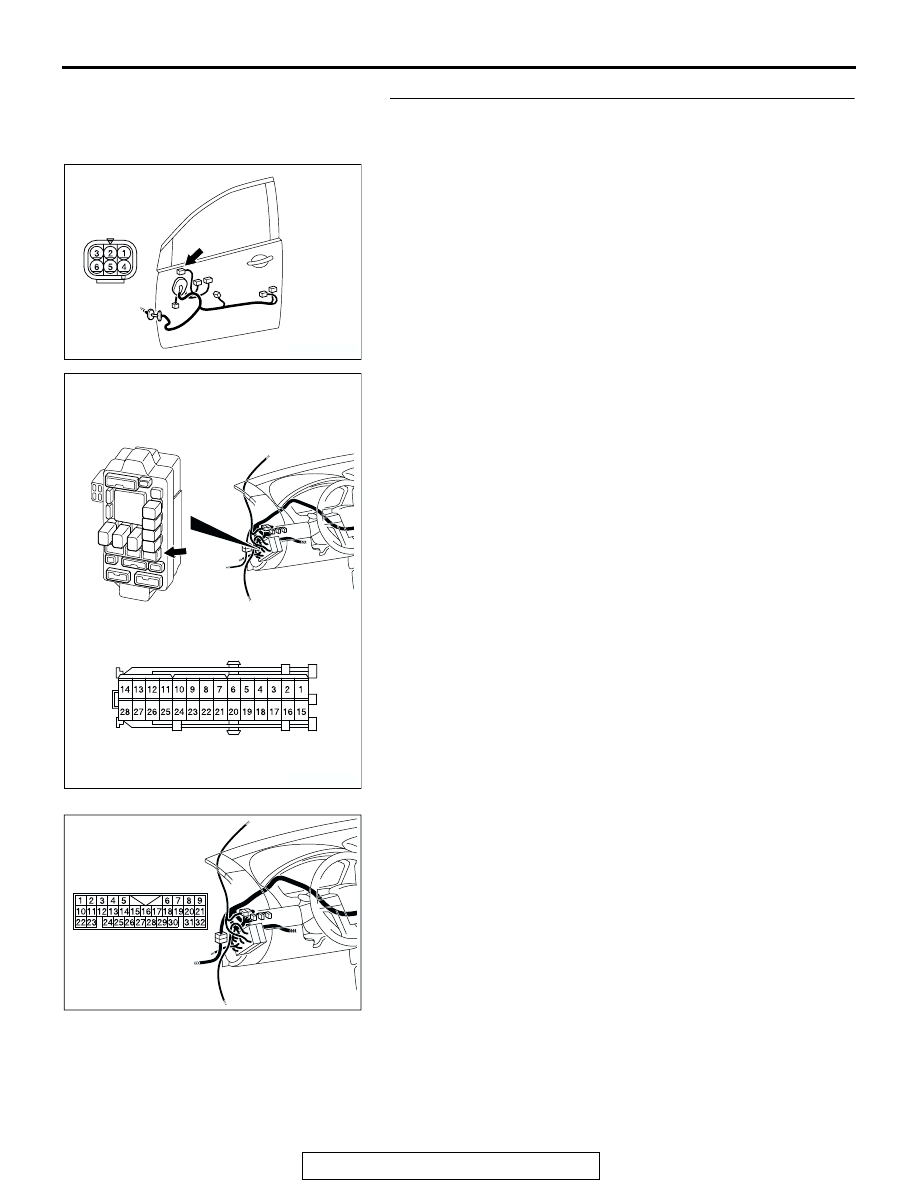

STEP 7. Check the wiring harness between remote
controlled mirror (LH) connector E-09 (terminal 1) and
junction block connector C-211 (terminal 3).

NOTE: Also check intermediate connector C-26 for loose, cor-
roded or damaged terminals, or terminals pushed back in the
connector. If intermediate connector C-26 is damaged, repair or
replace the damaged component(s) as described in GROUP
00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between remote controlled mirror

(LH) connector E-09 (terminal 1) and junction block
connector C-211 (terminal 3) in good condition?
YES :
No action is necessary and testing is complete.
NO :  Repair the wiring harness as necessary. And then

check to see that the heater function of the door
mirror (LH) operates normally.

AC307125

E-09 (GR)

CONNECTOR: E-09

HARNESS SIDE

AC

AC307123

JUNCTION BLOCK (FRONT VIEW)

CONNECTOR: C-211

AB

AC307314

CONNECTOR: C-26

AB

DOOR MIRROR

TSB Revision

EXTERIOR

51-38

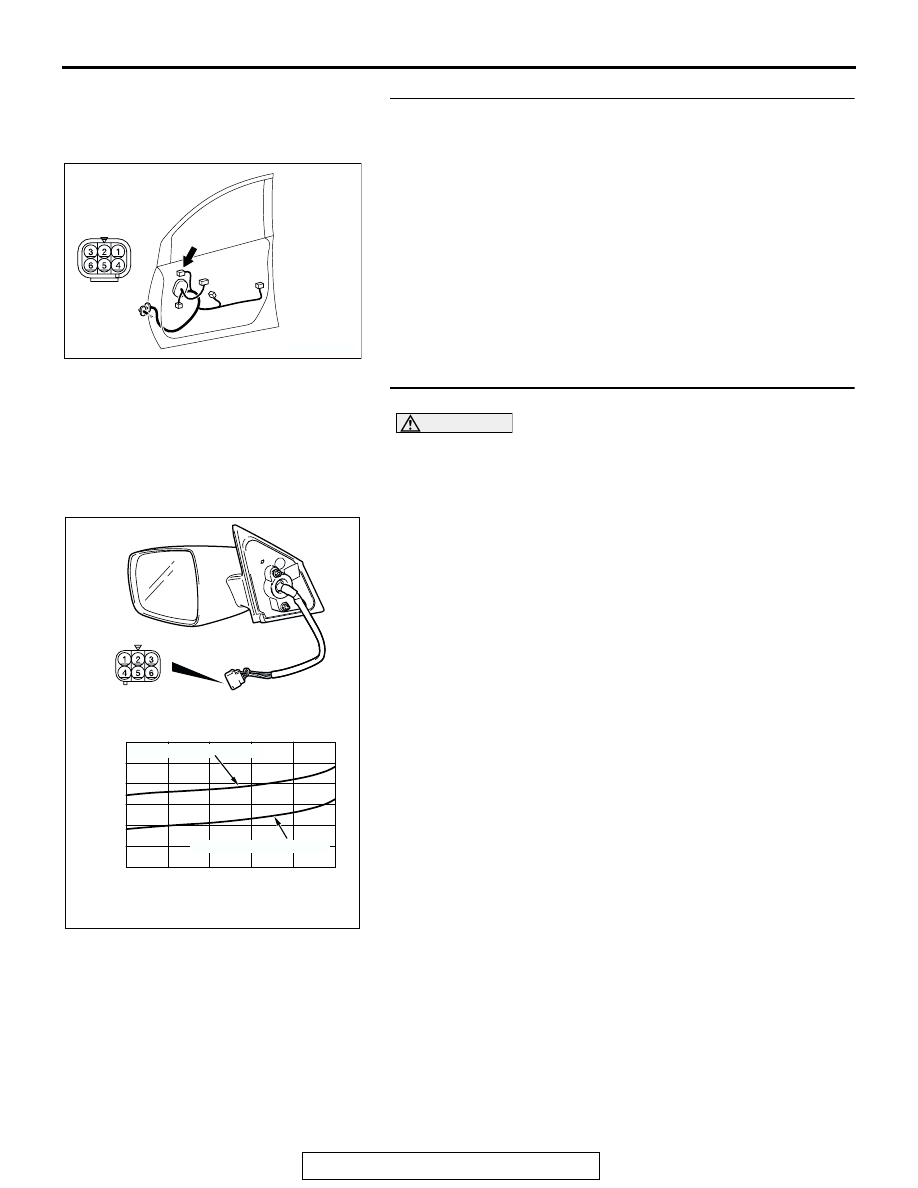

STEP 8. Check the remote controlled mirror (RH)
connector E-01 for loose, corroded or damaged terminals,
or terminals pushed back in the connector.

Q: Is the remote controlled mirror (RH) connector E-01 in

good condition?
YES :
Go to Step 9.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. And then check to see that the heater

function of the door mirror (RH) operates normally.

STEP 9. Check the heater function of the door mirror (RH).

CAUTION

When relocating the car between locations of extremely
different temperatures (warm and cold), leave the car in
the location for a while to adapt to the temperature prior to
checking it.
Check to see that the resistance shown in the graph is almost
satisfied when measuring the resistance between terminal 1
and 3 of the door mirror (RH) connector E-01.
Q:  Is the resistance normal?

YES : Go to Step 10.
NO :  Replace the door mirror (RH). And then check to see

that the heater function of the door mirror (RH)
operates normally.

AC307124

E-01 (GR)

CONNECTOR: E-01

HARNESS SIDE

AC

AC307177

RESISTANCE

TEMPERATURE (˚C)

-10

0

10

20

30

40

(

Ω)

0

2

4

6

8

10

AB

12

UPPER LIMIT VALUE

LOWER LIMIT VALUE

DOOR MIRROR

TSB Revision

EXTERIOR

51-39

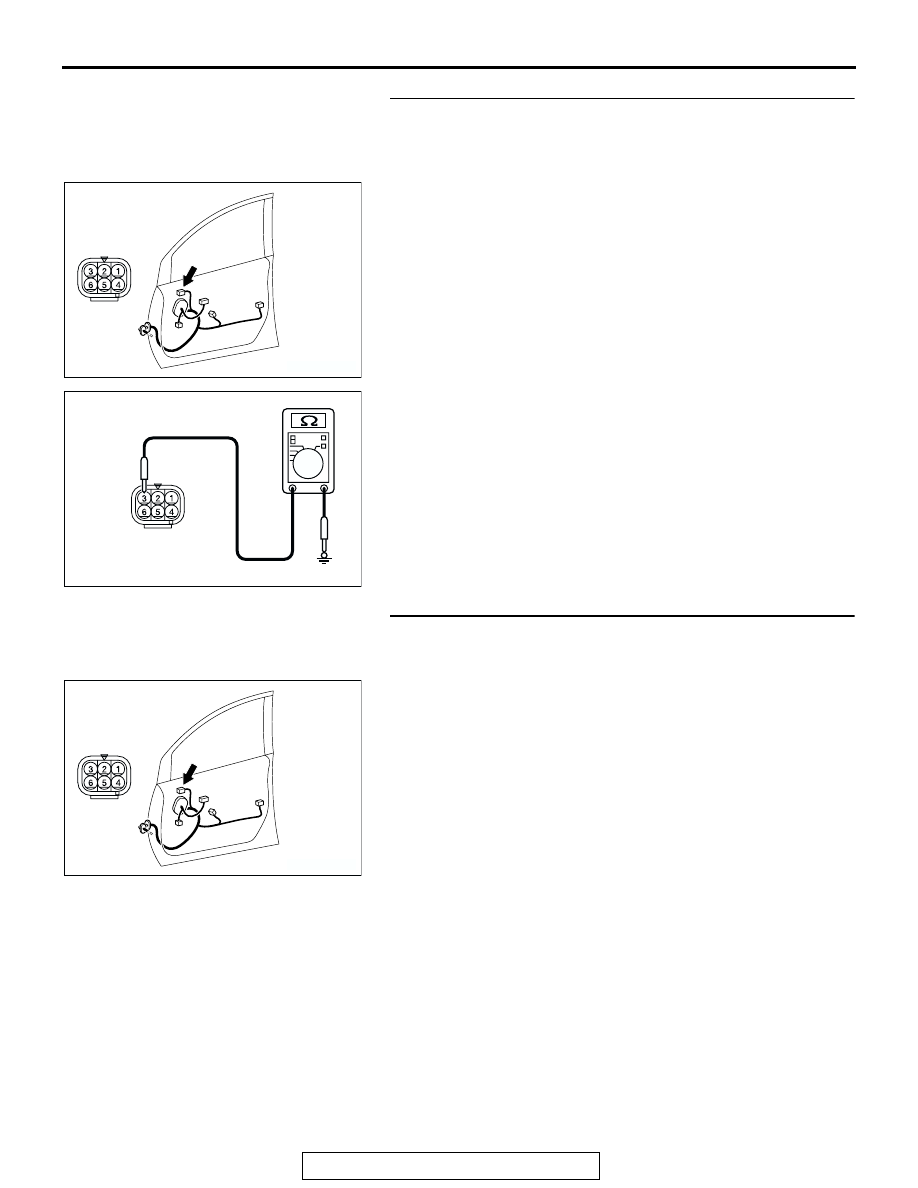

STEP 10. Check the ground circuit between remote
controlled mirror (RH) connector E-01 and ground for open
circuit. Measure the resistance at remote controlled mirror
(RH) connector E-01.

(1) Disconnect remote controlled mirror (RH) connector E-01,

and check at the wiring harness side connector.

(2) Measure the resistance value between terminal 3 and

ground.

• The resistance should equal 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 12.
NO :  Go to Step 11.

STEP 11. Check the wiring harness between remote
controlled mirror (RH) connector E-01 (terminal 3) and

ground.

AC307124

E-01 (GR)

CONNECTOR: E-01

HARNESS SIDE

AC

AC307127

CONNECTOR: E-09
(HARNESS SIDE)

AB

AC307124

E-01 (GR)

CONNECTOR: E-01

HARNESS SIDE

AC

DOOR MIRROR

TSB Revision

EXTERIOR

51-40

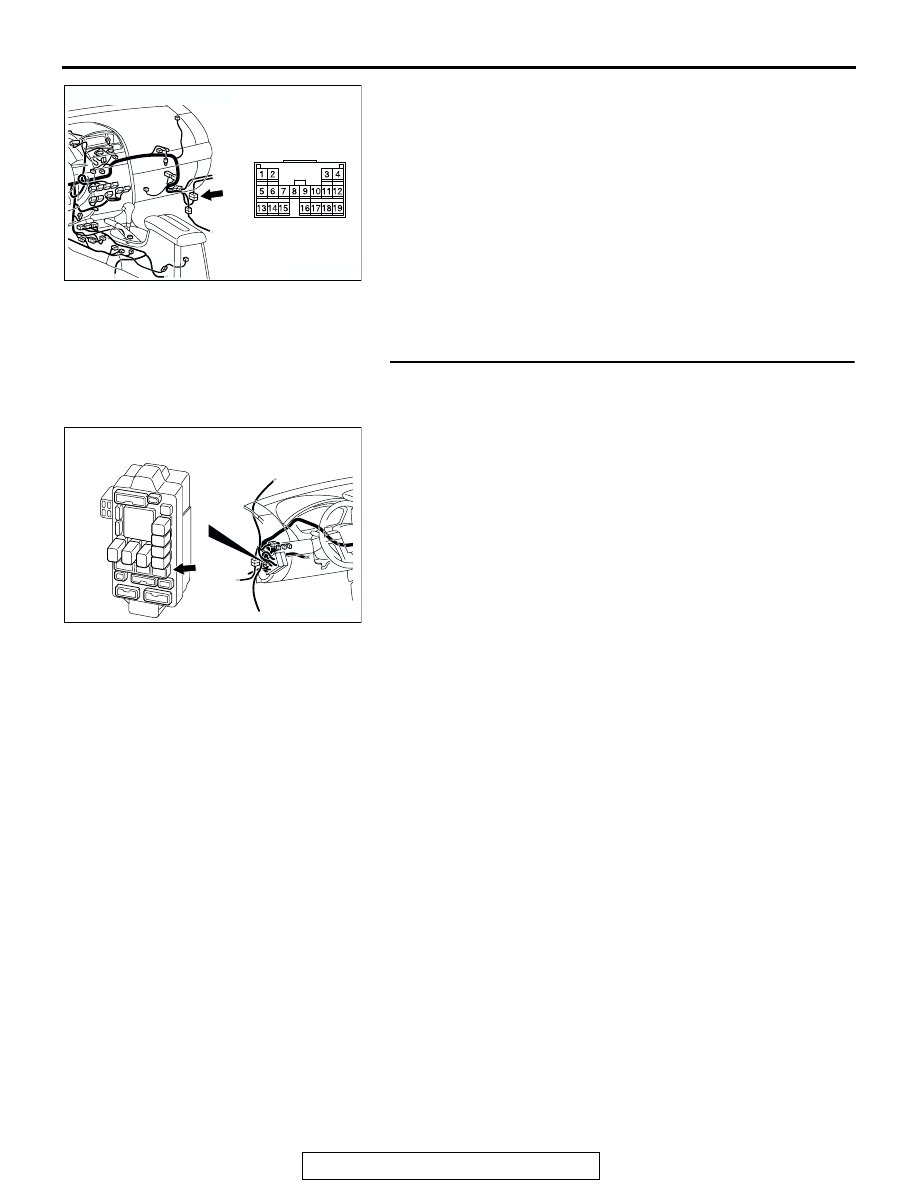

NOTE: Also check intermediate connector C-12 for loose, cor-
roded or damaged terminals, or terminals pushed back in the
connector. If intermediate connector C-12 is damaged, repair or
replace the damaged component(s) as described in GROUP
00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between remote controlled mirror

(RH) connector E-01 (terminal 3) and ground in good
condition?
YES :
No action is necessary and testing is complete.
NO :  The wiring harness may be damaged. Repair the

wiring harness as necessary. And then check to see
that the heater function of the door mirror (RH)
operates normally.

STEP 12. Check junction block C-211 for loose, corroded
damaged terminal, or terminals pushed back in the
connector.

Q:  Is junction block C-211 in good condition?

YES : Go to Step 13.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. And then check to see that the heater

function of the door mirror (RH) operates normally.

AC307120

CONNECTOR: C-12

AB

AC307121

JUNCTION BLOCK (FRONT VIEW)

CONNECTOR: C-211

AB
