ON-VEHICLE SERVICE

TSB Revision

ENGINE MECHANICAL <2.4L ENGINE>

11A-17

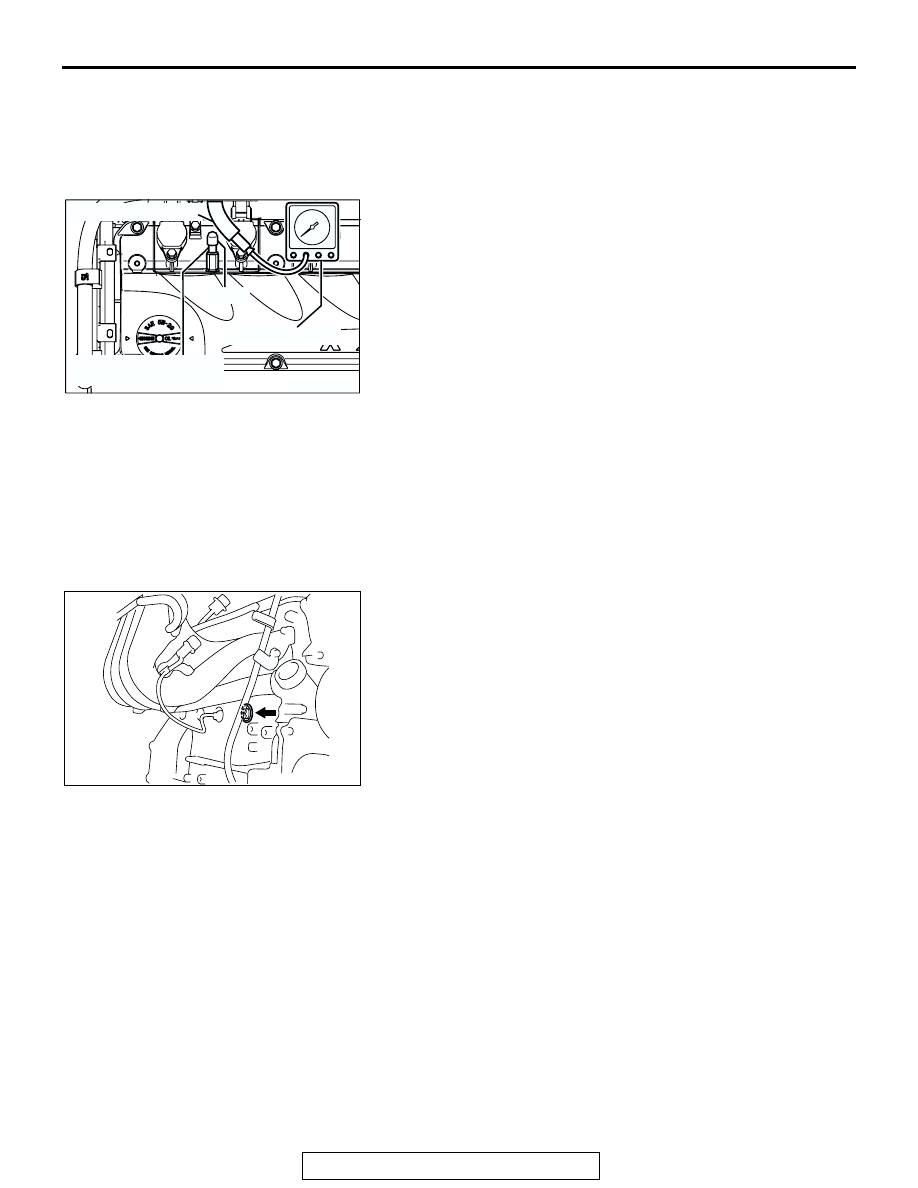

MANIFOLD VACUUM CHECK

M1111002700462

1. Start the engine and allow it to warm up until the

temperature of the engine coolant reaches 80

− 95°C (176 −

203

°F).

2. Connect an engine tachometer.
3. Disconnect the ventilation hose from the positive crankcase

ventilation (PCV) valve , and connect a vacuum gauge to the
ventilation hose.

4. Plug the PCV valve.
5. Start the engine and check that idle speed is within

specification. Then check the vacuum gauge reading.

Idle speed: 650

± 100 r/min

Minimum limit: 60 kPa (18 in Hg)

CYLINDER BLOCK HEATER UNIT CHECK

M1111004800023

1. Remove the front number 1 exhaust pipe. (Refer to GROUP

15, Exhaust Pipe and Main Muffler

P.15-21

).

2. Remove the front number 2 exhaust pipe. (Refer to GROUP

15, Exhaust Pipe and Main Muffler

P.15-21

).

3. Remove the intake manifold stay. (Refer to GROUP 15,

Intake Manifold

P.15-8

).

4. Disconnect cylinder block heater unit connector, and

measure the resistance at cylinder block heater unit.

Standard value: 28

− 40 Ω

5. If not within the standard value, replace the cylinder block

heater unit. (Refer to

P.11A-62

).

AK301330AB

VACUUM GAUGE

POSITIVE CRANKCASE
VENTILATION VALVE

PLUG

VENTILATION HOSE

AC307039AB

ENGINE ASSEMBLY

TSB Revision

ENGINE MECHANICAL <2.4L ENGINE>

11A-18

ENGINE ASSEMBLY

REMOVAL AND INSTALLATION

M1112001000849

CAUTION

*: indicates parts which should be temporarily tightened, and then fully tightened with the engine
weight applied on the vehicle body.

Pre-removal Operation
• Side Under Cover Removal (Refer to GROUP 51, Under

Cover

P.51-11

).

• Fuel Line Pressure Reduction [Refer to GROUP 13A,

On-vehicle Service

− Fuel Pump Connector Disconnec-

tion (How to Reduce Pressurized Fuel Lines)

P.13A-1107

].

• Engine Oil Draining (Refer to GROUP 12, On-vehicle Ser-

vice

− Engine Oil Replacement

P.12-4

).

• Engine Coolant Draining (Refer to GROUP 14, On-vehicle

Service

− Engine Coolant Replacement

P.14-7

).

• Transmission Fluid Draining (Refer to GROUP 23A,

On-vehicle Service

− Transmission Fluid Change

P.23A-370

).

• Hood Removal (Refer to GROUP 42, Hood

P.42-8

).

• Powertrain Control Module (PCM) Removal (Refer to

GROUP 13A, Powertrain Control Module (PCM)

P.13A-1121

).

• Air Cleaner Removal (Refer to GROUP 15, Air Cleaner

P.15-4

).

• Battery and Battery Tray Removal

• Radiator Assembly Removal (Refer to GROUP 14, Radia-

tor

P.14-11

).

• Front No.1 Exhaust Pipe Removal (Refer to GROUP 15,

Exhaust Pipe and Main Muffler

P.15-21

).

• Front No.2 Exhaust Pipe Removal (Refer to GROUP 15,

Exhaust Pipe and Main Muffler

P.15-21

).

Post-installation Operation
• Front No.2 Exhaust Pipe Installation (Refer to GROUP 15,

Exhaust Pipe and Main Muffler

P.15-21

).

• Front No.1 Exhaust Pipe Installation (Refer to GROUP 15,

Exhaust Pipe and Main Muffler

P.15-21

).

• Radiator Assembly Installation (Refer to GROUP 14,

Radiator

P.14-11

).

• Battery and Battery Tray Installation

• Air Cleaner Installation (Refer to GROUP 15,

Air Cleaner

P.15-4

 ).

• Powertrain Control Module (PCM) Installation (Refer to

GROUP 13A, Powertrain Control Module (PCM)

P.13A-1121

).

• Hood Installation (Refer to GROUP 42, Hood

P.42-8

).

• Transmission Fluid Refilling (Refer to GROUP 23A,

On-vehicle Service

− Transmission Fluid Change

P.23A-370

).

• Engine Coolant Refilling (Refer to GROUP 14, On-vehicle

Service

− Engine Coolant Replacement

P.14-7

).

• Engine Oil Refilling (Refer to GROUP 12, On-vehicle Ser-

vice

− Engine Oil Replacement

P.12-4

).

• Fuel Leak Check

• Drive Belt Tension Check (Refer to

P.11A-8

).

• Side Under Cover Installation (Refer to GROUP 51,

Under Cover

P.51-11

).

• Front Wheel Alignment Check and Adjustment (Refer to

GROUP 33A, On-vehicle Service

− Front Wheel Align-

ment Check and Adjustment

P.33-6

).

ENGINE ASSEMBLY

TSB Revision

ENGINE MECHANICAL <2.4L ENGINE>

11A-19

AC306532

1

3

2

4

5.0 ± 1.0 N·m
44 ± 9 in-lb

9.0 ± 2.0 N·m
80 ± 17 in-lb

5.0 ± 1.0 N·m
44 ± 9 in-lb

9.0 ± 2.0 N·m
80 ± 17 in-lb

9.0 ± 2.0 N·m
80 ± 17 in-lb

AB

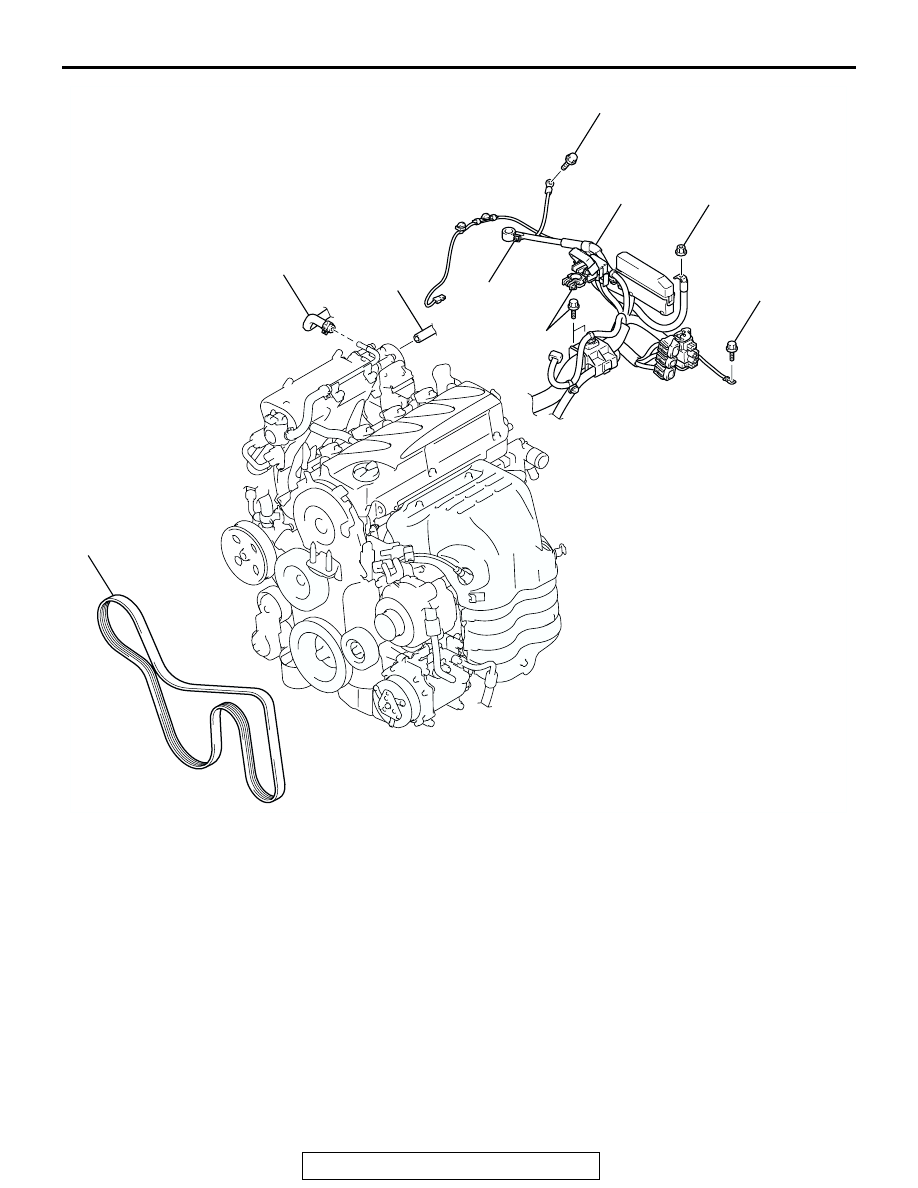

REMOVAL STEPS

1.

CONTROL WIRING HARNESS
CONNECTION

2.

EVAPORATIVE EMISSION
VACUUM HOSE CONNECTION

>>E<<

3.

BRAKE BOOSTER VACUUM
HOSE CONNECTION

<<A>>

4.

DRIVE BELT

REMOVAL STEPS (Continued)

ENGINE ASSEMBLY

TSB Revision

ENGINE MECHANICAL <2.4L ENGINE>

11A-20

Required Special Tools:

• MB991454: Engine Hanger Balancer

• MB991527: Hanger

• MB991895: Engine Hanger

• MB991928: Engine Hanger

AC306533AB

(ENGINE OIL)

13

12

10

9

8

6

5

11

24 ± 4 N·m
18 ± 3 ft-lb

44 ± 10 N·m
33 ± 7 ft-lb

83 ± 12 N·m*
61 ± 9 ft-lb*

58 ± 7 N·m*
43 ± 5 ft-lb*

N

23 ± 3 N·m
17 ± 2 ft-lb

23 ± 3 N·m
17 ± 2 ft-lb

7

58 ± 7 N·m*
43 ± 5 ft-lb*

12 ± 2 N·m
102 ± 22 in-lb

9.0 ± 2.0 N·m
80 ± 17 in-lb

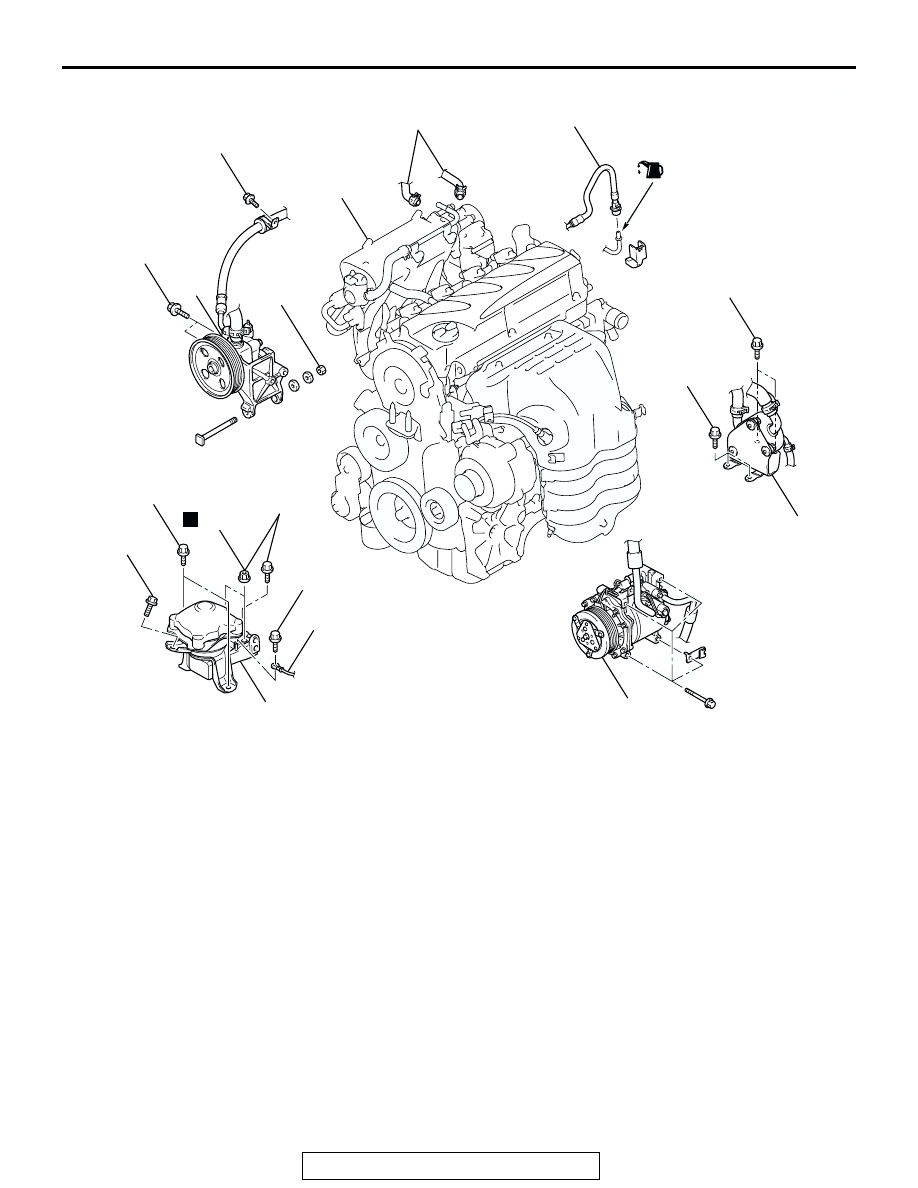

REMOVAL STEPS

<<B>>

5.

POWER STEERING OIL PUMP
AND BRACKET ASSEMBLY

<<C>>

6.

A/C COMPRESSOR AND
CLUTCH ASSEMBLY

<<D>>

7.

ATF WARMER (TRANSMISSION
FLUID COOLER) AND BRACKET
ASSEMBLY

8.

HEATER WATER HOSES
CONNECTION

<<E>>

>>D<<

9.

FUEL HIGH-PRESSURE HOSE
CONNECTION

<<F>>

>>C<<

•

TRANSAXLE ASSEMBLY

10. GROUNDING CABLE

CONNECTION

<<G>>

•

POWER STEERING OIL
RESERVOIR

11. SELF LOCKING NUTS

<<H>>

>>B<<

12. ENGINE FRONT MOUNTING

BRACKET

<<I>>

>>A<<

13. ENGINE ASSEMBLY

REMOVAL STEPS (Continued)
