POWERTRAIN CONTROL MODULE (PCM)

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-1121

POWERTRAIN CONTROL MODULE (PCM)

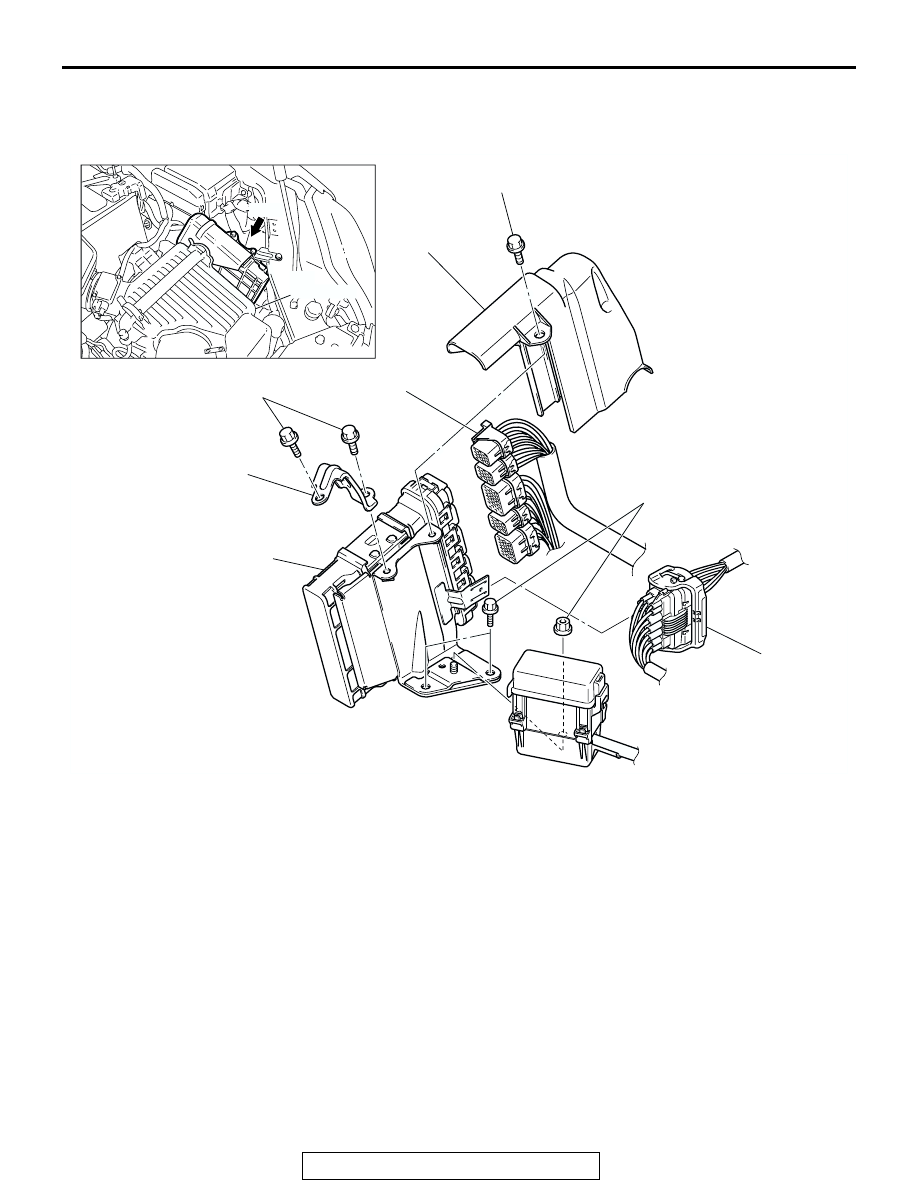

REMOVAL AND INSTALLATION

M1131033400232

AC305021

AC307747

AC306615

AB

5.0 ± 1.0 N·m
44 ± 9 in-lb

5.0 ± 1.0 N·m
44 ± 9 in-lb

4

5

1

2

3

12 ± 2 N·m
102 ± 22 in-lb

AIR
CLEANER

PCM

REMOVAL STEPS

1.

PCM CONNECTOR COVER

2.

CONTROL WIRING HARNESS
CONNECTOR CLAMP

3.

PCM BRACKET

4.

PCM CONNECTORS

5.

PCM

REMOVAL STEPS (Continued)

SPECIFICATIONS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-1122

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

M1131011600528

GENERAL SPECIFICATIONS

M1131000200612

ITEM

SPECIFICATION

Fuel rail bolt

11

± 1 N⋅m (98 ± 8 in-lb)

Fuel high-pressure hose bolt

5.0

± 1.0 N⋅m (44 ± 9 in-lb)

Hole cover screw

1.5

± 0.5 N⋅m (14 ± 4 in-lb)

PCM bracket bolt

5.0

± 1.0 N⋅m (44 ± 9 in-lb)

PCM connector cover bolt

5.0

± 1.0 N⋅m (44 ± 9 in-lb)

PCM mounting bolt

12

± 2 N⋅m (102 ± 22 in-lb)

Relay box mounting nut

12

± 2 N⋅m (102 ± 22 in-lb)

Rocker cover bracket bolt

11

± 1 N⋅m (98 ± 8 in-lb)

Throttle body mounting bolt

28

± 4 N⋅m (21 ± 3 ft-lb)

ITEM

SPECIFICATION

Throttle body

Throttle bore mm (in.)

60 (2.4)

Throttle position sensor

Hall element type

Throttle actuator control motor

DC motor type, having brushes

Powertrain control
module (PCM)

Identification model No.

E6T41675 <Federal>
E6T41676 <California>

Sensors

Mass airflow sensor

Heat sensitizing type

Barometric pressure sensor

Semiconductor type

Intake air temperature sensor

Thermistor type

Engine coolant temperature sensor

Thermistor type

Heated oxygen sensor

Zirconia type

Accelerator pedal position sensor

Hall element type

Transmission range switch

Contact switch type

Camshaft position sensor

Magneto resistance element type

Crankshaft position sensor

Magneto resistance element type

Knock sensor

Piezoelectric type

Power steering pressure switch

Contact switch type

Manifold absolute pressure sensor

Semiconductor type

Engine oil pressure switch

Contact switch type

Actuators

Multiport fuel injection (MFI) relay

Contact switch type

Fuel pump relay

Contact switch type

Throttle actuator control motor relay

Contact switch type

Injector type and number

Electromagnetic type, 4

Injector identification mark

IDH322S

Engine oil control valve

Duty cycle type solenoid valve

Exhaust gas recirculation (EGR) valve

Stepper motor type

Evaporative emission purge solenoid

Duty cycle type solenoid valve

SPECIFICATIONS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-1123

SERVICE SPECIFICATIONS

M1131000300738

SEALANT AND ADHESIVE

M1131000500464

ITEM

STANDARD VALUE

Fuel pressure kPa (in.Hg)

Approximately 324 (95.7) at curb
idle

Intake air temperature sensor resistance k

Ω

−20°C (−4°F)

13

− 17

0

°C (32°F)

5.3

− 6.7

20

°C (86°F)

2.3

− 3.0

40

°C (104°F)

1.0

− 1.5

60

°C (140°F)

0.56

− 0.76

80

°C (176°F)

0.30

− 0.45

Engine coolant temperature sensor
resistance k

Ω

−20°C (−4°F)

14

− 17

0

°C (32°F)

5.1

− 6.5

20

°C (86°F)

2.1

− 2.7

40

°C (104°F)

0.9

− 1.3

60

°C (140°F)

0.48

− 0.68

80

°C (176°F)

0.26

− 0.36

Heated oxygen sensor output voltage V

0.6

− 1.0

Heated oxygen sensor heater resistance

Ω

<Front>

4.5

− 8.0 [at 20°C (68°F)]

<Rear>

11

− 18 [at 20°C (68°F)]

Injector coil resistance

Ω

10.5

− 13.5 [at 20°C (68°F)]

Throttle actuator control motor coil resistance

Ω

0.3

− 80 [at 20°C (68°F)]

Engine oil control valve coil resistance

Ω

6.9

− 7.9 [at 20°C (68°F)]

ITEM

SPECIFIED SEALANT

Engine coolant temperature sensor threaded portion 3M

 AAD part number 8731or equivalent
