INJECTOR

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-1117

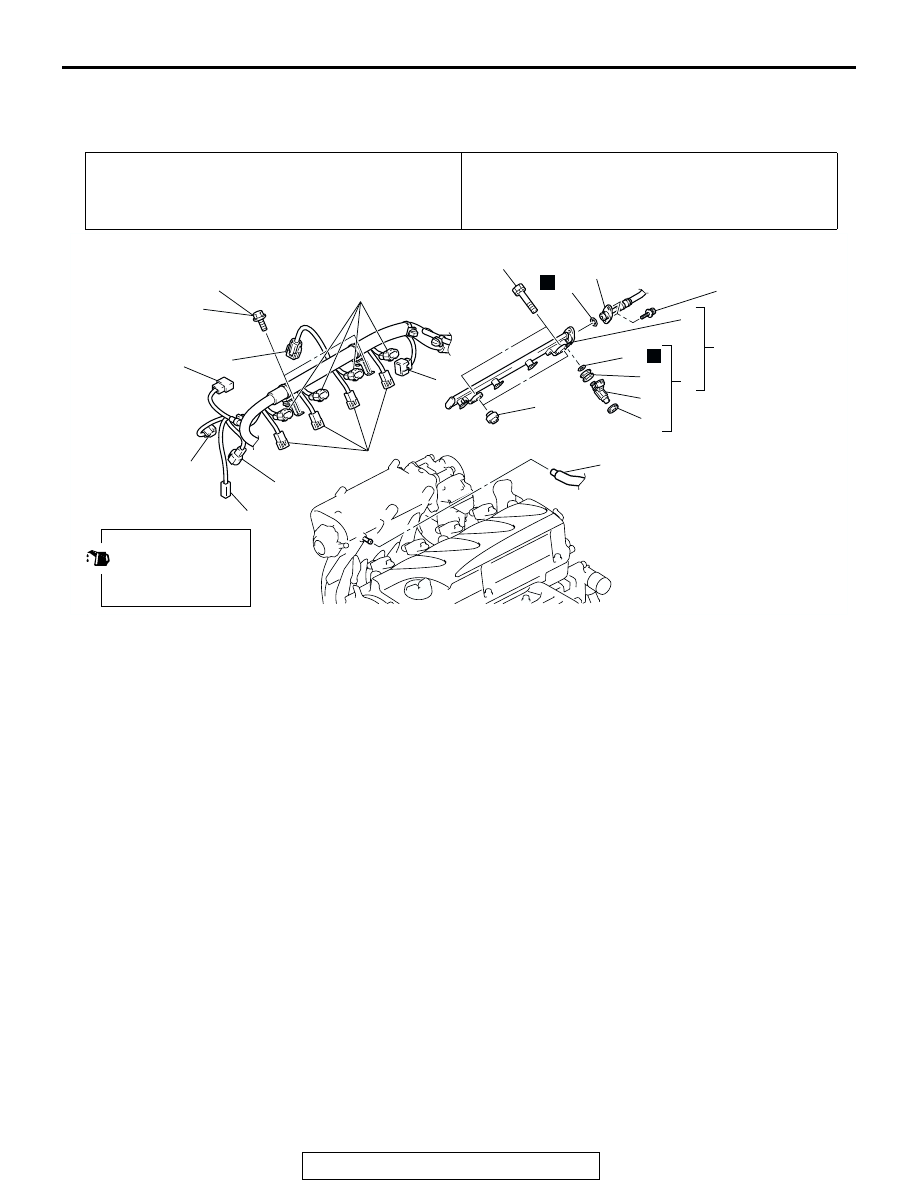

INJECTOR

REMOVAL AND INSTALLATION

M1131007100757

Pre-removal Operation
• Fuel Discharge Prevention (Refer to

P.13A-1107

).

• Air Cleaner Cover and Air Intake Hose Removal (Refer to

GROUP 15, Air Cleaner

P.15-4

).

Post-installation Operation
• Air Cleaner Cover and Air Intake Hose Installation (Refer

to GROUP 15, Air Cleaner

P.15-4

).

• Fuel Leakage Inspection.

AC308302

3

2

4

5

6

7

8

9

10

15

16

13

14

17

20
18

19

12

11

N

N

5.0 ± 1.0 N·m
44 ± 9 in-lb

11 ± 1 N·m
98 ± 8 in-lb

11 ± 1 N·m
98 ± 8 in-lb

AB

1

APPLY ENGINE OIL
TO ALL MOVING
PARTS BEFORE
INSTALLATION.

REMOVAL STEPS

1.

PCV HOSE CONNECTION

2.

IGNITION COIL CONNECTORS

3.

INJECTOR CONNECTORS

4.

EGR VALVE CONNECTOR

5.

ROCKER COVER BRACKET
INSTALLATION BOLTS

6.

THROTTLE POSITION SENSOR
CONNECTOR

7.

MANIFOLD ABSOLUTE
PRESSURE SENSOR

8.

EVAPORATIVE EMISSION
PURGE SOLENOID
CONNECTOR

9.

KNOCK SENSOR CONNECTOR

10. POWER STEERING PRESSURE

SWITCH CONNECTOR

>>A<<

11. FUEL HIGH-PRESSURE HOSE

CONNECTION

12. O-RING

<<A>>

13. FUEL RAIL AND INJECTOR

ASSEMBLY

14. INSULATORS

>>A<<

15. INJECTOR ASSEMBLY
16. FUEL RAIL
17. O-RING
18. INSULATORS
19. GROMMETS
20. INJECTORS

REMOVAL STEPS (Continued)

INJECTOR

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-1118

REMOVAL SERVICE POINT

.

<<A>> FUEL RAIL AND INJECTOR ASSEMBLY REMOVAL

CAUTION

Do not drop the injector.
Remove the fuel rail with the injectors attached to it.

INSTALLATION SERVICE POINT

.

>>A<< INJECTOR ASSEMBLY/FUEL HIGH-PRESSURE
HOSE INSTALLATION

CAUTION

• Do not kink the fuel high-pressure hose as it is made of

plastics.

• Do not let the engine oil get into the fuel rail.

1. Apply a drop of new engine oil to the O-ring.
2. Turn the injector to the right and left to install to the fuel rail.

Repeat for fuel high-pressure hose. Be careful not to
damage the O-ring. After installing, check that the item turns
smoothly.

3. If it dose not turn smoothly, the O-ring may be trapped,

remove the item, re-install it into the fuel rail and check
again.

4. Tighten the fuel high-pressure hose to the specified torque.

Tightening torque: 5.0

± 1.0 N⋅m (44 ± 9 in-lb)

THROTTLE BODY ASSEMBLY

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-1119

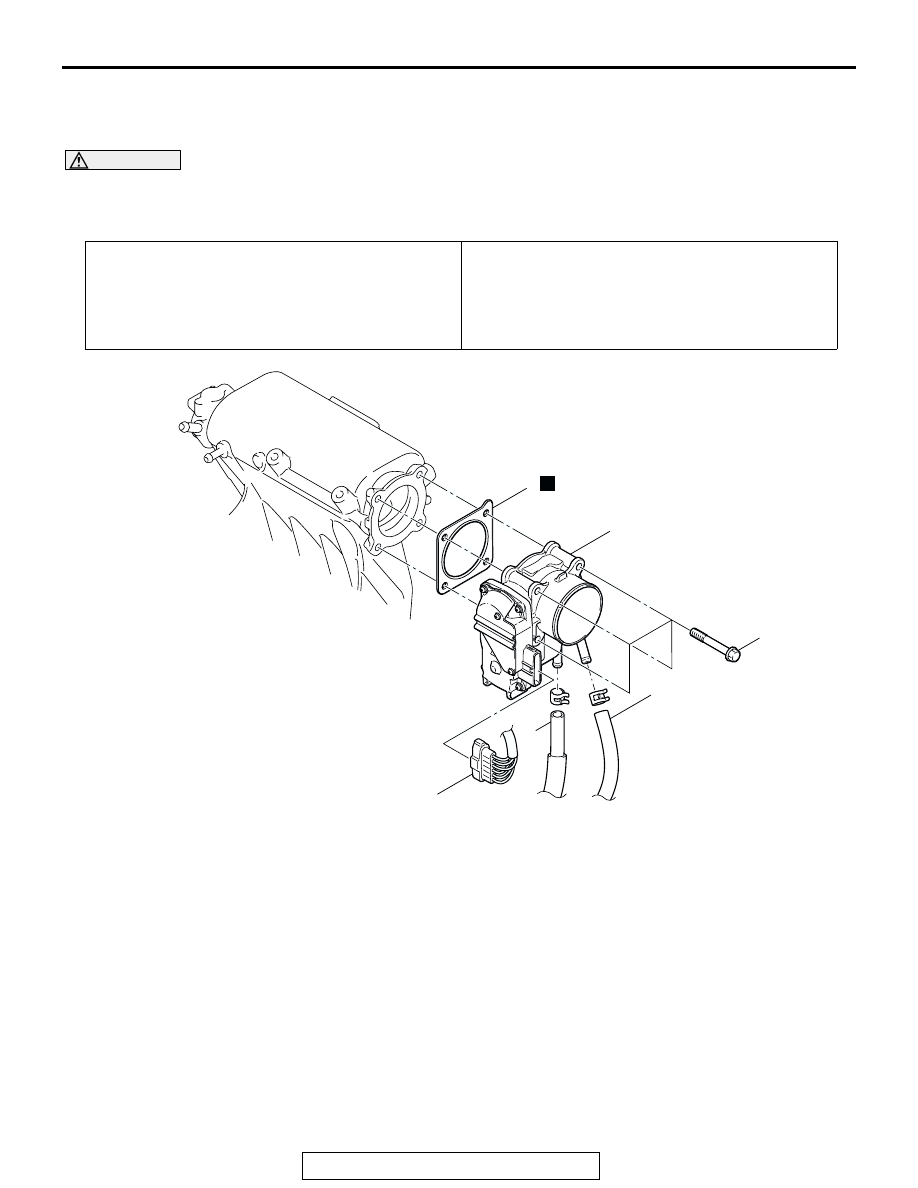

THROTTLE BODY ASSEMBLY

REMOVAL AND INSTALLATION

M1131007700641

CAUTION

Do not loosen the fixing screws for the resin cover of throttle body assembly. If the screws are loos-
ened, the sensor incorporated in the resin cover becomes misaligned and the throttle body can not
work normally.

Pre-removal Operation
• Engine Coolant Draining [Refer to GROUP 00, Mainte-

nance Service

− Engine Coolant (Change)

P.00-53

].

• Air Cleaner Cover and Air Intake Hose Removal (Refer to

GROUP 15, Air Cleaner

P.15-4

).

• Battery Removal

Post-installation Operation
• Battery Installation

• Air Cleaner Cover and Air Intake Hose Installation (Refer

to GROUP 15, Air Cleaner

P.15-4

).

• Engine Coolant Refilling [Refer to GROUP 00, Mainte-

nance Service

− Engine Coolant (Change)

P.00-53

].

AC304161

4

2

AC

3

5

N

28 ± 4 N·m
21 ± 3 ft-lb

1

REMOVAL STEPS

1.

THROTTLE POSITION SENSOR
CONNECTOR

2.

WATER RETURN HOSE
CONNECTION

3.

WATER FEED HOSE
CONNECTION

4.

THROTTLE BODY ASSEMBLY

>>A<<

5.

THROTTLE BODY GASKET

REMOVAL STEPS (Continued)

THROTTLE BODY ASSEMBLY

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-1120

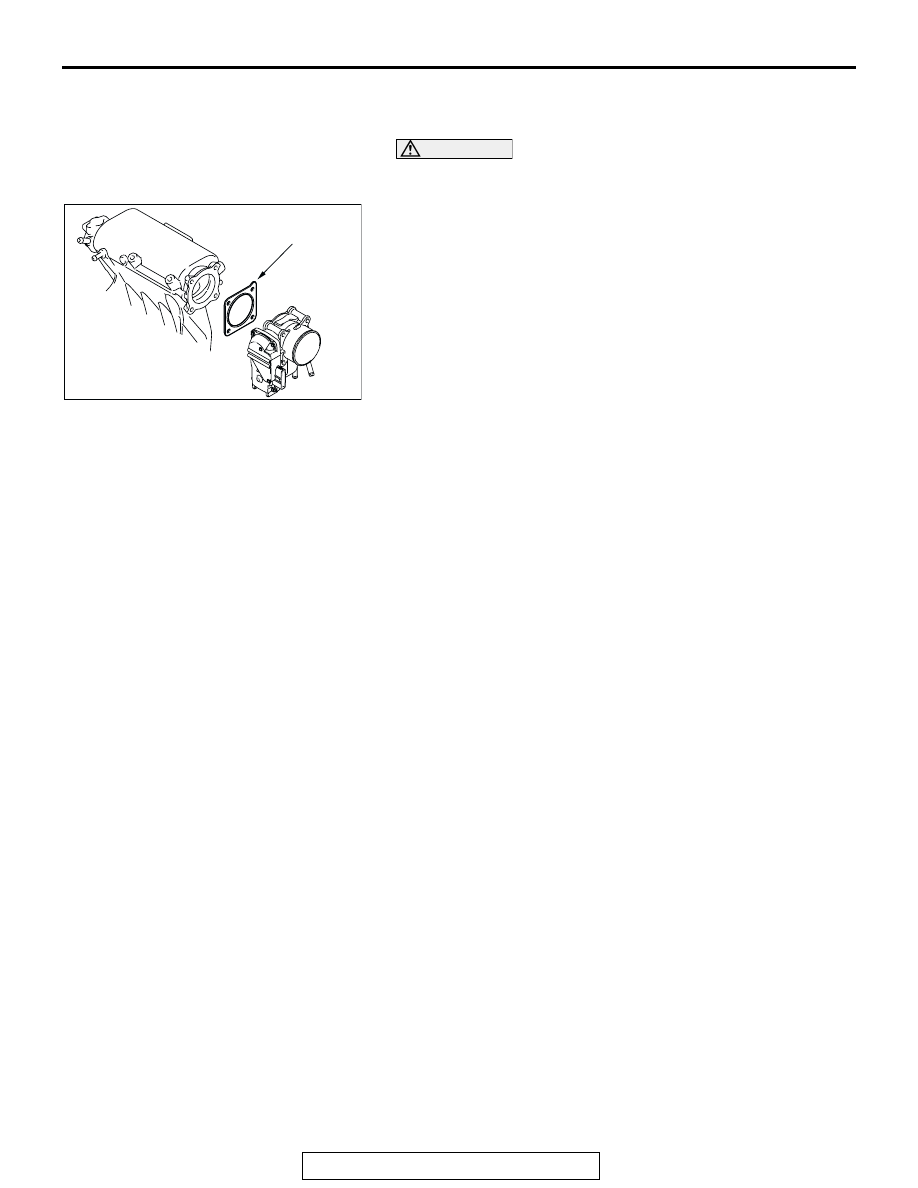

INSTALLATION SERVICE POINT

.

>>A<< THROTTLE BODY GASKET INSTALLATION

CAUTION

Poor idling etc. may result if the throttle body gasket is
installed incorrectly.
Install the gasket as its protrusion is in the direction shown.

AC304212AB

PROJECTION
