ANTICORROSION PRIMER LOCATIONS

TSB Revision

CORROSION PROTECTION

4-5

ANTICORROSION PRIMER LOCATIONS

M4040002000153

To prevent rusting from chipping (flying rock), a prim-
ing panel primer has been applied to the areas indi-
cated in the figure.

The priming panel primer is applied between the
under and middle coat. It improves anti-corrosive
performance by preventing flying rock to damage the
body panel with the primer application, according to
the thickness and elasticity of the primer. Apply the
primer before the middle coat when replacing the
panel complete with a priming panel primer applica-
tion.

PRIMER NAME

RECOMMENDED PRIMER

COATING THICKNESS

Rocker panel primer Glasurit FX89

−

7300 (Polyester basis) or FT90

−

7103

(Water basis) or equivalent

0.3 mm (0.01 in) or more

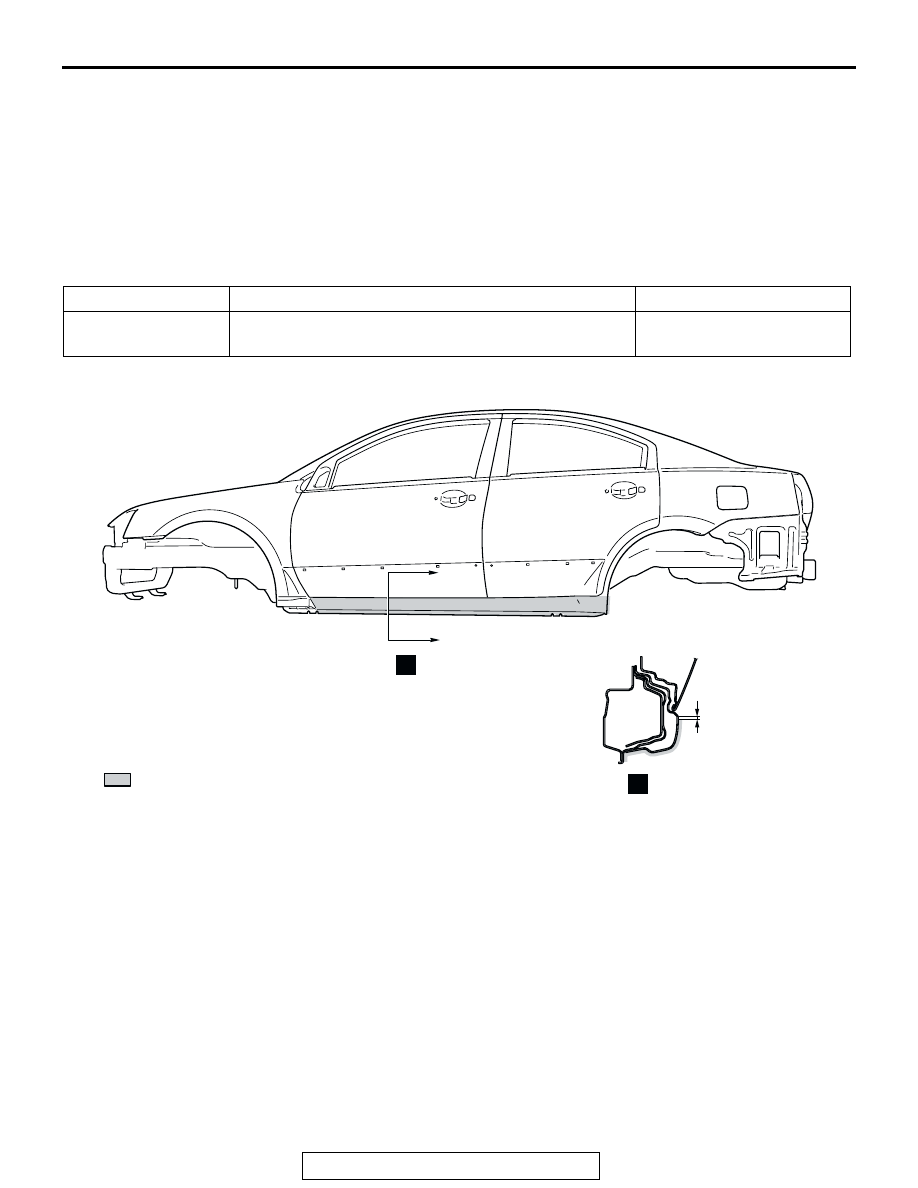

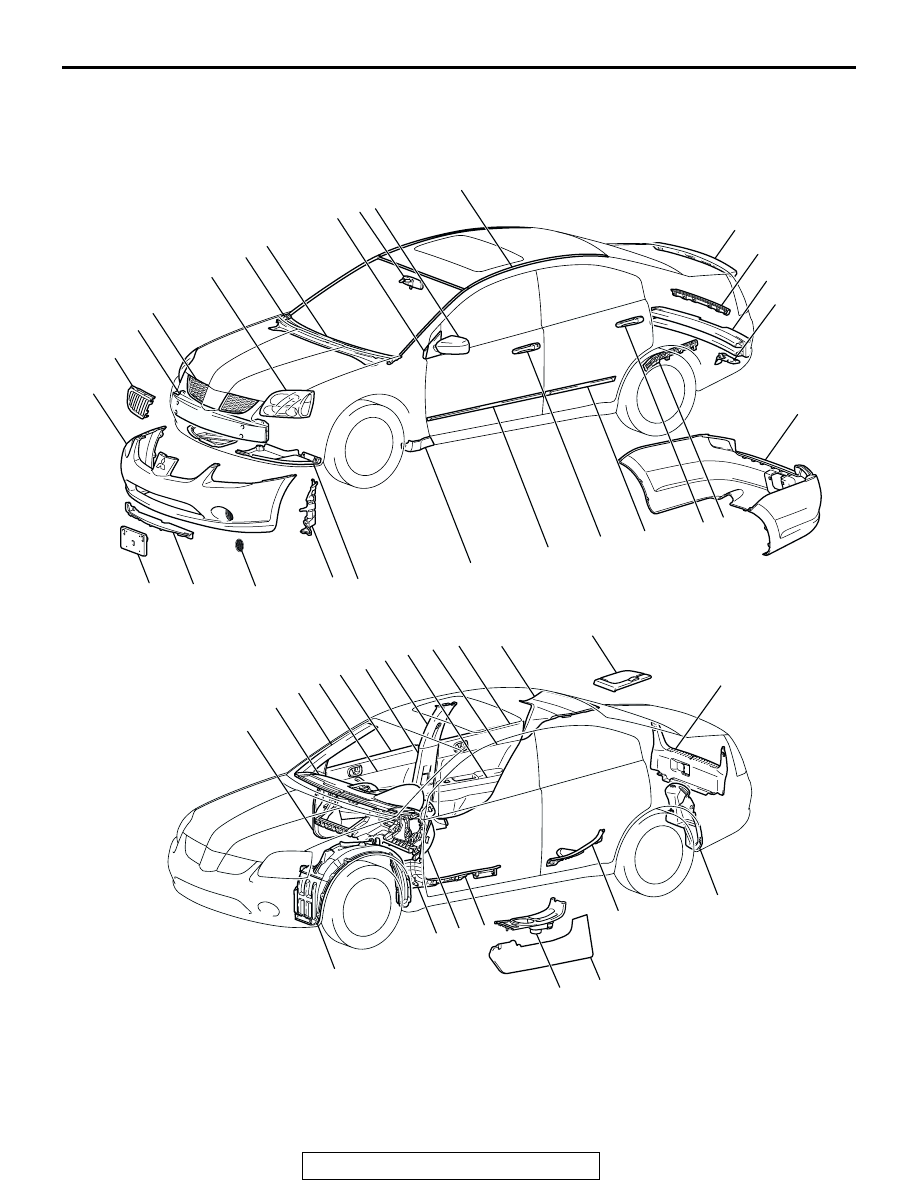

AB301405

5 mm

(0.2 in)

: Rocker panel primer

UNDERCOAT APPLICATION LOCATIONS

TSB Revision

CORROSION PROTECTION

4-6

UNDERCOAT APPLICATION LOCATIONS

M4040003000178

The under parts of the body is undercoated for
anti-corrosive, anti-rust, anti-chipping, and anti-vibra-
tion performance.
After correcting the body, restore as shown in the
instructions of the figure, if necessary.

Tape the areas marked with an asterisks to protect
those areas from getting any undercoating on those
areas for parts attachment.

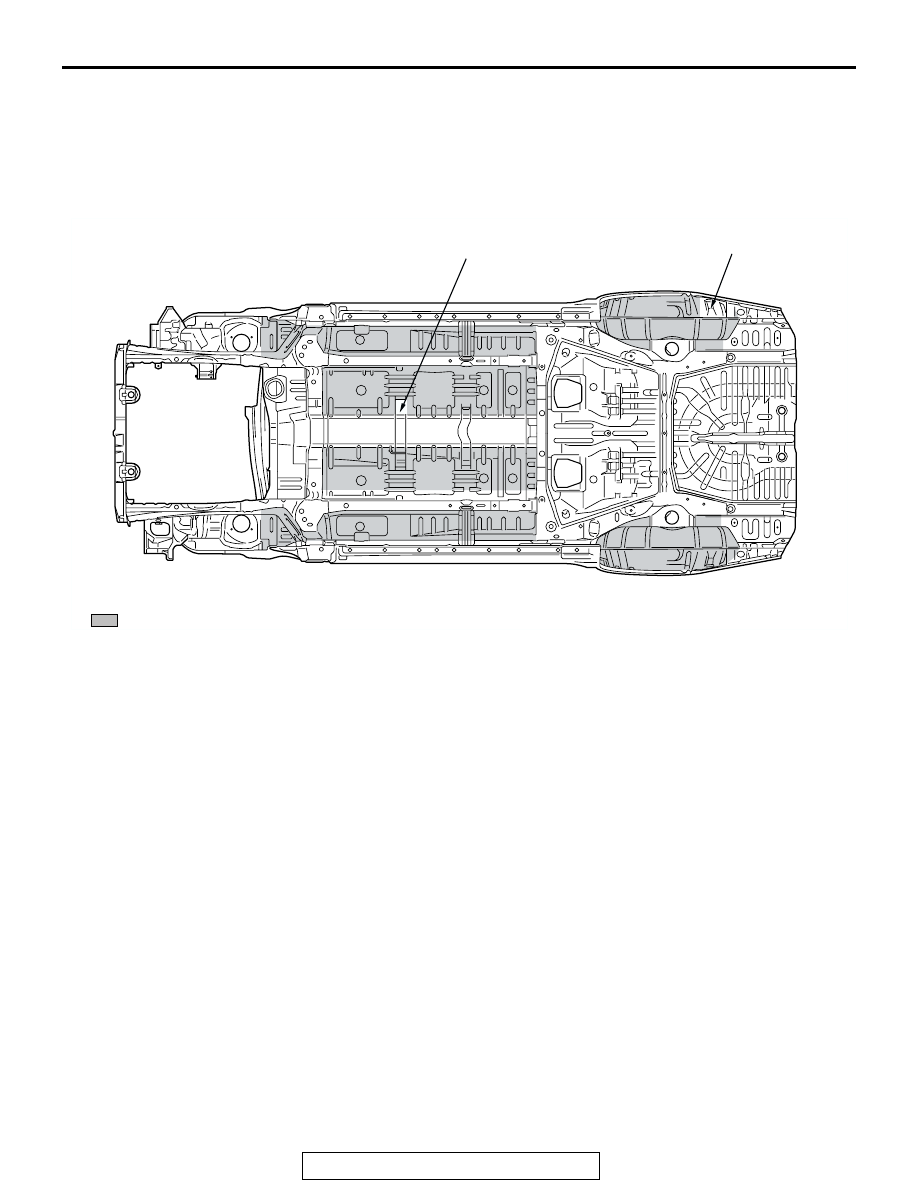

AB301308AC

: UNDERCOAT [FILM THICKNESS OF AT LEAST 0.75 mm (0.03 inch)]
