BODY SEALING LOCATIONS  . . . . .

4-2

ANTICORROSION PRIMER
LOCATIONS. . . . . . . . . . . . . . . . . . . .

4-5

UNDERCOAT APPLICATION
LOCATIONS . . . . . . . . . . . . . . . . . . . .

4-6

BODY SEALING LOCATIONS

TSB Revision

CORROSION PROTECTION

4-2

BODY SEALING LOCATIONS

M4040001000202

NOTES WITH REGARD TO REPAIR
WORK

In place where the sealant can be directly seen on
surfaces such as the drip rails, pillars, or clinch, and
where the appearance of the paint surface is impor-
tant, apply sealant or wipe away sealant after appli-
cation to make the amount of sealant even. Be
careful not to cover the drain hole. Places indicated
by thick dashed lines indicate application locations
on the under side of the vehicle.

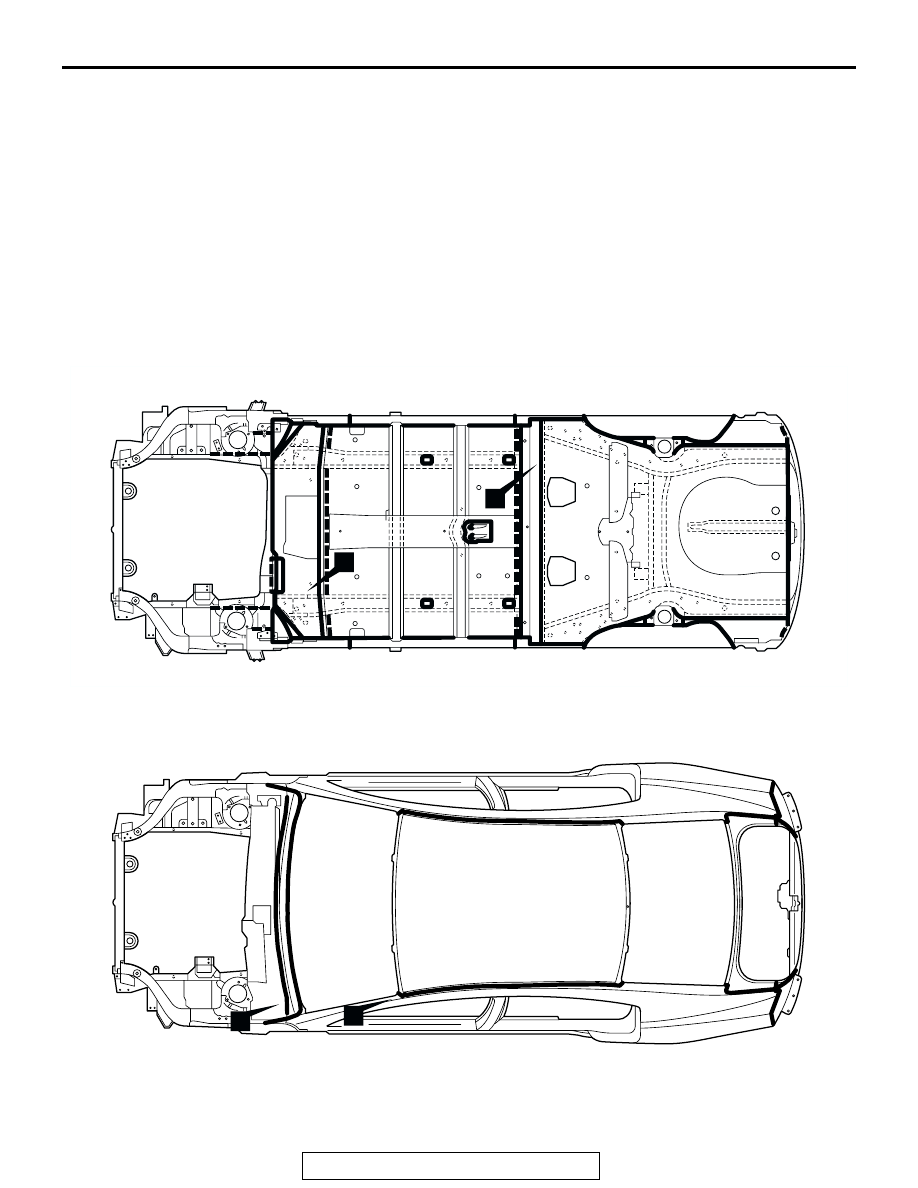

FLOOR

UPPER BODY

AB301260

AB

2

1

AB301261

AB

3

4

BODY SEALING LOCATIONS

TSB Revision

CORROSION PROTECTION

4-3

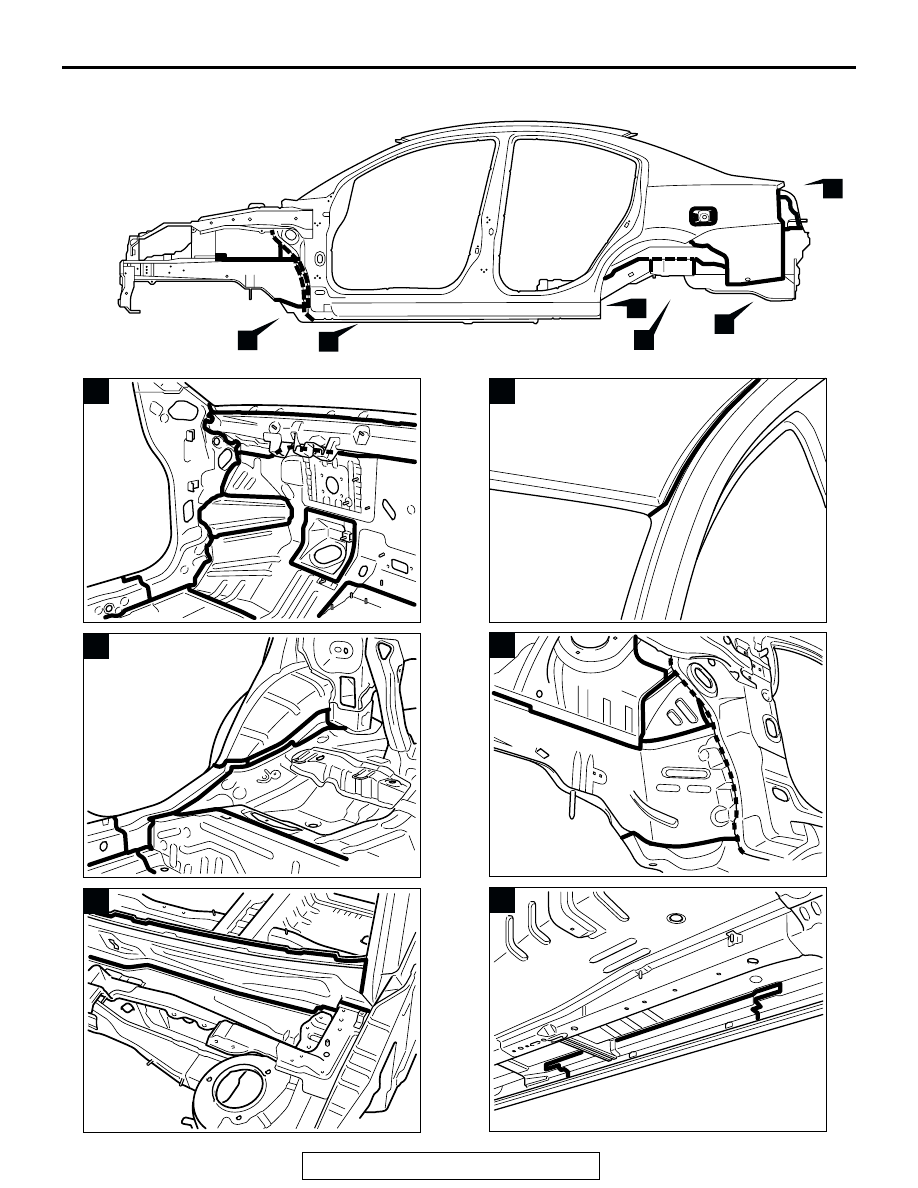

SIDE BODY

AB301262

AB

9

5

7

8

10

6

AB301317

AB

1

AB301316

AB

2

AB301318

AB

3

AB301413

AB

4

AB301243

5

AB

AB301244

AB

6

BODY SEALING LOCATIONS

TSB Revision

CORROSION PROTECTION

4-4

AB301272

AB

7

AB301245

8

AB

AB301273

AB

9

AB301274

AB

10

AB301276

AB

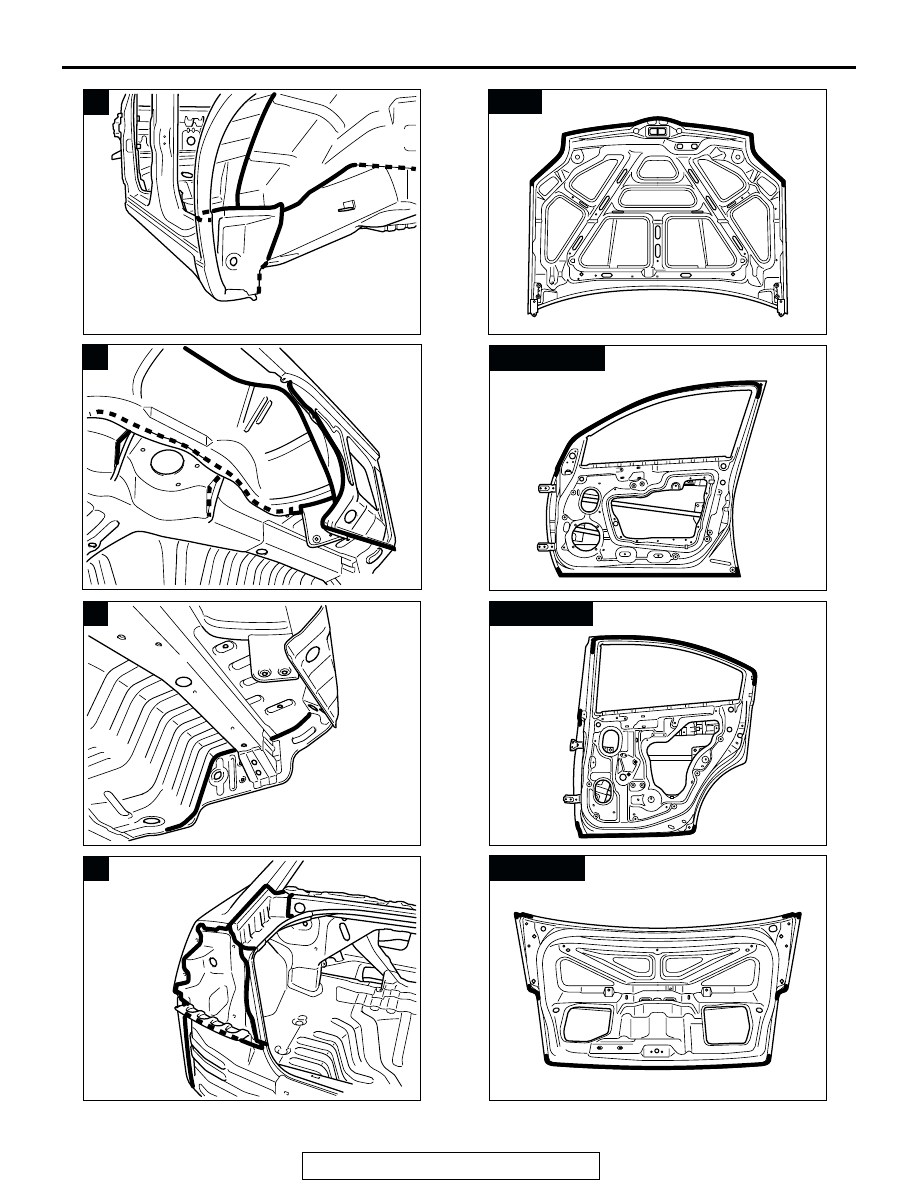

HOOD

AB301277

AB

FRONT DOOR

AB301278

AB

REAR DOOR

AB301279

TRUNK LID

AB
