THEFT PROTECTION

TSB Revision

BODY CONSTRUCTION

1-29

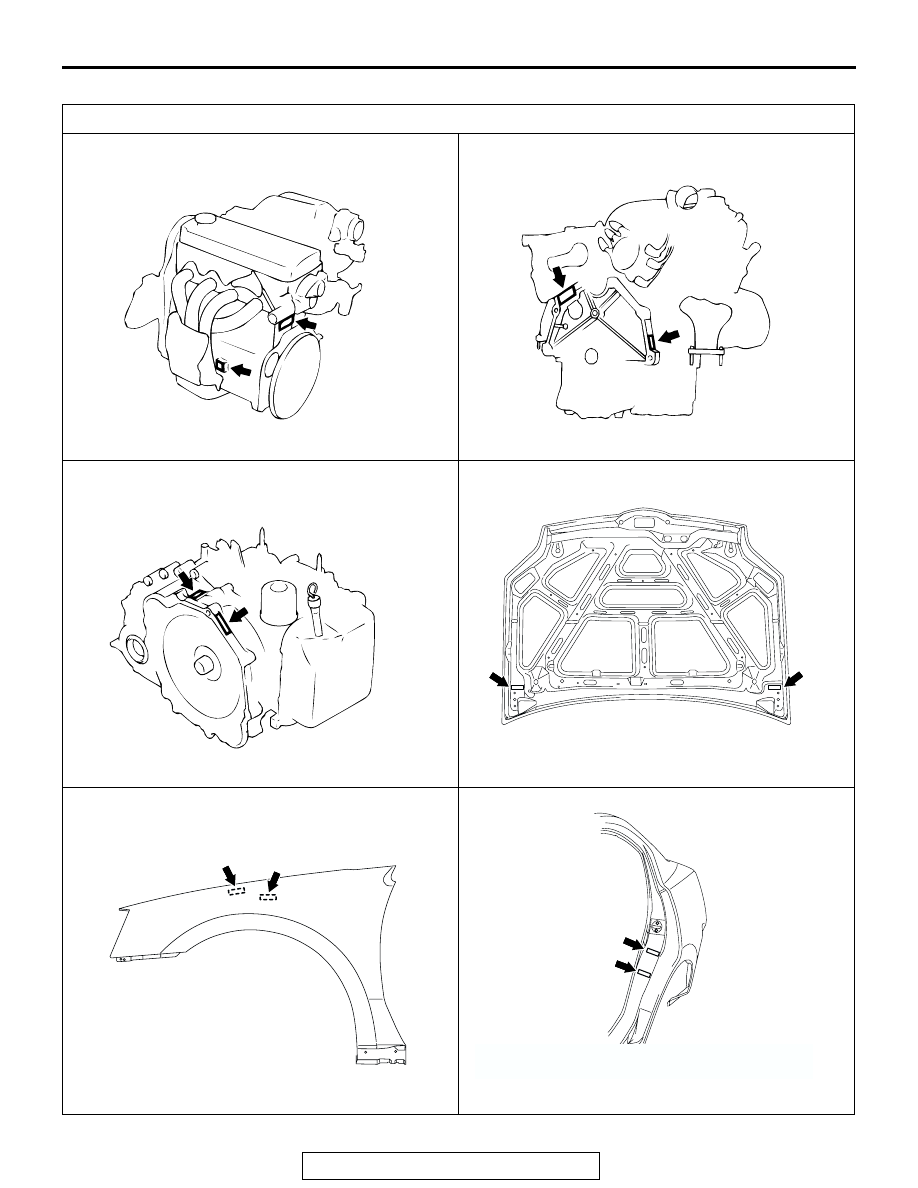

LOCATIONS

LABEL AREA (A: FOR ORIGINAL EQUIPMENT PARTS, B: FOR REPLACEMENT PARTS)

AC000058

ENGINE
<2.4L ENGINE>

AD

A

B

AC000061

ENGINE
<3.8L ENGINE>

AC

B

A

AC000060

AUTOMATIC TRANSAXLE

AB

A

B

AC307026AB

A

B

HOOD

AC307027

A

B

FENDER

THE ILLUSTRATION INDICATES
LEFT OUTER SIDE.
RIGHT SIDE IS SYMMETRICALLY
OPPOSITE.

AB

AC307028AB

A

B

REAR QUARTER OUTER PANEL

THE ILLUSTRATION INDICATES LEFT OUTER SIDE.
RIGHT SIDE IS SYMMETRICALLY OPPOSITE.

THEFT PROTECTION

TSB Revision

BODY CONSTRUCTION

1-30

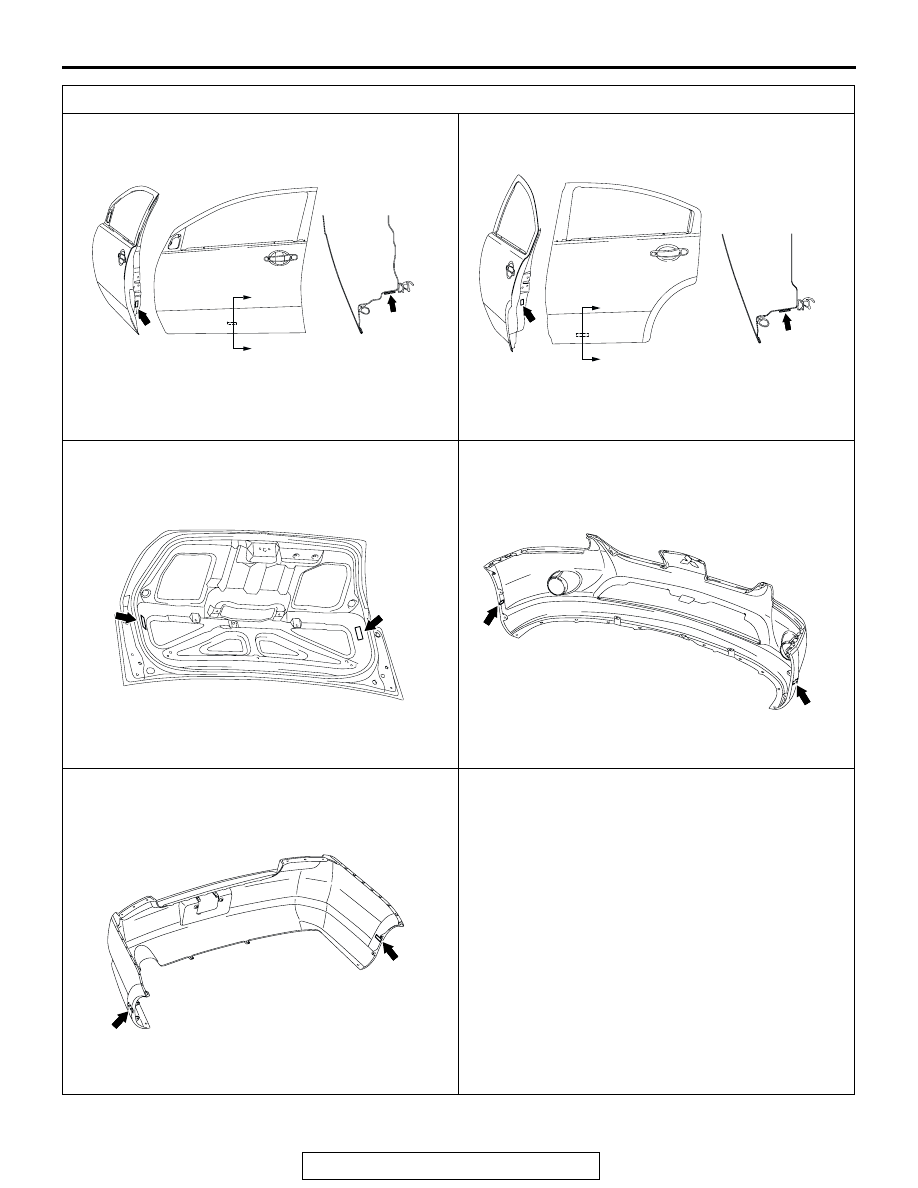

LABEL AREA (A: FOR ORIGINAL EQUIPMENT PARTS, B: FOR REPLACEMENT PARTS)

AC307042AB

A

B

FRONT DOOR

THE ILLUSTRATION INDICATES LEFT INNER SIDE.
RIGHT SIDE IS SYMMETRICALLY OPPOSITE.

C

C

SECTION C-C

AC307044AB

A

B

REAR DOOR

THE ILLUSTRATION INDICATES LEFT INNER SIDE.
RIGHT SIDE IS SYMMETRICALLY OPPOSITE.

D

D

SECTION D-D

AC307046AB

A

B

TRUNK LID

 AC307067AB

B

A

FRONT BUMPER

AC307083AB

A

B

REAR BUMPER

2-1

GROUP 2

BODY DIMENSIONS

CONTENTS

BODY DIMENSIONS AND
MEASUREMENT METHODS. . . . . . .

2-2

TYPE A (PROJECTED DIMENSIONS)

2-4

UNDER BODY  . . . . . . . . . . . . . . . . . . . . . .

2-4

SUSPENSION INSTALLATION DIMENSIONS

2-6

TYPE B (ACTUAL-MEASUREMENT
DIMENSIONS). . . . . . . . . . . . . . . . . . .

2-8

UNDER BODY. . . . . . . . . . . . . . . . . . . . . . .

2-8

SUSPENSION INSTALLATION
DIMENSIONS  . . . . . . . . . . . . . . . . . . . . . . .

2-10

FRONT BODY . . . . . . . . . . . . . . . . . . . . . . .

2-12

SIDE BODY . . . . . . . . . . . . . . . . . . . . . . . . .

2-14

REAR BODY . . . . . . . . . . . . . . . . . . . . . . . .

2-16

INTERIOR . . . . . . . . . . . . . . . . . . . . . . . . . .

2-18

BODY DIMENSIONS AND MEASUREMENT METHODS

TSB Revision

BODY DIMENSIONS

2-2

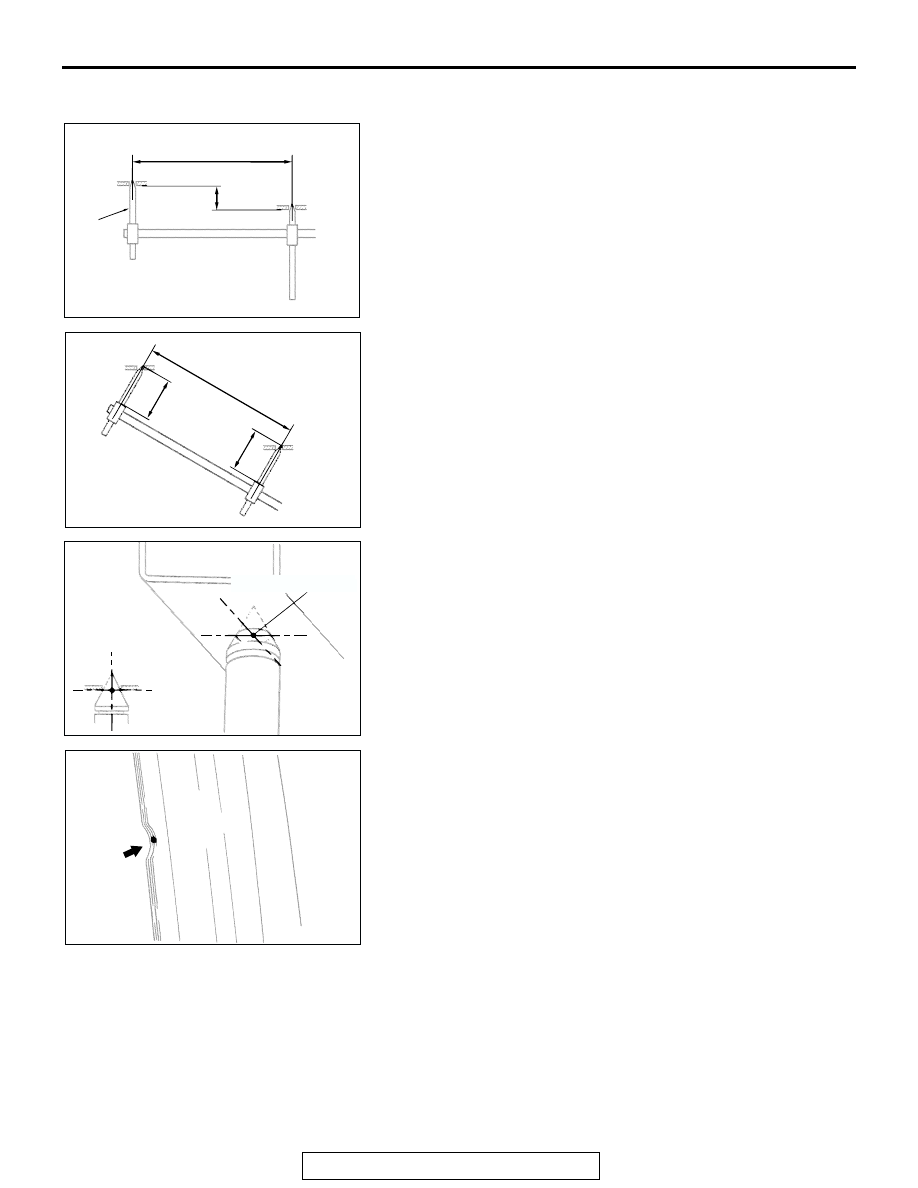

BODY DIMENSIONS AND MEASUREMENT METHODS

M4020001000158

1. Type A (projected dimensions)

Indicates the dimension when a measurement location is
projected onto the plane.
The difference in height of the measurement points should
be taken into consideration when measuring.

2. Type B (actual-measurement dimensions)

Indicates the actual distance between the measurement
points.
Measure using a tracking gauge or a measuring tape, etc.
NOTE:

.

•

Make the lengths of the tracking gauge probes the same
(A=A’).

•

Do not bend or twist the measuring tape.

3. Insert the tracking gauge probes securely into the

measurement holes.

4. When the standard dimensions in the illustration are

enclosed by oblong, this indicates that the symmetrical left
and right positions have the same dimensions.

5. When using a notch for dimension measurement, set the

measuring point at the center of the notch.

AB100778

PROJECTED DIMENSION

HEIGHT

PROBE

AB

AB100779AB

ACTU

ALL

Y-MEASURED

DIMENSION

A

A'

AB100780

AB100780AB

CENTER OF HOLE

AB100781AB
