SILENCER APPLICATION LOCATIONS

TSB Revision

BODY CONSTRUCTION

1-25

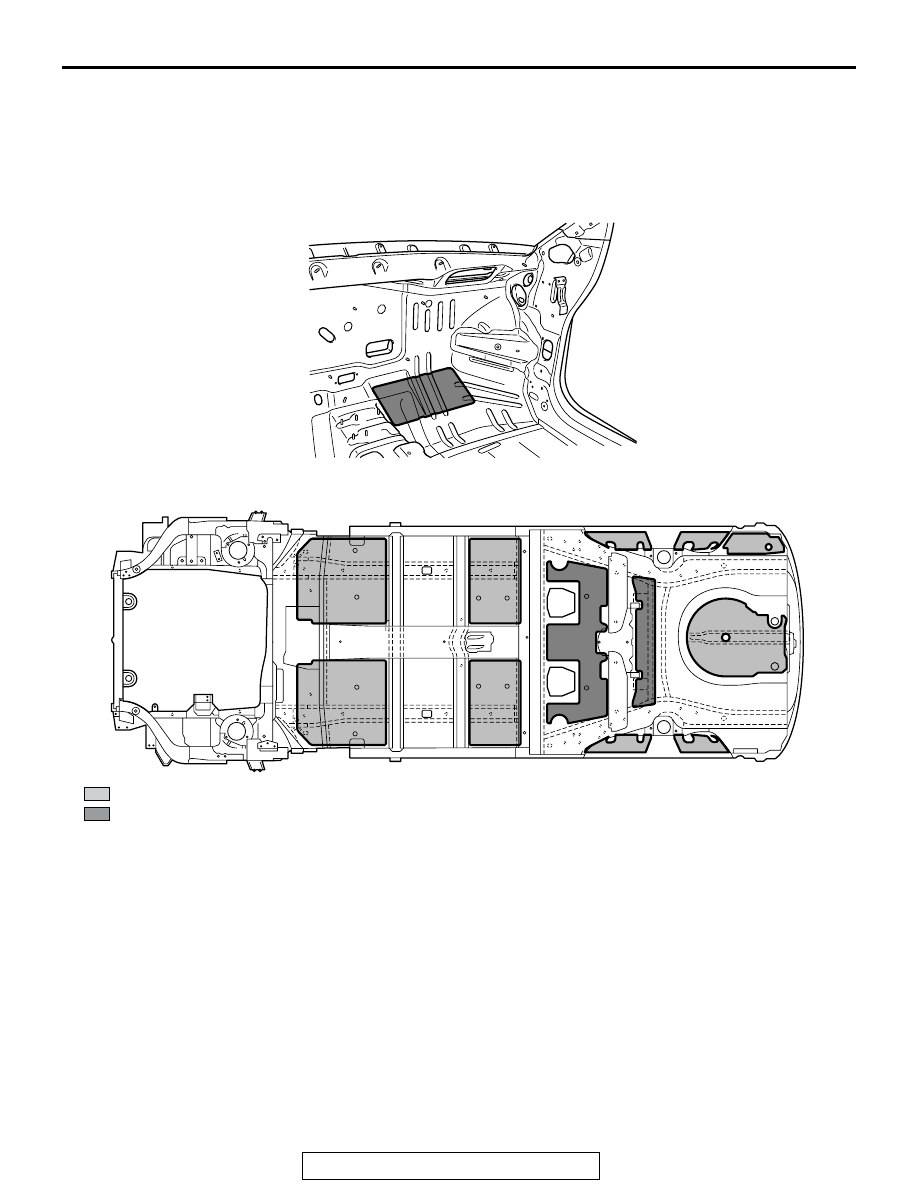

SILENCER APPLICATION LOCATIONS

M4010005000171

A silencer (melting sheet) has been adhered on the
dash panel and the top part of the floor to improve
anti-vibration performance and to shut-out exhaust
gas heat.

AB301541

 : 1.6 mm (0.06 in) thick melting sheet.

 : 3.2 mm (0.13 in) thick melting sheet. [Place two 1.6 mm (0.06 in) melting sheet one on top of another.]

AB

NOTE:
When you use melting sheet(s) in place, follow the instructions enclosed by [   ].

FOAMING MATERIAL USAGE LOCATIONS

TSB Revision

BODY CONSTRUCTION

1-26

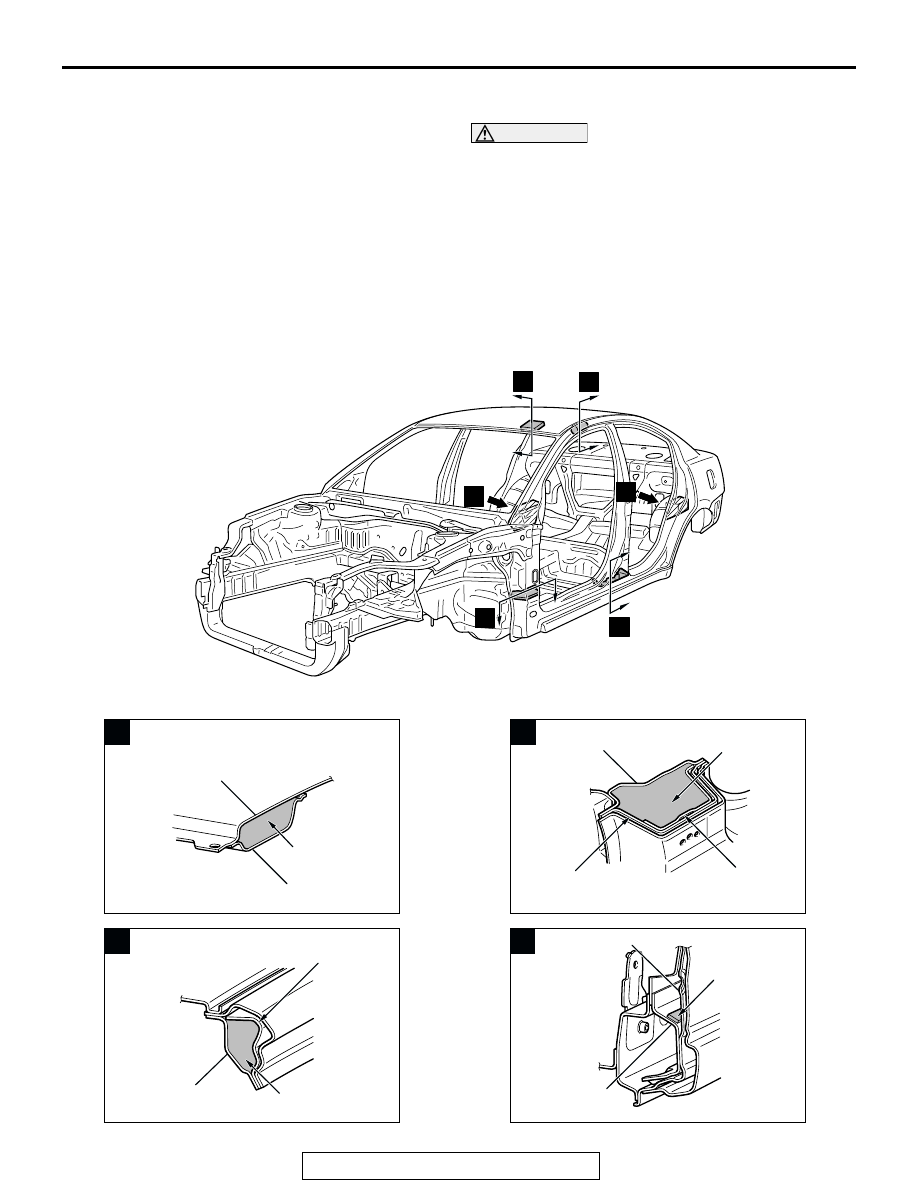

FOAMING MATERIAL USAGE LOCATIONS

M4010006000033

•

Introduction of noise was prevented by inserting
urethane foam inside the front pillar and rear
spring bracket support.

•

By filling the roof rail, the front pillar, center pillar,
rear pillar and inside the wheelhouse arch with
foam acoustic material, penetration of noise is
prevented.

CAUTION

The foam materials may burn when heated.
Always observe the following instructions.

•

Never use a gas burner or burn the areas
using foam materials.

•

When cutting the parts using foam materials,
ensure to use tools (air saw, etc.) that do not
generate fire.

•

If there are residual foam materials at body
side then weld after removing the foam mate-
rials from periphery of the welding area.

AB300924

AB

B

D

E

F

A

C

AB300878

AB

FOAM
ACOUSTIC
MATERIAL

A

ROOF RAIL FRONT INNER

ROOF PANEL

AB300879

AB

FOAM ACOUSTIC
MATERIAL

B

ROOF SIDE
RAIL INNER

SIDE OUTER
REINFORCEMENT

AB300880

AB

C

FOAM ACOUSTIC
MATERIAL

SIDE OUTER
REINFORCEMENT

SIDE SILL OUTER
REINFORCEMENT
INNER

FRONT PILLAR
INNER LOWER

AB300881

AB

D

FOAM
ACOUSTIC
MATERIAL

SIDE OUTER REINFORCEMENT

SIDE SILL
OUTER
REINFORCEMENT
INNER

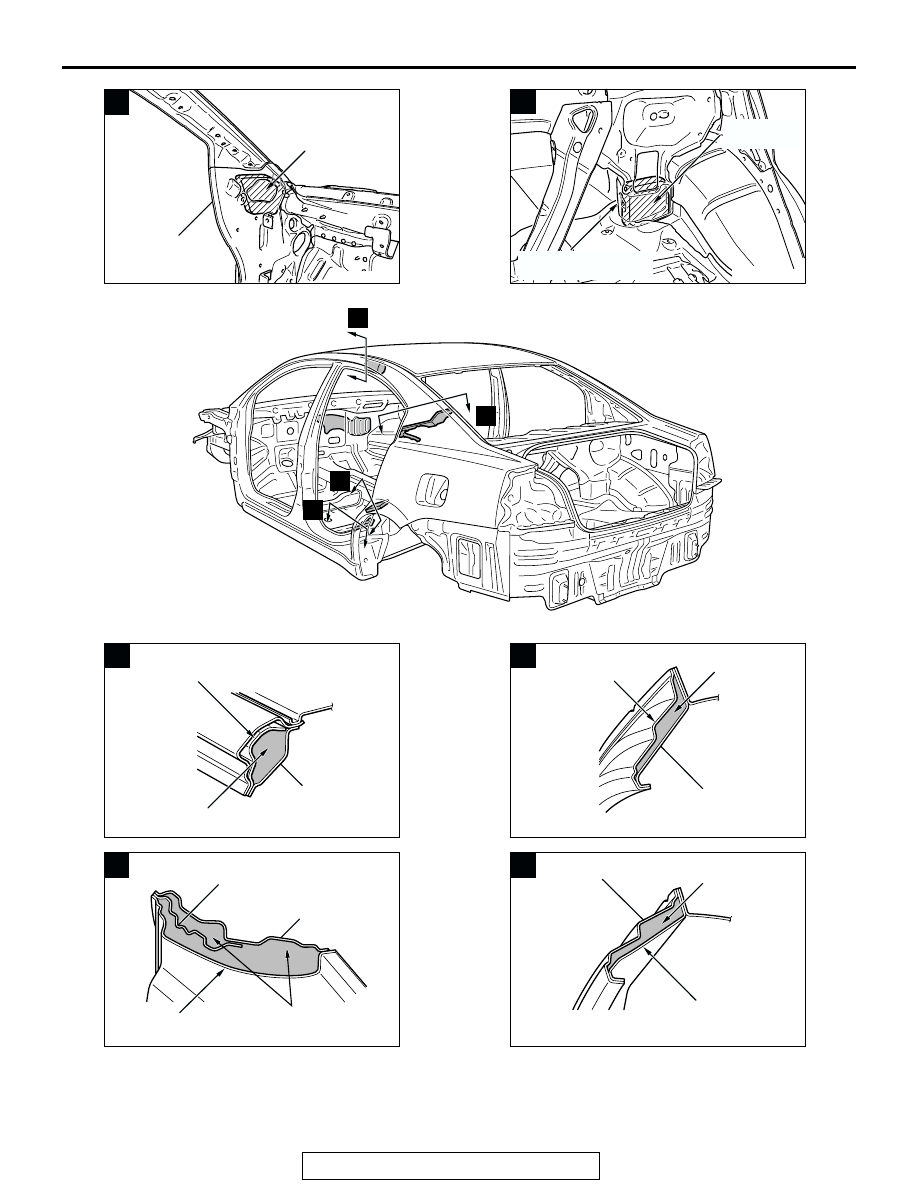

FOAMING MATERIAL USAGE LOCATIONS

TSB Revision

BODY CONSTRUCTION

1-27

AB300876

AB

E

URETHANE
FOAM

FRONT PILLAR
INNER LOWER

AB300877

F

AB

REAR SPRING
BRACKET SUPPORT

URETHANE
FOAM

AB300925

AB

J

H

I

G

AB300882

AB

FOAM
ACOUSTIC
MATERIAL

G

SIDE ROOF RAIL
REINFORCEMENT REAR

ROOF SIDE
RAIL INNER

AB300884

SIDE OUTER
PANEL

AB

FOAM ACOUSTIC
MATERIAL

REAR PILLAR
REINFORCEMENT

REAR QUARTER
INNER PANEL UPPER

H

AB300885

AB

SIDE OUTER
PANEL

REAR QUARTER
INNER PANEL LOWER

FOAM
ACOUSTIC
MATERIAL

I

AB300886

AB

SIDE OUTER
PANEL

REAR QUARTER
INNER PANEL LOWER

FOAM
ACOUSTIC
MATERIAL

J

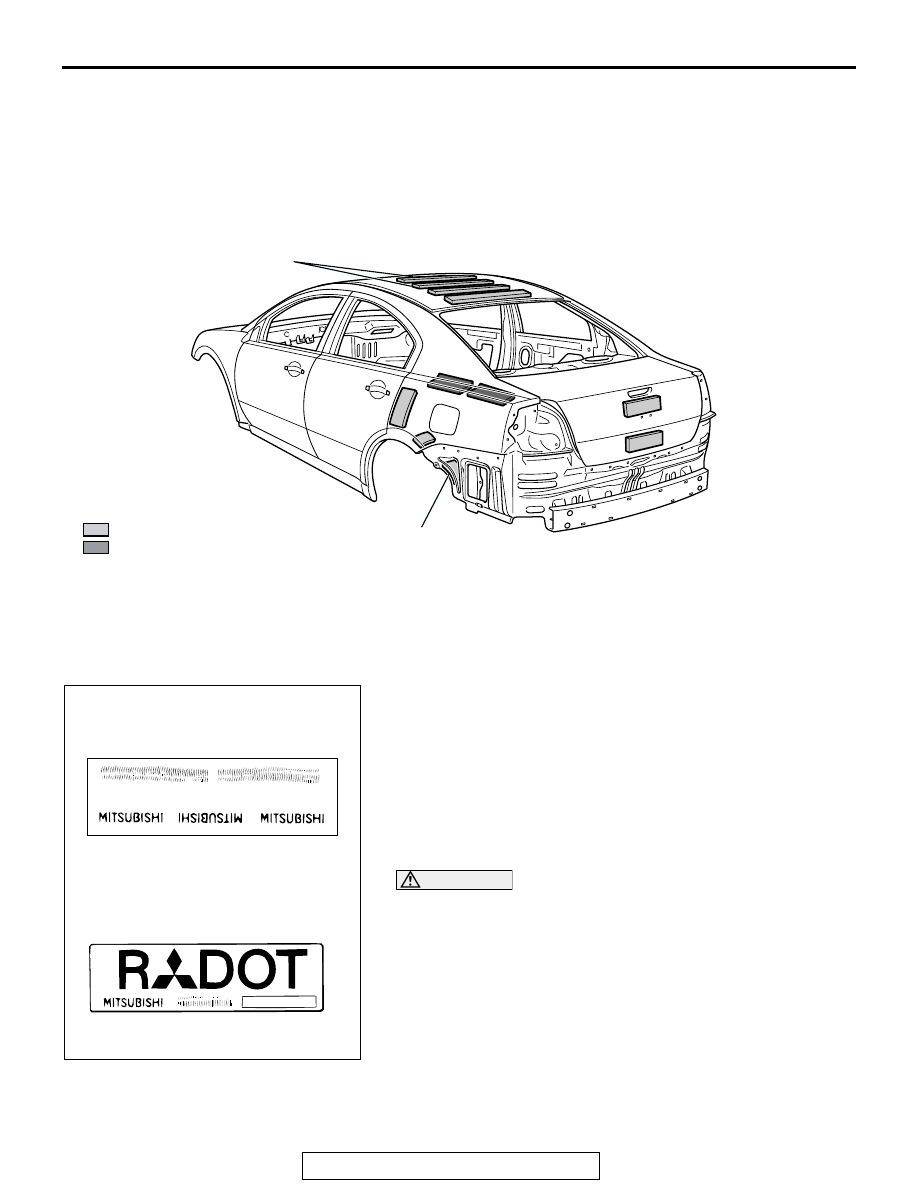

STIFFENER AND DUMP SHEET APPLICATION LOCATIONS

TSB Revision

BODY CONSTRUCTION

1-28

STIFFENER AND DUMP SHEET APPLICATION LOCATIONS

M4010009000032

Sound insulation was improved with anti-vibration
effects and heightening surface rigidity with a stiff-
ener on the inner side of the side outer panel, as well
as a damping sheet adhered to the inner side of the
side outer panel, rear quarter inner panel lower, roof
panel and trunk lid outer panel.

NOTE: . The main contents of a stiffener are epoxy
resin. It comes in a sheet form and contains a mix-
ture of glass fiber and filler, and cures (stiffens) when
heated. It is used to improve the rigidity of the outer
plate.

THEFT PROTECTION

M4010017000060

THEFT PROTECTION

.  In order to protect against theft, a Vehicle Identification Number

(VIN) is attached as a plate or label to the following major parts
of the engine and transaxle, as well as main outer panels:
Engine cylinder block, Transaxle housing, Fender, Doors,
Trunk lid, Rear quarter outer panel, Hood, Bumpers
In addition, a theft-protection label is attached to replacement
parts for the body outer panel main components, and the same
data is stamped into replacement parts for the engine and the
transaxle.

CAUTION

Cautions regarding panel repairs:

1. When repainting original parts, do so after first masking

the theft-protection label. After painting, be sure to peel
off the masking tape.

2. The theft-protection label for replacement parts is cov-

ered by masking tape, so such parts can be painted as
is. The masking tape should be removed after painting
is finished.

3. The theft-protection label should not be removed from

original parts or replacement parts.

AB301322

AB

: STIFFENER APPLICATION LOCATION

: DUMP SHEET APPLICATION LOCATION

RIGHT SIDE ONLY

VEHICLES WITHOUT
SUN ROOF ONLY

AC211646

THEFT PROTECTION LABEL
FOR ORIGINAL PARTS

FOR REPLACEMENT PARTS

AB
