INTRODUCTION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM(SRS)

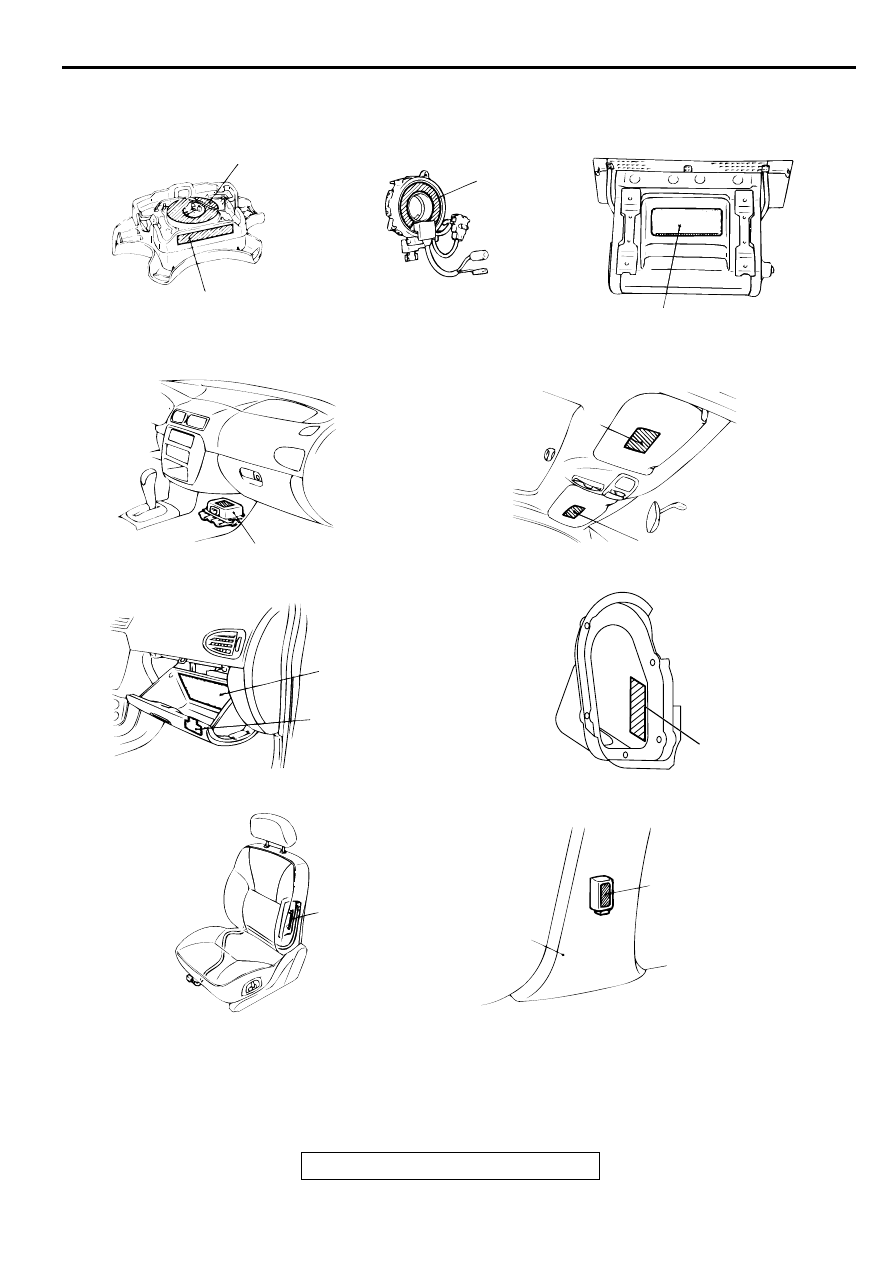

52B-5

AC003668AB

AIR BAG MODULE
(DRIVER'S SIDE)

B

A

SRS-ECU

E

GLOVE BOX

G

H

SIDE AIR BAG MODULE
(DRIVER'S AND FRONT PASSENGER'S SEAT)

D

CLOCK SPRING

C

AIR BAG MODULE
(FRONT PASSENGER'S SIDE)

D

SUN VISOR

F

JOINT COVER

I

SIDE IMPACT SENSOR

E

CENTER PILLAR

F

INTRODUCTION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM(SRS)

52B-6

LABEL CONTENTS

A.

WARNING: SRS
THIS AIR BAG MODULE CANNOT BE REPAIRED. DO NOT DISASSEMBLE OR
TAMPER. DO NOT PERFORM DIAGNOSIS. DO NOT TOUCH WITH ELECTRICAL
TEST EQUIPMENT OR PROBES. REFER TO SERVICE MANUAL FOR FURTHER IN-
STRUCTIONS, AND FOR SPECIAL HANDLING, STORAGE AND DISPOSAL PROCE-
DURES, TAMPERING OR MISHANDLING CAN RESULT IN INJURY.

B.

DANGER FLAMMABLE MATERIAL
TO PREVENT PERSONAL INJURY, DO NOT DISMANTLE, INCINERATE, OR BRING
INTO CONTACT WITH ELECTRICITY STORE BELOW 200

°

F (93

°

C).

C.

CAUTION: SRS CLOCK SPRING
THIS IS NOT A REPAIRABLE PART. IF DEFECTIVE, REPLACE ENTIRE UNIT AC-
CORDING TO THE SERVICE MANUAL INSTRUCTIONS. TO RE-CENTER: ROTATE
CLOCKWISE UNTIL TIGHT. THEN ROTATE IN OPPOSITE DIRECTION ROUGHLY 3
TURNS AND ALIGN ARROWS >><<.

D.

WARNING FLAMMABLE/EXPLOSIVE SRS AIR BAG MODULE
TO AVOID SERIOUS INJURY:

•

DO NOT REPAIR, DISASSEMBLE OR TAMPER.

•

AVOID CONTACT WITH FLAME OR ELECTRICITY.

•

DO NOT DIAGNOSIS/USE NO TEST EQUIPMENT OR PROBES.

•

STORE BELOW 200

°

F (93

°

C).

•

BEFORE DOING ANY WORK INVOLVING MODULE, READ SERVICE MANUAL
FOR IMPORTANT FURTHER DATA.

E.

CAUTION:
DO NOT DISASSEMBLE OR DROP. IF DEFECT REFER TO SERVICE MANUAL.

F.

WARNING
DEATH or SERIOUS INJURY can occur

•

Children 12 and under can be killed by the air bag.

•

The BACK SEAT is the SAFEST place for children.

•

NEVER put a rear-facing child seat in the front.

•

Sit as far back as possible from the air bag.

•

ALWAYS use SEAT BELTS and CHILD RESTRAINS.

INTRODUCTION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM(SRS)

52B-7

G.

AIR BAG SYSTEM INFORMATION
THIS VEHICLE HAS AN AIR BAG SYSTEM WHICH WILL SUPPLEMENT THE SEAT
BELT IN CERTAIN FRONTAL COLLISIONS. THE AIR BAG IS NOT A SUBSTITUTE FOR
THE SEAT BELT IN ANY TYPE OF COLLISION. THE DRIVER AND ALL OTHER OCCU-
PANTS SHOULD WEAR SEAT BELTS AT ALL TIME.
WARNING!
IF THE "SRS" WARNING LIGHT DOES NOT ILLUMINATE FOR SEVERAL SECONDS
WHEN IGNITION KEY IS TURNED TO "ON" OR THE ENGINE IS STARTED, OR IF THE
WARNING LIGHT STAYS ON WHILE DRIVING, TAKE THE VEHICLE TO YOUR NEAR-
EST AUTHORIZED DEALER IMMEDIATELY. ALSO, IF VEHICLE'S FRONT END IS
DAMAGED OR IF THE AIR BAG HAS DEPLOYED, TAKE THE VEHICLE FOR SERVICE
IMMEDIATELY.
THE AIR BAG SYSTEM MUST BE INSPECTED BY AN AUTHORIZED DEALER TEN
YEARS AFTER THE VEHICLE MANUFACTURE DATE SHOWN ON THE CERTIFICA-
TION LABEL LOCATED ON THE LEFT FRONT DOOR-LATCH POST OR DOOR
FRAME.
READ THE "SRS" SECTION OF YOUR OWNER'S MANUAL BEFORE DRIVING FOR
IMPORTANT INFORMATION ABOUT OPERATION AND SERVICE OF THE AIR BAG
SYSTEM.
WHEN YOU ARE GOING TO DISCARD YOUR GAS GENERATOR OR VEHICLE,
PLEASE SEE YOUR DEALER.

H.

WARNING
CHILDREN CAN BE KILLED OR INJURED BY PASSENGER AIR BAG. THE BACK
SEAT IS THE SAFEST PLACE FOR CHILDREN 12 AND UNDER. MAKE SURE ALL
CHILDREN USE SEAT BELTS OR CHILD SEAT. NOT TO BE REMOVED EXCEPT BY
OWNER.

I.

CAUTION: SRS
BEFORE REMOVAL OF STEERING GEARBOX, READ SERVICE MANUAL, CENTER
FRONT WHEELS AND REMOVE IGNITION KEY. FAILURE TO DO SO MAY DAMAGE
SRS CLOCK SPRING AND RENDER SRS SYSTEM INOPERATIVE, RISKING SERI-
OUS DRIVER INJURY.

LABEL CONTENTS

INTRODUCTION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM(SRS)

52B-8

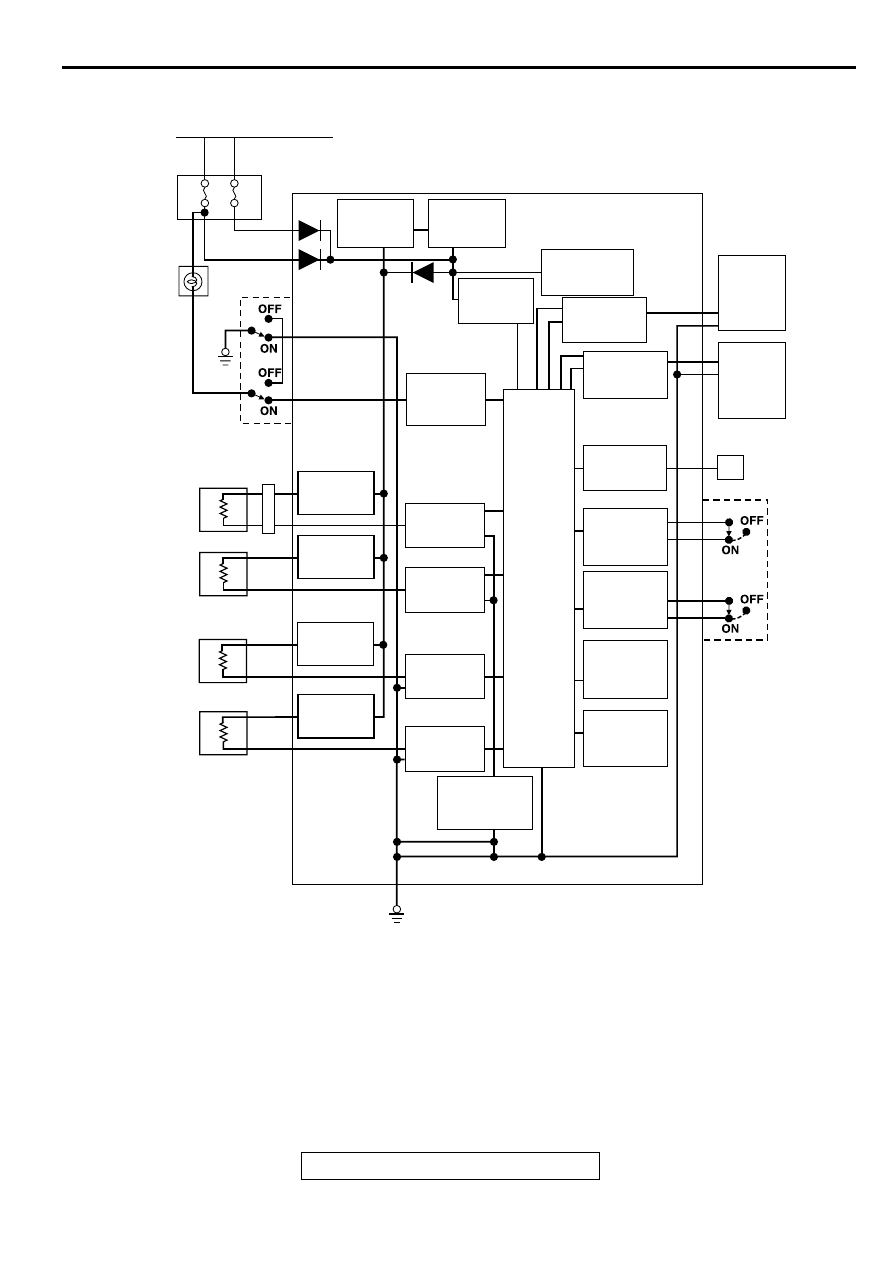

SCHEMATIC

AC003601AB

IGNITION SWITCH

10 A 10 A

MULTI-
PURPOSE
FUSES

COMBINATION
METER
(SRS WARNING
LIGHT)

CONNECTOR LOCK SWITCH
(CONNECTOR LOCKED: ON
CONNECTOR UNLOCKED: OFF)

AIR BAG MODULE
(DRIVER'S SIDE)

AIR BAG MODULE
(FRONT
PASSENGER'S
SIDE)

SIDE AIR BAG
MODULE (RH)

SIDE AIR BAG
MODULE (LH)

CLOCK SPRING

SRS-ECU

BACK UP
CAPACITOR

DC-DC
CONVERTER

POWER
SOURCE
CIRCUIT

WARNING
LIGHT DRIVE
CIRCUIT

AIR BACK
DRIVE
CIRCUIT

AIR BACK
DRIVE
CIRCUIT

AIR BACK
DRIVE
CIRCUIT

AIR BACK
DRIVE
CIRCUIT

AIR BACK
DRIVE
CIRCUIT

AIR BACK
DRIVE
CIRCUIT

AIR BACK
DRIVE
CIRCUIT

AIR BACK
DRIVE
CIRCUIT

FRONT AIR
BAG SAFING
G-SENSOR

POWER SOURCE
CIRCUIT FOR
SIDE AIR BAG

INTERFACE
CIRCUIT

INTERFACE
CIRCUIT

MICRO
COMPUTER

SCAN TOOL
INTERFACE
CIRCUIT

CONNECTOR
LOCK
DETECTION
CIRCUIT

CONNECTOR
LOCK
DETECTION
CIRCUIT

SIDE AIR BAG
SAFING
G-SENSOR
(ANALOG
G-SENSOR)

FRONT AIR
BAG ANALOG
G-SENSOR

SIDE
IMPACT
SENSOR
(RH)

SIDE
IMPACT
SENSOR
(LH)

DATA LINK
CONNECTOR
(FOR SCAN
TOOL)

CONNECTOR
LOCK SWITCH
(CONNECTOR
LOCKED: ON,
CONNECTOR
UNLOCKED: OFF)
